美國Silicon晶振型號Si501 CMEMS振蕩器系列為傳統的晶體振蕩器提供了單片的、基于mems的IC替代品。硅實驗室的CMEMS技術將標準CMOS+MEMS結合在一個單片IC集成電路中，提供集成、高質量和高可靠性的晶體振蕩器。每個設備都經過工廠測試和配置，以保證其在電壓、工藝、溫度、沖擊、振動和老化等方面的性能。石英貼片晶振應用于：存儲（SATA/SAS/PCIe），通用處理器，工業控制器，嵌入式控制器，電機控制，流量控制，辦公/家庭自動化，IP攝像頭/監視，顯示和控制面板，戶外電子產品，多功能打印機，辦公設備等應用。CMEMS振蕩器501JCA100M000BAG/100MHz/3.3V/LVCMOS/±20ppm/SMD
| 原廠代碼 | 進口晶振 | 型號 | 頻率 | 電壓 | 頻率穩定度 | 包裝/封裝 |
| 501AAA27M0000DAF | Silicon晶振 | Si501 | 27MHz | 1.7 V ~ 3.6 V | ±50ppm | 4-SMD, No Lead |
| 501AAA27M0000DAG | Silicon晶振 | Si501 | 27MHz | 1.7 V ~ 3.6 V | ±50ppm | 4-SMD, No Lead |
| 501JCA100M000CAG | Silicon晶振 | Si501 | 100MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA100M000BAG | Silicon晶振 | Si501 | 100MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501HCAM032768BAF | Silicon晶振 | Si501 | 32.768kHz | 1.7 V ~ 3.6 V | ±20ppm | 4-SMD, No Lead |
| 501BCAM032768DAG | Silicon晶振 | Si501 | 32.768kHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCAM032768DAG | Silicon晶振 | Si501 | 32.768kHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JAA24M0000DAF | Silicon晶振 | Si501 | 24MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501BAA16M0000DAF | Silicon晶振 | Si501 | 16MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501JAA24M0000CAF | Silicon晶振 | Si501 | 24MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501AAA27M0000CAF | Silicon晶振 | Si501 | 27MHz | 1.7 V ~ 3.6 V | ±50ppm | 4-SMD, No Lead |
| 501AAA25M0000BAF | Silicon晶振 | Si501 | 25MHz | 1.7 V ~ 3.6 V | ±50ppm | 4-SMD, No Lead |
| 501JAA40M0000CAF | Silicon晶振 | Si501 | 40MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501AAA24M0000BAF | Silicon晶振 | Si501 | 24MHz | 1.7 V ~ 3.6 V | ±50ppm | 4-SMD, No Lead |
| 501EAA48M0000CAF | Silicon晶振 | Si501 | 48MHz | 1.7 V ~ 3.6 V | ±50ppm | 4-SMD, No Lead |
| 501AAA27M0000BAF | Silicon晶振 | Si501 | 27MHz | 1.7 V ~ 3.6 V | ±50ppm | 4-SMD, No Lead |
| 501EAA48M0000BAF | Silicon晶振 | Si501 | 48MHz | 1.7 V ~ 3.6 V | ±50ppm | 4-SMD, No Lead |
| 501JAA25M0000BAF | Silicon晶振 | Si501 | 25MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501BAA50M0000BAF | Silicon晶振 | Si501 | 50MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501AAA50M0000CAF | Silicon晶振 | Si501 | 50MHz | 1.7 V ~ 3.6 V | ±50ppm | 4-SMD, No Lead |
| 501EAA48M0000DAG | Silicon晶振 | Si501 | 48MHz | 1.7 V ~ 3.6 V | ±50ppm | 4-SMD, No Lead |
| 501AAA25M0000DAG | Silicon晶振 | Si501 | 25MHz | 1.7 V ~ 3.6 V | ±50ppm | 4-SMD, No Lead |
| 501HCA27M0000DAF | Silicon晶振 | Si501 | 27MHz | 1.7 V ~ 3.6 V | ±20ppm | 4-SMD, No Lead |
| 501ABA8M00000BAF | Silicon晶振 | Si501 | 8MHz | 1.7 V ~ 3.6 V | ±30ppm | 4-SMD, No Lead |
| 501HCA12M0000DAF | Silicon晶振 | Si501 | 12MHz | 1.7 V ~ 3.6 V | ±20ppm | 4-SMD, No Lead |
| 501JCA24M0000DAF | Silicon晶振 | Si501 | 24MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501AAA24M0000BAG | 有源晶振 | Si501 | 24MHz | 1.7 V ~ 3.6 V | ±50ppm | 4-SMD, No Lead |
| 501BCA16M0000BAF | Silicon晶振 | Si501 | 16MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501JCA24M0000CAF | Silicon晶振 | Si501 | 24MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501HCA26M0000BAF | Silicon晶振 | Si501 | 26MHz | 1.7 V ~ 3.6 V | ±20ppm | 4-SMD, No Lead |
| 501JAA25M0000BAG | Silicon晶振 | Si501 | 25MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501BCA16M0000CAF | Silicon晶振 | Si501 | 16MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501EAA48M0000CAG | Silicon晶振 | Si501 | 48MHz | 1.7 V ~ 3.6 V | ±50ppm | 4-SMD, No Lead |
| 501BAA16M0000BAG | Silicon晶振 | Si501 | 16MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501BAA16M0000CAG | Silicon晶振 | Si501 | 16MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501JAA24M0000BAG | Silicon晶振 | Si501 | 24MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501AAA27M0000BAG | Silicon晶振 | Si501 | 27MHz | 1.7 V ~ 3.6 V | ±50ppm | 4-SMD, No Lead |
| 501ACA10M0000CAF | Silicon晶振 | Si501 | 10MHz | 1.7 V ~ 3.6 V | ±20ppm | 4-SMD, No Lead |
| 501JAA40M0000BAG | Silicon晶振 | Si501 | 40MHz | 3.3V | ±50ppm | 4-SMD, No Lead |
| 501ACA10M0000BAF | Silicon晶振 | Si501 | 10MHz | 1.7 V ~ 3.6 V | ±20ppm | 4-SMD, No Lead |
| 501JCA10M0000BAF | Silicon晶振 | Si501 | 10MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501HCA12M0000BAF | Silicon晶振 | Si501 | 12MHz | 1.7 V ~ 3.6 V | ±20ppm | 4-SMD, No Lead |
| 501JCA25M0000CAF | Silicon晶振 | Si501 | 25MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501HCA27M0000BAF | Silicon晶振 | Si501 | 27MHz | 1.7 V ~ 3.6 V | ±20ppm | 4-SMD, No Lead |
| 501AAA50M0000BAG | Silicon晶振 | Si501 | 50MHz | 1.7 V ~ 3.6 V | ±50ppm | 4-SMD, No Lead |
| 501ABA8M00000BAG | Silicon晶振 | Si501 | 8MHz | 1.7 V ~ 3.6 V | ±30ppm | 4-SMD, No Lead |
| 501HCA27M0000DAG | Silicon晶振 | Si501 | 27MHz | 1.7 V ~ 3.6 V | ±20ppm | 4-SMD, No Lead |
| 501ABA8M00000CAG | Silicon晶振 | Si501 | 8MHz | 1.7 V ~ 3.6 V | ±30ppm | 4-SMD, No Lead |
| 501JCA10M0000BAG | Silicon晶振 | Si501 | 10MHz | 3.3V | ±20ppm | 4-SMD, No Lead |
| 501ACA10M0000BAG | Silicon晶振 | Si501 | 10MHz | 1.7 V ~ 3.6 V | ±20ppm | 4-SMD, No Lead |
| 501JCA20M0000CAG | Silicon晶振 | Si501 | 20MHz | 3.3V | ±20ppm | 4-SMD, No Lead |

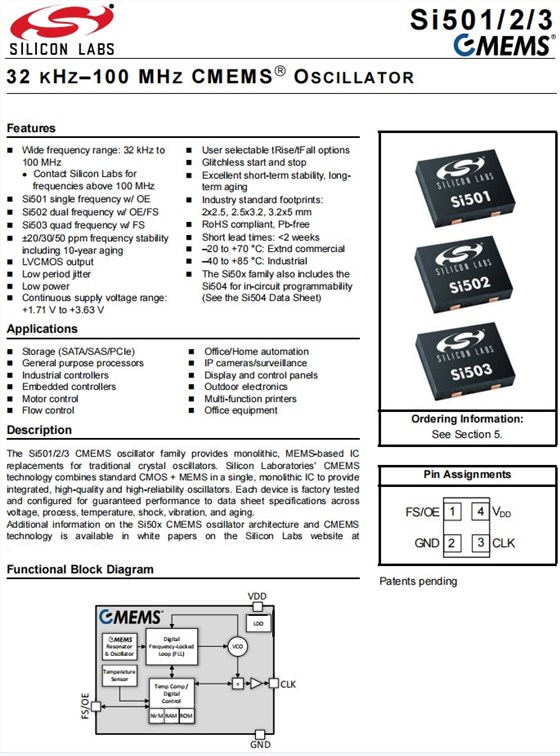

Si501晶振特征：
寬頻率范圍：32kHz到100MHz貼片晶振，接觸硅實驗室頻率超過100MHz，
Si501單頻w/OE，Si502雙頻w/OE/FS，Si503四頻w/FS，
±20/30/50ppm頻率穩定包括10年老化，
支持LVCMOS輸出，低周期抖動，低功率，石英晶體振蕩器
連續供電電壓范圍：+1.71V到+3.63V，
用戶可選擇上升/下降選項，無故障啟動和停止，
優秀的短期穩定性，長期老化良好，
行業標準尺寸：2x2.5mm，2.5x3.2mm，3.2x5mm封裝，
符合RoHS，無鉛，
短交貨時間：<2周，外部商業：-20+70°C，工業版：-40℃+85℃。
