電子元件作為現代社會中不可缺少東西,在科技及智能化等電子產品的不斷更新,改頭換新的情況下,越發顯示出電子元器件的重要性,電子元件制造商不計其數,日產晶振,臺產晶振在市場中占據了很大一部分的市場,針對于臺產晶振來說,臺灣晶技在市場上的實力不容小覷,臺灣晶技TXC晶振為一專業之頻率組件與感測組件供貨商,自1983年成立以來,始終致力于石英晶體相關諧振器,石英晶體振蕩器,32.768K,鐘表晶振,溫補晶振,差分晶振等頻率組件之研發,設計,生產與銷售,并因應市場應用與需求,透過自主核心技術,產品可廣泛使用于行動通訊,穿戴式裝置,物聯網,服務器儲存設備,車用,電信,醫療…等市場.

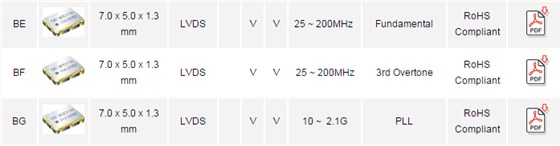

BF差分晶振LVDS輸出代碼表
| 原廠代碼 | 品牌 | 型號 | 輸出 | 頻率 | 頻率穩定度 | 工作溫度 | 包裝/封裝 | 尺寸 |
| BF-125.000MBE-T | TXC | BF | LVDS | 125MHz | ±50ppm | -40°C ~ 85°C | 6-SMD | (7.00mm x 5.00mm) |
| BF-125.000MBE-T | TXC | BF | LVDS | 125MHz | ±50ppm | -40°C ~ 85°C | 6-SMD | (7.00mm x 5.00mm) |
| BF-125.000MBE-T | TXC | BF | LVDS | 125MHz | ±50ppm | -40°C ~ 85°C | 6-SMD | (7.00mm x 5.00mm) |
| BF-100.000MBE-T | TXC | BF | LVDS | 100MHz | ±50ppm | -40°C ~ 85°C | 6-SMD | (7.00mm x 5.00mm) |
| BF-100.000MBE-T | TXC | BF | LVDS | 100MHz | ±50ppm | -40°C ~ 85°C | 6-SMD | (7.00mm x 5.00mm) |
| BF-100.000MBE-T | TXC | BF | LVDS | 100MHz | ±50ppm | -40°C ~ 85°C | 6-SMD | (7.00mm x 5.00mm) |
| BF-62.500MBE-T | TXC | BF | LVDS | 62.5MHz | ±50ppm | -40°C ~ 85°C | 6-SMD | (7.00mm x 5.00mm) |
| BF-62.500MBE-T | TXC | BF | LVDS | 62.5MHz | ±50ppm | -40°C ~ 85°C | 6-SMD | (7.00mm x 5.00mm) |
| BF-62.500MBE-T | TXC | BF | LVDS | 62.5MHz | ±50ppm | -40°C ~ 85°C | 6-SMD | (7.00mm x 5.00mm) |
| BF-156.250MBE-T | TXC | BF | LVDS | 156.25MHz | ±50ppm | -40°C ~ 85°C | 6-SMD | (7.00mm x 5.00mm) |
| BF-156.250MBE-T | TXC | BF | LVDS | 156.25MHz | ±50ppm | -40°C ~ 85°C | 6-SMD | (7.00mm x 5.00mm) |
| BF-156.250MBE-T | TXC | BF | LVDS | 156.25MHz | ±50ppm | -40°C ~ 85°C | 6-SMD | (7.00mm x 5.00mm) |
| BF-50.000MBE-T | TXC | BF | LVDS | 50MHz | ±50ppm | -40°C ~ 85°C | 6-SMD | (7.00mm x 5.00mm) |
| BF-75.000MBE-T | TXC | BF | LVDS | 75MHz | ±50ppm | -40°C ~ 85°C | 6-SMD | (7.00mm x 5.00mm) |
| BF-50.000MCE-T | TXC | BF | LVDS | 50MHz | ±50ppm | -40°C ~ 85°C | 6-SMD | (7.00mm x 5.00mm) |
| BF-62.500MCE-T | TXC | BF | LVDS | 62.5MHz | ±50ppm | -40°C ~ 85°C | 6-SMD | (7.00mm x 5.00mm) |
| BF-75.000MCE-T | TXC | BF | LVDS | 75MHz | ±50ppm | -40°C ~ 85°C | 6-SMD | (7.00mm x 5.00mm) |
| BFA0020001 | TXC | BF | LVDS | 100MHz | ±50ppm | -10°C ~ 70°C | 6-SMD | (7.00mm x 5.00mm) |
| BFA2500001 | TXC | BF | LVDS | 125MHz | ±50ppm | -40°C ~ 85°C | 6-SMD | (7.00mm x 5.00mm) |
| BFA2570003 | TXC | BF | LVDS | 125MHz | ±30ppm | -40°C ~ 85°C | 6-SMD | (7.00mm x 5.00mm) |
| BFA5000008 | TXC | BF | LVDS | 150MHz | ±50ppm | -40°C ~ 85°C | 6-SMD | (7.00mm x 5.00mm) |
| BF-100.000MCE-T | TXC | BF | LVDS | 100MHz | ±50ppm | -40°C ~ 85°C | 6-SMD | (7.00mm x 5.00mm) |
| BF-125.000MCE-T | TXC | BF | LVDS | 125MHz | ±50ppm | -40°C ~ 85°C | 6-SMD | (7.00mm x 5.00mm) |
| BF-150.000MBE-T | TXC | BF | LVDS | 150MHz | ±50ppm | -40°C ~ 85°C | 6-SMD | (7.00mm x 5.00mm) |
| BF-150.000MBE-T | TXC | BF | LVDS | 150MHz | ±50ppm | -40°C ~ 85°C | 6-SMD | (7.00mm x 5.00mm) |
| BF-150.000MBE-T | TXC | BF | LVDS | 150MHz | ±50ppm | -40°C ~ 85°C | 6-SMD | (7.00mm x 5.00mm) |
| BF-150.000MCE-T | TXC | BF | LVDS | 150MHz | ±50ppm | -40°C ~ 85°C | 6-SMD | (7.00mm x 5.00mm) |
| BFA5500001 | TXC | BF | LVDS | 155.52MHz | ±50ppm | -40°C ~ 85°C | 6-SMD | (7.00mm x 5.00mm) |
| BFA5670004 | TXC | BF | LVDS | 156.25MHz | ±50ppm | -40°C ~ 85°C | 6-SMD | (7.00mm x 5.00mm) |
| BF-156.250MCE-T | TXC | BF | LVDS | 156.25MHz | ±50ppm | -40°C ~ 85°C | 6-SMD | (7.00mm x 5.00mm) |
以上表格為TXC差分晶振,差分晶振無論在性能方面還是價格方面都比普通有源晶振高的多,差分晶振的使用特點在于能夠從50MHZ頻率做到700MHZ的超高頻點.特別是“SAW單元極低的抖動振蕩器”能達到聲表面波等要求值,簡稱為“低抖動振蕩器”.此款晶振電源電壓相較于之前能夠做到2.5V~3.3V之間,其工作溫度以及儲存溫度范圍遠遠超過了普通晶振,達到了-45°~+100°的溫度范圍,差分晶振的精度值(PPM)可精確到±10PM,普通晶振達不到的輸出電壓,差分晶振做到了1V,起振時間超快為0秒,隨機抖動性能0.2psTyp.3psTyp.25psTyp.4psTyp.都是較為常見的,相位抖動能從0.3psMax-1psMax.
BF差分晶振LVDS輸出同款型號表
TXC晶振集團生產的差分晶振在網絡設備對高標準參考時鐘的需求尤其突出,要求做為系統性能重要參數的相位抖動具備低抖動特征.是一款的適合使用于網絡設備中的差分晶振系列.TXC晶振公司是一家專注于頻率控制,溫補晶振,石英晶體振蕩器,石英晶體諧振器,石英晶振,有源晶振,壓控振蕩器等產品制造商致力于研究,設計,制造和銷售插件晶振和貼片晶振,石英晶體和振蕩器產品.
