Lora模塊低電壓小尺寸溫補晶振D32G-026.0M-T，Connor-Winfield的頻率控制有源晶振產品廣泛用于各種應用，包括電信、LAN和WAN產品、計算機以及其他微處理器和電子設備。我們專注于設計定制和半定制頻率控制產品，但也提供范圍廣泛的標準振蕩器產品和非晶體振蕩器。

Manufacturer Part Number原廠代碼	Manufacturer品牌	Series型號	Frequency 頻率	Operating Temperature 工作溫度
HSM536-64.0000	Connor-Winfield	HSM536	64MHz	0°C ~ 70°C
HSM536-66.6666	Connor-Winfield	HSM536	66.6666MHz	0°C ~ 70°C
HSM92-029.4912M	Connor-Winfield	HSM9	29.4912MHz	0°C ~ 70°C
HSM92-044.2368M	Connor-Winfield	HSM9	44.2368MHz	0°C ~ 70°C
D75J-038.88M-T	Connor-Winfield	D75J	38.88MHz	0°C ~ 70°C
D75J-050.0M-T	Connor-Winfield	D75J	50MHz	0°C ~ 70°C
D75J-040.0M-T	Connor-Winfield	D75J	40MHz	0°C ~ 70°C
D75F-013.0M-T	Connor-Winfield	D75F	13MHz	0°C ~ 70°C
D75F-019.44M-T	Connor-Winfield	D75F	19.44MHz	0°C ~ 70°C
D75F-025.0M-T	Connor-Winfield	D75F	25MHz	0°C ~ 70°C
D75F-027.0M-T	Connor-Winfield	D75F	27MHz	0°C ~ 70°C
D53G-020.0M-T	Connor-Winfield	D53G	20MHz	-30°C ~ 85°C
D53G-026.0M-T	Connor-Winfield	D53G	26MHz	-30°C ~ 85°C
D32G-016.368M-T	Connor-Winfield	D32G	16.368MHz	-30°C ~ 85°C
D32G-019.2M-T	Connor-Winfield	D32G	19.2MHz	-30°C ~ 85°C
D32G-026.0M-T	Connor-Winfield	D32G	26MHz	-30°C ~ 85°C
D75A-010.0M-T	Connor-Winfield	D75A	10MHz	0°C ~ 70°C
D75A-012.8M-T	Connor-Winfield	D75A	12.8MHz	0°C ~ 70°C
D75A-019.2M-T	康納溫菲爾德晶振	D75A	19.2MHz	0°C ~ 70°C
D75A-020.0M-T	Connor-Winfield	D75A	20MHz	0°C ~ 70°C
PM113-161.1328M-T	Connor-Winfield	PM	161.1328MHz	0°C ~ 70°C
PM113-200.0M-T	Connor-Winfield	PM	200MHz	0°C ~ 70°C
PM113-212.5M-T	Connor-Winfield	PM	212.5MHz	0°C ~ 70°C
PM113-250.0M-T	Connor-Winfield	PM	250MHz	0°C ~ 70°C
PM113-311.04M-T	Connor-Winfield	PM	311.04MHz	0°C ~ 70°C
PM113-312.5M-T	Connor-Winfield	PM	312.5MHz	0°C ~ 70°C
PM113-318.75M-T	Connor-Winfield	PM	318.75MHz	0°C ~ 70°C
PM113-466.56M-T	Connor-Winfield	PM	466.56MHz	0°C ~ 70°C
PM113-622.08M-T	Connor-Winfield	PM	622.08MHz	0°C ~ 70°C
PM113-625.0M-T	Connor-Winfield	PM	625MHz	0°C ~ 70°C
LM113-200.0M-T	Connor-Winfield	LM113	200MHz	0°C ~ 70°C
LM113-288.0M-T	Connor-Winfield	LM113	288MHz	0°C ~ 70°C
LM113-311.04M-T	Connor-Winfield	LM113	311.04MHz	0°C ~ 70°C

Lora模塊低電壓小尺寸溫補晶振D32G-026.0M-T，Connor-Winfield D32G系列的表面貼裝溫度為3.2x2.5 mm溫補晶體振蕩器(tcxo)。通過使用模擬溫度補償，D32G系列能夠在-30至85°C保持低于1ppm的穩定性溫度范圍內。這些tcxo非常適合用于GPS接收機，儀器儀表，Femtocell, FTTH和FTTC應用，需要在寬溫度范圍內保持高度穩定。

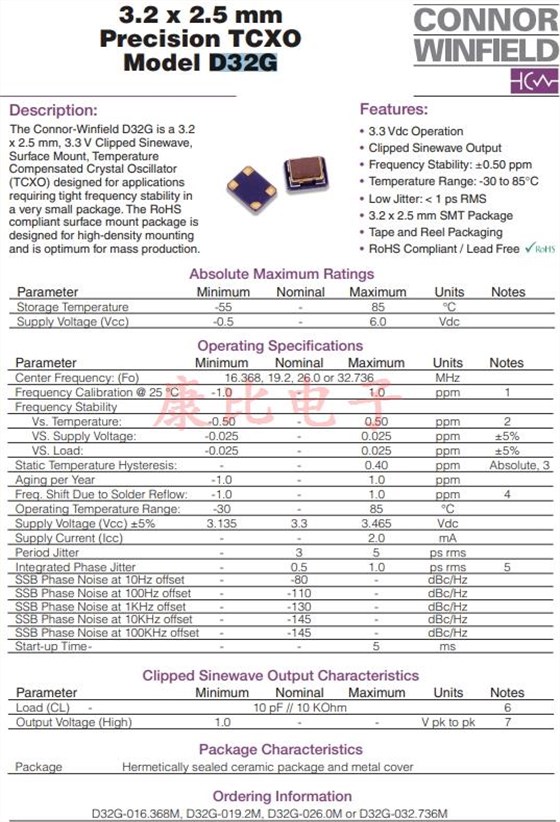

編碼D32G-026.0M-T，Connor-Winfield D32G是3.2x 2.5mm, 3.3 V剪切正弦波，表面安裝，溫補晶振(TCXO)專為應用而設計要求頻率穩定一個非常小的包裹。RoHS兼容的表面安裝包是高密度安裝設計并且最適合大規模生產。

特點:3.3 Vdc操作，剪切正弦波輸出，頻率穩定性:±0.50 ppm，溫度范圍:-30 ~ 85°C，低抖動:RMS < 1ps，3.2 × 2.5 mm SMT封裝，磁帶和卷筒包裝，符合RoHS /無鉛標準.
