Si514可編程振蕩器,514KCC000115BAG,6G交換機晶振,Skyworks貼片振蕩器，尺寸5.0x3.2mm，頻率125MHZ，支持輸出CMOS，XO時鐘振蕩器，六腳貼片晶振，有源晶體振蕩器，低電壓振蕩器，低抖動振蕩器，低功耗振蕩器，Si514用戶可編程I2C XO采用Skyworks Solutions的高級PLL通過編程提供從100 kHz到250 MHz的任何頻率的技術分辨率為十億分之0.026。Si514使用單個集成晶體Skyworks Solutions專有的DSPLL合成器，可生成任何頻率使用簡單的I2C命令在這個范圍內。

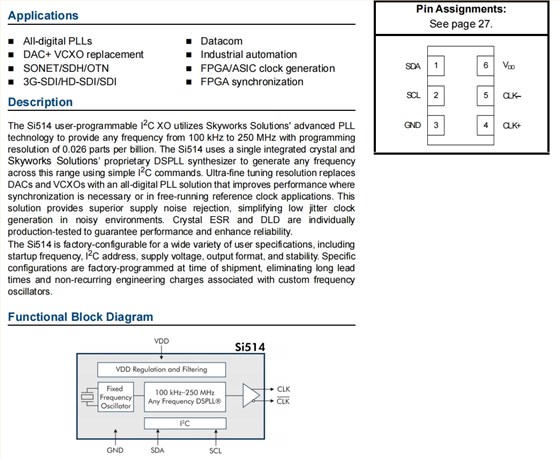

超精細調諧分辨率取代DAC和VCXO有源晶振采用全數字PLL解決方案，可在以下情況下提高性能同步是必要的，或者在自由運行的參考時鐘應用程序中。這該解決方案提供卓越的電源噪聲抑制，簡化了低抖動時鐘在嘈雜的環境中生成。產品很適合用于數據通信，工業自動化，所有數字PLL，F(xiàn)PGA同步等。Si514可編程振蕩器,514KCC000115BAG,6G交換機晶振,Skyworks貼片振蕩器.

Si514可編程振蕩器,514KCC000115BAG,6G交換機晶振,Skyworks貼片振蕩器 參數表

Parameter	Symbol	Test Condition	Min	Typ	Max	Units
Supply Voltage	VDD	3.3 V option	2.97	3.3	3.63	V
		2.5 V option	2.25	2.5	2.75	V
		1.8 V option	1.71	1.8	1.89	V
Supply Current	IDD	CMOS, 100 MHz, single-ended	—	21	26	mA
		LVDS (output enabled)	—	19	23	mA
		LVPECL (output enabled)	—	39	43	mA
		HCSL (output enabled)	—	41	44	mA
		Tristate (output disabled)	—	—	18	mA
Operating Temperature	TA		–40	—	85	oC

Parameter

Symbol

Test Condition

Min

Typ

Max

Units

SDA, SCL Input Voltage High

VIH

0.80 x VDD

—

SDA, SCL Input Voltage Low

VIL

—

0.20 x VDD

Parameter

Symbol

Test Condition

Min

Typ

Max

Units

Programmable
Frequency Range

CMOS, Dual CMOS

0.1

—

212.5

MHz

LVDS/LVPECL/HCSL

0.1

—

250

MHz

Frequency
Reprogramming
Resolution

MRES

—

0.026

—

ppb

Frequency Range for
Small Frequency Change
(Continuous Glitchless
Output)

From center frequency

–1000

—

+1000

ppm

Settling time for Small
Frequency Change

<±1000 ppm from
center frequency

—

100

µs

Settling time for Large
Frequency Change (Out-
put Squelched during Fre-
quency Transition)

>±1000 ppm from
center frequency

—

Total Stability*

Frequency Stability Grade C

–30

—

+30

ppm

Frequency Stability Grade B

–50

—

+50

ppm

Frequency Stability Grade A

–100

—

+100

ppm

Temperature Stability

Frequency Stability Grade C

–20

—

+20

ppm

Frequency Stability Grade B

–25

—

+25

ppm

Frequency Stability Grade A

–50

—

+50

ppm

Startup Time

TSU

Minimum VDDuntil output
frequency (FO) within specification

—

Disable Time

FO< 10 MHz

—

µs

FO>10 MHz

—

µs

Enable Time

FO< 10 MHz

—

µs

FO>10 MHz

—

µs

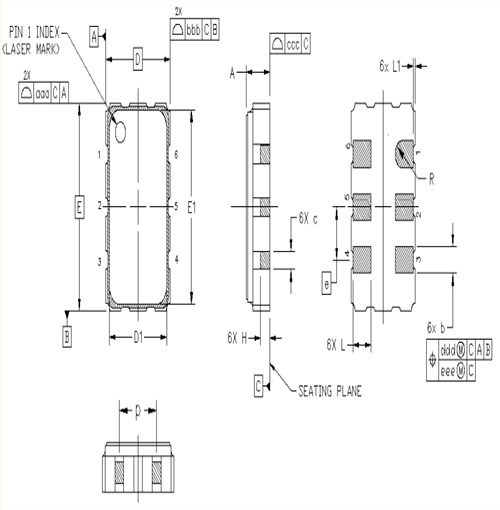

Si514可編程振蕩器,514KCC000115BAG,6G交換機晶振,Skyworks貼片振蕩器 尺寸圖

OSC晶振產品特征:

可編程到任何頻率從100kHz到250MHz

0.026 ppb頻率調諧決議

OE、電源故障抑制接通和頻率轉換

低抖動操作

2至4周交付周期

總體穩定性包括10年變老

綜合生產試驗覆蓋范圍包括晶體ESR和DLD

用于電源的片上LDO噪聲濾波

3.3、2.5或1.8 V操作

差分（LVPECL、LVDS、HCSL）或CMOS輸出選項

可選集成1:2 CMOS扇出緩存

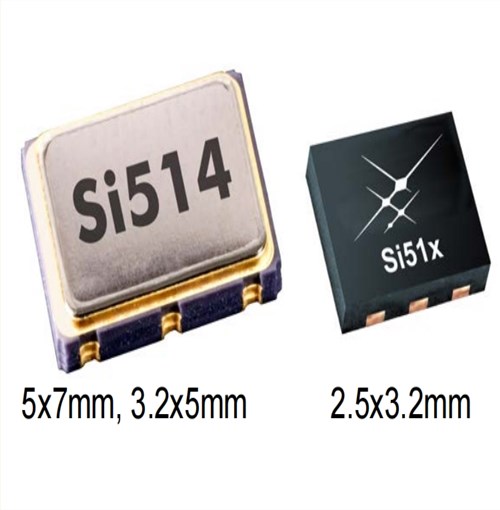

行業標準5x7、3.2x5和2.5x3.2mm包裝

–40至85℃操作

更多相關Skyworks晶振型號

Mfr Part #	Mfr	Description	Series	Frequency	Output
514KCC000887BAG	Skyworks有源晶振	XTAL OSC XO 24.0000MHZ CMOS SMD	Si514	24 MHz	CMOS
514BBC000932BAG	Skyworks有源晶振	XTAL OSC XO 70.6560MHZ LVDS SMD	Si514	70.656 MHz	LVDS
514GBB000118AAG	Skyworks有源晶振	XTAL OSC XO 156.2500MHZ CMOS SMD	Si514	156.25 MHz	CMOS
514FAA000115BAG	Skyworks有源晶振	XTAL OSC XO 125.0000MHZ LVDS SMD	Si514	125 MHz	LVDS
514CBB000112BAG	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ CMOS SMD	Si514	10 MHz	CMOS
514CCC000926AAG	Skyworks有源晶振	XTAL OSC XO 5.0000MHZ CMOS SMD	Si514	5 MHz	CMOS
514BBC000932AAG	Skyworks有源晶振	XTAL OSC XO 70.6560MHZ LVDS SMD	Si514	70.656 MHz	LVDS
514CAC001900BAG	Skyworks有源晶振	XTAL OSC XO 11.1300MHZ CMOS SMD	Si514	11.13 MHz	CMOS
514CCC000148AAG	Skyworks有源晶振	XTAL OSC XO 24.5760MHZ CMOS SMD	Si514	24.576 MHz	CMOS
514BCA001826BAG	Skyworks有源晶振	XTAL OSC XO 216.9600MHZ LVDS SMD	Si514	216.96 MHz	LVDS
514CBB000112AAG	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ CMOS SMD	Si514	10 MHz	CMOS
514JAA000112BAG	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ LVDS SMD	Si514	10 MHz	LVDS
514BBA001207AAG	Skyworks有源晶振	XTAL OSC XO 100.0000MHZ LVDS SMD	Si514	100 MHz	LVDS
514BCA000112AAG	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ LVDS SMD	Si514	10 MHz	LVDS
514CBC001037BAG	Skyworks有源晶振	XTAL OSC XO 24.5760MHZ CMOS SMD	Si514	24.576 MHz	CMOS
514CAC000798BAGR	Skyworks有源晶振	XTAL OSC XO 1.0000MHZ CMOS SMD	Si514	1 MHz	CMOS
514CCC000121BAGR	Skyworks有源晶振	XTAL OSC XO 100.0000MHZ CMOS SMD	Si514	100 MHz	CMOS
514CCC001432BAGR	Skyworks有源晶振	XTAL OSC XO 72.0000MHZ CMOS SMD	Si514	72 MHz	CMOS
514CCC001733BAGR	Skyworks有源晶振	XTAL OSC XO 100.0000MHZ CMOS SMD	Si514	100 MHz	CMOS
514GCC001432BAGR	Skyworks有源晶振	XTAL OSC XO 72.0000MHZ CMOS SMD	Si514	72 MHz	CMOS
514KCC000115BAGR	Skyworks有源晶振	XTAL OSC XO 125.0000MHZ CMOS SMD	Si514	125 MHz	CMOS
514KCC001432BAGR	Skyworks有源晶振	XTAL OSC XO 72.0000MHZ CMOS SMD	Si514	72 MHz	CMOS
514KBC001688BAGR	Skyworks有源晶振	XTAL OSC XO 18.0000MHZ CMOS SMD	Si514	18 MHz	CMOS
514ACC000115BAGR	Skyworks有源晶振	XTAL OSC XO 125.0000MHZ LVPECL	Si514	125 MHz	LVPECL
514BCC001696BAGR	Skyworks有源晶振	XTAL OSC XO 84.0000MHZ LVDS SMD	Si514	84 MHz	LVDS
514JCC001696BAGR	Skyworks有源晶振	XTAL OSC XO 84.0000MHZ LVDS SMD	Si514	84 MHz	LVDS
514MCC000355BAGR	Skyworks有源晶振	XTAL OSC XO 49.1520MHZ CMOS DUAL	Si514	49.152 MHz	CMOS, Dual (In-Phase)
514KBC001688BAG	Skyworks有源晶振	XTAL OSC XO 18.0000MHZ CMOS SMD	Si514	18 MHz	CMOS
514CCC000121BAG	Skyworks有源晶振	XTAL OSC XO 100.0000MHZ CMOS SMD	Si514	100 MHz	CMOS
514CCC001432BAG	Skyworks有源晶振	XTAL OSC XO 72.0000MHZ CMOS SMD	Si514	72 MHz	CMOS
514CCC001733BAG	Skyworks有源晶振	XTAL OSC XO 100.0000MHZ CMOS SMD	Si514	100 MHz	CMOS
514GCC001432BAG	Skyworks有源晶振	XTAL OSC XO 72.0000MHZ CMOS SMD	Si514	72 MHz	CMOS
514KCC000115BAG	Skyworks有源晶振	XTAL OSC XO 125.0000MHZ CMOS SMD	Si514	125 MHz	CMOS
514KCC001432BAG	Skyworks有源晶振	XTAL OSC XO 72.0000MHZ CMOS SMD	Si514	72 MHz	CMOS
514CCA000262BAGR	Skyworks有源晶振	XTAL OSC XO 70.0000MHZ CMOS SMD	Si514	70 MHz	CMOS
514KCA000111BAGR	Skyworks有源晶振	XTAL OSC XO 25.0000MHZ CMOS SMD	Si514	25 MHz	CMOS
514PBC000112BAGR	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ CMOS DUAL	Si514	10 MHz	CMOS, Dual (In-Phase)
514PBC000436BAGR	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ CMOS DUAL	Si514	10 MHz	CMOS, Dual (In-Phase)
514QBC000436BAGR	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ CMOS DUAL	Si514	10 MHz	CMOS, Dual (Complementary)
514CBA000144BAGR	Skyworks有源晶振	XTAL OSC XO 80.0000MHZ CMOS SMD	Si514	80 MHz	CMOS
514CAC000798BAG	Skyworks有源晶振	XTAL OSC XO 1.0000MHZ CMOS SMD	Si514	1 MHz	CMOS
514BAC000163BAGR	Skyworks有源晶振	XTAL OSC XO 20.0000MHZ LVDS SMD	Si514	20 MHz	LVDS
514MAC001723BAGR	Skyworks有源晶振	XTAL OSC XO 42.5000MHZ CMOS DUAL	Si514	42.5 MHz	CMOS, Dual (In-Phase)
514NAC001763BAGR	Skyworks有源晶振	XTAL OSC XO 9.8304MHZ CMOS DUAL	Si514	9.8304 MHz	CMOS, Dual (Complementary)
514CAA000112BAGR	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ CMOS SMD	Si514	10 MHz	CMOS
514CCA000262BAG	Skyworks有源晶振	XTAL OSC XO 70.0000MHZ CMOS SMD	Si514	70 MHz	CMOS
514KCA000111BAG	Skyworks有源晶振	XTAL OSC XO 25.0000MHZ CMOS SMD	Si514	25 MHz	CMOS
514ACC000115BAG	Skyworks有源晶振	XTAL OSC XO 125.0000MHZ LVPECL	Si514	125 MHz	LVPECL
514BCC001696BAG	Skyworks有源晶振	XTAL OSC XO 84.0000MHZ LVDS SMD	Si514	84 MHz	LVDS
514JCC001696BAG	Skyworks有源晶振	XTAL OSC XO 84.0000MHZ LVDS SMD	Si514	84 MHz	LVDS
514MCC000355BAG	Skyworks有源晶振	XTAL OSC XO 49.1520MHZ CMOS DUAL	Si514	49.152 MHz	CMOS, Dual (In-Phase)
514KAB000112BAGR	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ CMOS SMD	Si514	10 MHz	CMOS
514MAB000107BAGR	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ CMOS DUAL	Si514	10 MHz	CMOS, Dual (In-Phase)
514CAB000159BAGR	Skyworks有源晶振	XTAL OSCILLATOR	Si514	148.5 MHz	CMOS
514KAB000115BAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	125 MHz	CMOS
514CBB000790AAGR	Skyworks有源晶振	XTAL OSC XO 32.0000MHZ CMOS SMD	Si514	32 MHz	CMOS
514CBB001212AAGR	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ CMOS SMD	Si514	10 MHz	CMOS
514CBB001524AAGR	Skyworks有源晶振	XTAL OSC XO 48.0000MHZ CMOS SMD	Si514	48 MHz	CMOS
514CBB001541AAGR	Skyworks有源晶振	XTAL OSC XO 96.0000MHZ CMOS SMD	Si514	96 MHz	CMOS
514KBB000144AAGR	Skyworks有源晶振	XTAL OSC XO 80.0000MHZ CMOS SMD	Si514	80 MHz	CMOS
514PBC000112BAG	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ CMOS DUAL	Si514	10 MHz	CMOS, Dual (In-Phase)
514PBC000436BAG	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ CMOS DUAL	Si514	10 MHz	CMOS, Dual (In-Phase)
514QBC000436BAG	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ CMOS DUAL	Si514	10 MHz	CMOS, Dual (Complementary)
514CBC000110BAGR	Skyworks有源晶振	XTAL OSC XO 74.2500MHZ CMOS SMD	Si514	74.25 MHz	CMOS
514CBC000111BAGR	Skyworks有源晶振	XTAL OSC XO 25.0000MHZ CMOS SMD	Si514	25 MHz	CMOS
514CBC000112BAGR	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ CMOS SMD	Si514	10 MHz	CMOS
514CBC000199BAGR	Skyworks有源晶振	XTAL OSC XO 40.0000MHZ CMOS SMD	Si514	40 MHz	CMOS
514CBC000798BAGR	Skyworks有源晶振	XTAL OSC XO 1.0000MHZ CMOS SMD	Si514	1 MHz	CMOS
514CBC000926BAGR	Skyworks有源晶振	XTAL OSC XO 5.0000MHZ CMOS SMD	Si514	5 MHz	CMOS
514CBC000993BAGR	Skyworks有源晶振	XTAL OSC XO 13.0000MHZ CMOS SMD	Si514	13 MHz	CMOS
514CBC001037BAGR	Skyworks有源晶振	XTAL OSC XO 24.5760MHZ CMOS SMD	Si514	24.576 MHz	CMOS
514CBC001598BAGR	Skyworks有源晶振	XTAL OSC XO 5.1200MHZ CMOS SMD	Si514	5.12 MHz	CMOS
514CBC001728BAGR	Skyworks有源晶振	XTAL OSC XO 37.0000MHZ CMOS SMD	Si514	37 MHz	CMOS
514CBC001729BAGR	Skyworks有源晶振	XTAL OSC XO 38.0000MHZ CMOS SMD	Si514	38 MHz	CMOS
514CBC001730BAGR	Skyworks有源晶振	XTAL OSC XO 38.0000MHZ CMOS SMD	Si514	38 MHz	CMOS
514GBC001688BAGR	Skyworks晶振	XTAL OSC XO 18.0000MHZ CMOS SMD	Si514	18 MHz	CMOS
514KBC000894BAGR	Skyworks有源晶振	XTAL OSC XO 100.0000MHZ CMOS SMD	Si514	100 MHz	CMOS
514CBC000157BAGR	Skyworks有源晶振	XO DIFF I2C PROGR XO 0.1-250MHZ	Si514	50 MHz	CMOS
514KBC001794CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	40 MHz	CMOS
514KBC002240CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	40 MHz	CMOS
514CBC001972CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	500 kHz	CMOS
514CBA000144BAG	Skyworks有源晶振	XTAL OSC XO 80.0000MHZ CMOS SMD	Si514	80 MHz	CMOS
514BAC000163BAG	Skyworks有源晶振	XTAL OSC XO 20.0000MHZ LVDS SMD	Si514	20 MHz	LVDS
514MAC001723BAG	Skyworks有源晶振	XTAL OSC XO 42.5000MHZ CMOS DUAL	Si514	42.5 MHz	CMOS, Dual (In-Phase)
514NAC001763BAG	Skyworks有源晶振	XTAL OSC XO 9.8304MHZ CMOS DUAL	Si514	9.8304 MHz	CMOS, Dual (Complementary)
514CAC000107BAGR	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ CMOS SMD	Si514	10 MHz	CMOS
514CAC000112BAGR	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ CMOS SMD	Si514	10 MHz	CMOS
514CAC000142BAGR	Skyworks有源晶振	XTAL OSC XO 11.2896MHZ CMOS SMD	Si514	11.2896 MHz	CMOS
514CAC000306BAGR	Skyworks有源晶振	XTAL OSC XO 22.5792MHZ CMOS SMD	Si514	22.5792 MHz	CMOS
514CAC000776BAGR	Skyworks有源晶振	XTAL OSC XO 100.0000KHZ CMOS SMD	Si514	100 kHz	CMOS
514CAC000790BAGR	Skyworks有源晶振	XTAL OSC XO 32.0000MHZ CMOS SMD	Si514	32 MHz	CMOS
514CAC001044BAGR	Skyworks有源晶振	XTAL OSC XO 101.5000MHZ CMOS SMD	Si514	101.5 MHz	CMOS
514CAC001120BAGR	Skyworks有源晶振	XTAL OSC XO 18.4000MHZ CMOS SMD	Si514	18.4 MHz	CMOS
514CAC001763BAGR	Skyworks有源晶振	XTAL OSC XO 9.8304MHZ CMOS SMD	Si514	9.8304 MHz	CMOS
514CAC001900BAGR	Skyworks有源晶振	XTAL OSC XO 11.1300MHZ CMOS SMD	Si514	11.13 MHz	CMOS
514GAC000163BAGR	Skyworks有源晶振	XTAL OSC XO 20.0000MHZ CMOS SMD	Si514	20 MHz	CMOS
514KAC000112BAGR	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ CMOS SMD	Si514	10 MHz	CMOS
514CAC001598BAGR	Skyworks有源晶振	XTAL OSCILLATOR	Si514	5.12 MHz	CMOS
514CAC000157CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	50 MHz	CMOS
514KAC002273BAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	750 kHz	CMOS
514KAC002272BAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	750 kHz	CMOS
514CAC000199CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	40 MHz	CMOS
514KAC000171BAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	75 MHz	CMOS
514KAC002267BAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	2.2 MHz	CMOS
514KAC002252BAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	2.2 MHz	CMOS
514CAC000798CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	1 MHz	CMOS
514CAC002205CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	24.576 MHz	CMOS
514KAC002269BAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	2.2 MHz	CMOS
514KAC002270BAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	2.2 MHz	CMOS
514KAC002271BAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	750 kHz	CMOS
514KAC002268BAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	2.2 MHz	CMOS
514KAC002274BAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	750 kHz	CMOS
514KAC002275BAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	750 kHz	CMOS
514ABB000112BAGR	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ LVPECL	Si514	10 MHz	LVPECL
