BC46CFD112.5-32.768K,3215mm,BC46,Bomar通信晶振，尺寸3.2x1.5mm，頻率32.768KHZ，Bomar無源晶振，32.768KHZ無源晶振，歐美無源晶振，3215mm貼片晶振，32.768K晶振，無源貼片晶振，無源晶振，兩腳貼片晶振，實時時鐘晶振，智能水電晶振，無線設備晶振，移動通信晶振，通信設備晶振，小型設備晶振，影音系統(tǒng)晶振，網(wǎng)絡設備晶振，低損耗晶振，低功耗晶振，高性能晶振，高質量晶振，具有高質量低損耗的特點。
BC46系列是一種超小型陶瓷SMD晶振，高度為0.8毫米。非常適合最小的電路空間可能的應用包括移動通信、芯片卡、實時時鐘和無線通信。BC46CFD112.5-32.768K,3215mm,BC46,Bomar通信晶振.

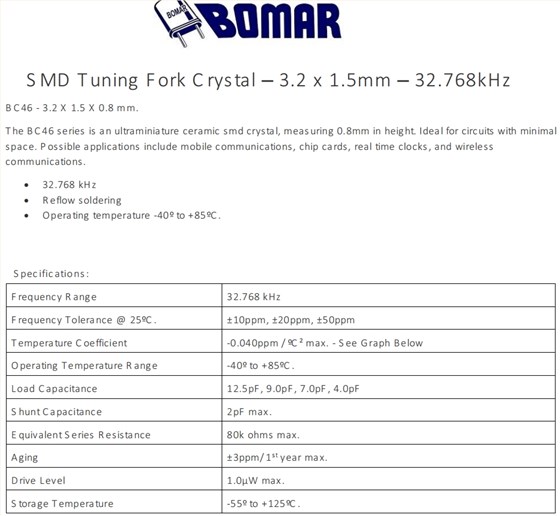

BC46CFD112.5-32.768K,3215mm,BC46,Bomar通信晶振 參數(shù)表
| Frequency Range | 32.768 kHz | |||||||||
| Frequency Tolerance @ 25ºC. | ±10ppm, ±20ppm, ±50ppm | |||||||||
| Temperature Coefficient | -0.040ppm / ºC² max. - See Graph Below | |||||||||
| Operating Temperature Range | -40º to +85ºC. | |||||||||
| Load Capacitance | 12.5pF, 9.0pF, 7.0pF, 4.0pF | |||||||||
| Shunt Capacitance | 2pF max. | |||||||||
| Equivalent Series Resistance | 80k ohms max. | |||||||||
| Aging | ±3ppm/ 1styear max. | |||||||||
| Drive Level | 1.0µW max. | |||||||||
| Storage Temperature | -55º to +125ºC. | |||||||||

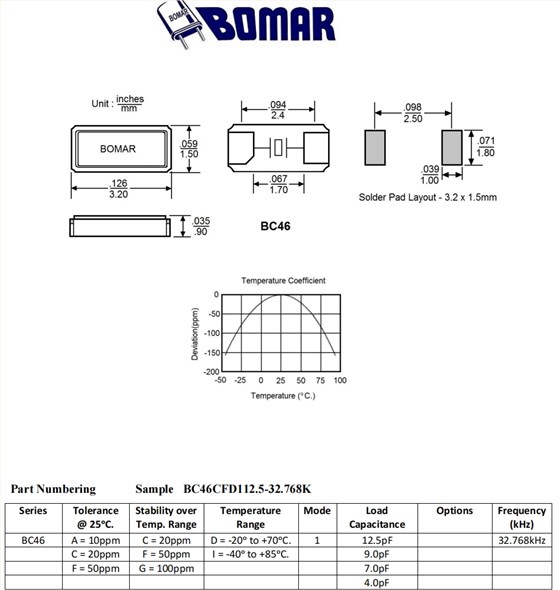

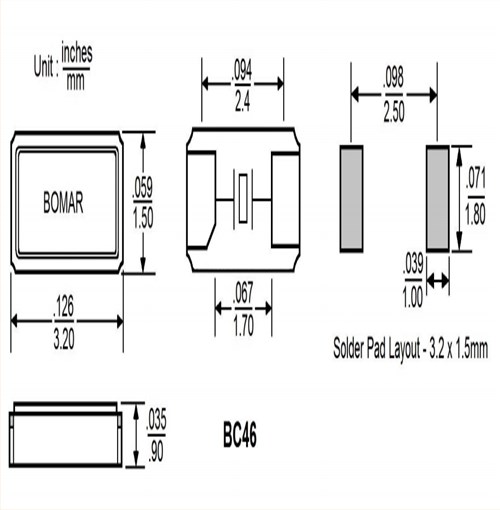

BC46CFD112.5-32.768K,3215mm,BC46,Bomar通信晶振 尺寸圖
BC46CFD112.5-32.768K,3215mm,BC46,Bomar通信晶振
貼片晶振產(chǎn)品特性：
尺寸3.2x1.5mm
32.768千赫
回流焊接
工作溫度-40º至+85ºC。
