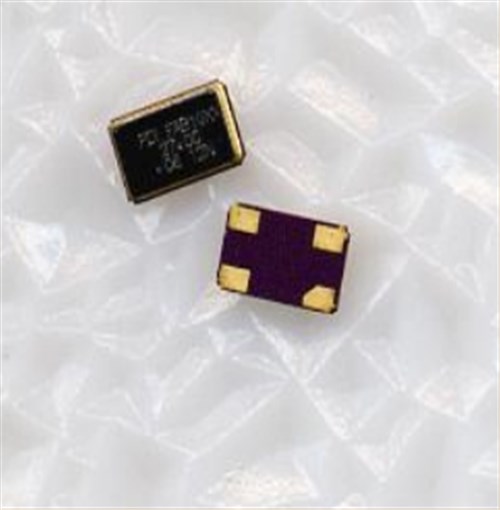

5032mm水晶振動子,PDI高品質晶振,C5系列晶體,13MHZ晶振，尺寸5.0mmx3.2mm，頻率12~52MHZ，PDI四腳貼片晶振，歐美無源晶體，石英貼片晶振，石英晶體諧振器，超薄型晶體諧振器，5032mm無源晶振，無源晶振，SMD晶振，無源石英晶體，高性能晶振，高質量晶振，高精度晶振，低損耗晶振，低功耗晶振，低成本晶振，智能手機晶振，無線設備晶振，數碼相機晶振，智能家居晶振，移動通信晶振，網絡設備晶振，便攜式設備晶振，具有低成本低損耗高性能的特點。
石英晶振產品特別適合用于智能手機，無線設備，數碼相機，智能家居，移動通信，網絡設備，便攜式設備等應用。5032mm水晶振動子,PDI高品質晶振,C5系列晶體,13MHZ晶振.

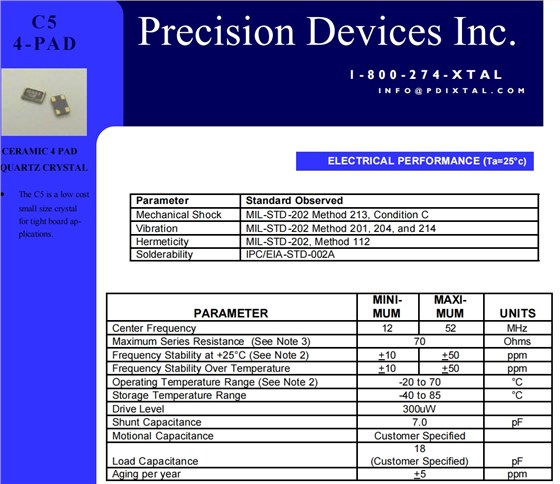

5032mm水晶振動子,PDI高品質晶振,C5系列晶體,13MHZ晶振 參數表
| PARAMETER |
MINI- MUM |
MAXI- MUM |
UNITS | |||||
| Center Frequency | 12 | 52 | MHz | |||||
| Maximum Series Resistance(See Note 3) | 70 | Ohms | ||||||
| Frequency Stability at +25°C (See Note 2) | +10 | +50 | ppm | |||||
| Frequency Stability Over Temperature | +10 | +50 | ppm | |||||
| Operating Temperature Range (See Note 2) | -20 to 70 | °C | ||||||
| Storage Temperature Range | -40 to 85 | °C | ||||||
| Drive Level | 300uW | |||||||
| Shunt Capacitance | 7.0 | pF | ||||||
| Motional Capacitance | Customer Specified | |||||||
| Load Capacitance |
18 (Customer Specified) |
pF | ||||||
| Aging per year | +5 | ppm | ||||||

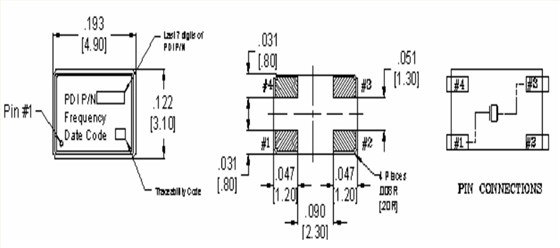

5032mm水晶振動子,PDI高品質晶振,C5系列晶體,13MHZ晶振 尺寸圖
5032mm水晶振動子,PDI高品質晶振,C5系列晶體,13MHZ晶振
無源晶振產品特性：
C5的成本很低
小尺寸晶體
用于緊身板應用。
