CX532美容儀晶振,CX532Z-A2B3C5-70-33.0D18,卡迪納爾5032陶瓷晶振，尺寸5.0x3.2mm，頻率33MHZ，美國進口晶振，Cardinal無源晶振，陶瓷諧振器，5032mm貼片晶振，無源貼片晶振，SMD晶體諧振器，無源晶振，SMD晶振，輕薄型晶振，兩腳貼片晶振，綠色環保晶振，收音機晶振，安防晶振，家電影音晶振，筆記本電腦晶振，外圍設備晶振，物聯網晶振，藍牙音響晶振，便攜式設備晶振，多媒體設備晶振，GPS導航定位晶振，測試測量晶振，無線網絡晶振，高性能晶振，高可靠晶振，低損耗晶振，低功耗晶振，具有高性能低功耗的特點。

貼片晶振產品常常應用于收音機，安防，家電影音，筆記本電腦，外圍設備，物聯網，藍牙音響，便攜式設備，多媒體設備，GPS導航定位，測試測量，無線網絡等領域.CX532美容儀晶振,CX532Z-A2B3C5-70-33.0D18,卡迪納爾5032陶瓷晶振.

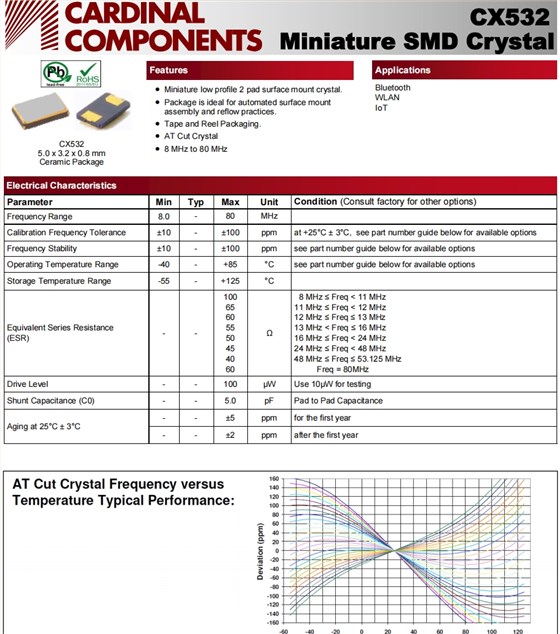

CX532美容儀晶振,CX532Z-A2B3C5-70-33.0D18,卡迪納爾5032陶瓷晶振 參數表

Parameter

Min

Typ

Max

Unit

Condition(Consult factory for other options)

Frequency Range

33.0

MHz

Calibration Frequency Tolerance

±10

±100

ppm

at +25°C ± 3°C, see part number guide below for available options

Frequency Stability

±10

±100

ppm

see part number guide below for available options

Operating Temperature Range

-40

+85

°C

see part number guide below for available options

Storage Temperature Range

-55

+125

°C

Equivalent Series Resistance
(ESR)

100
65
60
55
50
45
40
60

8 MHz ≤ Freq < 11 MHz
11 MHz ≤ Freq < 12 MHz
12 MHz ≤ Freq ≤ 13 MHz
13 MHz < Freq ≤ 16 MHz
16 MHz ≤ Freq < 24 MHz
24 MHz ≤ Freq < 48 MHz
48 MHz ≤ Freq ≤ 53.125 MHz
Freq = 80MHz

Drive Level

100

µW

Use 10µW for testing

Shunt Capacitance (C0)

5.0

Pad to Pad Capacitance

Aging at 25°C ± 3°C

±5

ppm

for the first year

±2

ppm

after the first year

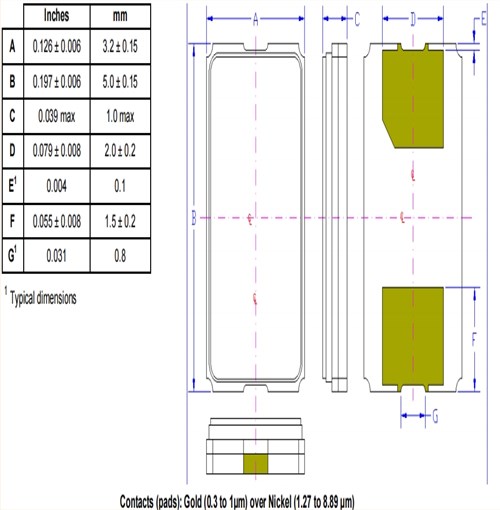

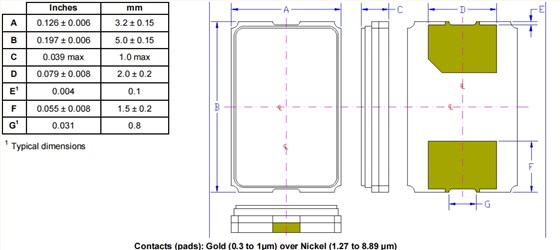

CX532美容儀晶振,CX532Z-A2B3C5-70-33.0D18,卡迪納爾5032陶瓷晶振 尺寸圖

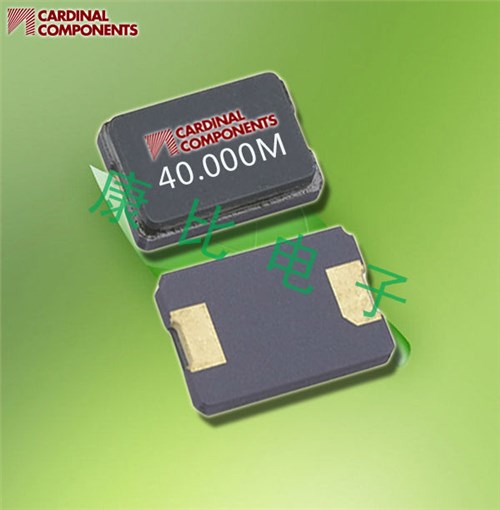

CX532美容儀晶振,CX532Z-A2B3C5-70-33.0D18,卡迪納爾5032陶瓷晶振

陶瓷晶振產品特性：

微型低剖面2焊盤表面安裝晶體。

包裝是自動表面安裝的理想選擇組裝和回流實踐。

磁帶和卷軸包裝。

AT切割水晶

8MHz至80MHz

Manufacturer Part Number原廠編碼	Manufacturer廠家	Description 參數	Series型號	Frequency	Frequency Stability頻率穩定度	Operating Temperature工作溫度
CSM1Z-A5B2C3-120-6.0D18	Cardinal晶振	CRYSTAL 6.0000MHZ 18PF SMD	CSM1	6MHz	±50ppm	-20°C ~ 70°C
CSM4Z-A2B3C3-40-26.0D18-F	Cardinal晶振	CRYSTAL 26.0000MHZ 18PF SMD	CSM4	26MHz	±30ppm	-40°C ~ 85°C
CSM1Z-A5B2C5-120-7.3728D18	Cardinal晶振	CRYSTAL 7.3728MHZ 18PF SMD	CSM1	7.3728MHz	±50ppm	-20°C ~ 70°C
CSM1Z-A5B2C3-40-18.0D18	Cardinal晶振	CRYSTAL 18.0000MHZ 18PF SMD	CSM1	18MHz	±50ppm	-20°C ~ 70°C
CSM1Z-A0B2C3-50-24.0D18	Cardinal晶振	CRYSTAL 24.0000MHZ 18PF SMD	CSM1	24MHz	±50ppm	-10°C ~ 60°C
CSM1Z-A0B2C3-80-10.0D18	Cardinal晶振	CRYSTAL 10.0000MHZ 18PF SMD	CSM1	10MHz	±50ppm	-10°C ~ 60°C
CSM4Z-A2B3C3-180-4.0D18	Cardinal晶振	CRYSTAL 4.0000MHZ 18PF SMD	CSM4	4MHz	±30ppm	-40°C ~ 85°C
CSM1Z-A5B2C5-150-4.9152D18	Cardinal晶振	CRYSTAL 4.9152MHZ 18PF SMD	CSM1	4.9152MHz	±50ppm	-20°C ~ 70°C
CSM4Z-A2B3C3-60-9.8304D18	Cardinal晶振	CRYSTAL 9.8304MHZ 18PF SMD	CSM4	9.8304MHz	±30ppm	-40°C ~ 85°C
CSM1-A1B2C3-70-14.7456D20	Cardinal晶振	CRYSTAL 14.7456MHZ 20PF SMD	CSM1	14.7456MHz	±50ppm	-10°C ~ 70°C
CSM1-A5B2C5-180-3.579545D18	Cardinal晶振	CRYSTAL 3.579545MHZ 18PF SMD	CSM1	3.579545MHz	±50ppm	-20°C ~ 70°C
CSM1Z-A5B2C3-40-12.0D18	Cardinal晶振	CRYSTAL 12.0000MHZ 18PF SMD	CSM1	12MHz	±50ppm	-20°C ~ 70°C
CSM1Z-A5B2C5-150-5.0D18	Cardinal晶振	CRYSTAL 5.0000MHZ 18PF SMD	CSM1	5MHz	±50ppm	-20°C ~ 70°C
CSM4Z-A2B3C3-40-11.0592D18	Cardinal晶振	CRYSTAL 11.0592MHZ 18PF SMD	CSM4	11.0592MHz	±30ppm	-40°C ~ 85°C
CSM1Z-A0B2C3-80-12.0D18	Cardinal晶振	CRYSTAL 12.0000MHZ 18PF SMD	CSM1	12MHz	±50ppm	-10°C ~ 60°C
CSM1Z-A0B2C3-80-11.0592D18	Cardinal晶振	CRYSTAL 11.0592MHZ 18PF SMD	CSM1	11.0592MHz	±50ppm	-10°C ~ 60°C
CSM1Z-A5B2C5-60-8.0D18	Cardinal晶振	CRYSTAL 8.0000MHZ 18PF SMD	CSM1	8MHz	±50ppm	-20°C ~ 70°C
CSM1Z-A5B2C3-30-25.0D20	Cardinal晶振	CRYSTAL 25.0000MHZ 20PF SMD	CSM1	25MHz	±50ppm	-20°C ~ 70°C
CSM1Z-A3B1C3-200-3.6864D18	Cardinal晶振	CRYSTAL 3.6864MHZ 18PF SMD	CSM1	3.6864MHz	±100ppm	-55°C ~ 125°C
CSM1Z-A5B2C3-60-8.0D18	Cardinal晶振	CRYSTAL 8.0000MHZ 18PF SMD	CSM1	8MHz	±50ppm	-20°C ~ 70°C
CSM4Z-A2B3C3-40-16.0D18	Cardinal晶振	CRYSTAL 16.0000MHZ 18PF SMD	CSM4	16MHz	±30ppm	-40°C ~ 85°C
CSM4Z-A2B3C3-60-7.3728D18	Cardinal晶振	CRYSTAL 7.3728MHZ 18PF SMD	CSM4	7.3728MHz	±30ppm	-40°C ~ 85°C
CSM1Z-A5B2C3-40-13.0D18	Cardinal晶振	CRYSTAL 13.0000MHZ 18PF SMD	CSM1	13MHz	±50ppm	-20°C ~ 70°C
CX5Z-A5B2C5-40-27.0D18	Cardinal晶振	CRYSTAL 27.0000MHZ 18PF SMD	CX5	27MHz	±50ppm	-20°C ~ 70°C
CX5Z-A5B2C5-40-24.0D18	Cardinal晶振	CRYSTAL 24.0000MHZ 18PF SMD	CX5	24MHz	±50ppm	-20°C ~ 70°C
CX5Z-A5B2C5-40-24.576D18	Cardinal晶振	CRYSTAL 24.5760MHZ 18PF SMD	CX5	24.576MHz	±50ppm	-20°C ~ 70°C
CX5Z-A5B2C5-70-8.0D18	Cardinal晶振	CRYSTAL 8.0000MHZ 18PF SMD	CX5	8MHz	±50ppm	-20°C ~ 70°C
CX5Z-A1B2C5-40-24.0D18	Cardinal晶振	CRYSTAL 24.0000MHZ 18PF SMD	CX5	24MHz	±50ppm	-10°C ~ 70°C
CX5Z-A5B2C5-50-16.0D18	Cardinal晶振	CRYSTAL 16.0000MHZ 18PF SMD	CX5	16MHz	±50ppm	-20°C ~ 70°C
CX5Z-A0B2C5-50-16.0D18	Cardinal晶振	CRYSTAL 16.0000MHZ 18PF SMD	CX5	16MHz	±50ppm	-10°C ~ 60°C
CX5Z-A2B2C5-40-10.0D18	Cardinal晶振	CRYSTAL 10.0000MHZ 18PF SMD	CX5	10MHz	±50ppm	-40°C ~ 85°C
CX532Z-A2B3C5-70-1966080D18	Cardinal晶振	CRYSTAL 19.6608MHZ 18PF SMD	CX532	19.6608MHz	±30ppm	-40°C ~ 85°C
CX532Z-A2B3C5-70-33.0D18	Cardinal晶振	CRYSTAL 33.0000MHZ 18PF SMD	CX532	33MHz	±30ppm	-40°C ~ 85°C
CX532Z-A2B3C5-70-27.0D18	Cardinal晶振	CRYSTAL 27.0000MHZ 18PF SMD	CX532	27MHz	±30ppm	-40°C ~ 85°C
CX532Z-A5B3C5-70-20.0D18	Cardinal晶振	CRYSTAL 20.0000MHZ 18PF SMD	CX532	20MHz	±30ppm	-20°C ~ 70°C
CX532Z-A2B3C5-70-14.7456D18	Cardinal晶振	CRYSTAL 17.7456MHZ 18PF SMD	CX532	14.7456MHz	±30ppm	-40°C ~ 85°C
CX532Z-A5B3C5-70-12.0D18	Cardinal晶振	CRYSTAL 12.0000MHZ 18PF SMD	CX532	12MHz	±30ppm	-20°C ~ 70°C
CX532Z-A2B3C5-70-50.0D18	Cardinal晶振	CRYSTAL 50.0000MHZ 18PF SMD	CX532	50MHz	±30ppm	-40°C ~ 85°C
CX532Z-A2B3C5-70-30.0D18	Cardinal晶振	CRYSTAL 30.0000MHZ 18PF SMD	CX532	30MHz	±30ppm	-40°C ~ 85°C
CX532Z-A5B3C5-70-27.0D18	Cardinal晶振	CRYSTAL 27.0000MHZ 18PF SMD	CX532	27MHz	±30ppm	-20°C ~ 70°C
CX532AZ-A5B2C5-70-25.0D18	Cardinal晶振	CRYSTAL 25.0000MHZ 18PF SMD	CX532	25MHz	±50ppm	-20°C ~ 70°C
CX532Z-A5B3C5-70-25.0D18	Cardinal晶振	CRYSTAL 25.0000MHZ 18PF SMD	CX532	25MHz	±30ppm	-20°C ~ 70°C
CX532Z-A2B3C5-70-20.0D18	Cardinal晶振	CRYSTAL 20.0000MHZ 18PF SMD	CX532	20MHz	±30ppm	-40°C ~ 85°C
CX5Z-A2B2C5-70-8.0D18	Cardinal晶振	CRYSTAL 8.0000MHZ 18PF SMD	CX5	8MHz	±50ppm	-40°C ~ 85°C
CX5Z-A2B2C5-40-25D18	Cardinal晶振	CRYSTAL 25.0000MHZ 18PF SMD	CX5	25MHz	±50ppm	-40°C ~ 85°C
CX532Z-A2B3C5-70-8.0D18	Cardinal晶振	CRYSTAL 8.0000MHZ 18PF SMD	CX532	8MHz	±30ppm	-40°C ~ 85°C
CSM1Z-A0B2C3-70-14.7456D18	Cardinal晶振	CRYSTAL 14.7456MHZ 18PF SMD	CSM1	14.7456MHz	±50ppm	-10°C ~ 60°C
CSM1Z-A0B2C3-50-17.734475D18	Cardinal晶振	CRYSTAL 17.734475MHZ 18PF SMD	CSM1	17.734475MHz	±50ppm	-10°C ~ 60°C
CSM1Z-A1B2C3-200-3.6864D20	Cardinal晶振	CRYSTAL 3.6864MHZ 20PF SMD	CSM1	3.6864MHz	±50ppm	-10°C ~ 70°C
CSM1Z-A0B2C3-50-18.432D18	Cardinal晶振	CRYSTAL 18.4320MHZ 18PF SMD	CSM1	18.432MHz	±50ppm	-10°C ~ 60°C
CSM1Z-A5B2C3-40-16.0D18	Cardinal晶振	CRYSTAL 16.0000MHZ 18PF SMD	CSM1	16MHz	±50ppm	-20°C ~ 70°C
CSM1Z-A0B2C3-200-3.579545D18	Cardinal晶振	CRYSTAL 3.579545MHZ 18PF SMD	CSM1	3.579545MHz	±50ppm	-10°C ~ 70°C
CSM1Z-A0B2C3-50-20.0D18	Cardinal晶振	CRYSTAL 20.0000MHZ 18PF SMD	CSM1	20MHz	±50ppm	-10°C ~ 60°C
CSM1Z-A5B2C5-150-4.0D18	Cardinal晶振	CRYSTAL 4.0000MHZ 18PF SMD	CSM1	4MHz	±50ppm	-20°C ~ 70°C
CSM1Z-A0B2C3-100-6.0D18	Cardinal晶振	CRYSTAL 6.0000MHZ 18PF SMD	CSM1	6MHz	±50ppm	-10°C ~ 60°C
CSM1-A1B2C3-150-3.579545D17	Cardinal晶振	CRYSTAL 3.579545MHZ 17PF SMD	CSM1	3.579545MHz	±50ppm	-10°C ~ 70°C
CSM1Z-A5B2C3-40-18.432D18	Cardinal晶振	CRYSTAL 18.4320MHZ 18PF SMD	CSM1	18.432MHz	±50ppm	-20°C ~ 70°C
CSM1Z-A1B2C3-40-24-0D12	Cardinal晶振	CRYSTAL 24.0000MHZ 12PF SMD	CSM1	24MHz	±50ppm	-10°C ~ 70°C
CSM1Z-A0B2C3-150-4.0D18	Cardinal晶振	CRYSTAL 4.0000MHZ 18PF SMD	CSM1	4MHz	±50ppm	-10°C ~ 60°C
CSM1Z-A5B2C3-150-4.0D20	Cardinal晶振	CRYSTAL 4.0000MHZ 20PF SMD	CSM1	4MHz	±50ppm	-20°C ~ 70°C
CSM1Z-A5B2C3-200-4.0D18	Cardinal晶振	CRYSTAL 4.0000MHZ 18PF SMD	CSM1	4MHz	±50ppm	-20°C ~ 70°C
CSM1Z-A5B2C5-50-19.6608D18	Cardinal晶振	CRYSTAL 19.6608MHZ 18PF SMD	CSM1	19.6608MHz	±50ppm	-20°C ~ 70°C
CSM4Z-A2B3C3-40-14.7456D18	Cardinal晶振	CRYSTAL 14.7456MHZ 18PF SMD	CSM4	14.7456MHz	±30ppm	-40°C ~ 85°C
CSM1Z-A5B2C5-40-16.0D18	Cardinal晶振	CRYSTAL 16.0000MHZ 18PF SMD	CSM1	16MHz	±50ppm	-20°C ~ 70°C
CSM1Z-A5B2C5-40-25.0D18-F	Cardinal晶振	CRYSTAL 25.0000MHZ 18PF SMD	CSM1	25MHz	±50ppm	-20°C ~ 70°C
CSM1Z-A5B2C5-40-18.432D18	Cardinal晶振	CRYSTAL 18.4320MHZ 18PF SMD	CSM1	18.432MHz	±50ppm	-20°C ~ 70°C
