FC2BAEBDI25.0-T1,FOX福克斯晶振,2520mm,汽車音響晶振，美國進口晶振，FOX晶振，福克斯晶振，型號：FC2BA，(Former FXA2520B)，編碼為：FC2BAEBDI25.0-T1，頻率為：25.000MHz，頻率穩定性：±50ppm，頻率容差：±20ppm，負載電容：8pF，工作溫度范圍：-40℃至+125℃，小體積晶振尺寸：2.5x2.0mm封裝，四腳貼片晶振，石英晶振，耐高溫晶振，無源晶振，石英晶體諧振器，SMD石英晶體，耐高溫晶振。具有超小型，輕薄型，高性能，高品質，耐熱及耐環境特點。符合AEC-Q200標準，被廣泛應用于：通訊設備晶振，汽車音響晶振，車載控制器晶振，醫療設備晶振，智能家居等應用。
FC2BAEBDI25.0-T1,FOX福克斯晶振,2520mm,汽車音響晶振,參數表
PARAMETERS
MAX (Unless otherwise noted)
Frequency Range
25.000MHz
Frequency Tolerance @ 25°C
(See options below)
Frequency Stability, ref 25°C
(See options below)
Temperature Range
Operating (TOPR)
Storage (TSTG)
(See options below)
-55°C ~ +105°C
Shunt Capacitance (CO)
3 pF
Load Capacitance (CL)
(See options below)
Drive Level
100 µW
Aging per year (@ 25°C)
±5 PPM
Maximum Soldering Temp / Time
260°C / 10 Seconds x 2
Moisture Sensitivity Level (MSL) per
J-STD-033
N/A
Termination Finish
Au (0.3~1µm) over Ni
(1.27~8.89µm)
Seal Method
Seam
Lead (Pb) Free
Yes
RoHS Compliant
Yes, no exemptions
REACH Compliant (latest version)
Yes

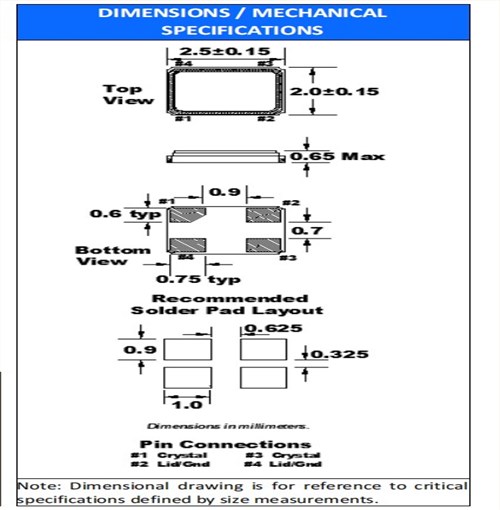

FC2BAEBDI25.0-T1,FOX福克斯晶振,2520mm,汽車音響晶振,尺寸圖
| 產品編碼 | 晶振廠家 | 型號 | 頻率 | 頻率穩定性 | 頻率容差 | 負載電容 |
| FC2BACBEI16.0-T1 | Fox晶振 | FC2BA | 16 MHz | ±50ppm | ±30ppm | 10 pF |
| FC2BACBEI16.0-T3 | Fox晶振 | FC2BA | 16 MHz | ±50ppm | ±30ppm | 10 pF |
| FC2BAEBDI12.0-T1 | Fox晶振 | FC2BA | 12 MHz | ±50ppm | ±20ppm | 8 pF |
| FC2BAEBDI16.0-T1 | Fox晶振 | FC2BA | 16 MHz | ±50ppm | ±20ppm | 8 pF |
| FC2BAEBDI20.0-T1 | Fox晶振 | FC2BA | 20 MHz | ±50ppm | ±20ppm | 8 pF |
| FC2BAEBDI24.0-T1 | Fox晶振 | FC2BA | 24 MHz | ±50ppm | ±20ppm | 8 pF |
| FC2BAEBDI25.0-T1 | Fox晶振 | FC2BA | 25 MHz | ±50ppm | ±20ppm | 8 pF |
| FC2BAEBDI40.0-T1 | Fox晶振 | FC2BA | 40 MHz | ±50ppm | ±20ppm | 8 pF |
| FC2BAEBEI12.0-T1 | Fox晶振 | FC2BA | 12 MHz | ±50ppm | ±20ppm | 10 pF |
| FC2BAEBEI16.0-T1 | Fox晶振 | FC2BA | 16 MHz | ±50ppm | ±20ppm | 10 pF |
| FC2BAEBEI20.0-T1 | Fox晶振 | FC2BA | 20 MHz | ±50ppm | ±20ppm | 10 pF |
| FC2BAEBEI24.0-T1 | Fox晶振 | FC2BA | 24 MHz | ±50ppm | ±20ppm | 10 pF |
| FC2BAEBEI25.0-T1 | Fox晶振 | FC2BA | 25 MHz | ±50ppm | ±20ppm | 10 pF |
| FC2BAEBEI40.0-T1 | Fox晶振 | FC2BA | 40 MHz | ±50ppm | ±20ppm | 10 pF |
| FC2BAEBGI25.0-T1 | Fox晶振 | FC2BA | 25 MHz | ±50ppm | ±20ppm | 12 pF |
| FC2BSBBMM16.0-T1 | Fox晶振 | FC2BS | 16 MHz | ±50ppm | ±50ppm | 20 pF |
| FC2BSBBMM16.0-T3 | Fox晶振 | FC2BS | 16 MHz | ±50ppm | ±50ppm | 20 pF |
