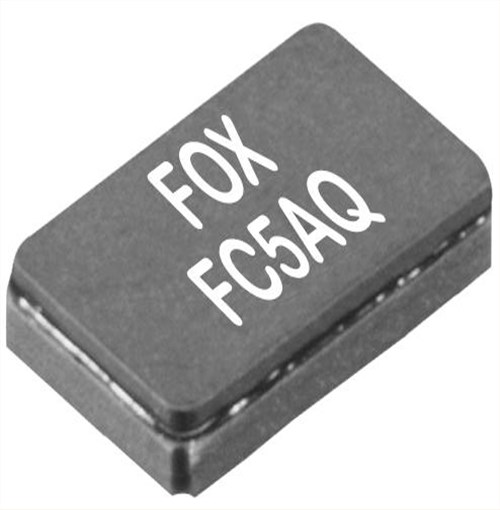

FC5AQBBME18.0-T1,FOX晶振廠家,5032mm,兩腳貼片晶振，美國進口晶振，F(xiàn)OX晶振，福克斯晶振，型號：FC5AQ系列，編碼為：FC5AQBBME18.0-T1，頻率為：18.000MHz，頻率穩定性：±50ppm，頻率容差：±50ppm，負載電容：20pF，工作溫度范圍：-10℃至+70℃，小體積晶振尺寸：5.0*3.2mm貼片晶振，兩腳貼片晶振，無源晶振，SMD晶振，石英晶振，石英晶體諧振器，無鉛環保晶振。具有超小型，輕薄型，高品質，高性能，高質量等特點。被廣泛用于：通訊設備晶振，無線藍牙模塊，安防設備晶振，導航儀晶振，智能家居等應用。

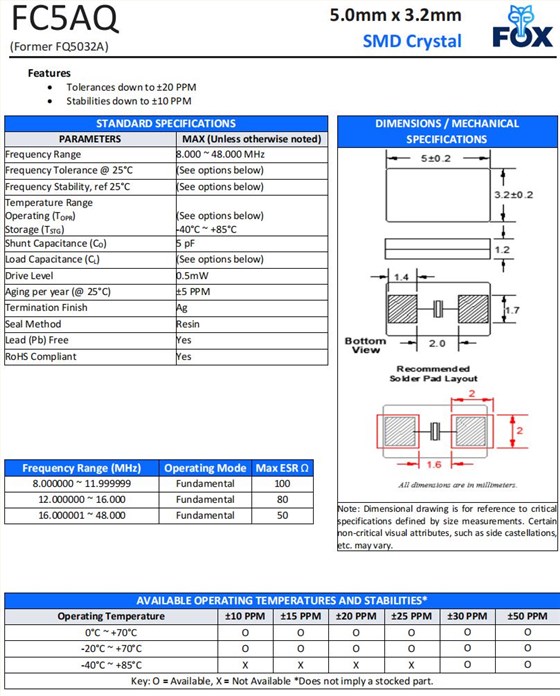

FC5AQBBME18.0-T1,FOX晶振廠家,5032mm,兩腳貼片晶振,參數表
品牌
FOX福克斯晶振
型號
FC5AQ
物料編碼
FC5AQBBME18.0-T1
頻率
18MHz
頻率穩定性
±50ppm
頻率容差
±50ppm
負載電容
20pF
工作溫度
-10°C ~ 70°C
尺寸
5.0x3.2mm

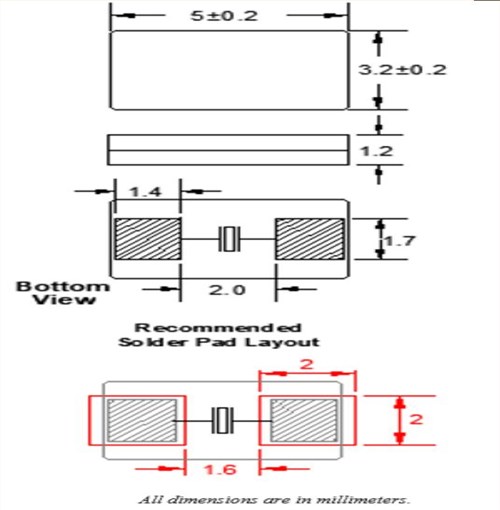

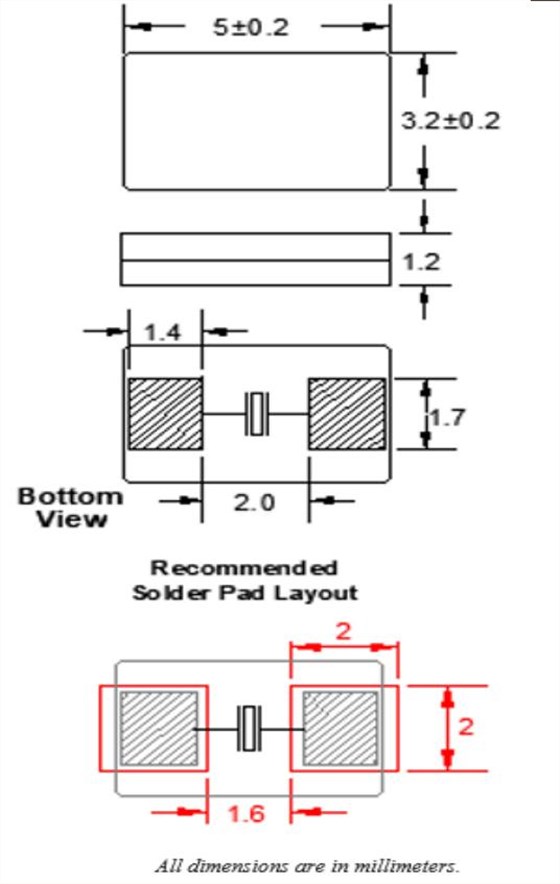

FC5AQBBME18.0-T1,FOX晶振廠家,5032mm,兩腳貼片晶振,尺寸圖
| 產品編碼 | 品牌 | 型號 | 頻率 | 頻率穩定性 | 頻率容差 |
| FC5AQBAAM8.0-T1 | Fox晶振 | FC5AQ | 8 MHz | ±100ppm | ±50ppm |
| FC5AQBAME22.1184-T1 | Fox晶振 | FC5AQ | 22.1184 MHz | ±100ppm | ±50ppm |
| FC5AQBBME18.0-T1 | Fox晶振 | FC5AQ | 18 MHz | ±50ppm | ±50ppm |
| FC5AQCCEC14.7456-T1 | Fox晶振 | FC5AQ | 14.7456 MHz | ±30ppm | ±30ppm |
| FC5AQCCMC24.0-T1 | Fox晶振 | FC5AQ | 24 MHz | ±30ppm | ±30ppm |
| FC5AQCCMF10.0-T1 | Fox晶振 | FC5AQ | 10 MHz | ±30ppm | ±30ppm |
| FC5AQCCMM12.0-T1 | Fox晶振 | FC5AQ | 12 MHz | ±30ppm | ±30ppm |
| FC5AQECLM25.0-T1 | Fox晶振 | FC5AQ | 25 MHz | ±30ppm | ±20ppm |
| FC5BACAGI12.0-T1 | Fox晶振 | FC5BA | 12 MHz | ±100ppm | ±30ppm |
| FC5BACALI12.0-T1 | 石英晶振 | FC5BA | 12 MHz | ±100ppm | ±30ppm |
| FC5BACBEI12.0-T1 | Fox晶振 | FC5BA | 12 MHz | ±50ppm | ±30ppm |
| FC5BACBLI8.0-1-T1 | Fox晶振 | FC5BA | 8 MHz | ±50ppm | ±30ppm |
| FC5BACBMI12.0-T1 | Fox晶振 | FC5BA | 12 MHz | ±50ppm | ±30ppm |
| FC5BAEEEM8.0-T1 | Fox晶振 | FC5BA | 8 MHz | ±20ppm | ±20ppm |
| FC5BAEEMM8.0-T1 | Fox晶振 | FC5BA | 8 MHz | ±20ppm | ±20ppm |
| FC5BQCBJF12.0-1-T1 | Fox晶振 | FC5BQ | 12 MHz | ±50ppm | ±30ppm |
| FC5BQCBKM12.0-T1 | Fox晶振 | FC5BQ | 12 MHz | ±50ppm | ±30ppm |
| FC5BQCCMC12.0-T1 | Fox晶振 | FC5BQ | 12 MHz | ±30ppm | ±30ppm |
| FC5BQCCMC16.0-T1 | Fox晶振 | FC5BQ | 16 MHz | ±30ppm | ±30ppm |
| FC5BQCCMC20.0-T1 | Fox晶振 | FC5BQ | 20 MHz | ±30ppm | ±30ppm |
| FC5BQCCMC24.0-T1 | Fox晶振 | FC5BQ | 24 MHz | ±30ppm | ±30ppm |
| FC5BQCCMC24.576-T1 | Fox晶振 | FC5BQ | 24.576 MHz | ±30ppm | ±30ppm |
| FC5BQCCMC25.0-T1 | Fox晶振 | FC5BQ | 25 MHz | ±30ppm | ±30ppm |
| FC5BQCCMM10.0-T1 | Fox晶振 | FC5BQ | 10 MHz | ±30ppm | ±30ppm |
| FC5BQCCMM12.0-T1 | Fox晶振 | FC5BQ | 12 MHz | ±30ppm | ±30ppm |
| FC5BQCCMM16.0-T1 | Fox晶振 | FC5BQ | 16 MHz | ±30ppm | ±30ppm |
| FC5BQCCMM20.0-T1 | Fox晶振 | FC5BQ | 20 MHz | ±30ppm | ±30ppm |
| FC5BQCCMM24.0-T1 | Fox晶振 | FC5BQ | 24 MHz | ±30ppm | ±30ppm |
| FC5BQCCMM25.0-T1 | Fox晶振 | FC5BQ | 25 MHz | ±30ppm | ±30ppm |
| FC5BQCCMM8.0-T1 | Fox晶振 | FC5BQ | 8 MHz | ±30ppm | ±30ppm |
