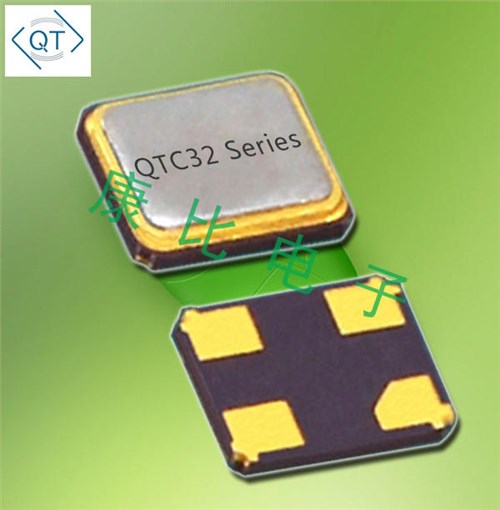

QTC3224.0000FDT1I20M,夸克測試測量晶振,QTC32高性能晶振，尺寸3.2x2.5mm，頻率24MHZ，，德國夸克晶振，石英貼片晶振，水晶振動子，石英晶振，Quarztechnik Crystal，無源石英晶振，無源晶振，SMD晶振，3225mm貼片晶振，24MHZ石英晶振，四腳貼片晶振，綠色環保晶振，高性能晶振，高質量晶振，低損耗晶振，低功耗晶振，低老化晶振，低成本晶振，低耗能晶振，測試測量專用晶振，移動通信晶振，無線設備晶振，汽車應用晶振，網絡設備晶振，以太網晶振，智能音響晶振，游戲機晶振，藍牙耳機晶振，具有輕薄小高性能的特點。

石英貼片晶振產品可廣泛滿足各大應用領域,常常用于高密度應用，調制解調器、通信和測試設備，PMCIA，無線應用，汽車應用，還可以應用智能音響，游戲機等領域。QTC3224.0000FDT1I20M,夸克測試測量晶振,QTC32高性能晶振.

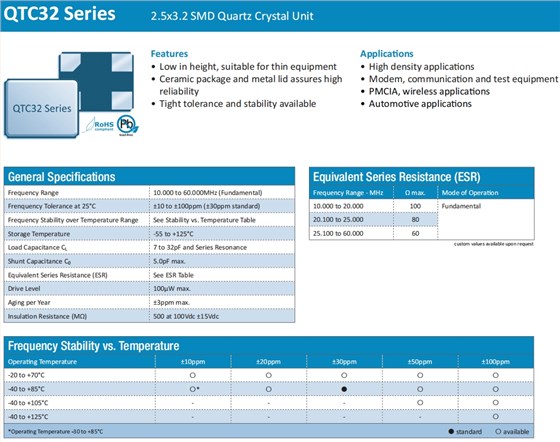

QTC3224.0000FDT1I20M,夸克測試測量晶振,QTC32高性能晶振 參數表

General Specifications

Frequency Range

24.000MHz (Fundamental)

Frenquency Tolerance at 25°C

±10 to ±100ppm (±30ppm standard)

Frequency Stability over Temperature Range

See Stability vs. Temperature Table

Storage Temperature

-55 to +125°C

Load Capacitance CL

7 to 32pF and Series Resonance

Shunt Capacitance C0

5.0pF max.

Equivalent Series Resistance (ESR)

See ESR Table

Drive Level

100μW max.

Aging per Year

±3ppm max.

Insulation Resistance (MΩ)

500 at 100Vdc ±15Vdc

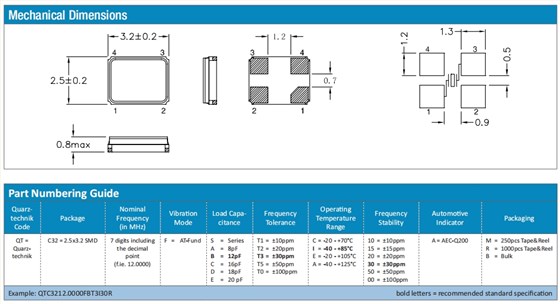

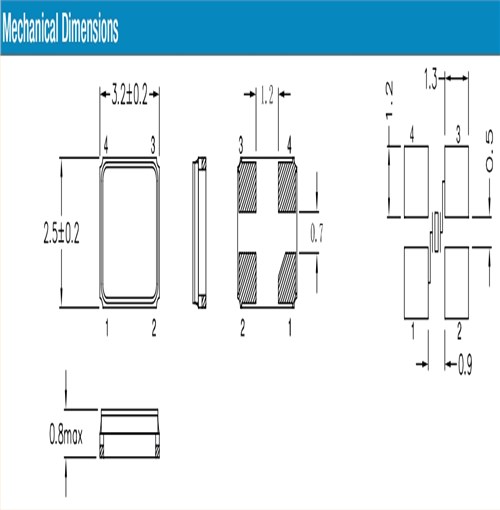

QTC3224.0000FDT1I20M,夸克測試測量晶振,QTC32高性能晶振 尺寸圖

QTC3224.0000FDT1I20M,夸克測試測量晶振,QTC32高性能晶振

無源晶振產品特性：

高度低，適用于薄型設備

陶瓷包裝和金屬蓋確保可靠性

具有緊密的公差和穩定性

Frequency	CL	Tolerance	Stability	Temp. Range	Part number	廠家
8.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A8.00000FDT1I20M	Quarztechnik夸克晶振
10.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A10.0000FDT1I20M	Quarztechnik夸克晶振
11.0592 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A11.0592FDT1I20M	Quarztechnik夸克晶振
12.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A12.0000FDT1I20M	Quarztechnik夸克晶振
14.31818 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A14.31818FDT1I20M	Quarztechnik夸克晶振
14.7456 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A14.7456FDT1I20M	Quarztechnik夸克晶振
16.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A16.0000FDT1I20M	Quarztechnik夸克晶振
19.6608 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A19.6608FDT1I20M	Quarztechnik夸克晶振
24.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A24.0000FDT1I20M	Quarztechnik夸克晶振
25.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A25.0000FDT1I20M	Quarztechnik夸克晶振
27.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A27.0000FDT1I20M	Quarztechnik夸克晶振
32.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A32.0000FDT1I20M	Quarztechnik夸克晶振
8.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A8.00000FDT1I20M	Quarztechnik夸克晶振
11.0592 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A11.0592FDT1I20M	Quarztechnik夸克晶振
12.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A12.0000FDT1I20M	Quarztechnik夸克晶振
14.7456 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A14.7456FDT1I20M	Quarztechnik夸克晶振
16.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A16.0000FDT1I20M	Quarztechnik夸克晶振
20.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A20.0000FDT1I20M	Quarztechnik夸克晶振
24.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A24.0000FDT1I20M	Quarztechnik夸克晶振
25.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A25.0000FDT1I20M	Quarztechnik夸克晶振
27.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A27.0000FDT1I20M	Quarztechnik夸克晶振
32.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A32.0000FDT1I20M	Quarztechnik夸克晶振
8.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A8.00000FDT1I20M	Quarztechnik夸克晶振
12.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A12.0000FDT1I20M	Quarztechnik夸克晶振
12.288 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A12.2880FDT1I20M	Quarztechnik夸克晶振
15.360 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A15.3600FDT1I20M	Quarztechnik夸克晶振
16.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A16.0000FDT1I20M	Quarztechnik夸克晶振
18.432 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A18.4320FDT1I20M	Quarztechnik夸克晶振
20.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A20.0000FDT1I20M	Quarztechnik夸克晶振
24.576 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A24.5760FDT1I20M	Quarztechnik夸克晶振
25.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A25.0000FDT1I20M	Quarztechnik夸克晶振
27.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A27.0000FDT1I20M	Quarztechnik夸克晶振
30.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A30.0000FDT1I20M	Quarztechnik夸克晶振
40.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A40.0000FDT1I20M	Quarztechnik夸克晶振
48.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A48.0000FDT1I20M	Quarztechnik夸克晶振
16.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC3216.0000FDT1I20M	Quarztechnik夸克晶振
18.432 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC3218.4320FDT1I20M	Quarztechnik夸克晶振
20.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC3220.0000FDT1I20M	Quarztechnik夸克晶振
24.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC3224.0000FDT1I20M	Quarztechnik夸克晶振
25.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC3225.0000FDT1I20M	Quarztechnik夸克晶振
27.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC3227.0000FDT1I20M	Quarztechnik夸克晶振
