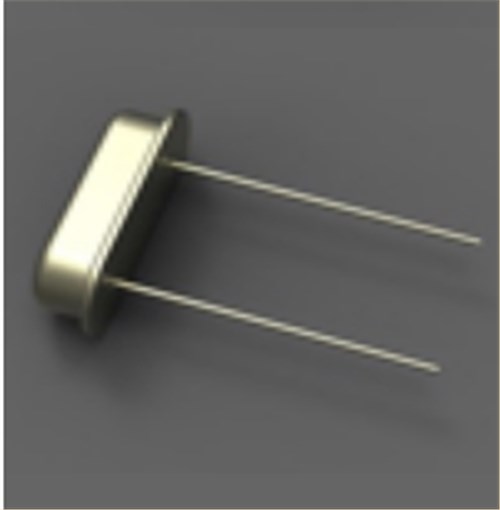

SX-49U-20-30H2-30.000MHz-12pF\6G無線網絡晶振\SHINSUNG插件晶體，尺寸11.3mmX5.0mm，頻率30MHZ，韓國新松晶振，新松無源晶體，石英插件晶振，石英晶振，輕薄型插件晶振，高質量插件晶振，石英晶體諧振器，低損耗插件晶振，6G無線網絡插件晶振，傾斜型晶體，蜂窩電話專用插件晶振，數字視頻插件晶體，以太網專用插件晶振，具備良好的可靠性能以及穩定性等.
石英晶體諧振器非常適合用于局域網，數字電視、視頻，ISDN，蜂窩電話，微處理器時鐘，蜂窩，SONET、DSP，以太網等領域.SX-49U-20-30H2-30.000MHz-12pF\6G無線網絡晶振\SHINSUNG插件晶體.

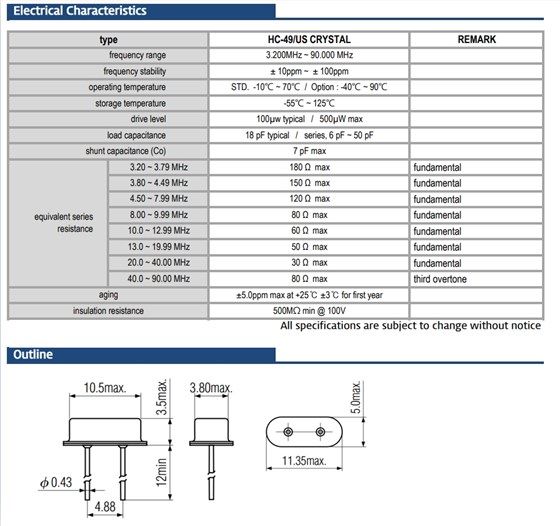

SX-49U-20-30H2-30.000MHz-12pF\6G無線網絡晶振\SHINSUNG插件晶體 參數表
| type | HC-49/US CRYSTAL | REMARK | ||||||||||||||||
| frequency range | 30.000 MHz | |||||||||||||||||
| frequency stability | ± 10ppm ~± 100ppm | |||||||||||||||||
| operating temperature | STD.-10℃~ 70℃/Option : -40℃~ 90℃ | |||||||||||||||||
| storage temperature | -55℃~ 125℃ | |||||||||||||||||
| drive level | 100µw typical/500µW max | |||||||||||||||||
| load capacitance | 18 pF typical/series, 6 pF ~ 50 pF | |||||||||||||||||
| shunt capacitance (Co) | 7 pF max | |||||||||||||||||
|
equivalent series resistance |
3.20 ~ 3.79 MHz | 180 Ωmax | fundamental | |||||||||||||||
| 3.80 ~ 4.49 MHz | 150 Ωmax | fundamental | ||||||||||||||||
| 4.50 ~ 7.99 MHz | 120 Ωmax | fundamental | ||||||||||||||||
| 8.00 ~ 9.99 MHz | 80 Ωmax | fundamental | ||||||||||||||||
| 10.0 ~ 12.99 MHz | 60 Ωmax | fundamental | ||||||||||||||||
| 13.0 ~ 19.99 MHz | 50 Ωmax | fundamental | ||||||||||||||||
| 20.0 ~ 40.00 MHz | 30 Ωmax | fundamental | ||||||||||||||||
| 40.0 ~ 90.00 MHz | 80 Ωmax | third overtone | ||||||||||||||||
| aging | ±5.0ppm max at +25℃±3℃for first year | |||||||||||||||||
| insulation resistance | 500MΩmin @ 100V | |||||||||||||||||

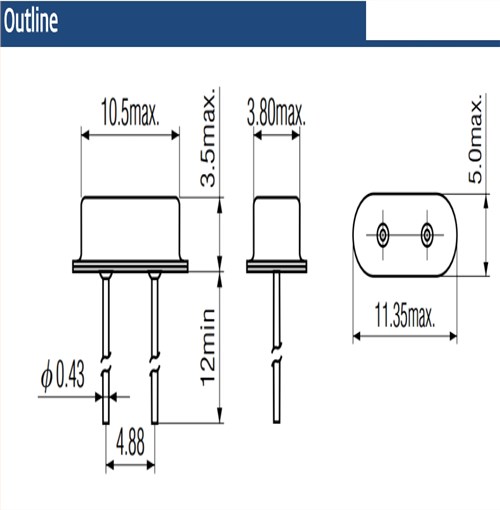

SX-49U-20-30H2-30.000MHz-12pF\6G無線網絡晶振\SHINSUNG插件晶體 尺寸圖

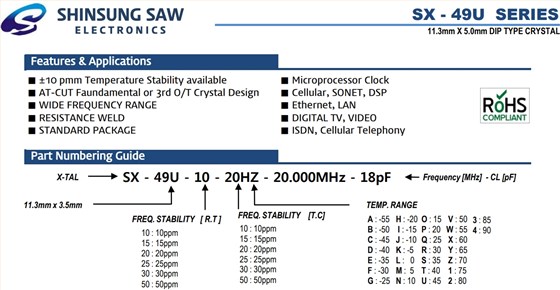

進口環保晶振產品特征:
10pmm溫度穩定性可用
AT切割光纖或第三O/T晶體設計
寬頻率范圍
電阻焊
標準套餐
更多相關韓國新松SHINSUNG Crystal型號，請聯系我們！
