2012mm小體積晶振,TZ2065A,32.768KHZ手表晶振,臺灣嘉碩TST晶體,臺灣無源晶振,SMD晶體諧振器,輕薄型晶體,兩腳貼片晶體,32.768K晶振,音叉晶體,2012mm貼片晶振,水晶振動子,尺寸2.0x1.2mm,頻率32.768KHZ,負載12.5pF,高可靠晶振,高性能晶振,低損耗晶振,通信裝置晶振,實時時鐘晶振,MP4收音機晶振,計算機晶振,電子手表晶振.
2012mm小體積晶振,TZ2065A,32.768KHZ手表晶振,臺灣嘉碩TST晶體特點:
陶瓷接縫封裝
卓越的可靠性性能
超微型封裝無源晶體
可用于表面安裝技術和紅外回流工藝
表面安裝的2.0mmx1.2mm晶體單元，用于通信裝置.
2012mm小體積晶振,TZ2065A,32.768KHZ手表晶振,臺灣嘉碩TST晶體 參數表
        TZ2065A
|
Specification |
| NominalFrequency | 32.768000KHz |
| Storage TemperatureRange | -55°Cto+125°C |
| Operating TemperatureRange | -40°Cto+85°C |
| Turnover Temperature | 25+/-5°C |
| Parabolic CurvatureConstant | -0.027ppm/°C2max. |
| FrequencyMakeTolerance(FL) | +/-20 ppm@25°C+/-3°C |
| EquivalentSeriesResistor(ESR) | 90KΩmax. |
| ShuntCapacitance(Co) | 2.0 pF Max. |
| DriveLevel | 0.5uWmax. |
| LoadCapacitance(CL) | 12.5pF |
| Aging | +/-3.0ppm/year@25°C |
| Marking | Lasermarking |
| InsulationResistance | 500MΩmin atDC100V |

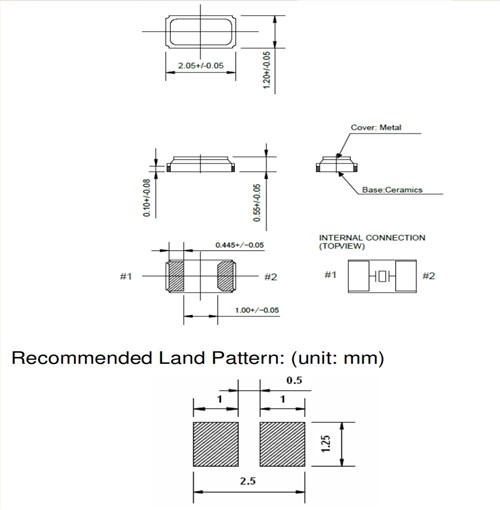

2012mm小體積晶振,TZ2065A,32.768KHZ手表晶振,臺灣嘉碩TST晶體 尺寸圖
