我們廣泛的晶體和晶體振蕩器提供：
輸出頻率范圍從kHz到GHz
完整的輸出組合：CMOS、CML、LVPECL、LVDS、削波正弦波和HCSL
完整的XO產品組合，包括標準 XO、VCXO、TCXO 到超低抖動和高溫XO
從1.0V到3.3V的多個電壓范圍（甚至是傳統的5V）
大量SMT封裝選項組合，可滿足您的封裝要求
JT255系列TCXO可實現非常低的工作電源電流,JT2553P0016.369000,溫補晶體振蕩器,ECERA晶振
| JT15260001 | Diodes Incorporated | SaRonix-eCera™ JT | 26MHz | ±500ppb | -30°C ~ 85°C |
| NX72F5506Z | Diodes Incorporated | SaRonix-eCera™ NX | 155.52MHz | ±50ppm | -20°C ~ 70°C |
| NX72F5506Z | Diodes Incorporated | SaRonix-eCera™ NX | 155.52MHz | ±50ppm | -20°C ~ 70°C |
| NX72F5506Z | Diodes Incorporated | SaRonix-eCera™ NX | 155.52MHz | ±50ppm | -20°C ~ 70°C |
| NX72F6208Z | Diodes Incorporated | SaRonix-eCera™ NX | 156.25MHz | ±50ppm | -20°C ~ 70°C |
| NX72F6208Z | Diodes Incorporated | SaRonix-eCera™ NX | 156.25MHz | ±50ppm | -20°C ~ 70°C |
| NX72F6208Z | Diodes Incorporated | SaRonix-eCera™ NX | 156.25MHz | ±50ppm | -20°C ~ 70°C |
| HX51706001 | Diodes Incorporated | SaRonix-eCera™ HX | 70.656MHz | ±50ppm | -40°C ~ 105°C |
| HX51706001 | Diodes Incorporated | SaRonix-eCera™ HX | 70.656MHz | ±50ppm | -40°C ~ 105°C |
| HX51706001 | Diodes Incorporated | SaRonix-eCera™ HX | 70.656MHz | ±50ppm | -40°C ~ 105°C |
| HX7011C0020.000000 | Diodes Incorporated | SaRonix-eCera™ HX | 20MHz | ±25ppm | -40°C ~ 105°C |
| HX7011C0020.000000 | Diodes Incorporated | SaRonix-eCera™ HX | 20MHz | ±25ppm | -40°C ~ 105°C |
| HX7011C0020.000000 | Diodes Incorporated | SaRonix-eCera™ HX | 20MHz | ±25ppm | -40°C ~ 105°C |
| PBF620074Z | Diodes Incorporated | SaRonix-eCera™ PB | 156.25MHz | ±50ppm | -20°C ~ 70°C |
| PBF620074Z | Diodes Incorporated | SaRonix-eCera™ PB | 156.25MHz | ±50ppm | -20°C ~ 70°C |
| PBF620074Z | Diodes Incorporated | SaRonix-eCera™ PB | 156.25MHz | ±50ppm | -20°C ~ 70°C |
| NX3241E0100.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 100MHz | ±50ppm | -40°C ~ 85°C |
| NX3241E0100.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 100MHz | ±50ppm | -40°C ~ 85°C |
| NX3241E0100.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 100MHz | ±50ppm | -40°C ~ 85°C |
| PXC500007 | Diodes Incorporated | SaRonix-eCera™ PX | 125MHz | ±50ppm | -20°C ~ 70°C |
| PXC500007 | Diodes Incorporated | SaRonix-eCera™ PX | 125MHz | ±50ppm | -20°C ~ 70°C |
溫度補償晶體振蕩器 (TCXO/VCTCXO)，TCXO（溫度補償晶體振蕩器）用于在規定的溫度范圍內產生穩定的頻率參考 (0.5ppm)，并具有削波正弦波輸出。我們的TCXO支持各種電源電壓、輸出頻率、溫度穩定性和其他特性。我們的TCXO晶振可補償環境溫度、電壓或負載環境等變量。我們的TCXO具有出色的相位噪聲性能，最適合GPS、智能手機和無線模塊應用。JT255系列TCXO可實現非常低的工作電源電流,JT2553P0016.369000,溫補晶體振蕩器,ECERA晶振
JT255系列TCXO可實現非常低的工作電源電流,JT2553P0016.369000,溫補晶體振蕩器,ECERA晶振
PXC500007
Diodes Incorporated
SaRonix-eCera™ PX
125MHz
±50ppm
-20°C ~ 70°C
NX73K0004Z
Diodes Incorporated
SaRonix-eCera™ NX
200MHz
±50ppm
-40°C ~ 85°C
NX73K0004Z
Diodes Incorporated
SaRonix-eCera™ NX
200MHz
±50ppm
-40°C ~ 85°C
NX73K0004Z
Diodes Incorporated
SaRonix-eCera™ NX
200MHz
±50ppm
-40°C ~ 85°C
NX7021E0150.000000
Diodes Incorporated
SaRonix-eCera™ NX
150MHz
±50ppm
-40°C ~ 85°C
NX7021E0150.000000
Diodes Incorporated
SaRonix-eCera™ NX
150MHz
±50ppm
-40°C ~ 85°C
NX7021E0150.000000
Diodes Incorporated
SaRonix-eCera™ NX
150MHz
±50ppm
-40°C ~ 85°C
NX5041D0100.000000
Diodes Incorporated
SaRonix-eCera™ NX
100MHz
±25ppm
-40°C ~ 85°C
NX5041D0100.000000
Diodes Incorporated
SaRonix-eCera™ NX
100MHz
±25ppm
-40°C ~ 85°C
NX5041D0100.000000
Diodes Incorporated
SaRonix-eCera™ NX
100MHz
±25ppm
-40°C ~ 85°C
NX7021D0148.500000
Diodes Incorporated
SaRonix-eCera™ NX
148.5MHz
±25ppm
-40°C ~ 85°C
NX7021D0148.500000
Diodes Incorporated
SaRonix-eCera™ NX
148.5MHz
±25ppm
-40°C ~ 85°C
NX7021D0148.500000
Diodes Incorporated
SaRonix-eCera™ NX
148.5MHz
±25ppm
-40°C ~ 85°C
NX3221E0150.000000
Diodes Incorporated
SaRonix-eCera™ NX
150MHz
±50ppm
-40°C ~ 85°C
NX3221E0150.000000
Diodes Incorporated
SaRonix-eCera™ NX
150MHz
±50ppm
-40°C ~ 85°C
NX3221E0150.000000
Diodes Incorporated
SaRonix-eCera™ NX
150MHz
±50ppm
-40°C ~ 85°C
SNSAS2150
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
150MHz
±50ppm
-20°C ~ 70°C
SNSAS2150
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
150MHz
±50ppm
-20°C ~ 70°C
SNSAS2150
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
150MHz
±50ppm
-20°C ~ 70°C
PD10GE156
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
156.25MHz
±50ppm
-40°C ~ 85°C

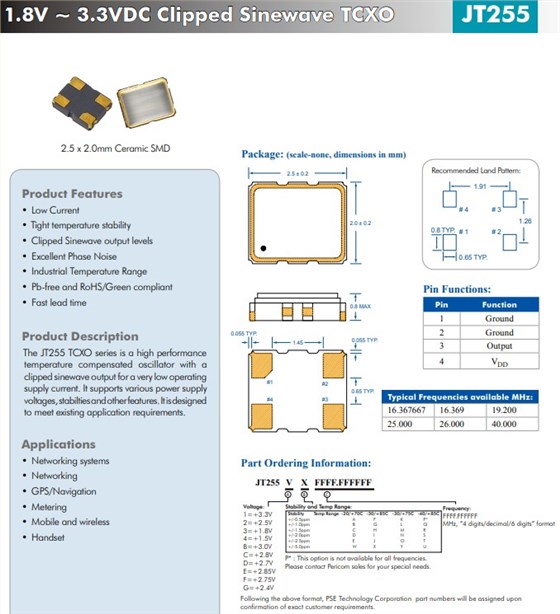

JT255 TCXO系列是一款高性能溫補晶體振蕩器，具有削波正弦波輸出，可實現非常低的工作電源電流。它支持各種電源電壓、穩定性和其他功能。它旨在滿足現有的應用需求。
特征：
低電流
嚴格的溫度穩定性
削波正弦波輸出電平
出色的相位噪聲
工業溫度范圍
無鉛且符合 RoHS/Green 標準
交貨時間快
應用：
網絡系統
聯網
GPS/導航
計量
移動和無線
手機
| PD10GE156 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 156.25MHz | ±50ppm | -40°C ~ 85°C |
| PD10GE156 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 156.25MHz | ±50ppm | -40°C ~ 85°C |
| PDF620008Z | Diodes Incorporated | SaRonix-eCera™ PD | 156.25MHz | ±50ppm | -40°C ~ 85°C |
| PDF620008Z | Diodes Incorporated | SaRonix-eCera™ PD | 156.25MHz | ±50ppm | -40°C ~ 85°C |
| PDF620008Z | Diodes Incorporated | SaRonix-eCera™ PD | 156.25MHz | ±50ppm | -40°C ~ 85°C |
| NX72G1102Z | Diodes Incorporated | SaRonix-eCera™ NX | 161.132812MHz | ±50ppm | -20°C ~ 70°C |
| NX72G1102Z | Diodes Incorporated | SaRonix-eCera™ NX | 161.132812MHz | ±50ppm | -20°C ~ 70°C |
| NX72G1102Z | Diodes Incorporated | SaRonix-eCera™ NX | 161.132812MHz | ±50ppm | -20°C ~ 70°C |
| NX7032C0200.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 200MHz | ±50ppm | -20°C ~ 70°C |
| NX7032C0200.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 200MHz | ±50ppm | -20°C ~ 70°C |
| NX7032C0200.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 200MHz | ±50ppm | -20°C ~ 70°C |
| UX52F62008 | Diodes Incorporated | SaRonix-eCera™ UX | 156.25MHz | ±50ppm | -20°C ~ 70°C |
| UX52F62008 | Diodes Incorporated | SaRonix-eCera™ UX | 156.25MHz | ±50ppm | -20°C ~ 70°C |
| UX52F62008 | Diodes Incorporated | SaRonix-eCera™ UX | 156.25MHz | ±50ppm | -20°C ~ 70°C |
| UX54F62001 | Diodes Incorporated | SaRonix-eCera™ UX | 156.25MHz | ±50ppm | -40°C ~ 85°C |
| UX54F62001 | Diodes Incorporated | SaRonix-eCera™ UX | 156.25MHz | ±50ppm | -40°C ~ 85°C |
| UX54F62001 | Diodes Incorporated | SaRonix-eCera™ UX | 156.25MHz | ±50ppm | -40°C ~ 85°C |
| NX72W2201Z | Diodes Incorporated | SaRonix-eCera™ NX | 322.265625MHz | ±50ppm | -20°C ~ 70°C |
| NX72W2201Z | Diodes Incorporated | SaRonix-eCera™ NX | 322.265625MHz | ±50ppm | -20°C ~ 70°C |
| NX72W2201Z | Diodes Incorporated | SaRonix-eCera™ NX | 322.265625MHz | ±50ppm | -20°C ~ 70°C |
Product Parameters
| ProductSeries | JT |
|---|---|
| Family | TCXO |
| Output Logic | CLIPPED SINE |
| Supply Voltage (volt) | 1.8 - 3.3 |
| Temp Stability (ppm) | 0.5 - 5.0 |
| Operating Temp (°C) | -40 to 85 |
| Freq Range (MHz) | 10 to 52 |
| Type | TCXO |
| Package Size (mm) | 2.5 x 2.0 x 0.8 |
| Supply Current (mA) | 1.5 Max (≤ 26MHz); 2.0 Max (>26MHz) |
| StabilityVoltage | 0 |
| StabilityLoad | 0 |
| Harmonics | 0 |
| Pads | 4 |
| NotRecommended | 0 |
JT255系列TCXO可實現非常低的工作電源電流,JT2553P0016.369000,溫補晶體振蕩器,ECERA晶振
產品參數：
產品系列 捷通家庭 TCXO
輸出邏輯 削波正弦
電源電壓（伏）1.8 - 3.3
溫度穩定性 (ppm) 0.5 - 5.0
工作溫度 (°C) -40至85
頻率范圍 (MHz) 10至52
類型 TCXO
包裝尺寸 2.5x2.0x0.8mm有源晶振
電源電流 (mA) 1.5 最大（≤ 26MHz）；2.0 最大值 (>26MHz)
穩定電壓 0
穩定載荷 0
諧波 0
墊 4
不建議 0
| JX5021E0156.250000 | Diodes Incorporated | SaRonix-eCera™ JX | 156.25MHz | ±50ppm | -40°C ~ 85°C |
| JX5021E0156.250000 | Diodes Incorporated | SaRonix-eCera™ JX | 156.25MHz | ±50ppm | -40°C ~ 85°C |
| JX5021E0156.250000 | Diodes Incorporated | SaRonix-eCera™ JX | 156.25MHz | ±50ppm | -40°C ~ 85°C |
| UX73F62003 | Diodes Incorporated | SaRonix-eCera™ UX | 156.25MHz | ±50ppm | -40°C ~ 85°C |
| UX73F62003 | Diodes Incorporated | SaRonix-eCera™ UX | 156.25MHz | ±50ppm | -40°C ~ 85°C |
| UX73F62003 | Diodes Incorporated | SaRonix-eCera™ UX | 156.25MHz | ±50ppm | -40°C ~ 85°C |
| UX52F6204Z | Diodes Incorporated | SaRonix-eCera™ UX | 156.25MHz | ±50ppm | -40°C ~ 85°C |
| UX52F6204Z | Diodes Incorporated | SaRonix-eCera™ UX | 156.25MHz | ±50ppm | -40°C ~ 85°C |
| UX52F6204Z | Diodes Incorporated | SaRonix-eCera™ UX | 156.25MHz | ±50ppm | -40°C ~ 85°C |
| UX72F6214Z | Diodes Incorporated | SaRonix-eCera™ UX | 156.25MHz | ±50ppm | -40°C ~ 85°C |
| UX72F6214Z | Diodes Incorporated | SaRonix-eCera™ UX | 156.25MHz | ±50ppm | -40°C ~ 85°C |
| UX72F6214Z | Diodes Incorporated | SaRonix-eCera™ UX | 156.25MHz | ±50ppm | -40°C ~ 85°C |
| UX31F6203Z | Diodes Incorporated | SaRonix-eCera™ UX | 156.25MHz | ±25ppm | -40°C ~ 85°C |
| UX31F6203Z | Diodes Incorporated | SaRonix-eCera™ UX | 156.25MHz | ±25ppm | -40°C ~ 85°C |
| UX31F6203Z | Diodes Incorporated | SaRonix-eCera™ UX | 156.25MHz | ±25ppm | -40°C ~ 85°C |
| UX31F6201Z | Diodes Incorporated | SaRonix-eCera™ UX | 156.25MHz | ±25ppm | -40°C ~ 85°C |
| UX31F6201Z | Diodes Incorporated | SaRonix-eCera™ UX | 156.25MHz | ±25ppm | -40°C ~ 85°C |
| UX31F6201Z | Diodes Incorporated | SaRonix-eCera™ UX | 156.25MHz | ±25ppm | -40°C ~ 85°C |
| UX52I0501Z | Diodes Incorporated | SaRonix-eCera™ UX | 180.55MHz | ±50ppm | -40°C ~ 85°C |
| UX52I0501Z | Diodes Incorporated | SaRonix-eCera™ UX | 180.55MHz | ±50ppm | -40°C ~ 85°C |
溫補晶振即溫度補償晶體振蕩器（TCXO），本身具有溫度補償作用，是通過附加的溫度補償電路使由周圍溫度變化產生的振蕩頻率變化量削減的一種石英晶體振蕩器，高低溫度穩定性:頻率精度0.5PPM~2.0PPM,常用頻率:26M,33.6M,38.4M,40M.因產品性能穩定,精度高等優勢,被廣泛應用到一些比較高端的數碼通訊產品領域,GPS全球定位系統,智能手機,WiMAX和無線通信等產品,符合RoHS/無鉛.
JT255系列TCXO可實現非常低的工作電源電流,JT2553P0016.369000,溫補晶體振蕩器,ECERA晶振
