當前位置：首頁 » 行業動態 » HXQ-LVDS系列2.5V/3.3V高溫LVDS晶體振蕩器,HX7011C0020.000000,晶體振蕩器,ECERA晶振

HXQ-LVDS系列2.5V/3.3V高溫LVDS晶體振蕩器,HX7011C0020.000000,晶體振蕩器,ECERA晶振

來源：*** 查看手機網址

掃一掃!

HXQ-LVDS系列2.5V/3.3V高溫LVDS晶體振蕩器,HX7011C0020.000000,晶體振蕩器,ECERA晶振

掃一掃!

瀏覽：- 發布日期：2022-07-02 10:23:14【大中小】

分享到：

亞陶晶振科技是美商Pericom百利通晶振集團的子公司，該公司成立于2000年7月，在2010年，亞陶科技正式更名為「百利通亞陶科技股份有限公司」，專業生產石英晶振，貼片晶振，石英晶體振蕩器，差分晶振等頻率元件產品.

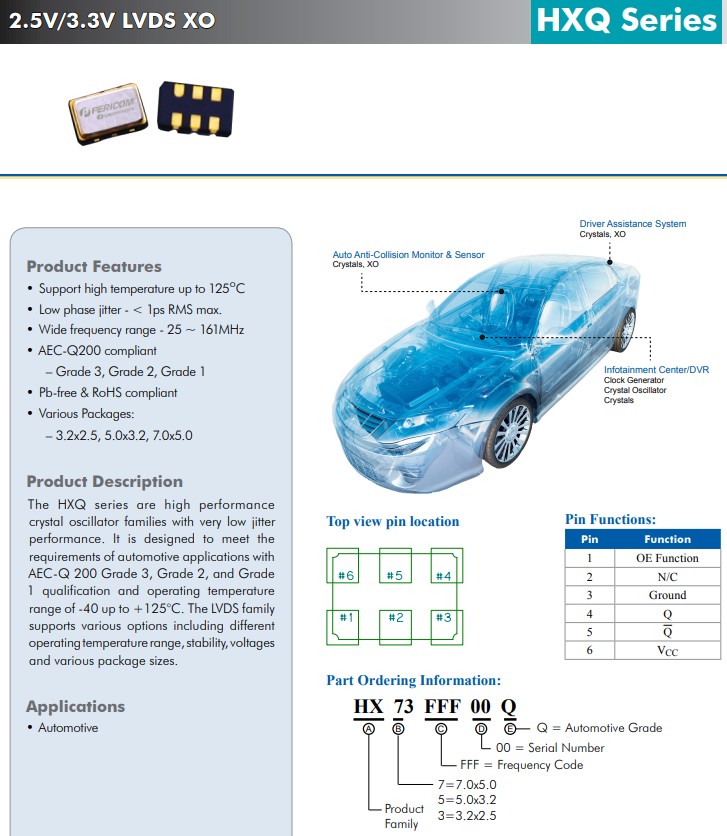

百利通亞陶晶振HXQ-LVDS系列2.5V/3.3V、3.2x2.5mm、汽車級、高溫LVDS晶體振蕩器，HXQ系列是具有極低抖動的高性能晶體振蕩器系列表現。它旨在滿足汽車應用的要求AEC-Q200 3級、2級和1級認證和工作溫度范圍為-40℃至+125℃。LVDS系列支持各種選項，包括不同的工作溫度范圍、穩定性、電壓和各種封裝尺寸。
產品特點：
支持高達 125℃的高溫
低相位抖動 - < 1ps RMS max。
寬頻率范圍 - 25 ~ 161MHz
符合 AEC-Q200–3級、2級、1級
無鉛且符合RoHS標準
各種軟件包：3.2x2.5、5.0x3.2、7.0x5.0mm
應用于汽車

HXQ-LVDS系列2.5V/3.3V高溫LVDS晶體振蕩器,HX7011C0020.000000,晶體振蕩器,ECERA晶振

Manufacturer Part Number原廠代碼	Manufacturer品牌	Series型號	Frequency 頻率	Frequency Stability頻率穩定度	Operating Temperature 工作溫度
FNETHE025	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	25MHz	±25ppm	-20°C ~ 70°C
FNETHE025	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	25MHz	±25ppm	-20°C ~ 70°C
FNETHE025	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	25MHz	±25ppm	-20°C ~ 70°C
FNSURV027	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	27MHz	±30ppm	-20°C ~ 70°C
FNSURV027	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	27MHz	±30ppm	-20°C ~ 70°C
FNSURV027	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	27MHz	±30ppm	-20°C ~ 70°C
FNGEPO002	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	2.048MHz	±50ppm	-20°C ~ 70°C
FNGEPO002	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	2.048MHz	±50ppm	-20°C ~ 70°C
FNGEPO002	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	2.048MHz	±50ppm	-20°C ~ 70°C
FKSSD1025	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	25MHz	±25ppm	-10°C ~ 70°C
FKSSD1025	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	25MHz	±25ppm	-10°C ~ 70°C
FKSSD1025	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	25MHz	±25ppm	-10°C ~ 70°C
UJWIFI026	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	26MHz	±20ppm	-30°C ~ 85°C
UJWIFI026	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	26MHz	±20ppm	-30°C ~ 85°C
UJWIFI026	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	26MHz	±20ppm	-30°C ~ 85°C
FNEPON125	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	125MHz	±50ppm	-20°C ~ 70°C
FNEPON125	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	125MHz	±50ppm	-20°C ~ 70°C
FNEPON125	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	125MHz	±50ppm	-20°C ~ 70°C
FK1330001Z	Diodes Incorporated	SaRonix-eCera™ FK	13.3333MHz	±25ppm	-40°C ~ 85°C
FK1330001Z	Diodes Incorporated	SaRonix-eCera™ FK	13.3333MHz	±25ppm	-40°C ~ 85°C
FK1330001Z	Diodes Incorporated	SaRonix-eCera™ FK	13.3333MHz	±25ppm	-40°C ~ 85°C
FJ2400011	Diodes Incorporated	SaRonix-eCera™ FJ	24MHz	±50ppm	-40°C ~ 85°C
FJ2400011	Diodes Incorporated	SaRonix-eCera™ FJ	24MHz	±50ppm	-40°C ~ 85°C
FJ2400011	Diodes Incorporated	SaRonix-eCera™ FJ	24MHz	±50ppm	-40°C ~ 85°C
FJ2400002	Diodes Incorporated	SaRonix-eCera™ FJ	24MHz	±50ppm	-40°C ~ 85°C
FJ2400002	Diodes Incorporated	SaRonix-eCera™ FJ	24MHz	±50ppm	-40°C ~ 85°C
FJ2400002	Diodes Incorporated	SaRonix-eCera™ FJ	24MHz	±50ppm	-40°C ~ 85°C
FN2500149	Diodes Incorporated	SaRonix-eCera™ FN	25MHz	±50ppm	-40°C ~ 85°C
FN2500149	Diodes Incorporated	SaRonix-eCera™ FN	25MHz	±50ppm	-40°C ~ 85°C

Product Parameters

Subfamily	High Temp XO
Product Series	HXQ-LVDS
Compliance(Only Automotive supports PPAP)	Automotive
Freq Range (MHz)	25 to 162
Jitter RMS (ps)	<1 ps RMS
Stability (PPM)	20 to 50
Package Size (mm)	3.2 x 2.5
PkgType	Ceramic Seam
Output Logic	LVDS
Supply Voltage (V)	3.3, 2.5
Pads	6

HXQ-LVDS系列2.5V/3.3V高溫LVDS晶體振蕩器,HX7011C0020.000000,晶體振蕩器,ECERA晶振

產品參數:

亞科高溫XO
產品系列 HXQ-LVDS
合規性（僅汽車支持 PPAP）汽車車載晶振
頻率范圍 (MHz) 25 至 162
抖動均方根 (ps) <1 ps RMS
穩定性 (PPM) 20 到 50
包裝尺寸 3.2 x 2.5mm
包裝類型陶瓷縫
輸出邏輯 LVDS差分晶振
電源電壓 (V) 3.3, 2.5
墊 6

FN2500149	Diodes Incorporated	SaRonix-eCera™ FN	25MHz	±50ppm	-40°C ~ 85°C
SXGPON155	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	155.52MHz	±50ppm	-40°C ~ 85°C
SXGPON155	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	155.52MHz	±50ppm	-40°C ~ 85°C
SXGPON155	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	155.52MHz	±50ppm	-40°C ~ 85°C
HX2513F0026.000000	Diodes Incorporated	SaRonix-eCera™ HX	26MHz	±50ppm	-40°C ~ 105°C
HX2513F0026.000000	Diodes Incorporated	SaRonix-eCera™ HX	26MHz	±50ppm	-40°C ~ 105°C
HX2513F0026.000000	Diodes Incorporated	SaRonix-eCera™ HX	26MHz	±50ppm	-40°C ~ 105°C
HX3125006Q	Diodes Incorporated	SaRonix-eCera™ HX	25MHz	±30ppm	-40°C ~ 105°C
HX3125006Q	Diodes Incorporated	SaRonix-eCera™ HX	25MHz	±30ppm	-40°C ~ 105°C
HX3125006Q	Diodes Incorporated	SaRonix-eCera™ HX	25MHz	±30ppm	-40°C ~ 105°C
NX3211C0125.000000	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±50ppm	-20°C ~ 70°C
NX3211C0125.000000	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±50ppm	-20°C ~ 70°C
NX3211C0125.000000	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±50ppm	-20°C ~ 70°C
FJ1600002	Diodes Incorporated	SaRonix-eCera™ FJ	16MHz	±50ppm	-20°C ~ 70°C
FJ1600002	Diodes Incorporated	SaRonix-eCera™ FJ	16MHz	±50ppm	-20°C ~ 70°C
FJ1600002	Diodes Incorporated	SaRonix-eCera™ FJ	16MHz	±50ppm	-20°C ~ 70°C
JX7011D0070.656000	Diodes Incorporated	SaRonix-eCera™ JX	70.656MHz	±25ppm	-40°C ~ 85°C
JX7011D0070.656000	Diodes Incorporated	SaRonix-eCera™ JX	70.656MHz	±25ppm	-40°C ~ 85°C
JX7011D0070.656000	Diodes Incorporated	SaRonix-eCera™ JX	70.656MHz	±25ppm	-40°C ~ 85°C
UJ2600007Z	Diodes Incorporated	SaRonix-eCera™ UJ	26MHz	±20ppm	-20°C ~ 70°C
UJ2600007Z	Diodes Incorporated	SaRonix-eCera™ UJ	26MHz	±20ppm	-20°C ~ 70°C
UJ2600007Z	Diodes Incorporated	SaRonix-eCera™ UJ	26MHz	±20ppm	-20°C ~ 70°C
FJ1120001Z	Diodes Incorporated	SaRonix-eCera™ FJ	11.2896MHz	±25ppm	-40°C ~ 85°C
FJ1120001Z	Diodes Incorporated	SaRonix-eCera™ FJ	11.2896MHz	±25ppm	-40°C ~ 85°C
FJ1120001Z	Diodes Incorporated	SaRonix-eCera™ FJ	11.2896MHz	±25ppm	-40°C ~ 85°C
FDC500026	Diodes Incorporated	SaRonix-eCera™ FD	125MHz	±50ppm	-20°C ~ 70°C
FDC500026	Diodes Incorporated	SaRonix-eCera™ FD	125MHz	±50ppm	-20°C ~ 70°C
FDC500026	Diodes Incorporated	SaRonix-eCera™ FD	125MHz	±50ppm	-20°C ~ 70°C
HX7011C0025.000000	Diodes Incorporated	SaRonix-eCera™ HX	25MHz	±25ppm	-40°C ~ 105°C
HX7011C0025.000000	Diodes Incorporated	SaRonix-eCera™ HX	25MHz	±25ppm	-40°C ~ 105°C

百利通亞陶晶振在生產石英晶體振蕩器方面的技術上是無人能及，Diodes晶振所提供石英振蕩器和SaRonix-eCera™的石英晶體共振器利用自己內部晶體和IC設計，Diodes 提供最好種類的晶體和石英振蕩器可以配合用戶的設計需求。在業界擁有最小的石英振蕩器，實現極好的穩定性透過廣泛范圍的操作狀況。石英晶體振蕩器也分為多中類別：溫補晶振，壓控晶振，壓控溫補晶振，差分晶振等均為有源晶振。HXQ-LVDS系列2.5V/3.3V高溫LVDS晶體振蕩器,HX7011C0020.000000,晶體振蕩器,ECERA晶振

HX7011C0025.000000	Diodes Incorporated	SaRonix-eCera™ HX	25MHz	±25ppm	-40°C ~ 105°C
NX5011B0125.000000	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±25ppm	-20°C ~ 70°C
NX5011B0125.000000	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±25ppm	-20°C ~ 70°C
NX5011B0125.000000	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±25ppm	-20°C ~ 70°C
FNA000088Z	Diodes Incorporated	SaRonix-eCera™ FN	100MHz	±50ppm	-40°C ~ 85°C
FNA000088Z	Diodes Incorporated	SaRonix-eCera™ FN	100MHz	±50ppm	-40°C ~ 85°C
FNA000088Z	Diodes Incorporated	SaRonix-eCera™ FN	100MHz	±50ppm	-40°C ~ 85°C
FNA000065	Diodes Incorporated	SaRonix-eCera™ FN	100MHz	±25ppm	-20°C ~ 70°C
FNA000065	Diodes Incorporated	SaRonix-eCera™ FN	100MHz	±25ppm	-20°C ~ 70°C
FNA000065	Diodes Incorporated	SaRonix-eCera™ FN	100MHz	±25ppm	-20°C ~ 70°C
NX71C50003	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±25ppm	-40°C ~ 85°C
NX71C50003	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±25ppm	-40°C ~ 85°C
NX71C50003	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±25ppm	-40°C ~ 85°C
FNC500131	Diodes Incorporated	SaRonix-eCera™ FN	125MHz	±50ppm	-40°C ~ 85°C
FNC500131	Diodes Incorporated	SaRonix-eCera™ FN	125MHz	±50ppm	-40°C ~ 85°C
FNC500131	Diodes Incorporated	SaRonix-eCera™ FN	125MHz	±50ppm	-40°C ~ 85°C
NX71C50001	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±20ppm	-20°C ~ 70°C
NX71C50001	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±20ppm	-20°C ~ 70°C
NX71C50001	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±20ppm	-20°C ~ 70°C
FM3900001Z	Diodes Incorporated	SaRonix-eCera™ FM	39.0625MHz	±50ppm	-40°C ~ 85°C
FM3900001Z	Diodes Incorporated	SaRonix-eCera™ FM	39.0625MHz	±50ppm	-40°C ~ 85°C
FM3900001Z	Diodes Incorporated	SaRonix-eCera™ FM	39.0625MHz	±50ppm	-40°C ~ 85°C
FKA000018Z	Diodes Incorporated	SaRonix-eCera™ FK	100MHz	±50ppm	-40°C ~ 85°C
FKA000018Z	Diodes Incorporated	SaRonix-eCera™ FK	100MHz	±50ppm	-40°C ~ 85°C
FKA000018Z	Diodes Incorporated	SaRonix-eCera™ FK	100MHz	±50ppm	-40°C ~ 85°C
HX3124501Q	Diodes Incorporated	SaRonix-eCera™ HX	24.545452MHz	±25ppm	-40°C ~ 105°C
HX3124501Q	Diodes Incorporated	SaRonix-eCera™ HX	24.545452MHz	±25ppm	-40°C ~ 105°C
HX3124501Q	Diodes Incorporated	SaRonix-eCera™ HX	24.545452MHz	±25ppm	-40°C ~ 105°C
HX31330001	Diodes Incorporated	SaRonix-eCera™ HX	33MHz	±50ppm	-40°C ~ 90°C
HX31330001	Diodes Incorporated	SaRonix-eCera™ HX	33MHz	±50ppm	-40°C ~ 90°C
HX31330001	Diodes Incorporated	SaRonix-eCera™ HX	33MHz	±50ppm	-40°C ~ 90°C
HX3212F0040.000000	Diodes Incorporated	SaRonix-eCera™ HX	40MHz	±50ppm	-40°C ~ 105°C
HX3212F0040.000000	Diodes Incorporated	SaRonix-eCera™ HX	40MHz	±50ppm	-40°C ~ 105°C
HX3212F0040.000000	Diodes Incorporated	SaRonix-eCera™ HX	40MHz	±50ppm	-40°C ~ 105°C
SX10GE156	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	156.25MHz	±50ppm	-40°C ~ 85°C
SX10GE156	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	156.25MHz	±50ppm	-40°C ~ 85°C
SX10GE156	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	156.25MHz	±50ppm	-40°C ~ 85°C
HX3127001Q	Diodes Incorporated	SaRonix-eCera™ HX	27MHz	±25ppm	-40°C ~ 105°C
HX3127001Q	Diodes Incorporated	SaRonix-eCera™ HX	27MHz	±25ppm	-40°C ~ 105°C
HX3127001Q	Diodes Incorporated	SaRonix-eCera™ HX	27MHz	±25ppm	-40°C ~ 105°C

HXQ-LVDS系列2.5V/3.3V高溫LVDS晶體振蕩器,HX7011C0020.000000,晶體振蕩器,ECERA晶振

HXQ-LVDS系列 3225 20~50 3.2x2.5 LVDS 3.32.5 6 2.5V/3.3V、3.2x2.5mm、汽車級、高溫LVDS晶體振蕩器
HXQ-LVDS系列 5032 20~50 5.0x3.2 LVDS 3.32.5 6 2.5V/3.3V、5.0x3.2mm、汽車級、高溫LVDS輸出晶振
HXQ-LVDS系列 7050 20~50 7.0x5.0 LVDS 3.32.5 6 2.5V/3.3V、7.0x5.0mm、汽車級、高溫LVDS晶體振蕩器
HXQ-LVPECL系列 3225 20~50 3.2x2.5 LVPECL 3.32.5 6 2.5V/3.3V、3.2x2.5mm、汽車級、高溫LVPECL晶體振蕩器
HXQ-LVPECL-5032系列 20~50 5.0x3.2 LVPECL 3.32.5 6 2.5V/3.3V、5.0x3.2mm、汽車級、高溫LVPECL晶體振蕩器
HXQ-LVPECL-7050系列 20~50 7.0x5.0 LVPECL 3.32.5 6 2.5V/3.3V、7.0x5.0mm、汽車級、高溫LVPECL晶體振蕩器
