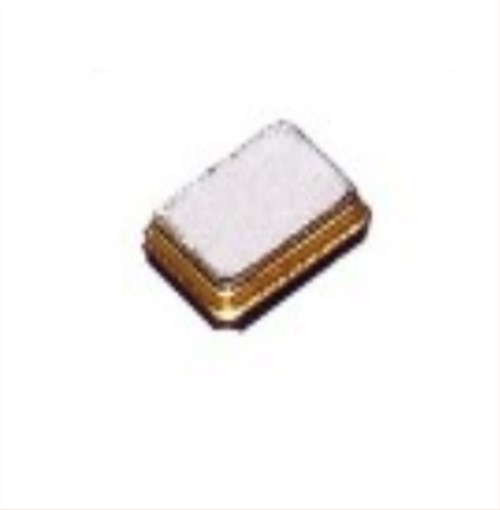

Euroquartz小型晶振,6GWIFI晶振,24.000MHz X22/10/30/-10+6石英晶體，尺寸2.5x2.0mm，頻率為24MHZ，歐洲石英晶體，歐美進口晶振，無源貼片晶振，石英SMD晶振，SMD晶振，石英水晶振子，石英晶體諧振器，小體積晶振，手持式設備晶振，無線設備晶振，藍牙音響晶振，小型設備晶振，智能家居晶振，網絡設備晶振，平板電腦晶振，低功耗晶振，輕薄型晶振，低成本晶振，高質量晶振.
X22貼片石英晶振是覆蓋頻率的超小型AT切割晶體頻率范圍12MHz至60MHz。它們的小尺寸（2.5 x2.0mm）和低質量使這些晶體成為小型化的理想選擇手持式設備和類似的高密度應用。Euroquartz小型晶振,6GWIFI晶振,24.000MHz X22/10/30/-10+6石英晶體.

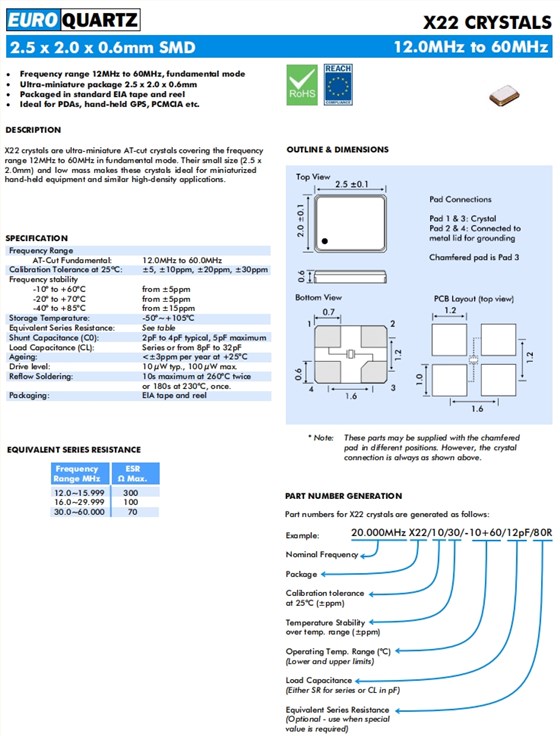

Euroquartz小型晶振,6GWIFI晶振,24.000MHz X22/10/30/-10+6石英晶體 參數表
| Frequency Range | ||||||
| AT-Cut Fundamental: | 24.0MHz | |||||
| Calibration Tolerance at 25ºC: | ±5, ±10ppm, ±20ppm, ±30ppm | |||||
|
Frequency stability -10° to +60°C -20° to +70°C -40° to +85°C |
from ±5ppm from ±5ppm from ±15ppm |
|||||
| Storage Temperature: | -50°~+105°C | |||||
| Equivalent Series Resistance: | See table | |||||
| Shunt Capacitance (C0): | 2pF to 4pF typical, 5pF maximum | |||||
| Load Capacitance (CL): | Series or from 8pF to 32pF | |||||
| Ageing: | <±3ppm per year at +25°C | |||||
| Drive level: | 10 µW typ., 100 µW max. | |||||
| Reflow Soldering: | 10s maximum at 260°C twice | |||||
| or 180s at 230°C, once. | ||||||

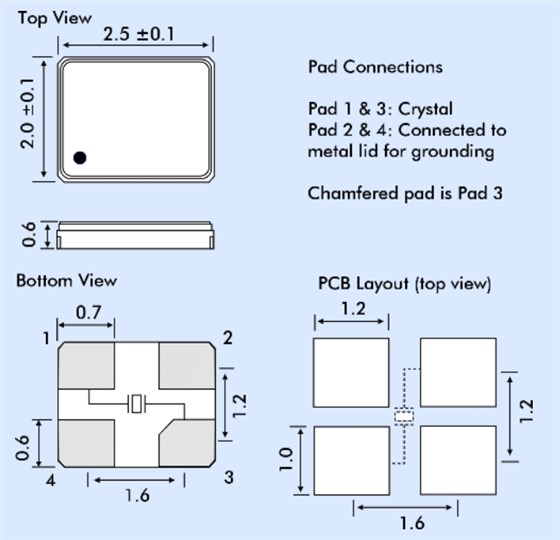

Euroquartz小型晶振,6GWIFI晶振,24.000MHz X22/10/30/-10+6石英晶體 尺寸圖
無源晶體產品特征:
頻率范圍12MHz至60MHz
基本模式超小型封裝2.5x2.0x0.6mm包裝
在標準EIA磁帶和卷軸中
適用于PDA、手持式GPS、PCMCIA等。
更多相關Euroquartz Crystal歐洲石英晶振型號，請咨詢我們！
