406系列有源晶振,米利倫TCXO晶振,3225mm小體積振蕩器，尺寸3.2x2.5mm，頻率10~52MHZ，加拿大進口晶振，MTI-milliren石英振蕩器，3225mm溫補振蕩器，四腳有源振蕩器，石英溫補晶振，TCXO晶振，貼片溫補振蕩器，高質量有源晶振，高性能有源晶振，低損耗有源晶振，低耗能有源晶振，低相位有源晶振，低相噪有源晶振，室外基站有源晶振，北斗定位有源晶振，通訊模塊有源晶振，智能家居有源晶振，網絡設備有源晶振，以太網有源晶振，具有超高的可靠性能。

溫度補償晶振產品超級適合用于室外基站，北斗定位，通訊模塊，智能家居，網絡設備，以太網等應用領域。406系列有源晶振,米利倫TCXO晶振,3225mm小體積振蕩器.

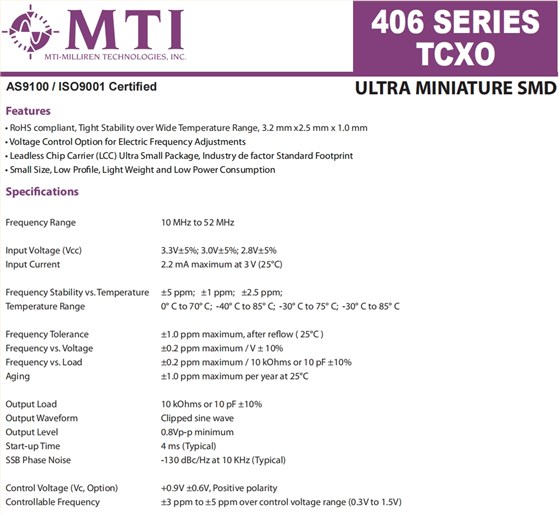

406系列有源晶振,米利倫TCXO晶振,3225mm小體積振蕩器 參數表

Frequency Range			10 MHz to 52 MHz
Input Voltage (Vcc)			3.3V±5%; 3.0V±5%; 2.8V±5% 2.2 mA maximum at 3 V (25°C)
Input Current
Frequency Stability vs. Temperature			±5 ppm;±1 ppm;±2.5 ppm;
Temperature Range			0° C to 70° C;-40° C to 85° C;-30° C to 75° C;-30° C to 85° C ±1.0 ppm maximum, after reflow ( 25°C )
Frequency Tolerance
Frequency vs. Voltage			±0.2 ppm maximum / V ± 10%
Frequency vs. Load			±0.2 ppm maximum / 10 kOhms or 10 pF ±10% ±1.0 ppm maximum per year at 25°C
Aging
Output Load			10 kOhms or 10 pF ±10% Clipped sine wave 0.8Vp-p minimum 4 ms (Typical)
Output Waveform
Output Level
Start-up Time
SSB Phase Noise			-130 dBc/Hz at 10 KHz (Typical) +0.9V ±0.6V, Positive polarity
Control Voltage (Vc, Option)
Controllable Frequency			±3 ppm to ±5 ppm over control voltage range (0.3V to 1.5V)
