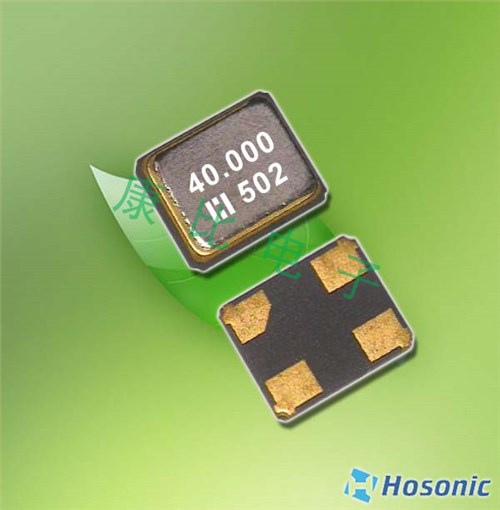

E2SB40E000108E,鴻星2520晶振,E2SB石英諧振器,6G藍牙晶振，尺寸2.5x2.0mm，頻率40MHZ，Hosonic臺灣晶振，臺灣無源晶振，水晶振動子，無源石英晶體，石英貼片晶振，石英晶體諧振器，40MHZ石英晶振，四腳貼片晶振，環保型晶振，金屬面貼片晶振，超小型晶振，低損耗晶振，低功耗晶振，高精度晶振，高性能晶振，OA辦公自動化晶振，AV視聽設備晶振，藍牙專用晶振，無線局域網應用專用晶振，具有高精度高性能的特點。

貼片石英晶振產品常常用于理想的OA（辦公自動化），AV（視聽），藍牙和無線局域網應用，還可以廣泛用于網絡設備，平板電腦等領域。E2SB40E000108E,鴻星2520晶振,E2SB石英諧振器,6G藍牙晶振.

E2SB40E000108E,鴻星2520晶振,E2SB石英諧振器,6G藍牙晶振 參數表

Item
Frequency Range

Type
F0

E2SB

40MHz

16 to 19.999MHz

20 to 25.999MHz

26 to 62.500MHz

Mode of Vibration

Fundamental

Load Capacitance

6to 16pF

Frequency Tolerance

ΔF/ F0

±10ppm,±15ppm,±30ppm(At 25℃)

EquivalentSeries Resistance

ESR

120Ωmax.

100Ωmax.

80Ωmax.

50Ωmax.

Temperature Stability

±10ppm,±15ppm,±30ppm(Refer to 25℃)

Operating Temperature Range

TOPR

-20~+70℃,-30~+85℃Option

Storage Temperature Range

TSTG

Shunt Capacitance

3pF max.

Insulator Resistance

500MΩmin. (At 100VDC)

Drive Level

50μW(100μW max.)

Aging

±2ppm max. (At 25℃,First year)

Packing Unit

3000pcs/reel

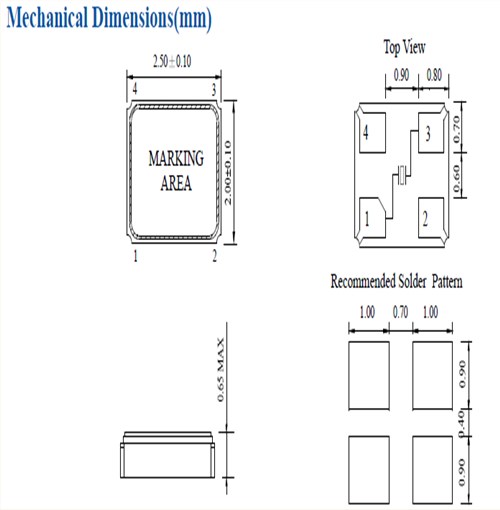

E2SB40E000108E,鴻星2520晶振,E2SB石英諧振器,6G藍牙晶振 尺寸圖

無源晶體產品特征:

非常緊湊和薄（2.5*2.0*0.65mm）

頻率范圍12米至62.5米，

資金卓越的電氣性能，

卓越的耐熱和抗沖擊無鉛。

滿足使用無鉛焊料進行再流分析的要求

更多相關Hosonic鴻星晶振型號

臺產晶振編碼	Supplier	Series	Frequency	Frequency Stability穩定度	Frequency Tolerance	Load Capacitance
E2SB40E000104ECBB8	Hosonic鴻星晶振	E2SB	40 MHz	±10ppm	±7ppm	12pF
E2SB38E0X0300E	Hosonic鴻星晶振	E2SB	38.4 MHz	±10ppm	±10ppm	8pF
E2SB40E000107E	Hosonic鴻星晶振	E2SB	40 MHz	-12ppm, +20ppm	±5ppm	12pF
E2SB40E00010AE	Hosonic鴻星晶振	E2SB	40 MHz	±10ppm	±7ppm	7pF
E1SB26E007902E	Hosonic鴻星晶振	E1SB	26 MHz	±15ppm	±10ppm	9pF
E1SB55E0X0002E	Hosonic鴻星晶振	E1SB	55.2 MHz	±10ppm	±10ppm	10pF
E2SB27E0X0000E	Hosonic鴻星晶振	E2SB	27.12 MHz	±10ppm	±10ppm	8pF
E2SB24E001801E	Hosonic鴻星晶振	E2SB	24 MHz	±20ppm	±20ppm	12pF
E2SB40E000108E	Hosonic鴻星晶振	E2SB	40 MHz	±15ppm	±7ppm	6pF
E1SB24E000007E	Hosonic鴻星晶振	E1SB	24 MHz	±10ppm	±10ppm	10pF
E1SB39E000000E	Hosonic鴻星晶振	E1SB	39 MHz	±13ppm	±8ppm	10pF
E1SB32E007900E	Hosonic鴻星晶振	E1SB	32 MHz	±15ppm	±10ppm	10pF
E1SB32E001502E	Hosonic鴻星晶振	E1SB	32 MHz	±20ppm	±10ppm	12pF
E2SB12E000005E	Hosonic鴻星晶振	E2SB	12 MHz	±20ppm	±20ppm	12pF
E1SB16E000004E	Hosonic鴻星晶振	E1SB	16 MHz	±10ppm	±10ppm	8pF
E3FB24E00000KE	Hosonic鴻星晶振	E3FB	24 MHz	±30ppm	±30ppm	12pF
E2SB16E00000ME	Hosonic鴻星晶振	E2SB	16 MHz	±30ppm	±30ppm	12pF
E2SB26E001201E	Hosonic鴻星晶振	E2SB	26 MHz	±13ppm	±5ppm	9pF
E2SB32E001201E	Hosonic鴻星晶振	E2SB	32 MHz	±10ppm	±10ppm	12pF
E1SB40E001202E	Hosonic鴻星晶振	E1SB	40 MHz	±17ppm	±10ppm	8pF
E2SB32E00000LE	Hosonic鴻星晶振	E2SB	32MHz	±10ppm		9pF
E1SB24E000901E	Hosonic鴻星晶振	E1SB	24.000MHz	±10ppm		12PF
E1SB24E000009E	Hosonic鴻星晶振	E1SB	24.000MHz	±10ppm		12PF
E1SB32E000016E	Hosonic鴻星晶振	E1SB	32MHz	±10ppm		9pF
E2SB37E0X0002E	Hosonic鴻星晶振	E2SB	37.4MHz	±10ppm		10pF
E1SB27E00000FE	Hosonic鴻星晶振	E1SB	27MHz	±10ppm		10pF
E3FB26E004203E	Hosonic鴻星晶振	E3FB	26MHz	±10ppm		7.3pF
E2SB24E000016E	Hosonic鴻星晶振	E2SB	24MHz	±10ppm		20pF
E2SB54E000000E	Hosonic鴻星晶振	E2SB	54MHz	±10ppm		10pF
E2SB48E000009E	Hosonic鴻星晶振	E2SB	48MHz	±10ppm		12pF
E2SB50E00000EE	Hosonic鴻星晶振	E2SB	50MHz	±14ppm		19pF
E1SB40E000000E	Hosonic鴻星晶振	E1SB	40MHz	±10ppm		8pF
E2SB37E0X0004E	Hosonic鴻星晶振	E2SB	37.4MHz	±10ppm		12pF
E1SB48E00001JE	Hosonic鴻星晶振	E1SB	48MHz	±10ppm		15pF
E2SB40E000007E	Hosonic鴻星晶振	E2SB	40MHz	±10ppm		10pF
E1SB26E000006E	Hosonic鴻星晶振	E1SB	26MHz	±10ppm		16pF
E2SB40E000003E	Hosonic鴻星晶振	E2SB	40MHz	±10ppm		8pF
E1SB24E000012E	Hosonic鴻星晶振	E1SB	24.000MHz	±10ppm		9pF
E2SB24E00001NE	Hosonic鴻星晶振	E2SB	24MHz	±15ppm		16pF
E2SB40E00000RE	Hosonic鴻星晶振	E2SB	40MHz	±30ppm		20pF
E1SB50E000000E	Hosonic鴻星晶振	E1SB	50MHz	±15ppm		7pF
E1SB24E00000EE	Hosonic鴻星晶振	E1SB	24MHz	±20ppm		20pF
E2SB38E0X0007E	Hosonic鴻星晶振	E2SB	38.400MHz	±10ppm		10pF
E2SB54E000009E	Hosonic鴻星晶振	E2SB	54MHz	±5ppm		19pF
E2SB26E00000GE	Hosonic鴻星晶振	E2SB	26MHz	±10ppm		16pF
E1SB26E00000PE	Hosonic鴻星晶振	E1SB	26MHz	±15ppm		12pF
E2SB26E000007E	Hosonic鴻星晶振	E2SB	26MHz	±10ppm		9pF
E1SB40E000007E	Hosonic鴻星晶振	E1SB	40.000MHz	±10ppm		15pF
E2SB40E000006E	Hosonic鴻星晶振	E2SB	40MHz	±10ppm		10pF
E1SB16E00000PE	Hosonic鴻星晶振	E1SB	16MHz	±10ppm		16pF
E2SB40E00000EE	Hosonic鴻星晶振	E2SB	40MHz	±10ppm		15pF
E1SB27E0X0005E	Hosonic鴻星晶振	E1SB	27.12MHz	±10ppm		10pF
E2SB26E00000DE	Hosonic鴻星晶振	E2SB	26MHz	±10ppm		12pF
E1SB26E00000SE	Hosonic鴻星晶振	E1SB	26MHz	±10ppm		9pF
E2SB50E00000CE	Hosonic鴻星晶振	E2SB	50MHz	±10ppm		8pF
E1SB24E00000XE	Hosonic鴻星晶振	E1SB	24MHz	±10ppm		16pF
E2SB48E000004E	Hosonic鴻星晶振	E2SB	48MHz	±10ppm		10pF
E2SB16E000014E	Hosonic鴻星晶振	E2SB	16MHz	±10ppm		16pF
E2SB40E000009E	Hosonic鴻星晶振	E2SB	40MHz	±10ppm		12pF
E1SB37E0X0009E	Hosonic鴻星晶振	E1SB	37.4MHz	±10ppm		12pF
E1SB40E00000CE	Hosonic鴻星晶振	E1SB	40MHz	±10ppm		10pF
E2SB26E000005E	Hosonic鴻星晶振	E2SB	26.000MHz	±10ppm		9PF
E2SB12E00000CE	Hosonic鴻星晶振	E2SB	12MHz	±20ppm		18pF
E1SB32E00000AE	Hosonic鴻星晶振	E1SB	32MHz	±15ppm		10pF
E2SB16E000007E	Hosonic鴻星晶振	E2SB	16MHz	±10ppm		10pF
E1SB50E00000DE	Hosonic鴻星晶振	E1SB	50MHz	±10ppm		15pF
E1SB38E0X000EE	Hosonic鴻星晶振	E1SB	38.4MHz	±8ppm		12pF
E1SB40E00000AE	Hosonic鴻星晶振	E1SB	40MHz	±10ppm		12pF
E2SB16E00000VE	Hosonic鴻星晶振	E2SB	16MHz	±10ppm		12pF
E1SB24E000011E	Hosonic鴻星晶振	E1SB	24.000MHz	±10ppm		8pF
E2SB27E00000KE	Hosonic鴻星晶振	E2SB	27MHz	±10ppm		10pF
E2SB40E00000WE	Hosonic鴻星晶振	E2SB	40MHz	±10ppm		9pF
E2SB16E000003E	Hosonic鴻星晶振	E2SB	16MHz	±10ppm		9pF
E1SB25E00000NE	Hosonic鴻星晶振	E1SB	25MHz	±10ppm		12pF
E1SB16E000008E	Hosonic鴻星晶振	E1SB	16MHz	±10ppm		12pF
E2SB27E00000EE	Hosonic鴻星晶振	E2SB	27.000MHz	±10ppm		20pF
E2SB32E000018E	Hosonic鴻星晶振	E2SB	32MHz	±10ppm		10pF
E1SB24E00000PE	Hosonic鴻星晶振	E1SB	24.000MHZ	±30ppm		16pF
E2SB26E000103E	Hosonic鴻星晶振	E2SB	26MHz	±10ppm		7.5pF
E2SB40E00000JE	Hosonic鴻星晶振	E2SB	40MHz	±10ppm		12pF
E2SB12E000014E	Hosonic鴻星晶振	E2SB	12MHz	±10ppm		20pF
E1SB16E000005E	Hosonic鴻星晶振	E1SB	16MHz	±10ppm		10pF
E1SB32E00000WE	Hosonic鴻星晶振	E1SB	32MHZ	±10ppm		8pF
E2SB38E0X000HE	Hosonic鴻星晶振	E2SB	38.4MHz	±10ppm		12pF
E1SB48E000008E	Hosonic鴻星晶振	E1SB	48MHz	±8ppm		10pF
E1SB48E000009E	Hosonic鴻星晶振	E1SB	48MHz	±10ppm		12pF
E2SB24E00000LE	Hosonic鴻星晶振	E2SB	24.000MHz	±10ppm		12PF
E2SB24E00000ZE	Hosonic鴻星晶振	E2SB	24MHz	±10ppm		9pF
E2SB27E0X000CE	Hosonic鴻星晶振	E2SB	27.12MHz	±10ppm		10pF
E1SB40E00001AE	Hosonic鴻星晶振	E1SB	40MHz	±10ppm		9pF
