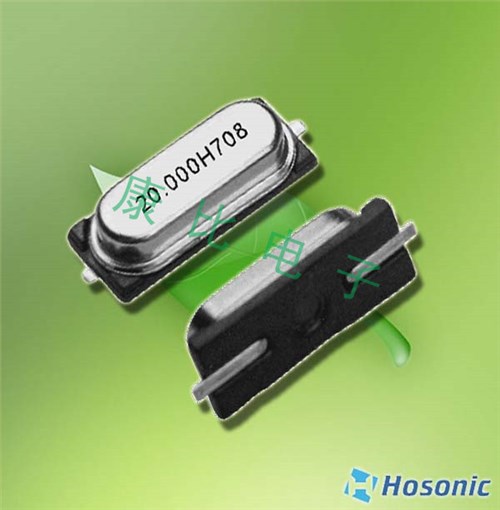

E49B13E0X000FE10C0-E49B水晶振動子-6G藍牙晶振-鴻星石英晶體，尺寸12.5x4.7mm，頻率8MHZ，Hosonic無源晶振，無源石英晶體，石英貼片晶振，SMD晶振，石英晶體諧振器，貼片無源晶振，水晶振動子，無源晶振，石英晶振，大尺寸晶振，綠色環保晶振，低功耗晶振，低損耗晶振，高質量晶振，無線設備晶振，藍牙音響晶振，小型設備晶振，智能家居晶振，網絡設備晶振，6G藍牙專用晶振，產品具有良好的可靠性能。
無源晶體產品比較常用于小型設備，藍牙音響，智能家居，網絡設備，還被廣泛應用無線應用,電子數碼等領域。E49B13E0X000FE10C0-E49B水晶振動子-6G藍牙晶振-鴻星石英晶體.

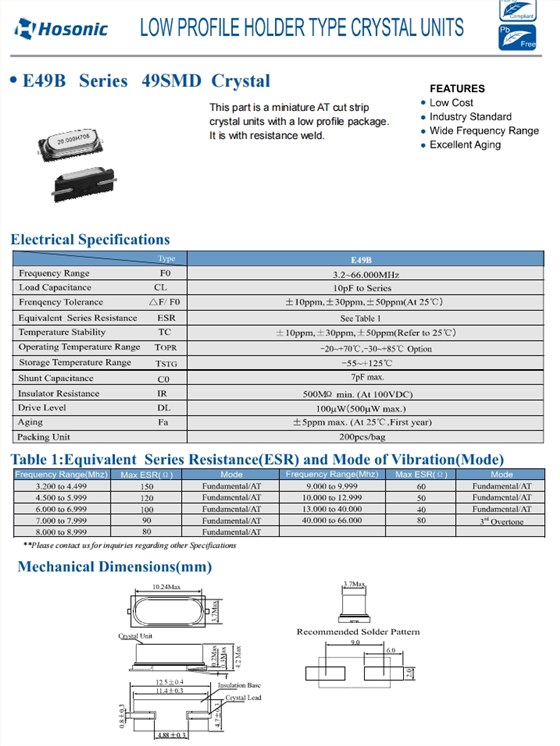

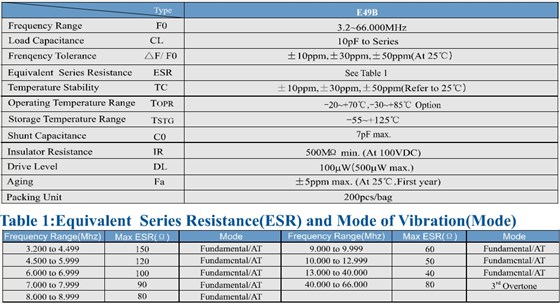

E49B13E0X000FE10C0-E49B水晶振動子-6G藍牙晶振-鴻星石英晶體 參數表

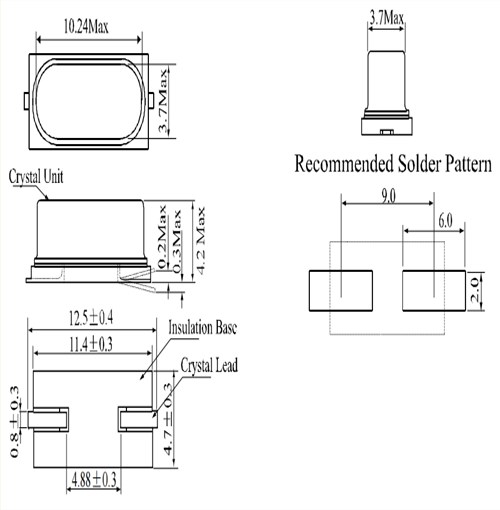

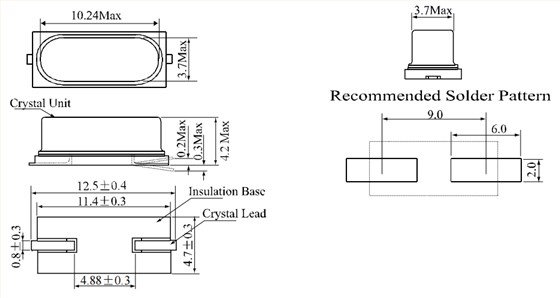

E49B13E0X000FE10C0-E49B水晶振動子-6G藍牙晶振-鴻星石英晶體 尺寸圖
石英晶振產品特征:
這部分是一個微型AT切割帶
采用薄型封裝的晶體單元。
采用電阻焊。
低成本
行業標準
寬頻率范圍
極好的老化
更多相關Hosonic鴻星晶振型號
| Mfr Part # | Supplier | Series | Frequency | Frequency Stability穩定度 | Frequency Tolerance | Load Capacitance |
| E5FA8E000000DE | Hosonic鴻星晶振 | E5FA | 8MHz | ±20ppm | 20pF | |
| E49B8E000001AE | Hosonic鴻星晶振 | E49B | 8MHz | ±20ppm | 20pF | |
| E49B13E0X000FE10C0 | Hosonic鴻星晶振 | E49B | 13.560MHz | ±20ppm | 20PF | |
| E5FA8.00000F20E22 | Hosonic鴻星晶振 | E5FA | 8MHz | ±20ppm | 20PF | |
| E49B4E000000VE10C0 | Hosonic鴻星晶振 | E49B | 4MHz | ±20ppm | 20PF | |
| E5FA8.00000F20E11 | Hosonic鴻星晶振 | E5FA | 8MHz | |||
| E49B11E0X000YE10C0 | Hosonic鴻星晶振 | E49B | 11.0592MHz | ±20ppm | 20pF | |
| E49A8E00000FE10CO | Hosonic鴻星晶振 | E49A | 8MHz | ±20ppm | 20pF | |
| E49A16E00000KE10CO | Hosonic鴻星晶振 | E49A | 16M | ±20ppm | 20pF | |
| E49A11E0X000JE | Hosonic鴻星晶振 | HC-49SA | 11.0592MHz | ±30ppm | 20pF | |
| E49A12E00000ME | Hosonic鴻星晶振 | HC-49SA | 12MHz | ±30ppm | 20pF | |
| E49A16E00000ME | Hosonic鴻星晶振 | HC-49SA | 16MHz | ±30ppm | 20pF | |
| E49A24E00000HE | Hosonic鴻星晶振 | HC-49SA | 24MHz | ±30ppm | 20pF | |
| E49A25E00001AE | Hosonic鴻星晶振 | HC-49SA | 25MHz | ±30ppm | 20pF | |
| E49A25E000033E | Hosonic鴻星晶振 | E49A | 20pF | ±30ppm | 20pF | |
| E49A4E000000JE | Hosonic鴻星晶振 | HC-49SA | 4MHz | ±30ppm | 20pF | |
| E49A7E00X0007E | Hosonic鴻星晶振 | HC-49SA | 7.3728MHz | ±30ppm | 20pF | |
| E49A8E000001CE | Hosonic鴻星晶振 | E49A | 10pF | |||
| E49B10E00000TE | Hosonic鴻星晶振 | E49B | 10pF | |||
| E49B12E000022E | 鴻星貼片晶振 | HC-49SB | 12MHz | ±30ppm | 10pF | |
| E49B16E00000KE | Hosonic鴻星晶振 | HC-49SM | 16MHz | 16pF | ||
| E49B16E00000SE | Hosonic鴻星晶振 | HC-49SB | 16MHz | ±30ppm | 18pF | |
| E49B4E000000GE | Hosonic鴻星晶振 | HC-49SM | 4MHz | ±30ppm | 18pF | |
| E49B4E00X000ZE | Hosonic鴻星晶振 | E49B | 10pF | |||
| E49B7E00X000AE | Hosonic鴻星晶振 | HC-49SM | 7.3728MHz | ±30ppm | 18pF | |
| E49B8E00X000CE | Hosonic鴻星晶振 | E49B | 10pF | |||
| E49B9E00X0009E | Hosonic鴻星晶振 | ESB | 9.84375MHz | ±30ppm | 10pF | |
| ESA10.0000F30C35F | Hosonic鴻星晶振 | HC-49SA | 10MHz | ±30ppm | 10pF | |
| ESA12.0000F20B35F | Hosonic鴻星晶振 | HC-49SA | 12MHz | ±30ppm | 20pF | |
| ESA12.0000F20E33F | Hosonic鴻星晶振 | HC-49SA | 12MHz | ±30ppm | 20pF | |
| ESA12.0000F30D35F | Hosonic鴻星晶振 | HC-49SA | 12MHz | ±30ppm | 30pF | |
| ESA12.000F30D55F | Hosonic鴻星晶振 | HC-49SA | 12MHz | ±30ppm | 30pF | |
| ESA14.7456F20E33F | Hosonic鴻星晶振 | HC-49SA | 14.7456MHz | ±30ppm | 20pF | |
| ESA16.0000F30M55F | Hosonic鴻星晶振 | HC-49SA | 16MHz | ±30ppm | 30pF | |
| ESA18.4320F20E33F | Hosonic鴻星晶振 | HC-49SA | 18.432MHz | ±30ppm | 20pF | |
| ESA20.0000F18M33F | Hosonic鴻星晶振 | HC-49SA | 20MHz | ±50ppm | 18pF | |
| ESA20.0000F20E33F | Hosonic鴻星晶振 | HC-49SA | 20MHz | ±30ppm | 20pF | |
| ESA20.0000F30M55F | Hosonic鴻星晶振 | HC-49SA | 20MHz | ±30ppm | 18pF | |
| ESA3.68640F20E33F | Hosonic鴻星晶振 | HC-49SA | 3.6864MHz | ±30ppm | 20pF | |
| ESA8.00000F20E33F | Hosonic鴻星晶振 | HC-49SA | 8MHz | ±30ppm | 20pF | |
| ESB10.0000F20M35F | Hosonic鴻星晶振 | HC-49SB | 10MHz | ±30ppm | 20pF | |
| ESB11.0592F18E33F | Hosonic鴻星晶振 | HC-49SM | 11.0592MHz | ±30ppm | 18pF | |
| ESB12.0000F18E33F | Hosonic鴻星晶振 | HC-49SM | 12MHz | ±30ppm | 18pF | |
| ESB14.7456F18E33F | Hosonic鴻星晶振 | HC-49SM | 14.7456MHz | ±30ppm | 18pF | |
| ESB16.0000F18E33F | Hosonic鴻星晶振 | HC-49SM | 16MHz | ±30ppm | 18pF | |
| ESB18.4320F18E33F | Hosonic鴻星晶振 | HC-49SM | 18.432MHz | ±30ppm | 18pF | |
| ESB19.2000F32M55F | Hosonic鴻星晶振 | HC-49SB | 19.2MHz | ±30ppm | 32pF | |
| ESB20.0000F18E33F | Hosonic鴻星晶振 | HC-49SM | 20MHz | ±30ppm | 18pF | |
| ESB24.0000F18E33F | Hosonic鴻星晶振 | HC-49SM | 24MHz | ±30ppm | 18pF | |
| ESB24.5760F18E33F | Hosonic鴻星晶振 | HC-49SM | 24.576MHz | ±30ppm | 18pF | |
| ESB25.0000F18C25F | Hosonic鴻星晶振 | HC-49SB | 25MHz | ±30ppm | 18pF | |
| ESB25.0000F18E33F | Hosonic鴻星晶振 | HC-49SM | 25MHz | ±30ppm | 18pF | |
| ESB3.68640F18E33F | Hosonic鴻星晶振 | HC-49SM | 3.6864MHz | ±30ppm | 18pF | |
| ESB4.00000F20E23FX | Hosonic鴻星晶振 | HC-49SB | 4MHz | ±30ppm | 20pF | |
| ESB6.00000F16D33F | Hosonic鴻星晶振 | HC-49SB | 6MHz | ±30ppm | 16pF | |
| ESB8.00000F18E33F | Hosonic鴻星晶振 | HC-49SM | 8MHz | ±30ppm | 18pF | |
| ESB8.00000F20B33F | Hosonic鴻星晶振 | HC-49SB | 8MHz | ±30ppm | 20pF |
