EC2600TS-66.000M TR,Ecliptek晶振廠家,7050mm,LVCMOS振蕩器，美國Ecliptek晶振，日蝕晶振，型號：EC26系列，編碼為：EC2600TS-66.000M TR，頻率：66.000MHz，電壓：3.3V，頻率穩定性：±100ppm，工作溫度范圍：-10℃至+70℃，小體積晶振尺寸：7.0x5.0mm封裝，四腳貼片晶振，石英晶振，SMD晶振，LVCMOS輸出晶振，有源晶振，石英晶體時鐘振蕩器。具有超小型，輕薄型，高品質，高精度，高性能，高可靠性等特點。應用于：通訊設備晶振，GPS定位晶振，導航儀晶振，數字視頻晶振，物聯網等應用。
EC2600TS-66.000M TR,Ecliptek晶振廠家,7050mm,LVCMOS振蕩器,參數表
品牌
Ecliptek日蝕晶振
型號
EC26
物料編碼
EC2600TS-66.000M TR
頻率
66MHz
頻率穩定性
±100ppm
輸出
LVCMOS
電源電壓
3.3V
工作溫度
-10℃至+70℃
尺寸
7.0x5.0mm

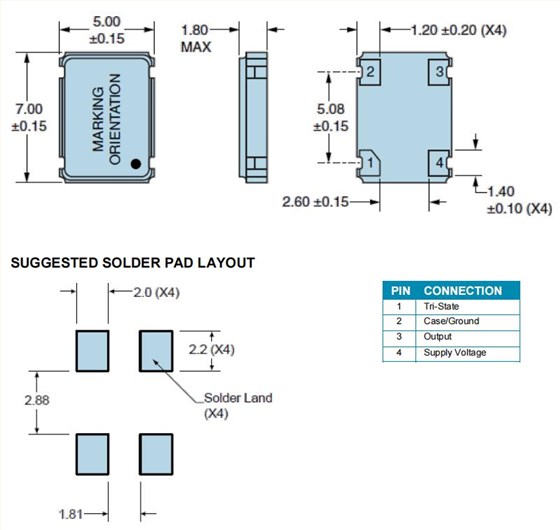

EC2600TS-66.000M TR,Ecliptek晶振廠家,7050mm,LVCMOS振蕩器,尺寸圖
| 產品編碼 | 品牌 | 系列 | 類型 | 頻率 |
| EC2645TS-25.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 25 MHz |
| EC2645TTS-33.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 33 MHz |
| EC2600TS-40.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 40 MHz |
| EC2620TS-25.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 25 MHz |
| EC2645ETTS-33.333M TR | Ecliptek晶振 | EC26 | XO (Standard) | 33.333 MHz |
| EC2620TS-12.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 12 MHz |
| EC2620TS-50.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 50 MHz |
| EC2600TS-66.000M TR | 晶振廠家 | EC26 | XO (Standard) | 66 MHz |
| EC2600TS-50.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 50 MHz |
| EC2620TS-24.576M TR | Ecliptek晶振 | EC26 | XO (Standard) | 24.576 MHz |
| EC2625ETTS-66.666M TR | Ecliptek晶振 | EC26 | XO (Standard) | 66.666 MHz |
| EC2625ETTS-16.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 16 MHz |
| EC2645TTS-27.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 27 MHz |
| EC2645ETTTS-4.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 4 MHz |
| EC2625ETTS-32.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 32 MHz |
| EC2600ETTTS-50.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 50 MHz |
| EC2600TS-24.576M TR | Ecliptek晶振 | EC26 | XO (Standard) | 24.576 MHz |
| EC2645ETTTS-25.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 25 MHz |
| EC2620TTS-100.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 100 MHz |
| EC2645TS-20.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 20 MHz |
| EC2625ETTS-50.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 50 MHz |
| EC2625ETTTS-25.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 25 MHz |
| EC2645ETTTS-18.432M TR | Ecliptek晶振 | EC26 | XO (Standard) | 18.432 MHz |
| EC2600ETTTS-12.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 12 MHz |
| EC2600TS-5.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 5 MHz |
| EC2625TTS-75.000MTR | Ecliptek晶振 | EC26 | XO (Standard) | 75 MHz |
| EC2625TS-48.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 48 MHz |
| EC2645ETTTS-14.31818M TR | Ecliptek晶振 | EC26 | XO (Standard) | 14.31818 MHz |
| EC2620TS-16.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 16 MHz |
| EC2625TS-24.000M TR | 石英晶振 | EC26 | XO (Standard) | 24 MHz |
| EC2600TS-11.0592M TR | Ecliptek晶振 | EC26 | XO (Standard) | 11.0592 MHz |
| EC2600ETTS-14.7456M TR | Ecliptek晶振 | EC26 | XO (Standard) | 14.7456 MHz |
| EC2600TS-15.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 15 MHz |
| EC2625TTS-64.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 64 MHz |
| EC2645TTS-32.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 32 MHz |
| EC2600TS-48.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 48 MHz |
| EC2600ETTS-16.384M TR | Ecliptek晶振 | EC26 | XO (Standard) | 16.384 MHz |
| EC2645ETTS-50.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 50 MHz |
| EC2645ETTS-16.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 16 MHz |
| EC2645ETTS-66.666M TR | Ecliptek晶振 | EC26 | XO (Standard) | 66.666 MHz |
| EC2645TTS-106.250M TR | Ecliptek晶振 | EC26 | XO (Standard) | 106.25 MHz |
| EC2625ETTS-100.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 100 MHz |
| EC2600TS-120.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 120 MHz |
| EC2645TTS-125.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 125 MHz |
| EC2625TS-125.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 125 MHz |
| EC2625ETTS-133.333M TR | Ecliptek晶振 | EC26 | XO (Standard) | 133.333 MHz |
| EC2600ETTS-14.318M | Ecliptek晶振 | EC26 | XO (Standard) | 14.318 MHz |
| EC2600ETTS-14.7456M | Ecliptek晶振 | EC26 | XO (Standard) | 14.7456 MHz |
| EC2600ETTS-16.000M | Ecliptek晶振 | EC26 | XO (Standard) | 16 MHz |
| EC2600ETTS-33.000M | Ecliptek晶振 | EC26 | XO (Standard) | 33 MHz |
| EC2600ETTS-33.000M TR | Ecliptek晶振 | EC26 | XO (Standard) | 33 MHz |
| EC2600ETTS-66.666M TR | Ecliptek晶振 | EC26 | XO (Standard) | 66.666 MHz |
