32.768K|ECS-.327-CDX-1128|ECS-CDX|3215mm|音叉晶體，尺寸為3215mm,頻率為32.768KHZ,工作溫度為-40°C~+85°C，ECS晶振，美國伊西斯晶振，歐美進口晶振，32.768KHZ晶振，SMD晶體，音叉晶體，3215mm貼片晶體，貼片無源晶振，石英晶體諧振器，石英晶體，時鐘應用晶振，無線設備晶振，藍牙音響晶振，高性能晶振。
超微型ECS-。327-CDX-1128是一個非常緊湊的SMD音叉無源晶體。3.2x1.5x0.9mm的陶瓷封裝是適合當今的SMD制造環境。還可以廣泛應用時鐘，無線設備，藍牙音響等領域。32.768K|ECS-.327-CDX-1128|ECS-CDX|3215mm|音叉晶體.

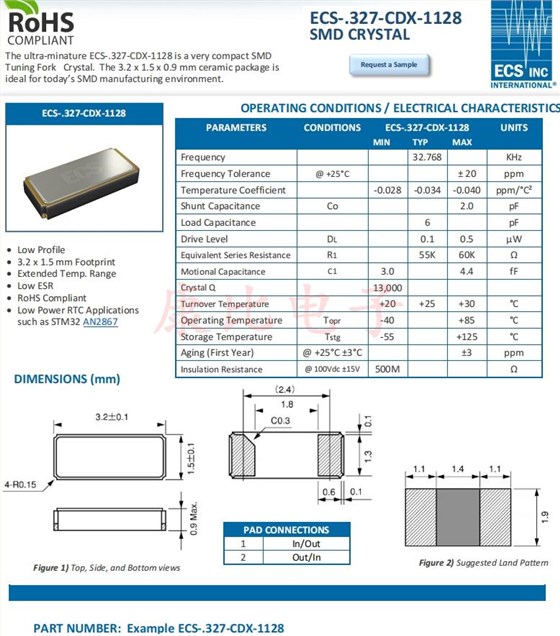

32.768K|ECS-.327-CDX-1128|ECS-CDX|3215mm|音叉晶體參數表
| PARAMETERS | CONDITIONS | ECS-.327-CDX-1128 | UNITS | ||||||||
| MIN | TYP | MAX | |||||||||
| Frequency | 32.768 | KHz | |||||||||
| Frequency Tolerance | @ +25°C | ± 20 | ppm | ||||||||
| Temperature Coefficient | --0.028 | --0.034 | --0.040 | ppm/°C² | |||||||
| Shunt Capacitance | Co | 2.0 | pF | ||||||||
| Load Capacitance | 6 | pF | |||||||||
| Drive Level | DL | 0.1 | 0.5 | μW | |||||||
| Equivalent Series Resistance | R1 | 55K | 60K | Ω | |||||||
| Motional Capacitance | C1 | 3.0 | 4.4 | fF | |||||||
| Crystal Q | 13,000 | ||||||||||
| Turnover Temperature | +20 | +25 | +30 | °C | |||||||
| Operating Temperature | Topr | --40 | +85 | °C | |||||||
| Storage Temperature | Tstg | --55 | +125 | °C | |||||||
| Aging (First Year) | @ +25°C ±3°C | ±3 | ppm | ||||||||
| Insulation Resistance | @ 100Vdc ±15V | 500M | Ω | ||||||||

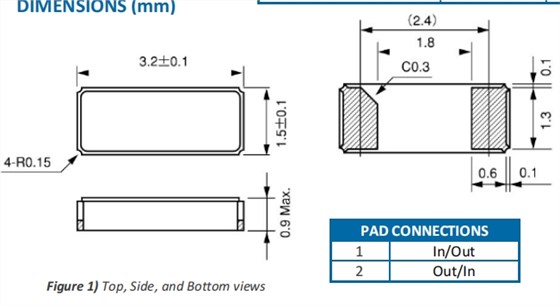

32.768K|ECS-.327-CDX-1128|ECS-CDX|3215mm|音叉晶體尺寸圖
特點：
•低調
•3.2 x 1.5毫米的足跡
•延長溫度范圍
•低ESR
•符合RoHS標準
•低功耗RTC應用
如STM32 AN2867
