F2012‐20‐12.5,32.768KHZ晶體,2012mm,FCD-Tech時鐘晶振,F2012系列,荷蘭進口晶體,進口音叉晶振,無源貼片晶振,兩腳貼片晶振,超薄型晶體諧振器,2012mm小尺寸晶振,SMD晶振,32.768KHZ貼片晶體,尺寸2.0x1.2mm,頻率32.768KHZ,負載12.5pF,低老化晶振,高性能晶振,高品質晶振,工業設備晶振,無線應用晶振,小型設備晶振,時鐘電子晶振.
F2012‐20‐12.5,32.768KHZ晶體,2012mm,FCD-Tech時鐘晶振,F2012系列特點:

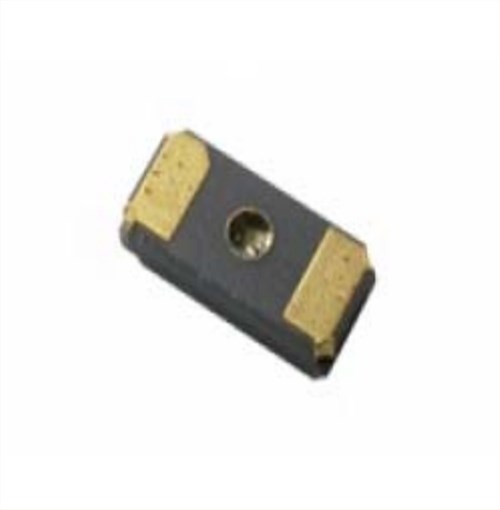

微型陶瓷SMD無源晶體封裝，2個焊盤（可回流）
溫度范圍-40/+85°C（工業應用）
UUtra薄厚度0.6mm
優異的老化特性
應用：無線、商用和工業設備.

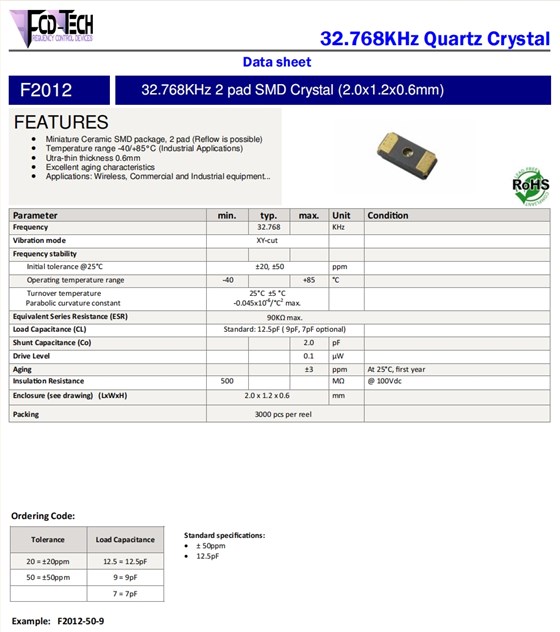

F2012‐20‐12.5,32.768KHZ晶體,2012mm,FCD-Tech時鐘晶振,F2012系列 參數表
| Parameter | min. | typ. | max. | Unit | Condi?on | ||||||||||
| Frequency | 32.768 | KHz | |||||||||||||
| Vibra?on mode | XY‐cut | ||||||||||||||
| Frequency stability | |||||||||||||||
| Ini?al tolerance @25°C | ±20, ±50 | ppm | |||||||||||||
| Opera?ng temperature range | ‐40 | +85 | °C | ||||||||||||
|
Turnover temperature Parabolic curvature constant |
25°C±5 °C ‐0.045x10‐6/°C2max. |
||||||||||||||
| Equivalent Series Resistance (ESR) | 90K? max. | ||||||||||||||
| Load Capacitance (CL) | Standard: 12.5pF ( 9pF, 7pF op?onal) | ||||||||||||||
| Shunt Capacitance (Co) | 2.0 | pF | |||||||||||||
| Drive Level | 0.1 | µW | |||||||||||||
| Aging | ±3 | ppm | At 25°C, ?rst year | ||||||||||||
| Insula?on Resistance | 500 | M? | @ 100Vdc | ||||||||||||
| Enclosure (see drawing)(LxWxH) | 2.0 x 1.2 x 0.6 | mm | |||||||||||||
| Packing | 3000 pcs per reel | ||||||||||||||

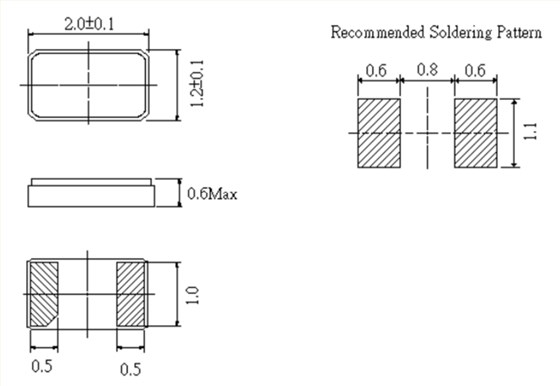

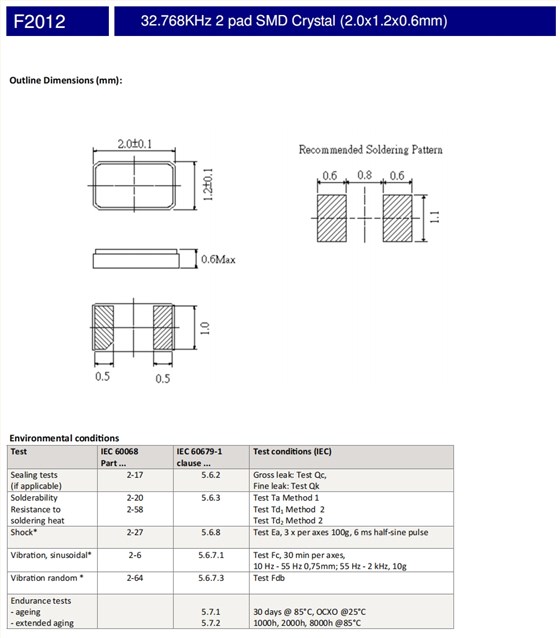

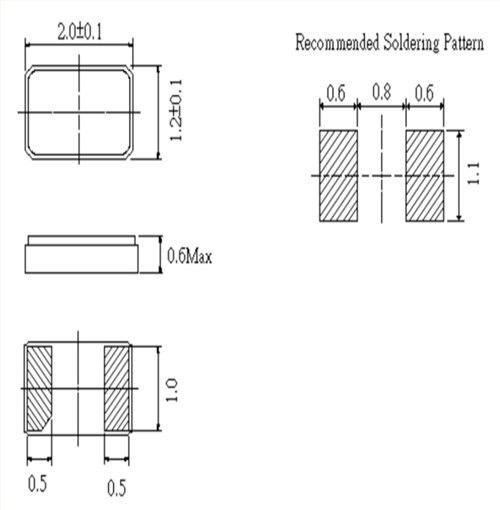

F2012‐20‐12.5,32.768KHZ晶體,2012mm,FCD-Tech時鐘晶振,F2012系列 尺寸圖
