QVS高性能晶振\6G藍牙晶振\QPM25A-2XDF12.5-32.768KHz，尺寸為8.0x3.8x2.5mm，頻率32.768KHZ，歐美進口晶振，無源諧振器，四腳貼片晶振，8038mm無源晶振，陶瓷諧振器，SMD晶振，音叉晶體，無源貼片晶振，32.768KHZ時鐘晶體，32.768KHZ晶振，游戲機專用晶振，藍牙音響晶振，電話機專用晶振，數碼相機晶振，數字電表水表晶振，具有高品質小體積的特點。
32.768K晶振產品常常用于游戲機，藍牙音響，電話機，數碼相機，數字電表水，時鐘應用等領域.QVS高性能晶振\6G藍牙晶振\QPM25A-2XDF12.5-32.768KHz.

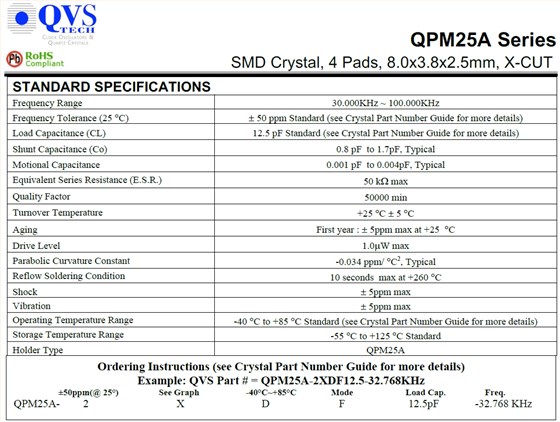

QVS高性能晶振\6G藍牙晶振\QPM25A-2XDF12.5-32.768KHz 參數表
| STANDARD SPECIFICATIONS | |||||||||||||||||||
| Frequency Range | 32.768KHz | ||||||||||||||||||
| Frequency Tolerance (25°C) | ±50 ppm Standard (see Crystal Part Number Guide for more details) | ||||||||||||||||||
| Load Capacitance (CL) | 12.5 pF Standard (see Crystal Part Number Guide for more details) | ||||||||||||||||||
| Shunt Capacitance (Co) | 0.8 pFto 1.7pF, Typical | ||||||||||||||||||
| Motional Capacitance | 0.001 pFto 0.004pF, Typical | ||||||||||||||||||
| Equivalent Series Resistance (E.S.R.) | 50 kΩmax | ||||||||||||||||||
| Quality Factor | 50000 min | ||||||||||||||||||
| Turnover Temperature | +25°C±5°C | ||||||||||||||||||
| Aging | First year :±5ppm max at +25°C | ||||||||||||||||||
| Drive Level | 1.0μW max | ||||||||||||||||||
| Parabolic Curvature Constant | -0.034 ppm/。C2, Typical | ||||||||||||||||||
| Reflow Soldering Condition | 10 secondsmax at +260°C | ||||||||||||||||||
| Shock | ±5ppm max | ||||||||||||||||||
| Vibration | ±5ppm max | ||||||||||||||||||
| Operating Temperature Range | -40°Cto +85°CStandard (see Crystal Part Number Guide for more details) | ||||||||||||||||||
| Storage Temperature Range | -55°Cto +125°CStandard | ||||||||||||||||||
| Holder Type | QPM25A | ||||||||||||||||||

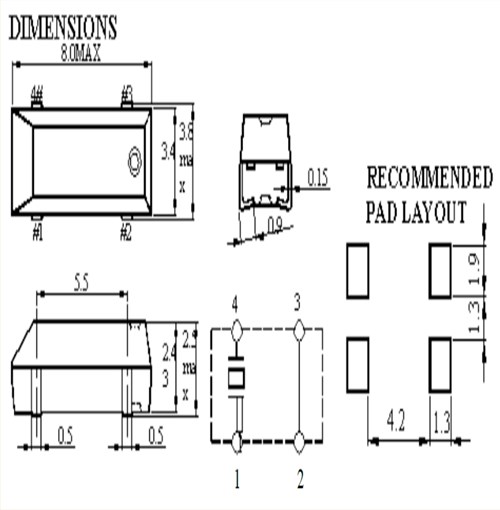

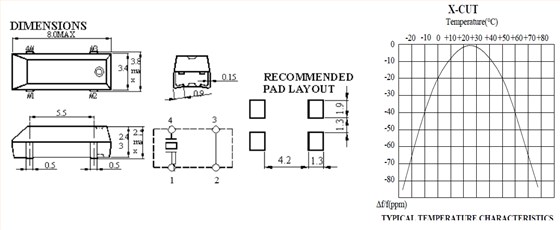

QVS高性能晶振\6G藍牙晶振\QPM25A-2XDF12.5-32.768KHz 尺寸圖
SMD晶振產品特征:
符合RoHS標準且無鉛
初始穩定性和溫度公差選項
