7050mm,100MHZ,SMD100.3C(E/D)-100.000MHz,GED有源振蕩器,SMD100.3系列,美國有源晶振,有源貼片晶振,7050晶體振蕩器,SMD振蕩器,100MHZ有源晶振,四腳貼片晶振,石英晶體振蕩器,尺寸7.0×5.0mm,頻率100MHZ,電壓3.3V,低電壓晶振,低功耗晶振,低抖動晶振,航空航天晶振,數字設備晶振,多媒體設備晶振,無線設備晶振.
7050mm,100MHZ,SMD100.3C(E/D)-100.000MHz,GED有源振蕩器,SMD100.3系列特點:
表面安裝HCMOS/TTL兼容振蕩器
HCMOS/TTL輸出
3.3V電源電壓
陶瓷SMD有源晶振封裝
可用于磁帶和卷軸

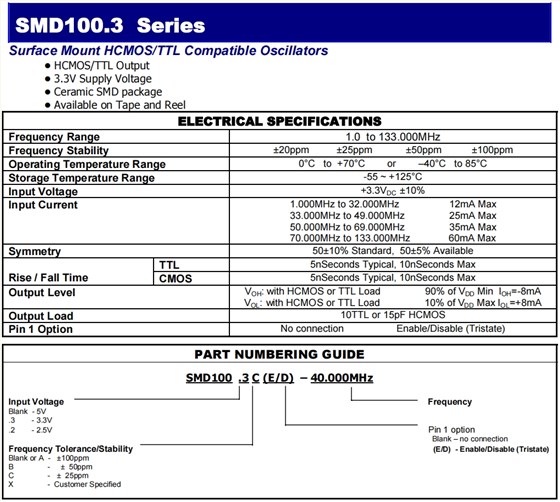

7050mm,100MHZ,SMD100.3C(E/D)-100.000MHz,GED有源振蕩器,SMD100.3系列 參數表
| ELECTRICAL SPECIFICATIONS | ||||||
| Frequency Range | 100.000MHz | |||||
| Frequency Stability | ±20ppm±25ppm±50ppm±100ppm | |||||
| Operating Temperature Range | 0°Cto+70°Cor–40°Cto 85°C | |||||
| Storage Temperature Range | -55 ~ +125°C | |||||
| Input Voltage | +3.3VDC±10% | |||||
| Input Current |
1.000MHz to 32.000MHz 33.000MHz to 49.000MHz 50.000MHz to 69.000MHz 70.000MHz to 133.000MHz |
12mA Max 25mA Max 35mA Max 60mA Max |
||||
| Symmetry | 50±10% Standard,50±5% Available | |||||
| Rise / Fall Time | TTL | 5nSeconds Typical, 10nSeconds Max | ||||
| CMOS | 5nSeconds Typical, 10nSeconds Max | |||||
| Output Level |
VOH: with HCMOS or TTL Load VOL: with HCMOS or TTL Load |
90% of VDDMinIOH=-8mA 10% of VDDMax IOL=+8mA |
||||
| Output Load | 10TTL or 15pF HCMOS | |||||
| Pin 1 Option | No connectionEnable/Disable (Tristate) | |||||

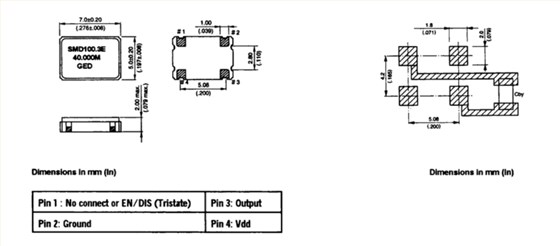

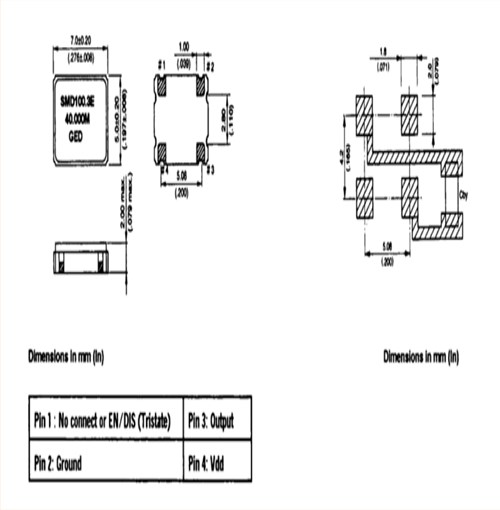

7050mm,100MHZ,SMD100.3C(E/D)-100.000MHz,GED有源振蕩器,SMD100.3系列 尺寸圖
