首頁 Skyworks晶振

515NBB50M0000AAGR,Skyworks有源晶振,Si515壓控晶振,6G電信晶振

515NBB50M0000AAGR,Skyworks有源晶振,Si515壓控晶振,6G電信晶振515NBB50M0000AAGR,Skyworks有源晶振,Si515壓控晶振,6G電信晶振

產品簡介

515NBB50M0000AAGR,Skyworks有源晶振,Si515壓控晶振,6G電信晶振，尺寸5.00x3.20mm，頻率為50MHZ，輸出CMOS，壓控晶體振蕩器，壓控有源晶振，有源貼片晶振，CMOS輸出晶振，低電壓晶振，低抖動晶振，低功耗晶振，Si515 VCXO利用Skyworks Solutions的先進PLL技術提供從100kHz到250MHz的任何頻率。不同于傳統的VCXO每個輸出頻率都需要不同的晶體，Si515有源晶振使用一個固定的晶體crystal和Skyworks Solutions的專有合成器，可生成任何頻率在這個范圍內。這種基于IC的方法允許晶體諧振器提供增強的可靠性、改進的機械堅固性和優異的穩定性。在里面此外，該解決方案提供了卓越的控制電壓線性度和電源噪聲抑制、提高PLL穩定性并簡化噪聲環境下的低抖動PLL設計環境。

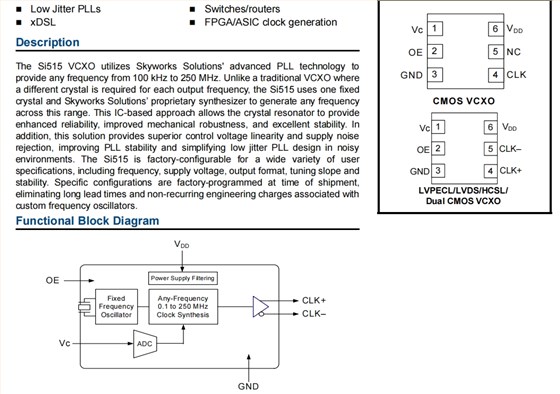

Si515 VCXO振蕩器可在工廠為各種用戶進行配置規格，包括頻率、電源電壓、輸出格式、調諧斜率和穩定性具體配置在出廠時進行編程，消除了與定制頻率振蕩器。產品很適合用于SONET/SDH/OTN,低抖動PLL,xDSL,廣播視頻,電信,交換機/路由器,FPGA/ASIC時鐘生成.515NBB50M0000AAGR,Skyworks有源晶振,Si515壓控晶振,6G電信晶振.


產品詳情

515NBB50M0000AAGR,Skyworks有源晶振,Si515壓控晶振,6G電信晶振，尺寸5.00x3.20mm，頻率為50MHZ，輸出CMOS，壓控晶體振蕩器，壓控有源晶振，有源貼片晶振，CMOS輸出晶振，低電壓晶振，低抖動晶振，低功耗晶振，Si515 VCXO利用Skyworks Solutions的先進PLL技術提供從100kHz到250MHz的任何頻率。不同于傳統的VCXO每個輸出頻率都需要不同的晶體，Si515有源晶振使用一個固定的晶體crystal和Skyworks Solutions的專有合成器，可生成任何頻率在這個范圍內。這種基于IC的方法允許晶體諧振器提供增強的可靠性、改進的機械堅固性和優異的穩定性。在里面此外，該解決方案提供了卓越的控制電壓線性度和電源噪聲抑制、提高PLL穩定性并簡化噪聲環境下的低抖動PLL設計環境。

Si515 VCXO振蕩器可在工廠為各種用戶進行配置規格，包括頻率、電源電壓、輸出格式、調諧斜率和穩定性具體配置在出廠時進行編程，消除了與定制頻率振蕩器。產品很適合用于SONET/SDH/OTN,低抖動PLL,xDSL,廣播視頻,電信,交換機/路由器,FPGA/ASIC時鐘生成.515NBB50M0000AAGR,Skyworks有源晶振,Si515壓控晶振,6G電信晶振.

515NBB50M0000AAGR,Skyworks有源晶振,Si515壓控晶振,6G電信晶振 參數表

Parameter Symbol Test Condition Min Typ Max Units
Supply Voltage VDD 3.3 V option 2.97 3.3 3.63 V
2.5 V option 2.25 2.5 2.75 V
1.8 V option 1.71 1.8 1.89 V
Supply Current IDD CMOS, 100 MHz,
single-ended 		— 21 26 mA
LVDS
(output enabled) 		— 19 23 mA
LVPECL
(output enabled) 		— 39 43 mA
HCSL
(output enabled) 		— 41 44 mA
Tristate
(output disabled) 		— — 18 mA
Operating Temperature TA –40 — 85 oC
Parameter Symbol Test Condition Min Typ Max Units
SDA, SCL Input Voltage High VIH 0.80 x VDD — — V
SDA, SCL Input Voltage Low VIL — — 0.20 x VDD V
Parameter Symbol Test Condition Min Typ Max Units
Programmable
Frequency Range 		FO CMOS, Dual CMOS 0.1 — 212.5 MHz
FO LVDS/LVPECL/HCSL 0.1 — 250 MHz
Frequency
Reprogramming
Resolution 		MRES — 0.026 — ppb
Frequency Range for
Small Frequency Change
(Continuous Glitchless
Output) 		From center frequency –1000 — +1000 ppm
Settling time for Small
Frequency Change 		<±1000 ppm from
center frequency 		— — 100 µs
Settling time for Large
Frequency Change (Out-
put Squelched during Fre-
quency Transition) 		>±1000 ppm from
center frequency 		— — 10 ms
Total Stability* Frequency Stability Grade C –30 — +30 ppm
Frequency Stability Grade B –50 — +50 ppm
Frequency Stability Grade A –100 — +100 ppm
Temperature Stability Frequency Stability Grade C –20 — +20 ppm
Frequency Stability Grade B –25 — +25 ppm
Frequency Stability Grade A –50 — +50 ppm
Startup Time TSU Minimum VDDuntil output
frequency (FO) within specification 		— — 10 ms
Disable Time TD FO< 10 MHz — — 40 µs
FO>10 MHz — — 5 µs
Enable Time TE FO< 10 MHz — — 60 µs
FO>10 MHz — — 20 µs

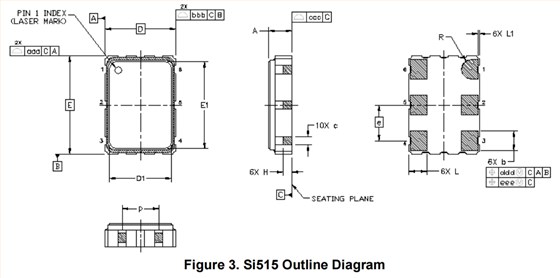

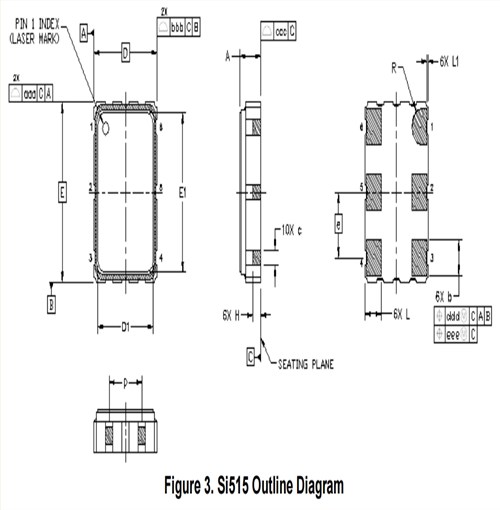

515NBB50M0000AAGR,Skyworks有源晶振,Si515壓控晶振,6G電信晶振 尺寸圖

Si515 7050

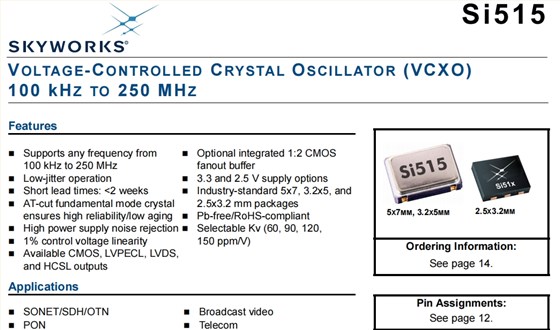

有源晶體振蕩器產品特征:

支持來自的任何頻率100kHz至250MHz

低抖動操作

交付周期短：<2周

AT切基模晶體確保高可靠性/低老化

高電源噪聲抑制

1%控制電壓線性

可用CMOS、LVPECL、LVDS，和HCSL輸出

可選集成1:2 CMOS扇出緩存

3.3和2.5 V電源選項

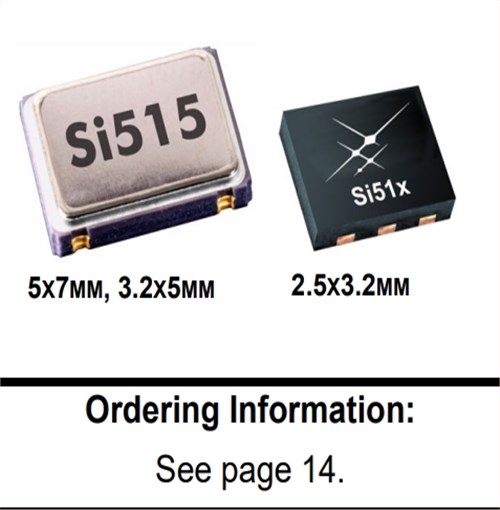

行業標準5x7、3.2x5和2.5x3.2 mm包裝

無鉛/符合RoHS

可選擇的Kv（60、90、120，150ppm/V）

Si515 1Si515 2

更多相關Skyworks晶振型號

Mfr Part # Mfr Description Series Frequency Output Voltage - Supply
515CAAM100000AAGR Skyworks有源晶振 XTAL OSC VCXO 100.0000KHZ CMOS Si515 100 kHz CMOS 3.3V
515CAB32M7680AAGR Skyworks有源晶振 XTAL OSC VCXO 32.7680MHZ CMOS Si515 32.768 MHz CMOS 3.3V
515CBA4M09600AAGR Skyworks有源晶振 XTAL OSC VCXO 4.0960MHZ CMOS SMD Si515 4.096 MHz CMOS 3.3V
515CDA8M00000AAGR Skyworks有源晶振 XTAL OSC VCXO 8.0000MHZ CMOS SMD Si515 8 MHz CMOS 3.3V
515GCA10M0000AAGR Skyworks有源晶振 XTAL OSC VCXO 10.0000MHZ CMOS Si515 10 MHz CMOS 2.5V
515CAA10M0000BAGR Skyworks有源晶振 XTAL OSC VCXO 10.0000MHZ CMOS Si515 10 MHz CMOS 3.3V
515CAA22M5792BAGR Skyworks有源晶振 XTAL OSC VCXO 22.5792MHZ CMOS Si515 22.5792 MHz CMOS 3.3V
515CAA24M5760BAGR Skyworks有源晶振 XTAL OSC VCXO 24.5760MHZ CMOS Si515 24.576 MHz CMOS 3.3V
515CAA27M0000BAGR Skyworks有源晶振 XTAL OSC VCXO 27.0000MHZ CMOS Si515 27 MHz CMOS 3.3V
515CAA4M09600BAGR Skyworks有源晶振 XTAL OSC VCXO 4.0960MHZ CMOS SMD Si515 4.096 MHz CMOS 3.3V
515CAA7M37472BAGR Skyworks有源晶振 XTAL OSC VCXO 7.37472MHZ CMOS Si515 7.37472 MHz CMOS 3.3V
515CAA80M0000BAGR Skyworks有源晶振 XTAL OSC VCXO 80.0000MHZ CMOS Si515 80 MHz CMOS 3.3V
515CAAM172162BAGR Skyworks有源晶振 XTAL OSC VCXO 172.1620KHZ CMOS Si515 172.162 kHz CMOS 3.3V
515CAB27M0000BAGR Skyworks有源晶振 XTAL OSC VCXO 27.0000MHZ CMOS Si515 27 MHz CMOS 3.3V
515CAB4M09600BAGR Skyworks有源晶振 XTAL OSC VCXO 4.0960MHZ CMOS SMD Si515 4.096 MHz CMOS 3.3V
515CAB5M00000BAGR Skyworks有源晶振 XTAL OSC VCXO 5.0000MHZ CMOS SMD Si515 5 MHz CMOS 3.3V
515CBA24M0000BAGR Skyworks有源晶振 XTAL OSC VCXO 24.0000MHZ CMOS Si515 24 MHz CMOS 3.3V
515CBA36M8640BAGR Skyworks有源晶振 XTAL OSC VCXO 36.8640MHZ CMOS Si515 36.864 MHz CMOS 3.3V
515CBA38M4000BAGR Skyworks有源晶振 XTAL OSC VCXO 38.4000MHZ CMOS Si515 38.4 MHz CMOS 3.3V
515CBA80M0000BAGR Skyworks有源晶振 XTAL OSC VCXO 80.0000MHZ CMOS Si515 80 MHz CMOS 3.3V
515CBB14M3182BAGR Skyworks有源晶振 XTAL OSC VCXO 14.3182MHZ CMOS Si515 14.3182 MHz CMOS 3.3V
515CBB27M0000BAGR Skyworks有源晶振 XTAL OSC VCXO 27.0000MHZ CMOS Si515 27 MHz CMOS 3.3V
515CBB6M00000BAGR Skyworks有源晶振 XTAL OSC VCXO 6.0000MHZ CMOS SMD Si515 6 MHz CMOS 3.3V
515CCA10M0000BAGR Skyworks有源晶振 XTAL OSC VCXO 10.0000MHZ CMOS Si515 10 MHz CMOS 3.3V
515CCA122M880BAGR Skyworks有源晶振 XTAL OSC VCXO 122.8800MHZ CMOS Si515 122.88 MHz CMOS 3.3V
515CCA40M0000BAGR Skyworks有源晶振 XTAL OSC VCXO 40.0000MHZ CMOS Si515 40 MHz CMOS 3.3V
515CCA61M4400BAGR Skyworks有源晶振 XTAL OSC VCXO 61.4400MHZ CMOS Si515 61.44 MHz CMOS 3.3V
515CCA64M0000BAGR Skyworks有源晶振 XTAL OSC VCXO 64.0000MHZ CMOS Si515 64 MHz CMOS 3.3V
515CCB122M880BAGR Skyworks有源晶振 XTAL OSC VCXO 122.8800MHZ CMOS Si515 122.88 MHz CMOS 3.3V
515CCB14M3182BAGR Skyworks有源晶振 XTAL OSC VCXO 14.3182MHZ CMOS Si515 14.3182 MHz CMOS 3.3V
515CCB16M3840BAGR Skyworks有源晶振 XTAL OSC VCXO 16.3840MHZ CMOS Si515 16.384 MHz CMOS 3.3V
515CCB25M0000BAGR Skyworks有源晶振 XTAL OSC VCXO 25.0000MHZ CMOS Si515 25 MHz CMOS 3.3V
515CDA10M0000BAGR Skyworks有源晶振 XTAL OSC VCXO 10.0000MHZ CMOS Si515 10 MHz CMOS 3.3V
515CDA27M0000BAGR Skyworks有源晶振 XTAL OSC VCXO 27.0000MHZ CMOS Si515 27 MHz CMOS 3.3V
515CDA32M7680BAGR Skyworks有源晶振 XTAL OSC VCXO 32.7680MHZ CMOS Si515 32.768 MHz CMOS 3.3V
515CDAM134200BAGR Skyworks有源晶振 XTAL OSC VCXO 1.3420KHZ CMOS SMD Si515 1.342 kHz CMOS 3.3V
515CDB25M0000BAGR Skyworks有源晶振 XTAL OSC VCXO 25.0000MHZ CMOS Si515 25 MHz CMOS 3.3V
515CDB6M00000BAGR Skyworks有源晶振 XTAL OSC VCXO 6.0000MHZ CMOS SMD Si515 6 MHz CMOS 3.3V
515GAA25M0000BAGR Skyworks有源晶振 XTAL OSC VCXO 25.0000MHZ CMOS Si515 25 MHz CMOS 2.5V
515MDA17M1776BAGR Skyworks有源晶振 XTAL OSC VCXO 17.1776MHZ CMOS Si515 17.1776 MHz CMOS 3.3V
515NDAM134200BAGR Skyworks有源晶振 XTAL OSC振蕩器 VCXO 134.2000KHZ CMOS Si515 134.2 kHz CMOS 3.3V
515CAA12M2870BAGR Skyworks有源晶振 XTAL OSCILLATOR Si515 12.287 MHz CMOS 3.3V
515CAA12M2880BAGR Skyworks有源晶振 XTAL OSCILLATOR Si515 12.287 MHz CMOS 3.3V
515CAA98M3040BAGR Skyworks有源晶振 XTAL OSCILLATOR Si515 98.3 MHz CMOS 3.3V
515CCA50M0000BAGR Skyworks有源晶振 XTAL OSCILLATOR Si515 50 MHz CMOS 3.3V
515CAA000282CAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 14.31818 MHz CMOS 3.3V
515CDA51M2000BAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 51.2 MHz CMOS 3.3V
515CAA16M7770CAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 16.777 MHz CMOS 3.3V
515GAA54M0000CAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 54 MHz CMOS 2.5V
515CAA16M0000BAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 16 MHz CMOS 3.3V
515CBA32M7680CAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 32.768 MHz CMOS 3.3V
515CAA12M2880CAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 12.288 MHz CMOS 3.3V
515CBA27M0000CAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 27 MHz CMOS 3.3V
515GAA54M0000BAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 54 MHz CMOS 2.5V
515GCA27M0000CAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 27 MHz CMOS 2.5V
515GCA10M0000CAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 10 MHz CMOS 2.5V
515CAA004711CAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 16.777215 MHz CMOS 3.3V
515CBA96M0000BAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 96 MHz CMOS 3.3V
515CCA12M8000CAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 12.8 MHz CMOS 3.3V
515CCA125M000CAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 125 MHz CMOS 3.3V
515CAA27M0000CAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 27 MHz CMOS 3.3V
515CCA2M04800CAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 2.048 MHz CMOS 3.3V
515CAA49M1520BAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 49.152 MHz CMOS 3.3V
515GAA32M7680CAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 32.768 MHz CMOS 2.5V
515CCA65M0000CAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 65 MHz CMOS 3.3V
515CCAM100000CAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 100 kHz CMOS 3.3V
515CCA8M00000CAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 8 MHz CMOS 3.3V
515ABA10M0000BAGR Skyworks有源晶振 XTAL OSC VCXO 10.0000MHZ LVPECL Si515 10 MHz LVPECL 3.3V
515BBA10M0000BAGR Skyworks有源晶振 XTAL OSC VCXO 10.0000MHZ LVDS Si515 10 MHz LVDS 3.3V
515MCB6M78000BAGR Skyworks有源晶振 XTAL OSC VCXO 6.7800MHZ CMOS SMD Si515 6.78 MHz CMOS 3.3V
515CAAM100000AAG Skyworks有源晶振 XTAL OSC VCXO 100.0000KHZ CMOS Si515 100 kHz CMOS 3.3V
515CAB32M7680AAG Skyworks有源晶振 XTAL OSC VCXO 32.7680MHZ CMOS Si515 32.768 MHz CMOS 3.3V
515CBA4M09600AAG Skyworks有源晶振 XTAL OSC VCXO 4.0960MHZ CMOS SMD Si515 4.096 MHz CMOS 3.3V
515CDA8M00000AAG Skyworks有源晶振 XTAL OSC VCXO 8.0000MHZ CMOS SMD Si515 8 MHz CMOS 3.3V
515GCA10M0000AAG Skyworks有源晶振 XTAL OSC VCXO 10.0000MHZ CMOS Si515 10 MHz CMOS 2.5V
515CAA150M000BAGR Skyworks有源晶振 XTAL OSC VCXO 150.0000MHZ CMOS Si515 150 MHz CMOS 3.3V
515CCA162M025BAGR Skyworks有源晶振 XTAL OSC VCXO 162.0250MHZ CMOS Si515 162.025 MHz CMOS 3.3V
515CAA144M300BAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 144.3 MHz CMOS 3.3V
515CAA000256AAGR Skyworks有源晶振 XTAL OSC VCXO 256.0000MHZ CMOS Si515 256 MHz CMOS 3.3V
515CAA10M0000AAGR Skyworks有源晶振 XTAL OSC VCXO 10.0000MHZ CMOS Si515 10 MHz CMOS 3.3V
515CAA10M2400AAGR Skyworks有源晶振 XTAL OSC VCXO 10.2400MHZ CMOS Si515 10.24 MHz CMOS 3.3V
515CAA125M000AAGR Skyworks有源晶振 XTAL OSC VCXO 125.0000MHZ CMOS Si515 125 MHz CMOS 3.3V
515CAA24M5760AAGR Skyworks有源晶振 XTAL OSC VCXO 24.5760MHZ CMOS Si515 24.576 MHz CMOS 3.3V
515CAA25M0000AAGR Skyworks有源晶振 XTAL OSC VCXO 25.0000MHZ CMOS Si515 25 MHz CMOS 3.3V
515CAA27M0000AAGR Skyworks有源晶振 XTAL OSC VCXO 27.0000MHZ CMOS Si515 27 MHz CMOS 3.3V
515CAA30M0000AAGR Skyworks有源晶振 XTAL OSC VCXO 30.0000MHZ CMOS Si515 30 MHz CMOS 3.3V
515CAA32M7680AAGR Skyworks有源晶振 XTAL OSC VCXO 32.7680MHZ CMOS Si515 32.768 MHz CMOS 3.3V
515CAA40M0000AAGR Skyworks有源晶振 XTAL OSC VCXO 40.0000MHZ CMOS Si515 40 MHz CMOS 3.3V
515CAA44M7360AAGR Skyworks有源晶振 XTAL OSC VCXO 44.7360MHZ CMOS Si515 44.736 MHz CMOS 3.3V
515CAA70M6560AAGR Skyworks有源晶振 XTAL OSC VCXO 70.6560MHZ CMOS Si515 70.656 MHz CMOS 3.3V
515CAA74M2500AAGR Skyworks有源晶振 XTAL OSC VCXO 74.2500MHZ CMOS Si515 74.25 MHz CMOS 3.3V
515CAA7M37472AAGR Skyworks有源晶振 XTAL OSC VCXO 7.37472MHZ CMOS Si515 7.37472 MHz CMOS 3.3V
515CAA7M50000AAGR Skyworks有源晶振 XTAL OSC VCXO 7.5000MHZ CMOS SMD Si515 7.5 MHz CMOS 3.3V
515CAAM928000AAGR Skyworks有源晶振 XTAL OSC VCXO 928.0000KHZ CMOS Si515 928 kHz CMOS 3.3V
515CAB16M3840AAGR Skyworks有源晶振 XTAL OSC VCXO 16.3840MHZ CMOS Si515 16.384 MHz CMOS 3.3V
515CAB49M1520AAGR Skyworks有源晶振 XTAL OSC VCXO 49.1520MHZ CMOS Si515 49.152 MHz CMOS 3.3V
515CAB98M0000AAGR Skyworks有源晶振 XTAL OSC VCXO 98.0000MHZ CMOS Si515 98 MHz CMOS 3.3V
515CBA23M1481AAGR Skyworks有源晶振 XTAL OSC VCXO 23.1481MHZ CMOS Si515 23.1481 MHz CMOS 3.3V
515CBA24M5760AAGR Skyworks有源晶振 XTAL OSC VCXO 24.5760MHZ CMOS Si515 24.576 MHz CMOS 3.3V
515CBA28M9350AAGR Skyworks有源晶振 XTAL OSC VCXO 28.9350MHZ CMOS Si515 28.935 MHz CMOS 3.3V
515CBA2M04800AAGR Skyworks有源晶振 XTAL OSC VCXO 2.0480MHZ CMOS SMD Si515 2.048 MHz CMOS 3.3V
515CBA34M8160AAGR Skyworks有源晶振 XTAL OSC VCXO 34.8160MHZ CMOS Si515 34.816 MHz CMOS 3.3V
515CBA38M8800AAGR Skyworks有源晶振 XTAL OSC VCXO 38.8800MHZ CMOS Si515 38.88 MHz CMOS 3.3V
515CBA3M64000AAGR Skyworks有源晶振 XTAL OSC VCXO 3.6400MHZ CMOS SMD Si515 3.64 MHz CMOS 3.3V
515CBA80M0000AAGR Skyworks有源晶振 XTAL OSC VCXO 80.0000MHZ CMOS Si515 80 MHz CMOS 3.3V
515CBAM240000AAGR Skyworks有源晶振 XTAL OSC VCXO 24.0000KHZ CMOS Si515 24 kHz CMOS 3.3V
515CBAM928571AAGR Skyworks有源晶振 XTAL OSC VCXO 92.8571MHZ CMOS Si515 92.8571 MHz CMOS 3.3V
