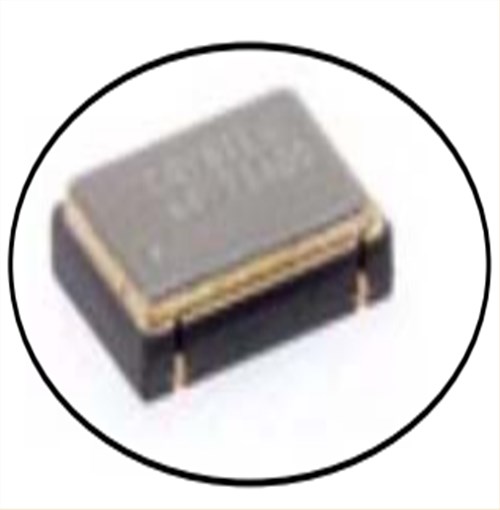

C3292-16.0000,C3292,16MHz,7050mm,Crystek高性能晶振，美國進口晶振，CRYSTEK晶振，瑞斯克晶振，型號：C3292系列晶振，編碼：C3292-16.0000，頻率：16.000MHz，HCMOS輸出晶振，小體積晶振尺寸：7.0x5.0mm，頻率穩定性：±50ppm，工作溫度范圍：0℃至+70℃，工作電壓為：5V，四腳貼片晶振，石英貼片晶振，有源晶振，7050晶振，SMD晶振，時鐘晶體振蕩器。具有超小型，輕薄型，高性能，高精度，高品質等特點。提供非常低的抖動和相位噪聲。輸出信號中沒有子諧波。應用范圍：通訊設備晶振，無線網絡晶振，數字視頻，醫療設備晶振，安防設備晶振，智能家居晶振，千兆以太網等應用。

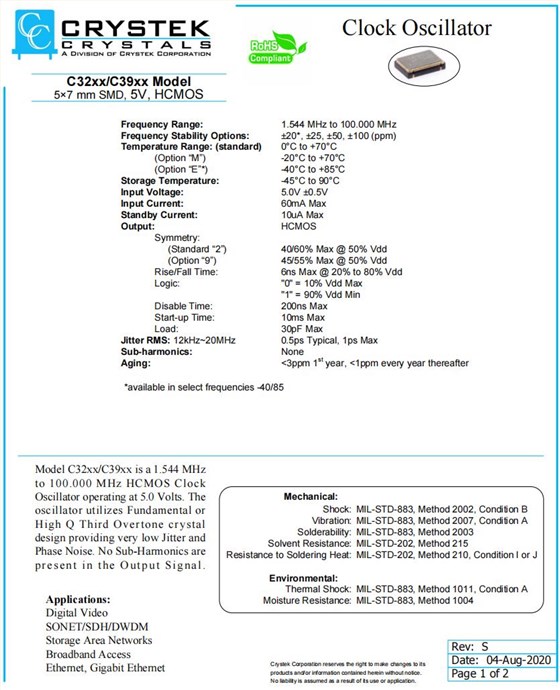

C3292-16.0000,C3292,16MHz,7050mm,Crystek高性能晶振,參數表
| Frequency Range: | 16 MHz |
| Frequency Stability Options: | ±20*, ±25, ±50, ±100 (ppm) |
| Temperature Range: (standard) | 0°C to +70°C |
| (Option “M”) | -20°C to +70°C |
| (Option “E”*) | -40°C to +85°C |
| Storage Temperature: | -45°C to 90°C |
| Input Voltage: | 5.0V ±0.5V |
| Input Current: | 60mA Max |
| Standby Current: | 10uA Max |
| Output: | HCMOS |
| Symmetry: | |
| (Standard “2”) | 40/60% Max @ 50% Vdd |
| (Option “9”) | 45/55% Max @ 50% Vdd |
| Rise/Fall Time: | 6ns Max @ 20% to 80% Vdd |
| Logic: | "0" = 10% Vdd Max |
| "1" = 90% Vdd Min | |
| Disable Time: | 200ns Max |
| Start-up Time: | 10ms Max |
| Load: | 30pF Max |
| Jitter RMS: 12kHz~20MHz | 0.5ps Typical, 1ps Max |
| Sub-harmonics: | None |
| Aging: | <3ppm 1styear, <1ppm every year thereafter |

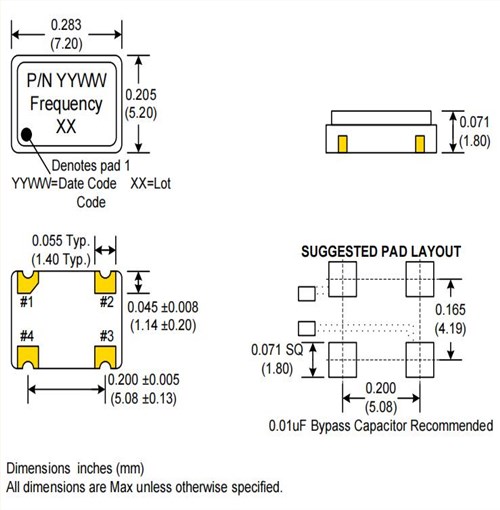

C3292-16.0000,C3292,16MHz,7050mm,Crystek高性能晶振,尺寸圖
| 7050有源晶振 | 品牌 | 型號 | 類型 | 頻率 |
| C3292-1.843200 | Crystek晶振 | C3292 | XO (Standard) | 1.8432MHz |
| C3292-10.000 | Crystek晶振 | C3292 | XO (Standard) | 10MHz |
| C3292-12.000 | Crystek晶振 | C3292 | XO (Standard) | 12MHz |
| C3292-12.288 | Crystek晶振 | C3292 | XO (Standard) | 12.288MHz |
| C3292-12.352 | Crystek晶振 | C3292 | XO (Standard) | 12.352MHz |
| C3292-14.318180 | Crystek晶振 | C3292 | XO (Standard) | 14.31818MHz |
| C3292-15.360 | Crystek晶振 | C3292 | XO (Standard) | 15.36MHz |
| C3292-16.0000 | Crystek晶振 | C3292 | XO (Standard) | 16MHz |
| C3292-16.384 | Crystek晶振 | C3292 | XO (Standard) | 16.384MHz |
| C3292-18.432 | Crystek晶振 | C3292 | XO (Standard) | 18.432MHz |
| C3292-19.440 | Crystek晶振 | C3292 | XO (Standard) | 19.44MHz |
| C3292-2.048 | Crystek晶振 | C3292 | XO (Standard) | 2.048MHz |
| C3292-20.000 | Crystek晶振 | C3292 | XO (Standard) | 20MHz |
| C3292-20.480 | Crystek晶振 | C3292 | XO (Standard) | 20.48MHz |
| C3292-24.000 | Crystek晶振 | C3292 | XO (Standard) | 24MHz |
| C3292-24.704 | Crystek晶振 | C3292 | XO (Standard) | 24.704MHz |
| C3292-25.000 | Crystek晶振 | C3292 | XO (Standard) | 25MHz |
| C3292-3.686400 | Crystek晶振 | C3292 | XO (Standard) | 3.6864MHz |
| C3292-30.000 | Crystek晶振 | C3292 | XO (Standard) | 30MHz |
| C3292-32.000 | Crystek晶振 | C3292 | XO (Standard) | 32MHz |
| C3292-32.768 | Crystek晶振 | C3292 | XO (Standard) | 32.768MHz |
| C3292-33.000 | Crystek晶振 | C3292 | XO (Standard) | 33MHz |
| C3292-33.333 | Crystek晶振 | C3292 | XO (Standard) | 33.333MHz |
| C3292-35.000 | Crystek晶振 | C3292 | XO (Standard) | 35MHz |
| C3292-4.000 | Crystek晶振 | C3292 | XO (Standard) | 4MHz |
| C3292-40.000 | Crystek晶振 | C3292 | XO (Standard) | 40MHz |
| C3292-44.736 | Crystek晶振 | C3292 | XO (Standard) | 44.736MHz |
| C3292-45.000 | Crystek晶振 | C3292 | XO (Standard) | 45MHz |
| C3292-49.152 | Crystek晶振 | C3292 | XO (Standard) | 49.152MHz |
| C3292-50.000 | Crystek晶振 | C3292 | XO (Standard) | 50MHz |
| C3292-51.840 | Crystek晶振 | C3292 | XO (Standard) | 51.84MHz |
| C3292-6.176 | Crystek晶振 | C3292 | XO (Standard) | 6.176MHz |
| C3292-7.372800 | Crystek晶振 | C3292 | XO (Standard) | 7.3728MHz |
| C3292-8.000 | Crystek晶振 | C3292 | XO (Standard) | 8MHz |
| C3292-60.000 | Crystek晶振 | C3292 | XO (Standard) | 60MHz |
| C3292-64.000 | Crystek晶振 | C3292 | XO (Standard) | 64MHz |
| C3292-66.666600 | Crystek晶振 | C3292 | XO (Standard) | 66.6666MHz |
| C3292-75.000 | Crystek晶振 | C3292 | XO (Standard) | 75MHz |
| C3292-80.000 | Crystek晶振 | C3292 | XO (Standard) | 80MHz |
| CE3292-1.544 | Crystek晶振 | C3292 | XO (Standard) | 1.544MHz |
| CE3292-1.843200 | Crystek晶振 | C3292 | XO (Standard) | 1.8432MHz |
| CE3292-10.000 | Crystek晶振 | C3292 | XO (Standard) | 10MHz |
| CE3292-12.000 | Crystek晶振 | C3292 | XO (Standard) | 12MHz |
| CE3292-12.288 | Crystek晶振 | C3292 | XO (Standard) | 12.288MHz |
| CE3292-12.352 | Crystek晶振 | C3292 | XO (Standard) | 12.352MHz |
| CE3292-14.318180 | Crystek晶振 | C3292 | XO (Standard) | 14.31818MHz |
| CE3292-15.360 | Crystek晶振 | C3292 | XO (Standard) | 15.36MHz |
| CE3292-16.0000 | Crystek晶振 | C3292 | XO (Standard) | 16MHz |
| CE3292-16.384 | Crystek晶振 | C3292 | XO (Standard) | 16.384MHz |
| CE3292-18.432 | Crystek晶振 | C3292 | XO (Standard) | 18.432MHz |
| CE3292-19.440 | Crystek晶振 | C3292 | XO (Standard) | 19.44MHz |
| CE3292-2.048 | Crystek晶振 | C3292 | XO (Standard) | 2.048MHz |
| CE3292-20.000 | Crystek晶振 | C3292 | XO (Standard) | 20MHz |
| CE3292-20.480 | Crystek晶振 | C3292 | XO (Standard) | 20.48MHz |
| CE3292-24.000 | Crystek晶振 | C3292 | XO (Standard) | 24MHz |
| CE3292-24.704 | Crystek晶振 | C3292 | XO (Standard) | 24.704MHz |
| CE3292-25.000 | Crystek晶振 | C3292 | XO (Standard) | 25MHz |
| CE3292-3.686400 | Crystek晶振 | C3292 | XO (Standard) | 3.6864MHz |
| CE3292-30.000 | Crystek晶振 | C3292 | XO (Standard) | 30MHz |
| CE3292-32.000 | Crystek晶振 | C3292 | XO (Standard) | 32MHz |
| CE3292-32.768 | Crystek晶振 | C3292 | XO (Standard) | 32.768MHz |
| CE3292-33.000 | Crystek晶振 | C3292 | XO (Standard) | 33MHz |
| CE3292-33.333 | Crystek晶振 | C3292 | XO (Standard) | 33.333MHz |
| CE3292-35.000 | Crystek晶振 | C3292 | XO (Standard) | 35MHz |
| CE3292-4.000 | Crystek晶振 | C3292 | XO (Standard) | 4MHz |
| CE3292-40.000 | Crystek晶振 | C3292 | XO (Standard) | 40MHz |
| CE3292-6.176 | Crystek晶振 | C3292 | XO (Standard) | 6.176MHz |
| CE3292-7.372800 | Crystek晶振 | C3292 | XO (Standard) | 7.3728MHz |
| CE3292-8.000 | Crystek晶振 | C3292 | XO (Standard) | 8MHz |
| CE3292-44.736 | Crystek晶振 | C3292 | XO (Standard) | 44.736MHz |
| CE3292-45.000 | Crystek晶振 | C3292 | XO (Standard) | 45MHz |
| CE3292-49.152 | Crystek晶振 | C3292 | XO (Standard) | 49.152MHz |
| CE3292-50.000 | Crystek晶振 | C3292 | XO (Standard) | 50MHz |
| CE3292-51.840 | Crystek晶振 | C3292 | XO (Standard) | 51.84MHz |
| CE3292-60.000 | Crystek晶振 | C3292 | XO (Standard) | 60MHz |
| C3292-1.544 | Crystek晶振 | C3292 | XO (Standard) | 1.544MHz |
| CE3292-64.000 | Crystek晶振 | C3292 | XO (Standard) | 64MHz |
| CE3292-66.666600 | Crystek晶振 | C3292 | XO (Standard) | 66.6666MHz |
| CE3292-75.000 | Crystek晶振 | C3292 | XO (Standard) | 75MHz |
| CE3292-80.000 | Crystek晶振 | C3292 | XO (Standard) | 80MHz |
| C3292-100.000 | Crystek晶振 | C3292 | XO (Standard) | 100MHz |
| C3292-106.250 | Crystek晶振 | C3292 | XO (Standard) | 106.25MHz |
| CE3292-100.000 | Crystek晶振 | C3292 | XO (Standard) | 100MHz |
| CE3292-106.250 | Crystek晶振 | C3292 | XO (Standard) | 106.25MHz |
