6G電信晶振 MMdcomp石英晶體 T12BC1-19.200MHZ-T，尺寸3.2x2.5mm，頻率19.2MHZ，美國麥迪康晶振，歐美進口晶振，進口無源晶體，貼片無源晶振，無源晶體，四腳貼片晶振，石英貼片晶振，輕薄型晶體，19.2MHZ石英晶振，無源石英晶體，石英晶體諧振器，環保型晶振，6G電信專用晶振，儀器設備晶振，蜂窩電話晶振，以太網石英晶振，小型設備晶振，平板電腦晶振，智能手機專用晶振，無線網絡晶振，藍牙音響晶振，高質量晶振，低功耗晶振，低成本晶振，低損耗晶振，高精度晶振，具有超高的耐壓性能以及良好的穩定性能，無源晶體產品超級適合用于小型設備，智能手機，平板電腦，無線網絡，以太網，6G電信，藍牙音響等領域。6G電信晶振 MMdcomp石英晶體 T12BC1-19.200MHZ-T.

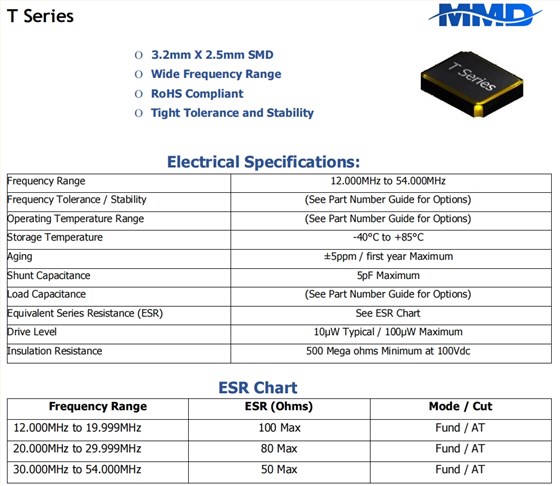

6G電信晶振 MMdcomp石英晶體 T12BC1-19.200MHZ-T 參數表
| Frequency Range | 19.200MHz | ||||
| Frequency Tolerance / Stability | (See Part Number Guide for Options) | ||||
| Operating Temperature Range | (See Part Number Guide for Options) | ||||
| Storage Temperature | -40°C to +85°C | ||||
| Aging | ±5ppm / first year Maximum | ||||
| Shunt Capacitance | 5pF Maximum | ||||
| Load Capacitance | (See Part Number Guide for Options) | ||||
| Equivalent Series Resistance (ESR) | See ESR Chart | ||||
| Drive Level | 10µW Typical / 100µW Maximum | ||||
| Insulation Resistance | 500 Mega ohms Minimum at 100Vdc |

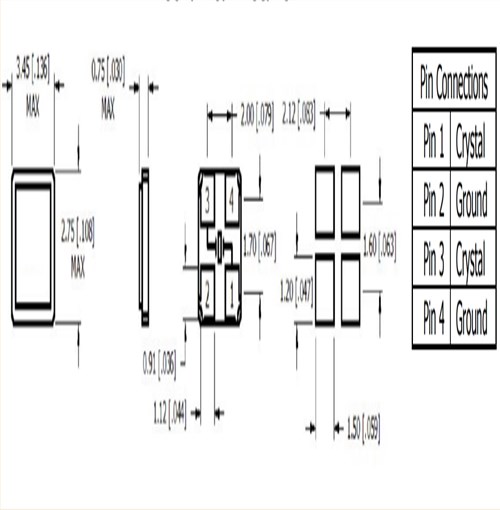

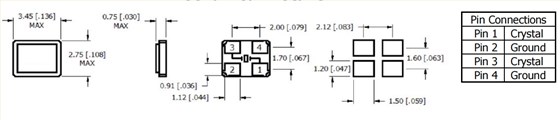

6G電信晶振 MMdcomp石英晶體 T12BC1-19.200MHZ-T 尺寸圖
產品特征:
輕薄型SMD晶振
低老化
符合RoHS標準且無鉛
更多相關麥迪康MMDCOMP Crystal型號，請咨詢我們！
