5032mm微型晶振,TST嘉碩無源晶體,TZ0614A,10M無線應用晶振特點:
表面安裝密封包,卓越的可靠性性能
良好的頻率擾動和溫度穩定性,超微型包
表面安裝5.0mmx3.2mm貼片無源晶振單元用于無線通信設備
特別是需要超微型封裝的移動。

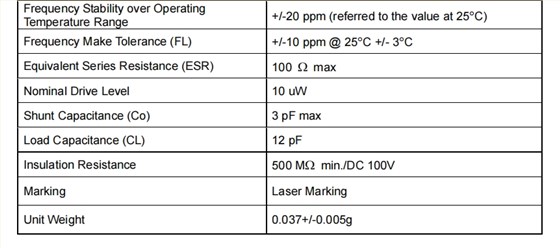

5032mm微型晶振,TST嘉碩無源晶體,TZ0614A,10M無線應用晶振 參數表
| TZ0614A | Specification |
| NominalFrequency | 10.000MHZ |
| Mode of Operation | Fundamental |
| Storage TemperatureRange | -55°Cto+125°C |
| Operating TemperatureRange | -20°Cto+70°C |
|
Frequency Stability over Operating Temperature Range |
+/-20ppm(referrend to the value ai 25°C) |
| FrequencyMakeTolerance(FL) | +/-10 ppm@25°C+/-3°C |
| EquivalentSeriesResistor(ESR) | 100 Ωmax. |
| Nominal DriveLevel | 10uW |
| ShuntCapacitance(Co) | 3.0 pFmax |
| LoadCapacitance(CL) | 12.5pF |
| InsulationResistance | 500MΩmin atDC100V |
| Marking |
Lasermarking |

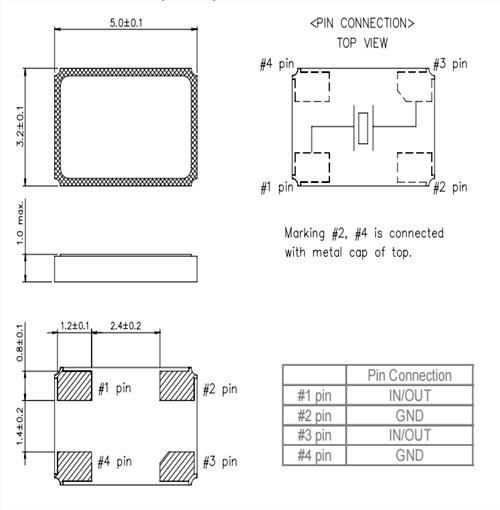

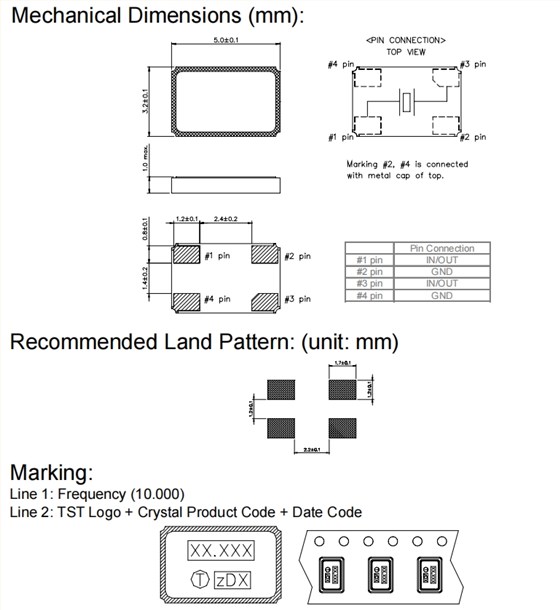

5032mm微型晶振,TST嘉碩無源晶體,TZ0614A,10M無線應用晶振 尺寸圖
