當前位置：首頁 » 歐美進口晶振 » MtronPTI晶振 » M1253S107 52.000000,3225mm,52MHz,MtronPTI手持式電子設備晶振

prevnext

M1253S107 52.000000,3225mm,52MHz,MtronPTI手持式電子設備晶振

頻率：52MHz

尺寸：3.2x2.5mm

M1253S107 52.000000,3225mm,52MHz,MtronPTI手持式電子設備晶振，美國MtronPTI晶振，麥特倫皮晶振，型號：M1253系列晶振，產品編碼為：M1253S107 52.000000石英晶振，頻率：52MHz，頻率穩定性：±15ppm，頻率容差：±10ppm，負載電容：20pF，工作溫度范圍：-20℃至+70℃，小體積晶振尺寸：3.2x2.5mm封裝，四腳貼片晶振，無源晶振，3225晶振，石英晶體諧振器，SMD晶振，具有超小型，輕薄型，高品質晶振，耐熱及耐環境特點。進口晶振，應用于：手持式電子設備，PDA、GPS、MP3，便攜式儀器，PCMCIA卡，藍牙等應用。

訂購熱線：0755-27876201

M1253S107 52.000000,3225mm,52MHz,MtronPTI手持式電子設備晶振,參數表

Parameter	Symbol	Min.	Typ.	Max.	Units	Conditions
Frequency Range	F			52	MHz
Frequency Tolerance	F/F	See Ordering Information			ppm	+25℃
Frequency Stability	F/F	See Ordering Information			ppm	Over Operating Temperature
Operating Temperature	Topr	See Ordering Information			℃
Storage Temperature	Tstg	-55		+125	℃
Aging	Fa			±5	ppm/yr	+25℃
Load Capacitance	CL					See Ordering Information
Shunt Capacitance	C0			3	pF
ESR
Fundamental AT-Cut Frequencies 13.000000 to 19.999999 MHz 20.000000 to 29.999999 MHz 30.000000 to 54.000000 MHz				80 70 50	Ohms Ohms Ohms	All All All
Drive Level	DL	10	100	300	μW
Insulation Resistance	IR	500			Megohms	100 VDC
Aging	Internal Specification					168 hrs. at +55℃
Physical Dimensions	MIL-STD-883, Method 2016
Shock	MIL-STD-202, Method 213 Condition C					100 g
Vibration	MIL-STD-202, Methods 201 & 204					10 g from 10-2000 Hz
Thermal Cycle	MIL-STD-883, Method 1010, Condition B					-55℃ to +125℃
Gross Leak	MIL-STD-202, Method 112					30 sec. Immersion
Fine Leak	MIL-STD-202, Method 112					1 x 10-8 atmcc/sec. min.
Resistance to Solvents	MIL-STD-883, Method 2015					Three 1 minute soaks
Max Soldering Conditions	See solder profile, Figure 1

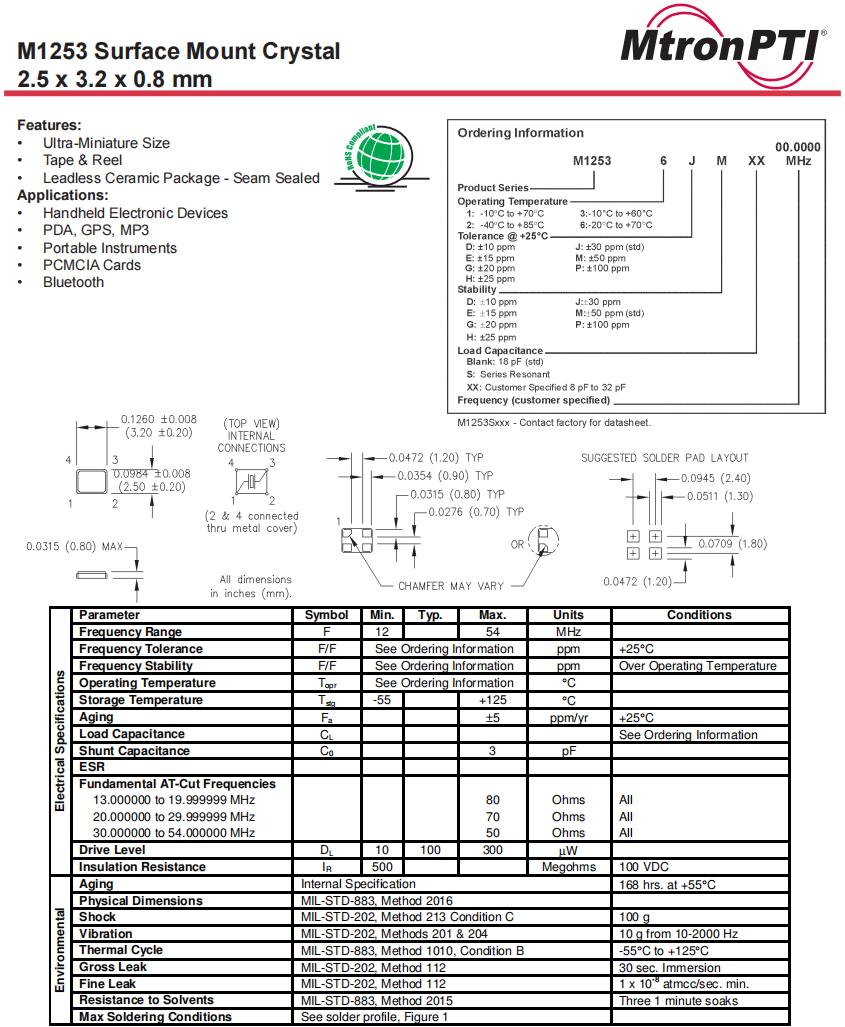

M1253S107 52.000000,3225mm,52MHz,MtronPTI手持式電子設備晶振,尺寸圖

產品編碼	型號	頻率	包裝	頻率穩定性	頻率容差
M12531DD 25.000000	M1253	25MHz	2.5 x 3.2 mm	±10 ppm	±10 ppm
M12532HH 30.000000	M1253	30MHz	2.5 x 3.2 mm	±25 ppm	±25 ppm
M12532HH 50.000000	M1253	50MHz	2.5 x 3.2 mm	±25 ppm	±25 ppm
M12532JJ 25.000000	M1253	25MHz	2.5 x 3.2 mm	±30 ppm	±30 ppm
M12532JJ 27.000000	M1253	27MHz	2.5 x 3.2 mm	±30 ppm	±30 ppm
M12532JJ08 16.384000	M1253	16.384MHz	2.5 x 3.2 mm	±30 ppm	±30 ppm
M12532JJ08 25.000000	M1253	25MHz	2.5 x 3.2 mm	±30 ppm	±30 ppm
M12532JJ09 50.000000	M1253	50MHz	2.5 x 3.2 mm	±30 ppm	±30 ppm
M12532JM 15.360000	M1253	15.36MHz	2.5 x 3.2 mm	±50 ppm	±30 ppm
M12532JM 27.000000	M1253	27MHz	2.5 x 3.2 mm	±50 ppm	±30 ppm
M12532JM 29.491200	無源晶振	29.4912MHz	2.5 x 3.2 mm	±50 ppm	±30 ppm
M12532JM 40.000000	M1253	40MHz	2.5 x 3.2 mm	±50 ppm	±30 ppm
M12532JM20 25.000000	M1253	25MHz	2.5 x 3.2 mm	±50 ppm	±30 ppm
M12536GJ 25.000000	M1253	25MHz	2.5 x 3.2 mm	±30 ppm	±20 ppm
M12536JM 24.000000	M1253	24MHz	2.5 x 3.2 mm	±50 ppm	±30 ppm
M12536JM 25.000000	M1253	25MHz	2.5 x 3.2 mm	±50 ppm	±30 ppm
M12536JM 50.000000	M1253	50MHz	2.5 x 3.2 mm	±50 ppm	±30 ppm
M1253S072 25.000000	M1253	25MHz	2.5 x 3.2 mm	±20 ppm	±30 ppm
M1253S107 52.000000	M1253	52MHz	2.5 x 3.2 mm	±15 ppm	±10 ppm
M1253S108 24.000000	M1253	24MHz	2.5 x 3.2 mm	±50 ppm	±30 ppm
M1253S116 16.000000	M1253	16MHz	2.5 x 3.2 mm	±10 ppm, ±15 ppm	±10 ppm
M1253S162 24.000000	M1253	24MHz	2.5 x 3.2 mm	±15 ppm	±15 ppm
M1253S164 48.000000	M1253	48MHz	2.5 x 3.2 mm	±10 ppm	±10 ppm
M1253S204 25.000000	M1253	25MHz	2.5 x 3.2 mm	±100 ppm	±50 ppm
M1253S207 20.736000	M1253	20.736MHz	2.5 x 3.2 mm	±10 ppm	±10 ppm
M1253S208 26.000000	M1253	26MHz	2.5 x 3.2 mm	±9 ppm	±10 ppm
M1253S211 25.000000	M1253	25MHz	2.5 x 3.2 mm	±20 ppm	±20 ppm
M1253S218 48.000000	M1253	48MHz	2.5 x 3.2 mm	±30 ppm	±30 ppm
M1253S219 25.000000	M1253	25MHz	2.5 x 3.2 mm	±20 ppm	±20 ppm
M1253S220 48.000000	M1253	48MHz	2.5 x 3.2 mm	±15 ppm	±10 ppm
M1253S224 32.000000	M1253	32MHz	2.5 x 3.2 mm	±20 ppm	±10 ppm
M1253S225 26.000000	M1253	26MHz	2.5 x 3.2 mm	±10 ppm	±10 ppm
M1253S226 12.000000	M1253	12MHz	2.5 x 3.2 mm	±20 ppm	±20 ppm
M1253S227 25.000000	M1253	25MHz	2.5 x 3.2 mm	±25 ppm	±10 ppm
M1253S229 48.000000	M1253	48MHz	2.5 x 3.2 mm	±30 ppm	±20 ppm
M1253S230 25.000000	M1253	25MHz	2.5 x 3.2 mm	±30 ppm	±30 ppm
