頻率：32.768KHz
尺寸：1.6x1.0mm
PETERMANN時鐘晶振,M1610-32.768kHz-±20ppm-12.5pF (-40/+85°C),通訊6G晶振，德國進口晶振，PETERMANN彼得曼晶振，型號：M1610，編碼為：M1610-32.768kHz-±20ppm-12.5pF (-40/+85°C)，頻率為：32.768K晶振，負載電容12.5pF，精度±20ppm，工作溫度范圍：-40℃至+85℃，小體積晶振尺寸：1.6x1.0mm封裝，兩腳貼片晶振，石英晶振，無源晶振，手表晶體，SMD石英晶體，石英晶體諧振器，無鉛晶振。最小的可用的低成本手表水晶，具有超小型，輕薄型，優異的抗沖擊性，高精度，高性能，高品質，耐熱及耐環境等特點。石英貼片晶振被廣泛應用于：通訊設備，無線網絡，藍牙模塊，時鐘晶振，可穿戴設備，鐘表電子，智能家居，汽車電子，儀器儀表設備，數碼電子，數字顯示等應用。

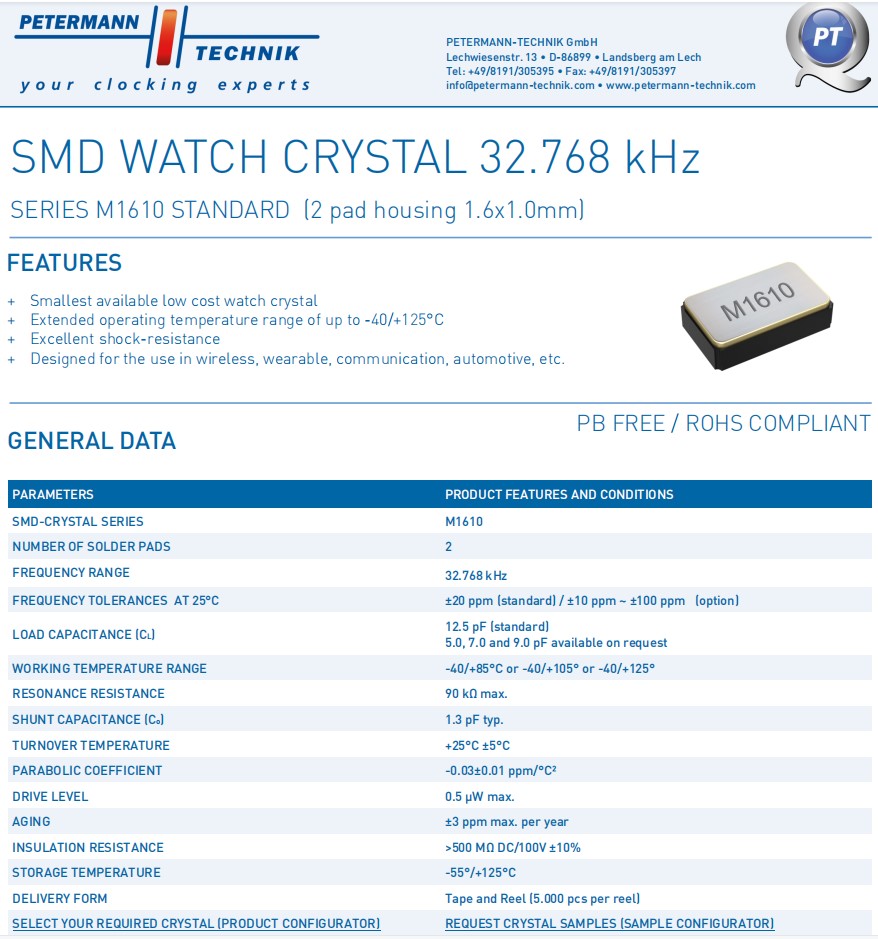

PETERMANN時鐘晶振,M1610-32.768kHz-±20ppm-12.5pF (-40/+85°C),通訊6G晶振 參數表
| PARAMETERS | PRODUCT FEATURES AND CONDITIONS |
| SMD-CRYSTAL SERIES | M1610 |
| NUMBER OF SOLDER PADS | 2 |
| FREQUENCY RANGE | 32.768 kHz |
| FREQUENCY TOLERANCES AT 25°C | ±20 ppm (standard) / ±10 ppm ~ ±100 ppm (option) |
| LOAD CAPACITANCE (CL) | 12.5 pF (standard) |
| 5.0, 7.0 and 9.0 pF available on request | |
| WORKING TEMPERATURE RANGE | -40/+85°C or -40/+105° or -40/+125° |
| RESONANCE RESISTANCE | 90 kΩ max. |
| SHUNT CAPACITANCE (Co) | 1.3 pF typ. |
| TURNOVER TEMPERATURE | +25°C ±5°C |
| PARABOLIC COEFFICIENT | -0.03±0.01 ppm/°C² |
| DRIVE LEVEL | 0.5 μW max. |
| AGING | ±3 ppm max. per year |
| INSULATION RESISTANCE | >500 MΩ DC/100V ±10% |
| STORAGE TEMPERATURE | -55°/+125°C |
| DELIVERY FORM |
Tape and Reel (5.000 pcs per reel) |

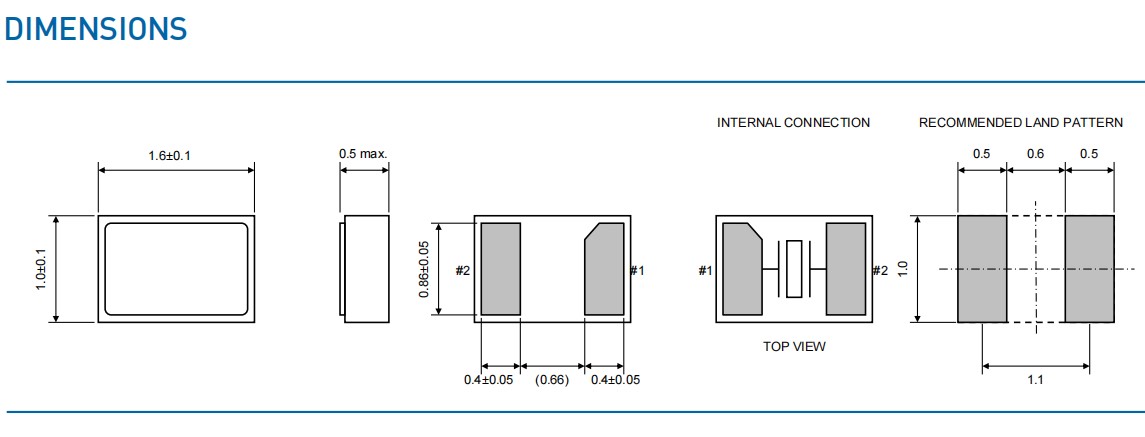

PETERMANN時鐘晶振,M1610-32.768kHz-±20ppm-12.5pF (-40/+85°C),通訊6G晶振 尺寸圖
PETERMANN時鐘晶振,M1610-32.768kHz-±20ppm-12.5pF (-40/+85°C),通訊6G晶振
產品特點：
最小的低成本手表水晶，石英晶體諧振器
擴展工作溫度范圍高達-40℃至+125°C
優秀的防震
設計用于無線、可穿戴、通信、汽車等
