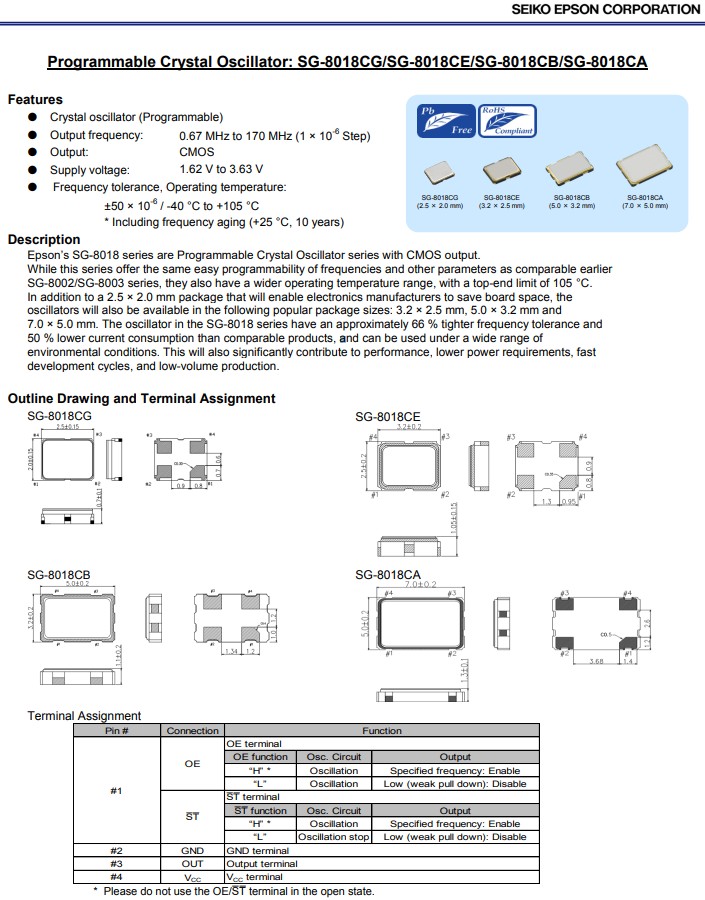

愛普生晶振針對市場開發了可編程振蕩器系列產品，新的SG-8018系列產品,共四種型號分別為SG-8018CA、SG-8018CB、SG-8018CE、SG-8018CG，頻率調節精度可達1ppm，相比同級別元件的功耗、頻率穩定性都有明顯提升,SG-8018系列產品具有更寬的工作溫度范圍,除了一個2.5mmx2.0mm的封裝，使電子制造商能夠節省電路板空間，晶體振蕩器還可以在以下流行的封裝尺寸中獲得3.2mmx2.5mm，5.0mmx3.2mm和7.0mmx5.0mm,用戶將能夠利用SG-Writer II*1編程工具對SG8108系列和擴頻振蕩器進行編程。工作溫度為-40至+105℃，符合工業標準。該系列的最小封裝尺寸為2.5mm*2.0mm(SG-8018CG)，（用于空間敏感無線應用的小型化設計），為無線通信設備提供精確的時鐘信號，提高使用壽命和耐用性，并縮短產品開發周期。

愛普生SG-8018系列最小封裝尺寸2520mm可編程振蕩器編碼X1G005601036600

產品編碼	頻率	貼片晶振	尺寸(長寬高)	輸出波	電源電壓	工作溫度
X1G005601001100	25.000000 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601001200	25.000000 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601001300	20.000000 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601001400	20.000000 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601001500	50.000000 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601001600	50.000000 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601001700	48.000000 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601001800	48.000000 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601001900	24.000000 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601002000	24.000000 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601002100	40.000000 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601002200	40.000000 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601002300	16.000000 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601002400	16.000000 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601002500	12.000000 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C

X1G005601035200	25.629200 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601035300	54.229000 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601035400	22.989500 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601035500	66.666600 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601035600	74.000000 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601035700	3.686400 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601035900	28.636300 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601036000	29.491200 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601036100	39.800000 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601036200	27.800000 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601036300	11.289000 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601036400	24.519000 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601036500	32.674000 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601036600	150.000000 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601036700	36.700000 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601036800	40.000000 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601036900	7.690000 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601037000	1.000000 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005601037100	15.360000 MHz	SG-8018CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C

愛普生SG-8018系列最小封裝尺寸2520mm可編程振蕩器編碼X1G005601036600
SG-8018系列可編程晶振電源電壓為1.62V至3.63V，支持CMOS電平輸出，有利于設備的綜合設計。輸出啟用和待機模式由OE和ST引腳切換。當晶振輸出頻率為20MHz時，空載電流損失低至2.7Ma。在待機模式下，靜態電流僅為0.3MUA，這使得更容易實現低功耗設計。SG-8018的輸出頻率在0.67MHz至170MHz之間。由于采用了鎖相環（PLL），在沒有溫度補償的情況下可以產生穩定的頻率信號，其中頻率容限僅為（-40至+105℃）。
