汽車及防盜遙控器應用晶振SG-210STF編碼X1G004171003100

來源：*** 查看手機網址

掃一掃!

掃一掃!

瀏覽：- 發布日期：2022-09-13 16:01:48【大中小】

分享到：

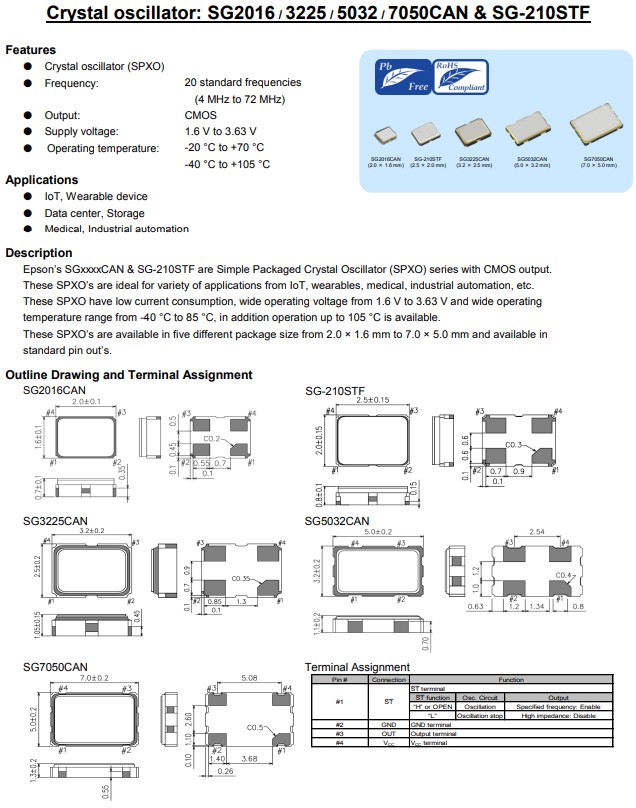

愛普生晶振2520mm貼片有源晶振熱銷型號SG-210STF，金屬外殼。頻率范圍在4MHz至72MHz，在工業級溫度范圍內頻率穩定度保持在50ppm以內，同時SG-210STF還推出一種寬頻晶振，穩定工作上限溫度提高到了105℃。電源電壓范圍在1.6V至3.6V，滿足最常見的1.8V/2.5V/3.3V設計需要。工作電壓越低，工作時消耗的電流越小。操作電壓越低，用戶在低功耗設計中的靈活性就越大。SG-210STF有源晶振最大優點是它有一個停止模式。它可以通過外部控制器控制晶體振蕩器上相應引腳的電平，從而控制停止模式和正常模式之間的切換。在停止模式下，串聯晶體振蕩器的最大功耗僅為2.7uA。與傳統的有源晶體振蕩器相比，該模式為低功耗設計的研究人員提供了極大的方便。

汽車及防盜遙控器應用晶振SG-210STF編碼X1G004171003100

產品編碼	型號	頻率	貼片晶振	輸出波	電源電壓	工作溫度
X1G004171000900	SG-210STF	4.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171001500	SG-210STF	8.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171001600	SG-210STF	10.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171001800	SG-210STF	12.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171001900	SG-210STF	12.288000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171002500	SG-210STF	14.745600MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171002700	SG-210STF	16.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171002900	SG-210STF	20.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171003100	SG-210STF	24.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171003200	SG-210STF	24.576000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171003300	SG-210STF	25.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171003400	SG-210STF	26.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171003500	SG-210STF	27.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171004000	SG-210STF	32.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171004500	SG-210STF	40.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171004600	SG-210STF	48.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171004700	SG-210STF	50.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171005900	SG-210STF	25.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 105°C

X1G004171015600	SG-210STF	24.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-20 to 70°C
X1G004171016300	SG-210STF	12.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-20 to 70°C
X1G004171019700	SG-210STF	24.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G004171020600	SG-210STF	40.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G004171021800	SG-210STF	20.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-20 to 70°C
X1G004171023800	SG-210STF	20.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G004171024400	SG-210STF	26.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G004171025000	SG-210STF	27.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G004171028000	SG-210STF	12.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G004171029900	SG-210STF	4.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G004171030000	SG-210STF	33.330000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G004171036500	SG-210STF	10.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G004171036600	SG-210STF	12.288000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G004171036700	SG-210STF	14.745600MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G004171036800	SG-210STF	24.576000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G004171036900	SG-210STF	48.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G004171037000	SG-210STF	72.000000MHz	2.50x2.00x0.80mm	CMOS	1.710 to 3.630V	-20 to 70°C
X1G004171037100	SG-210STF	72.000000MHz	2.50x2.00x0.80mm	CMOS	2.250 to 3.630V	-40 to 105°C

汽車及防盜遙控器應用晶振SG-210STF編碼X1G004171003100
SG-210STF系列石英晶體振蕩器的最大啟動時間為3ms，保證了一般低功耗設計對喚醒速度的要求。SG-210STF系列晶體振蕩器的形狀尺寸為2.5x2.0x0.8mm。超小尺寸使其在面積敏感設計中更方便。SG-210STF系列晶體振蕩器體積小、功耗低，在手持設備、可穿戴設備和物聯網等領域有著廣闊的市場。
