汽車音響控制器專用晶振SG2016CAA編碼X1G005341005400

來源：*** 查看手機網址

掃一掃!

掃一掃!

瀏覽：- 發布日期：2022-09-15 16:32:49【大中小】

分享到：

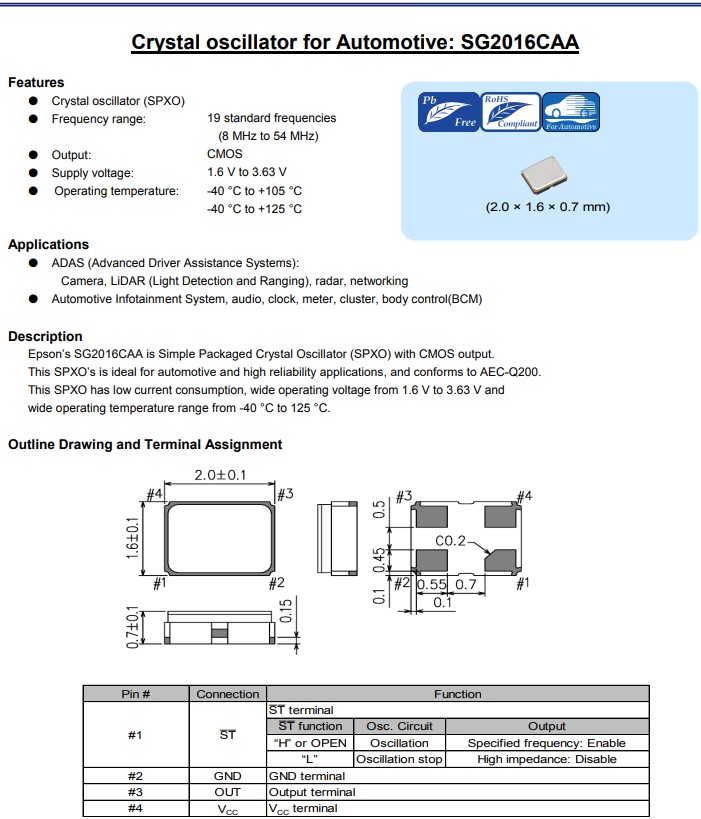

愛普生晶振SG2016CAA是一款具有CMOS輸出的簡單封裝石英晶體振蕩器(SPXO)，小體積晶振尺寸2.0x1.6mm有源晶振，四腳貼片晶振，電源電壓:1.6V至3.63V，頻率范圍8MHz至54MHz，寬工作溫度范圍從-40℃到125℃，具有超小型，輕薄型，低電源電壓，低抖動，低功耗等特點，符合AEC-Q200標準，這款SG2016CAA晶振非常適合汽車和高可靠性應用，汽車電子，汽車音響控制器，汽車多媒體，GPS導航等應用。

汽車音響控制器專用晶振SG2016CAA編碼X1G005341005400

產品編碼	型號	頻率	貼片晶振	輸出波	電源電壓	工作溫度
X1G005341000200	SG2016CAA	27.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341000400	SG2016CAA	40.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341000900	SG2016CAA	25.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 125°C
X1G005341001100	SG2016CAA	24.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341001300	SG2016CAA	27.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 125°C
X1G005341001500	SG2016CAA	48.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341001700	SG2016CAA	12.288000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341001900	SG2016CAA	48.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 125°C
X1G005341002400	SG2016CAA	20.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341002700	SG2016CAA	24.576000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341002900	SG2016CAA	24.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 125°C
X1G005341003400	SG2016CAA	50.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341003500	SG2016CAA	25.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341003700	SG2016CAA	54.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341003800	SG2016CAA	54.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 125°C
X1G005341004100	SG2016CAA	8.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 125°C
X1G005341004400	SG2016CAA	12.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341004500	SG2016CAA	24.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C

X1G005341004600	SG2016CAA	33.333300MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341005000	SG2016CAA	50.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 125°C
X1G005341005100	SG2016CAA	14.745600MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341005300	SG2016CAA	33.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341005400	SG2016CAA	16.666600MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341005600	SG2016CAA	8.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341005700	SG2016CAA	10.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 125°C
X1G005341005800	SG2016CAA	12.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 125°C
X1G005341005900	SG2016CAA	16.666600MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341006000	SG2016CAA	22.579200MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341006100	SG2016CAA	11.289600MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341006200	SG2016CAA	20.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 125°C

汽車音響控制器專用晶振SG2016CAA編碼X1G005341005400
特征:
晶體振蕩器(SPXO)
頻率范圍：19個標準頻率(8兆赫至54兆赫)汽車電子晶振
輸出：CMOS
電源電壓：1.6V至3.63V
工作溫度：-40攝氏度至+105攝氏度，-40攝氏度至+125攝氏度
應用程序:
ADAS(高級駕駛輔助系統):攝像頭、激光雷達(光探測和測距)、雷達、網絡，汽車信息娛樂系統、音頻、時鐘、儀表、組合儀表、車身控制(BCM)。
隨著汽車電子的發展,各大進口晶振品牌紛紛看向智能汽車車載系統市場,日本進口晶振NDK品牌以及KDS品牌相繼推出了超小體積晶體振蕩器以應對智能汽車發展.愛普生晶體元器件將進一步致力于小型,高穩定,高精度晶體元器件的開發,為現有的應用程序以及生活新藍圖開拓廣闊前景. 愛普生晶振在KHZ,MHZ,以及GHZ上都有重大突破,使得愛普生拓優科夢的晶體元器件已以23%的市場占有率位于業界第一.
