KX-327NHT無線應用晶體,12.87159,格耶32.768KHZ晶振

頻率：32.768KHZ

尺寸：3.2x1.5mm

KX-327NHT無線應用晶體,12.87159,格耶32.768KHZ晶振，尺寸3.2x1.5mm，頻率32.768KHZ，GeyerCrystal，丹麥進口晶振，格耶無源晶振，32.768K晶振，無源貼片晶振，水晶振動子，石英晶體，石英貼片晶振，無源石英晶體，兩腳貼片晶振，無源晶振，3215mm無源晶振，32.768KHZ音叉晶振，低功耗晶振，低損耗晶振，高性能晶振，高質量晶振，時鐘應用晶振，無線應用晶振，電話機晶振，小型設備晶振，藍牙晶振，移動通信晶振，智能手表晶振，游戲機晶振，具備輕薄小低功耗的特點。

SMD晶振產品可滿足不同應用程序的需求，主要應用于無線應用，電話機，小型設備，藍牙，移動通信，智能手表，游戲機等領域.KX-327NHT無線應用晶體,12.87159,格耶32.768KHZ晶振.

訂購熱線：0755-27876201

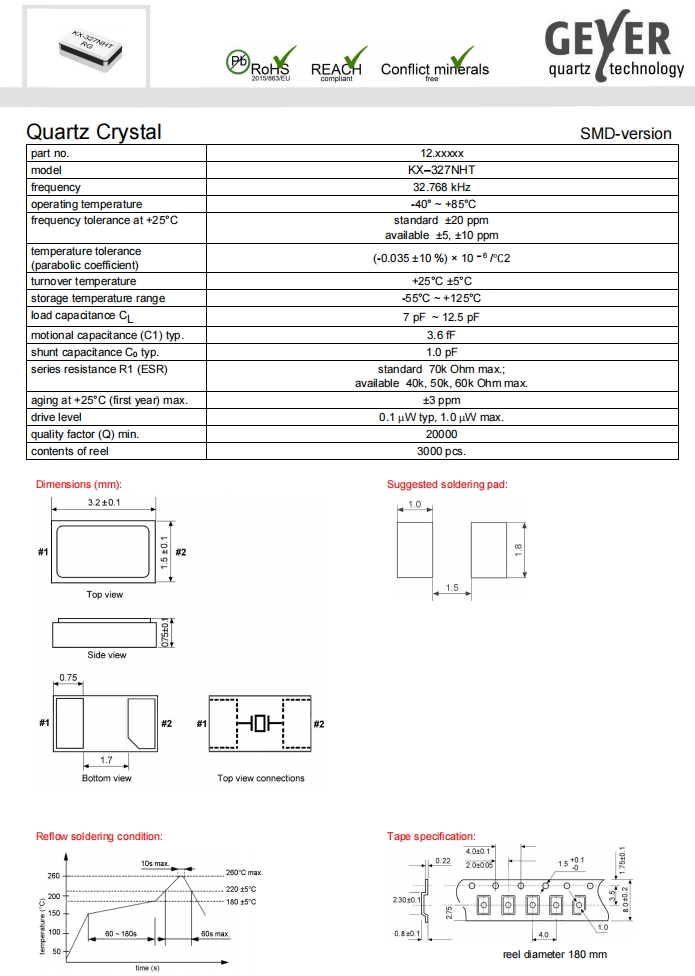

KX-327NHT無線應用晶體,12.87159,格耶32.768KHZ晶振 參數表

part no.	12.xxxxx
model	KX–327NHT
frequency	32.768 kHz
operating temperature	-40°C~ +85°C
frequency tolerance at +25°C	standard ±20 ppm available ±5, ±10 ppm
temperature tolerance (parabolic coefficient)	(-0.035 ±10 %) × 10 – 6 /℃2
turnover temperature	+25°C ±5°C
storage temperature range	-55°C ~ +125°C
load capacitance CL	7 pF ~ 12.5 pF
motional capacitance (C1) typ.	3.6 fF
shunt capacitance C0 typ.	1.0 pF
series resistance R1 (ESR)	standard 70k Ohm max.; available 40k, 50k, 60k Ohm max.
aging at +25°C (first year) max.	±3 ppm
drive level	0. 1 μW typ, 1.0 μW max.
quality factor (Q) min.	20000
contents of reel	3000 pcs.

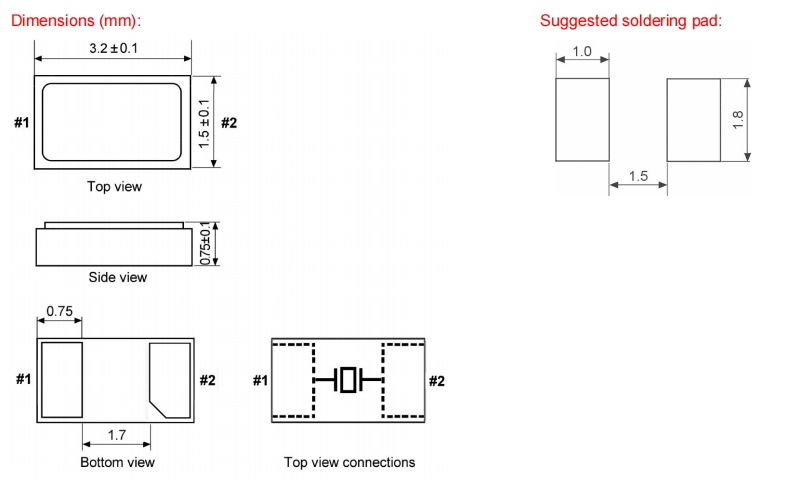

KX-327NHT無線應用晶體,12.87159,格耶32.768KHZ晶振 尺寸圖

KX-327NHT無線應用晶體,12.87159,格耶32.768KHZ晶振

產品特性：

尺寸3.2x1.5mm壓電石英晶體元件

符合RoHS無鉛

非常低的老化

高可靠性能

Mfr Part #	Mfr	Description	Series	Frequency	Frequency Stability	Frequency Tolerance	Load Capacitance	Operating Temperature
12.85517	Geyer晶振	CYSTAL 54.0MHZ 8PF SMD	KX-5T	54 MHz	±100ppm	±30ppm	8pF	-40°C ~ 85°C
12.89017	Geyer晶振	Crystal 13.560Mhz SMD KX-9A 16pF	KX-9A	13.56 MHz	±50ppm	±30ppm	16pF	-20°C ~ 70°C
12.89082	Geyer晶振	Crystal 26.0Mhz SMD KX-9AT 16pF,	KX-9AT	26 MHz	±50ppm	±30ppm	16pF	-40°C ~ 85°C
12.60075	Geyer晶振	Cystal 30.0Mhz 8pF SMD	KX-7	30 MHz	±50ppm	±30ppm	8pF	-40°C ~ 125°C
12.89155	Geyer晶振	Crystal 32.0Mhz SMD KX-9AT 16pF,	KX-9AT	32 MHz	±30ppm	±30ppm	16pF	-40°C ~ 85°C
12.88522	Geyer晶振	Crystal 11.059200Mhz 12pF SMD	KX-7T	11.0592 MHz	±50ppm	±30ppm	12pF	-20°C ~ 70°C
12.88752	Geyer晶振	Crystal 10.0Mhz 12pF SMD	KX-7	10 MHz	±50ppm	±30ppm	12pF	-20°C ~ 70°C
12.85569	Geyer晶振	CYSTAL 27.120MHZ 8PF SMD	KX-5T	27.12 MHz	±15ppm	±10ppm	8pF	-40°C ~ 85°C
12.88565	Geyer晶振	Crystal 8.0Mhz 12pF SMD	KX-7E	8 MHz	±50ppm	±30ppm	12pF	-20°C ~ 70°C
12.85538	Geyer晶振	CYSTAL 24.5760MHZ 8PF SMD	KX-5T	24.576 MHz	±100ppm	±30ppm	8pF	-40°C ~ 85°C
12.86533	Geyer晶振	Cystal 26.0Mhz 10pF SMD	KX-6T	26 MHz	±100ppm	±30ppm	10pF	-40°C ~ 85°C
12.89209	Geyer晶振	Crystal 16.0Mhz SMD KX-9AE 20pF,	KX-9AE	16 MHz	±50ppm	±30ppm	20pF	-40°C ~ 105°C
12.8652	Geyer晶振	Cystal 27.0Mhz 10pF SMD	KX-6	27 MHz	±50ppm	±30ppm	10pF	-20°C ~ 70°C
12.86574	Geyer晶振	Crystal 27.0Mhz 8pF SMD	KX-6F	27 MHz	±150ppm	±30ppm	8pF	-40°C ~ 125°C
12.85541	Geyer晶振	CYSTAL 30.0MHZ 8PF SMD	KX-5	30 MHz	±30ppm	±30ppm	8pF	-20°C ~ 70°C
12.84818	Geyer晶振	Crystal 24.0MHz 8pF SMD	KX-4	24 MHz	±50ppm	±30ppm	8pF	-20°C ~ 70°C
12.86527	Geyer晶振	Cystal 20.0Mhz 10pF SMD	KX-6T	20 MHz	±15ppm	±10ppm	10pF	-40°C ~ 85°C
12.85534	Geyer晶振	CYSTAL 27.0MHZ 8PF SMD	KX-5T	27 MHz	±50ppm	±30ppm	8pF	-40°C ~ 85°C
12.86505	Geyer晶振	Cystal 26.0Mhz 10pF SMD	KX-6	26 MHz	±50ppm	±30ppm	10pF	-20°C ~ 70°C
12.60024	Geyer晶振	Cystal 27.0Mhz 12pF SMD	KX-7E	27 MHz	±100ppm	±30ppm	12pF	-40°C ~ 105°C
12.84803	Geyer晶振	Crystal 26.0MHz 8pF SMD	KX-4	26 MHz	±20ppm	±10ppm	8pF	-40°C ~ 85°C
12.85518	Geyer晶振	CYSTAL 20.0MHZ 8PF SMD	KX-5E	20 MHz	±50ppm	±30ppm	8pF	-40°C ~ 105°C
12.8873	Geyer晶振	Crystal 26.0Mhz 12pF SMD	KX-7T	26 MHz	±50ppm	±30ppm	12pF	-40°C ~ 85°C
12.86556	Geyer晶振	Crystal 40.0Mhz 8pF SMD	KX-6T	40 MHz	±20ppm	±10ppm	8pF	-40°C ~ 85°C
12.88643	Geyer晶振	Crystal 14.3181800Mhz 12pF SMD	KX-7T	14.31818 MHz	±50ppm	±30ppm	12pF	-40°C ~ 85°C
12.86511	Geyer晶振	Crystal 18.4320Mhz 10pF SMD	KX-6	18.432 MHz	±50ppm	±30ppm	10pF	-20°C ~ 70°C
12.88523	Geyer晶振	Crystal 40.0Mhz 12pF SMD	KX-7F	40 MHz	±50ppm	±30ppm	12pF	-40°C ~ 125°C
12.89288	Geyer晶振	Crystal 24.5760Mhz SMD KX-9AT 20	KX-9AT	24.576 MHz	±30ppm	±20ppm	20pF	-40°C ~ 85°C
12.86536	Geyer晶振	Crystal 14.318180Mhz 10pF SMD	KX-6	14.31818 MHz	±50ppm	±30ppm	10pF	-20°C ~ 70°C
12.89029	Geyer晶振	Crystal 27.0Mhz SMD KX-9A 16pF,	KX-9A	27 MHz	±50ppm	±30ppm	16pF	-20°C ~ 70°C
12.88799	Geyer晶振	Crystal 12.0Mhz 10pF SMD	KX-7	12 MHz	±30ppm	±30ppm	10pF	-20°C ~ 70°C
12.8481	Geyer晶振	Crystal 48.0MHz 8pF SMD	KX-4	48 MHz	±50ppm	±30ppm	8pF	-40°C ~ 85°C
12.84814	Geyer晶振	Crystal 32.0MHz 8pF SMD	KX-4	32 MHz	±15ppm	±10ppm	8pF	-40°C ~ 85°C
12.88756	Geyer晶振	Crystal 10.0Mhz 12pF SMD	KX-7E	26 MHz	±50ppm	±10ppm	12pF	-40°C ~ 105°C
12.8556	Geyer晶振	CYSTAL 16.0MHZ 8PF SMD	KX-5T	16 MHz	±30ppm	±30ppm	8pF	-40°C ~ 85°C
12.86561	Geyer晶振	Crystal 40.0Mhz 10pF SMD	KX-6T	40 MHz	±20ppm	±10ppm	10pF	-40°C ~ 85°C
12.8877	Geyer晶振	Crystal 30.0Mhz 12pF SMD	KX-7T	30 MHz	±10ppm	±10ppm	12pF	-25°C ~ 80°C
12.86564	Geyer晶振	Crystal 14.318180Mhz 10pF SMD	KX-6T	14.31818 MHz	±100ppm	±30ppm	10pF	-40°C ~ 85°C
12.86592	Geyer晶振	Crystal 25.0Mhz SMD KX-6T 12pF,	KX-6T	25 MHz	±20ppm	±10ppm	12pF	-40°C ~ 85°C
12.87159	Geyer晶振	CRYSTAL 32.7680kHz 12.5pF SMD	KX-327NHT晶振	32.768 kHz	-0.035ppm	±20ppm	12.5pF	-40°C ~ 85°C
12.87163	Geyer晶振	CRYSTAL 32.768KHZ 7PF SMD	KX-327RT	32.768 kHz	-0.036ppm	±20ppm	7pF	-40°C ~ 85°C
12.87151	Geyer晶振	CRYSTAL 32.7680kHz 9pF SMD	KX-327NHT	32.768 kHz	-0.035ppm	±30ppm	9pF	-40°C ~ 85°C
12.8717	Geyer晶振	CRYSTAL 32.7680KHZ 12.5PF SMD	KX-327FT	32.768 kHz	-	±20ppm	12.5pF	-40°C ~ 85°C
12.87148	Geyer晶振	CRYSTAL 32.7680KHZ 7PF SMD	KX-327NHT	32.768 kHz	-0.035ppm	±20ppm	7pF	-40°C ~ 85°C
12.87106	Geyer晶振	CRYSTAL 32.768KHZ 7PF SMD	KX-327XST	32.768 kHz	±20ppm	±20ppm	7pF	-40°C ~ 85°C
12.8716	Geyer晶振	CYSTAL 32.7680KHZ 12.5PF SMD	KX-327RT	32.768 kHz	±20ppm	±20ppm	12.5pF	-40°C ~ 85°C
12.87143	Geyer晶振	CRYSTAL 32.768KHz 9pF SMD	KX-327NHT	32.768 kHz	-0.035ppm	±20ppm	9pF	-40°C ~ 85°C
12.84801	Geyer晶振	Crystal 26.0MHz 8pF SMD	KX-4	26 MHz	±50ppm	±30ppm	8pF	-20°C ~ 70°C
12.8718	Geyer晶振	Crystal 32.7680kHz 9pF SMD	KX-327NHF	32.768 kHz	-0.03ppm	±20ppm	9pF	-40°C ~ 125°C
12.87147	Geyer晶振	CRYSTAL 32.768KHz 7pF SMD	KX-327NHT	32.768 kHz	-	±10ppm	7pF	-40°C ~ 85°C
12.87081	Geyer晶振	CRYSTAL 32.768KHZ 6PF SMD	KX-327NHT	32.768 kHz	-0.035ppm	±20ppm	6pF	-40°C ~ 85°C
12.87149	Geyer晶振	CRYSTAL 32.7680KHZ 9PF SMD	KX-327NHT	32.768 kHz	-0.035ppm	±20ppm	9pF	-40°C ~ 85°C
12.87156	Geyer晶振	CRYSTAL 32.768KHz 12.5pF SMD	KX-327NHT	32.768 kHz	-0.035ppm	±20ppm	12.5pF	-40°C ~ 85°C
12.87154	Geyer晶振	CRYSTAL 32.768KHz 12.5pF SMD	KX-327NHT	32.768 kHz	-0.035ppm	±20ppm	12.5pF	-40°C ~ 85°C
12.87174	Geyer晶振	CRYSTAL 32.768KHz 7pF SMD	KX-327FT	32.768 kHz	-0.036ppm	±20ppm	7pF	-40°C ~ 85°C
12.87114	Geyer晶振	Cystal 32.7680Khz 12.5pF SMD	KX-327ST	32.768 kHz	-0.034ppm, ±0.006ppm	±20ppm	12.5pF	-40°C ~ 85°C
12.8715	Geyer晶振	CRYSTAL 32.7680KHZ 12.5PF SMD	KX-327NHT	32.768 kHz	-0.035ppm	±20ppm	12.5pF	-40°C ~ 85°C
12.87181	Geyer晶振	CRYSTAL 32.7680KHZ 12.5PF SMD	KX-327NHF	32.768 kHz	-0.03ppm	±20ppm	12.5pF	-40°C ~ 125°C
12.60023	Geyer晶振	Cystal 48.0Mhz 12pF SMD	KX-7E	48 MHz	±50ppm	±30ppm	12pF	-40°C ~ 105°C
12.85559	Geyer晶振	CYSTAL 40.0MHZ 8PF SMD	KX-5	40 MHz	±50ppm	±30ppm	8pF	-20°C ~ 70°C
