當前位置：首頁 » 歐美進口晶振 » GEYER晶振 » 12.88721,KX-7T無線網絡晶振,Geyer水晶振動子

prevnext

12.88721,KX-7T無線網絡晶振,Geyer水晶振動子

頻率：16MHZ

尺寸：3.2x2.5mm

12.88721,KX-7T無線網絡晶振,Geyer水晶振動子，尺寸3.2x2.5mm，頻率16MHZ，丹麥格耶晶振，進口無源晶振，四腳貼片晶振，石英貼片晶振，SMD晶振，無源貼片晶振，石英水晶振子，石英晶體諧振器，3225mm無源晶振，16MHZ貼片晶振，石英晶振，無源晶振，無鉛環保晶振，低功耗石英晶振，低損耗晶振，低耗能晶振，高精度晶振，高品質晶振，無線網絡專用晶振，平板電腦晶振，小型設備晶振，儀器設備晶振，便攜式設備晶振，智能音響專用晶振，具有低功耗高精度的特點。

貼片石英晶振產品比較適合用于無線網絡，平板電腦，小型設備，儀器設備，便攜式設備，智能音響等領域。12.88721,KX-7T無線網絡晶振,Geyer水晶振動子.

訂購熱線：0755-27876201

貼片石英晶振產品比較適合用于無線網絡，平板電腦，小型設備，儀器設備，便攜式設備，智能音響等領域。12.88721,KX-7T無線網絡晶振,Geyer水晶振動子.

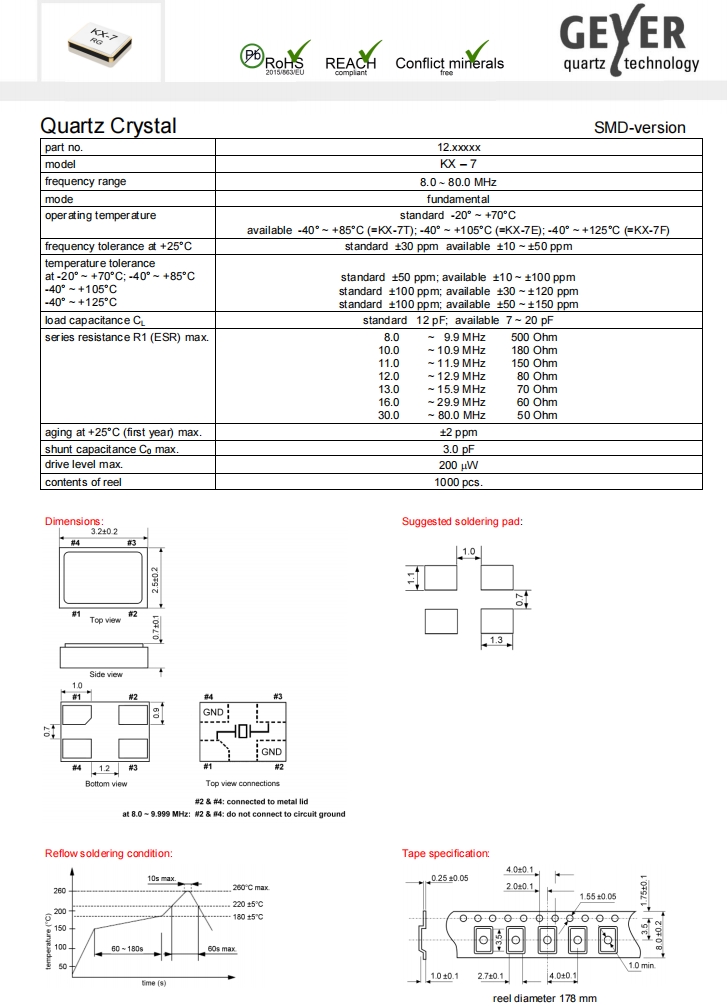

12.88721,KX-7T無線網絡晶振,Geyer水晶振動子 參數表

part no.	12.xxxxx
model	KX - 7T
frequency range	16.0 MHz
mode	fundamental
operating temperature	standard -20° ~ +70°C available -40° ~ +85°C (=KX-7T); -40° ~ +105°C (=KX-7E); -40° ~ +125°C (=KX-7F)
frequency tolerance at +25°C	standard ±30 ppm available ±10 ~ ±50 ppm
temperature tolerance at -20° ~ +70°C; -40° ~ +85°C -40° ~ +105°C -40° ~ +125°C	standard ±50 ppm; available ±10 ~ ±100 ppm standard ±100 ppm; available ±30 ~ ±120 ppm standard ±100 ppm; available ±50 ~ ±150 ppm
load capacitance CL	standard 12 pF; available 7 ~ 20 pF
series resistance R1 (ESR) max.	8.0 10.0 11.0 12.0 13.0 16.0 30.0	~ 9.9 ~ 10.9 ~ 11.9 ~ 12.9 ~ 15.9 ~ 29.9 ~ 80.0	MHz MHz MHz MHz MHz MHz MHz	500 180 150 80 70 60 50	Ohm Ohm Ohm Ohm Ohm Ohm Ohm
aging at +25°C (first year) max.	±2 ppm
shunt capacitance C0 max.	3.0 pF
drive level max.	200 μW
contents of reel	1000 pcs.

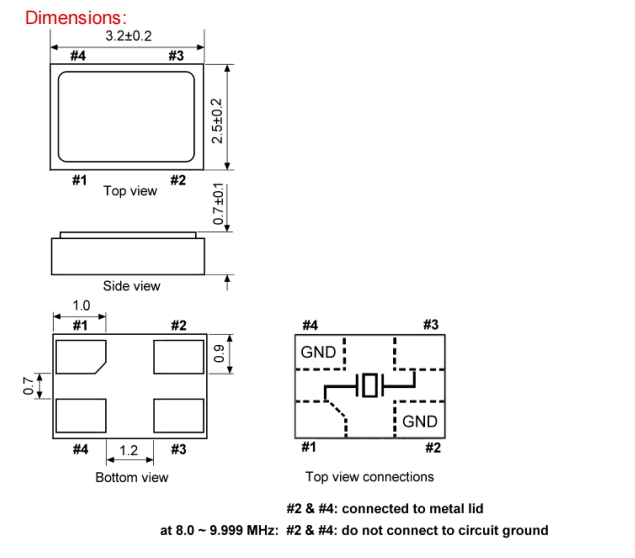

12.88721,KX-7T無線網絡晶振,Geyer水晶振動子 尺寸圖

12.88721,KX-7T無線網絡晶振,Geyer水晶振動子

無源晶體產品特性：

采用薄型封裝的晶體單元

頻率范圍8~80MHZ

低老化特性

符合RoHS標準且無鉛

Mfr Part #	Mfr	Description	Series	Frequency	Frequency Stability	Frequency Tolerance	Load Capacitance	Operating Temperature
12.85539	Geyer晶振	CYSTAL 40.0MHZ 8PF SMD	KX-5T	48 MHz	±20ppm	±10ppm	12pF	-40°C ~ 85°C
12.88721	Geyer晶振	Crystal 16.0Mhz 12pF SMD	KX-7T	16 MHz	±30ppm	±30ppm	12pF	-20°C ~ 70°C
12.88667	Geyer晶振	Crystal 25.0Mhz SMD KX-7 12pF, 4	KX-7	25 MHz	±50ppm	±30ppm	12pF	-20°C ~ 70°C
12.85517	Geyer晶振	CYSTAL 54.0MHZ 8PF SMD	KX-5T	54 MHz	±100ppm	±30ppm	8pF	-40°C ~ 85°C
12.89017	Geyer晶振	Crystal 13.560Mhz SMD KX-9A 16pF	KX-9A	13.56 MHz	±50ppm	±30ppm	16pF	-20°C ~ 70°C
12.89082	Geyer晶振	Crystal 26.0Mhz SMD KX-9AT 16pF,	KX-9AT	26 MHz	±50ppm	±30ppm	16pF	-40°C ~ 85°C
12.60075	Geyer晶振	Cystal 30.0Mhz 8pF SMD	KX-7	30 MHz	±50ppm	±30ppm	8pF	-40°C ~ 125°C
12.89155	Geyer晶振	Crystal 32.0Mhz SMD KX-9AT 16pF,	KX-9AT	32 MHz	±30ppm	±30ppm	16pF	-40°C ~ 85°C
12.88522	Geyer晶振	Crystal 11.059200Mhz 12pF SMD	KX-7T	11.0592 MHz	±50ppm	±30ppm	12pF	-20°C ~ 70°C
12.88752	Geyer晶振	Crystal 10.0Mhz 12pF SMD	KX-7	10 MHz	±50ppm	±30ppm	12pF	-20°C ~ 70°C
12.85569	Geyer晶振	CYSTAL 27.120MHZ 8PF SMD	KX-5T	27.12 MHz	±15ppm	±10ppm	8pF	-40°C ~ 85°C
12.88565	Geyer晶振	Crystal 8.0Mhz 12pF SMD	KX-7E	8 MHz	±50ppm	±30ppm	12pF	-20°C ~ 70°C
12.85538	Geyer晶振	CYSTAL 24.5760MHZ 8PF SMD	KX-5T	24.576 MHz	±100ppm	±30ppm	8pF	-40°C ~ 85°C
12.86533	Geyer晶振	Cystal 26.0Mhz 10pF SMD	KX-6T	26 MHz	±100ppm	±30ppm	10pF	-40°C ~ 85°C
12.89209	Geyer晶振	Crystal 16.0Mhz SMD KX-9AE 20pF,	KX-9AE	16 MHz	±50ppm	±30ppm	20pF	-40°C ~ 105°C
12.8652	Geyer晶振	Cystal 27.0Mhz 10pF SMD	KX-6	27 MHz	±50ppm	±30ppm	10pF	-20°C ~ 70°C
12.86574	Geyer晶振	Crystal 27.0Mhz 8pF SMD	KX-6F	27 MHz	±150ppm	±30ppm	8pF	-40°C ~ 125°C
12.85541	Geyer晶振	CYSTAL 30.0MHZ 8PF SMD	KX-5	30 MHz	±30ppm	±30ppm	8pF	-20°C ~ 70°C
12.84818	Geyer晶振	Crystal 24.0MHz 8pF SMD	KX-4	24 MHz	±50ppm	±30ppm	8pF	-20°C ~ 70°C
12.86527	Geyer晶振	Cystal 20.0Mhz 10pF SMD	KX-6T	20 MHz	±15ppm	±10ppm	10pF	-40°C ~ 85°C
12.85534	Geyer晶振	CYSTAL 27.0MHZ 8PF SMD	KX-5T	27 MHz	±50ppm	±30ppm	8pF	-40°C ~ 85°C
12.86505	Geyer晶振	Cystal 26.0Mhz 10pF SMD	KX-6	26 MHz	±50ppm	±30ppm	10pF	-20°C ~ 70°C
12.60024	Geyer晶振	Cystal 27.0Mhz 12pF SMD	KX-7E	27 MHz	±100ppm	±30ppm	12pF	-40°C ~ 105°C
12.84803	Geyer晶振	Crystal 26.0MHz 8pF SMD	KX-4	26 MHz	±20ppm	±10ppm	8pF	-40°C ~ 85°C
12.85518	Geyer晶振	CYSTAL 20.0MHZ 8PF SMD	KX-5E	20 MHz	±50ppm	±30ppm	8pF	-40°C ~ 105°C
12.8873	Geyer晶振	Crystal 26.0Mhz 12pF SMD	KX-7T	26 MHz	±50ppm	±30ppm	12pF	-40°C ~ 85°C
12.86556	Geyer晶振	Crystal 40.0Mhz 8pF SMD	KX-6T	40 MHz	±20ppm	±10ppm	8pF	-40°C ~ 85°C
12.88643	Geyer晶振	Crystal 14.3181800Mhz 12pF SMD	KX-7T	14.31818 MHz	±50ppm	±30ppm	12pF	-40°C ~ 85°C
12.86511	GEYER Crystal	Crystal 18.4320Mhz 10pF SMD	KX-6	18.432 MHz	±50ppm	±30ppm	10pF	-20°C ~ 70°C
12.88523	Geyer晶振	Crystal 40.0Mhz 12pF SMD	KX-7F	40 MHz	±50ppm	±30ppm	12pF	-40°C ~ 125°C
12.89288	Geyer晶振	Crystal 24.5760Mhz SMD KX-9AT 20	KX-9AT	24.576 MHz	±30ppm	±20ppm	20pF	-40°C ~ 85°C
12.86536	Geyer晶振	Crystal 14.318180Mhz 10pF SMD	KX-6	14.31818 MHz	±50ppm	±30ppm	10pF	-20°C ~ 70°C
12.89029	Geyer晶振	Crystal 27.0Mhz SMD KX-9A 16pF,	KX-9A	27 MHz	±50ppm	±30ppm	16pF	-20°C ~ 70°C
12.88799	Geyer晶振	Crystal 12.0Mhz 10pF SMD	KX-7	12 MHz	±30ppm	±30ppm	10pF	-20°C ~ 70°C
12.8481	Geyer晶振	Crystal 48.0MHz 8pF SMD	KX-4	48 MHz	±50ppm	±30ppm	8pF	-40°C ~ 85°C
12.84814	Geyer晶振	Crystal 32.0MHz 8pF SMD	KX-4	32 MHz	±15ppm	±10ppm	8pF	-40°C ~ 85°C
12.88756	Geyer晶振	Crystal 10.0Mhz 12pF SMD	KX-7E	26 MHz	±50ppm	±10ppm	12pF	-40°C ~ 105°C
12.8556	Geyer晶振	CYSTAL 16.0MHZ 8PF SMD	KX-5T	16 MHz	±30ppm	±30ppm	8pF	-40°C ~ 85°C
12.86561	Geyer晶振	Crystal 40.0Mhz 10pF SMD	KX-6T	40 MHz	±20ppm	±10ppm	10pF	-40°C ~ 85°C
12.8877	Geyer晶振	Crystal 30.0Mhz 12pF SMD	KX-7T	30 MHz	±10ppm	±10ppm	12pF	-25°C ~ 80°C
12.86564	Geyer晶振	Crystal 14.318180Mhz 10pF SMD	KX-6T	14.31818 MHz	±100ppm	±30ppm	10pF	-40°C ~ 85°C
12.86592	Geyer晶振	Crystal 25.0Mhz SMD KX-6T 12pF,	KX-6T	25 MHz	±20ppm	±10ppm	12pF	-40°C ~ 85°C
12.87159	Geyer晶振	CRYSTAL 32.7680kHz 12.5pF SMD	KX-327NHT	32.768 kHz	-0.035ppm	±20ppm	12.5pF	-40°C ~ 85°C
12.87163	Geyer晶振	CRYSTAL 32.768KHZ 7PF SMD	KX-327RT	32.768 kHz	-0.036ppm	±20ppm	7pF	-40°C ~ 85°C
12.87151	Geyer晶振	CRYSTAL 32.7680kHz 9pF SMD	KX-327NHT	32.768 kHz	-0.035ppm	±30ppm	9pF	-40°C ~ 85°C
12.8717	Geyer晶振	CRYSTAL 32.7680KHZ 12.5PF SMD	KX-327FT	32.768 kHz	-	±20ppm	12.5pF	-40°C ~ 85°C
12.87148	Geyer晶振	CRYSTAL 32.7680KHZ 7PF SMD	KX-327NHT	32.768 kHz	-0.035ppm	±20ppm	7pF	-40°C ~ 85°C
12.87106	Geyer晶振	CRYSTAL 32.768KHZ 7PF SMD	KX-327XST	32.768 kHz	±20ppm	±20ppm	7pF	-40°C ~ 85°C
12.8716	Geyer晶振	CYSTAL 32.7680KHZ 12.5PF SMD	KX-327RT	32.768 kHz	±20ppm	±20ppm	12.5pF	-40°C ~ 85°C
12.87143	Geyer晶振	CRYSTAL 32.768KHz 9pF SMD	KX-327NHT	32.768 kHz	-0.035ppm	±20ppm	9pF	-40°C ~ 85°C
12.84801	Geyer晶振	Crystal 26.0MHz 8pF SMD	KX-4	26 MHz	±50ppm	±30ppm	8pF	-20°C ~ 70°C
12.8718	Geyer晶振	Crystal 32.7680kHz 9pF SMD	KX-327NHF	32.768 kHz	-0.03ppm	±20ppm	9pF	-40°C ~ 125°C
12.87147	Geyer晶振	CRYSTAL 32.768KHz 7pF SMD	KX-327NHT	32.768 kHz	-	±10ppm	7pF	-40°C ~ 85°C
12.87081	Geyer晶振	CRYSTAL 32.768KHZ 6PF SMD	KX-327NHT	32.768 kHz	-0.035ppm	±20ppm	6pF	-40°C ~ 85°C
12.87149	Geyer晶振	CRYSTAL 32.7680KHZ 9PF SMD	KX-327NHT	32.768 kHz	-0.035ppm	±20ppm	9pF	-40°C ~ 85°C
12.87156	Geyer晶振	CRYSTAL 32.768KHz 12.5pF SMD	KX-327NHT	32.768 kHz	-0.035ppm	±20ppm	12.5pF	-40°C ~ 85°C
12.87154	Geyer晶振	CRYSTAL 32.768KHz 12.5pF SMD	KX-327NHT	32.768 kHz	-0.035ppm	±20ppm	12.5pF	-40°C ~ 85°C
12.87174	Geyer晶振	CRYSTAL 32.768KHz 7pF SMD	KX-327FT	32.768 kHz	-0.036ppm	±20ppm	7pF	-40°C ~ 85°C
12.87114	Geyer晶振	Cystal 32.7680Khz 12.5pF SMD	KX-327ST	32.768 kHz	-0.034ppm, ±0.006ppm	±20ppm	12.5pF	-40°C ~ 85°C
