頻率：30MHZ
尺寸：6.0x3.5mm
HE-MCC-6A-30.000F-12-30PPM,6035mm,HEC石英晶振,30MHZ,美國HEC晶振,進口無源晶振,6035mm貼片晶振,石英振動子,4腳晶振,石英貼片晶振,30MHZ貼片無源晶振,尺寸6.0x3.5mm,頻率30MHZ,負載12pF,工作溫度-40+85°C,高頻晶振,低老化晶振,低損耗晶振,低耗能晶振,高性能晶振,通訊產品晶振,筆記本電腦晶振,娛樂設備晶振,小家電晶振,影音系統晶振,物聯網晶振,無線晶振.
HE-MCC-6A-30.000F-12-30PPM,6035mm,HEC石英晶振,30MHZ,美國HEC晶振,進口無源晶振,6035mm貼片晶振,石英振動子,4腳晶振,石英貼片晶振,30MHZ貼片無源晶振,尺寸6.0x3.5mm,頻率30MHZ,負載12pF,工作溫度-40+85°C,高頻晶振,低老化晶振,低損耗晶振,低耗能晶振,高性能晶振,通訊產品晶振,筆記本電腦晶振,娛樂設備晶振,小家電晶振,影音系統晶振,物聯網晶振,無線晶振.
HE-MCC-6A-30.000F-12-30PPM,6035mm,HEC石英晶振,30MHZ特點:
12.8MHz到80MHz的寬頻率范圍。
陶瓷外殼確保了卓越的老化特性，
并允許無源晶體是緊湊型無線等應用的理想選擇通訊產品，PDA，筆記本電腦。
體積僅0.023cc,提供高頻基本模式
寬頻率范圍,卓越的老化特性.
HE-MCC-6A-30.000F-12-30PPM,6035mm,HEC石英晶振,30MHZ 參數表
| ELECTRICAL SPECIFICATIONS / PART NUMBERING GUIDE | |||||||||||||||||||||
| PARAMETERS | CONDITIONS | MINIMUM | STANDARD | MAXIMUM | UNIT | ||||||||||||||||
| FREQUENCY RANGE | 30.000 |
|
MHz | ||||||||||||||||||
| FREQ. TOLERANCE | at 25 °C | -50* | PPM | ||||||||||||||||||
|
FREQ. STABILITY (reference @ 25°C) |
-10 °C to +60 °C | -50* | PPM | ||||||||||||||||||
| OPERATING TEMPERATURE | -10 °C to +60 °C // -40 °C to +85 °C Optional | °C | |||||||||||||||||||
| STORAGE TEMPERATURE | -30 °C to +85 °C // -55 °C to +125 °C Optional | °C | |||||||||||||||||||
| SHUNT CAPACITANCE (CO) | 5.0 | pF | |||||||||||||||||||
| LOAD CAPACITANCE (CL) | To be specified | 10.0 | 18.0 | pF | |||||||||||||||||
| DRIVE LEVEL | 12.800 - 80.000 MHz | 0.1 | 0.5 | mW | |||||||||||||||||
| AGING CHARACTERISTICS |
± 2 PPM max. @ 25 °C per year |
||||||||||||||||||||
| * Tight tolerances optional - please specify | |||||||||||||||||||||

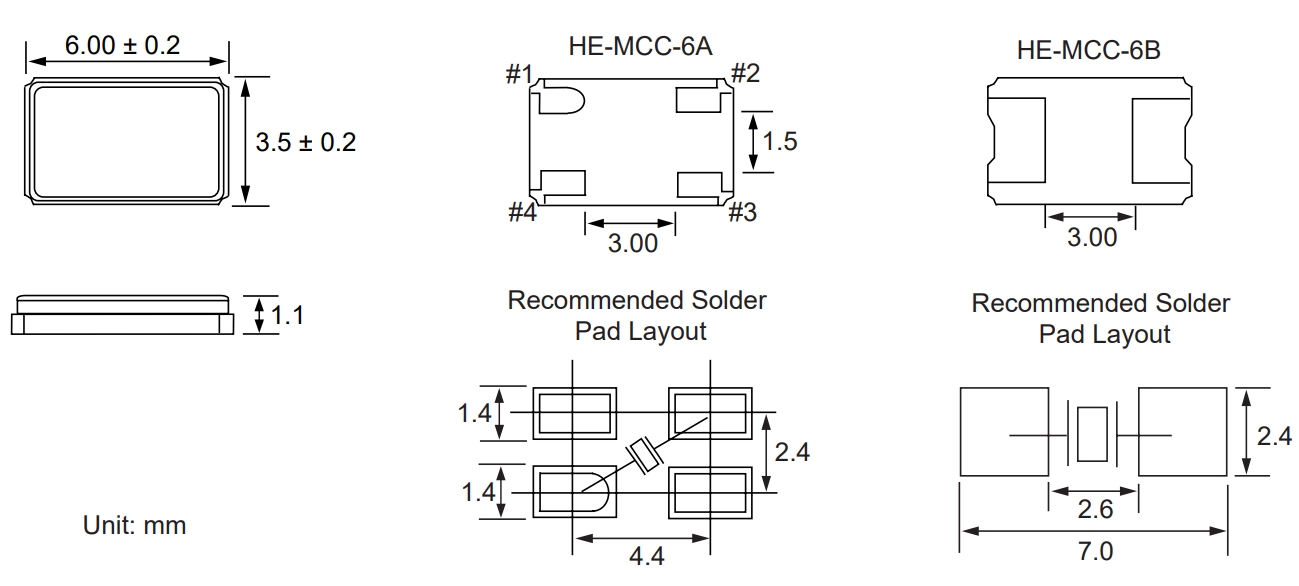

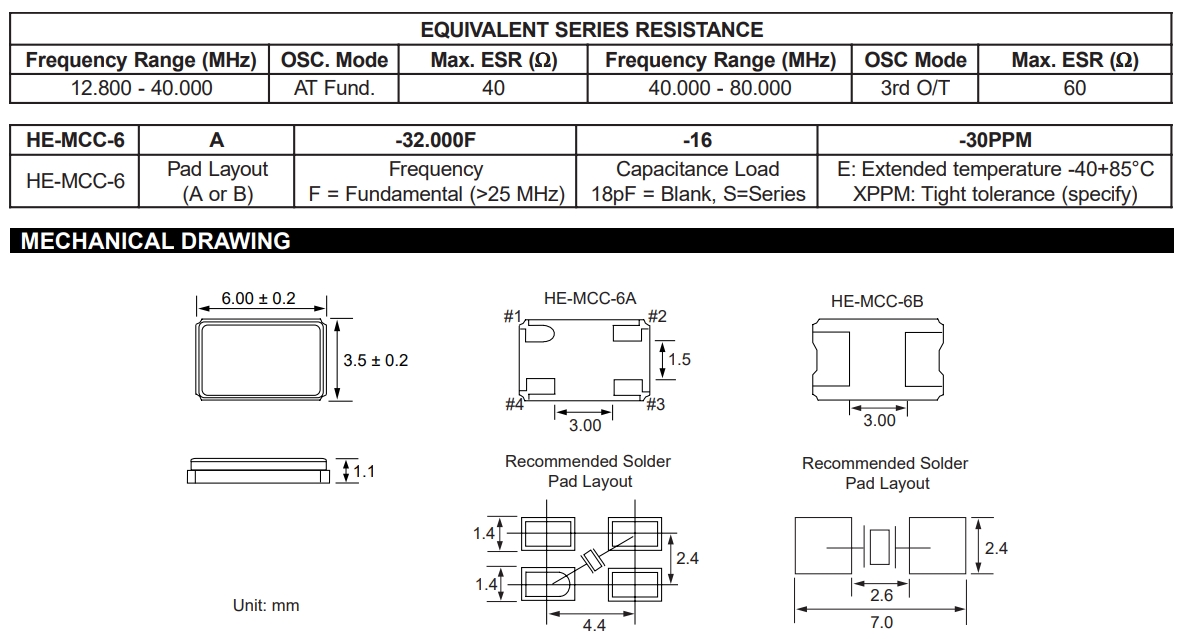

HE-MCC-6A-30.000F-12-30PPM,6035mm,HEC石英晶振,30MHZ 尺寸圖
