ABM7-24.576MHZ-D2Y-T,ABM7,6035mm,通訊設備,24.576MHZ，尺寸為6035mm,頻率為24.576MHZ,艾博康晶振，Abracon晶振，美國進口晶振，貼片無源晶振，陶瓷晶振，SMD晶體，輕薄型晶振，無鉛環保晶振，高質量晶振，高性能晶振，無線產品晶振，通訊設備晶振，電腦專用晶振，調制解調器晶振、輕薄型設備晶振，工業應用晶振。

無源晶體產品主要應用范圍：電腦、調制解調器、通訊設備，輕薄的設備，工業廣泛的溫度應用.ABM7-24.576MHZ-D2Y-T,ABM7,6035mm,通訊設備,24.576MHZ.

ABM7-24.576MHZ-D2Y-T,ABM7,6035mm,通訊設備,24.576MHZ參數表

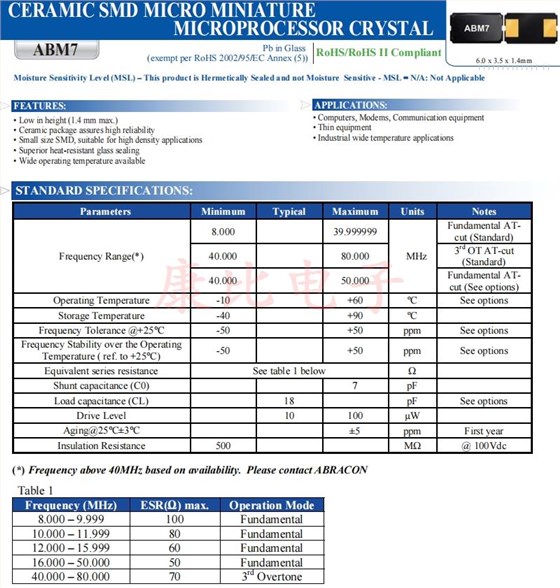

ANDARDSPECIFICATIONS:
Parameters	Minimum	Typical	Maximum	Units	Notes
FrequencyRange(*)	8.000		39.999999	MHz	FundamentalAT-cut(Standard)
	40.000		80.000		3rdOTAT-cut(Standard)
	40.000		50.000		FundamentalAT-cut(Seeoptions)
OperatingTemperature	-10		+60	ºC	See options
Storage Temperature	-40		+90	ºC
FrequencyTolerance@+25°C	-50		+50	ppm	See options
FrequencyStabilityovertheOperating Temperature(ref.to+25°C)	-50		+50	ppm	See options
Equivalentseries resistance	See table 1 below			Ω
Shuntcapacitance(C0)			7	pF
Loadcapacitance(CL)		18		pF	Seeoptions
DriveLevel		10	100	µW
Aging@25°C±3°C			±5	ppm	First year
InsulationResistance	500			MΩ	@100Vdc

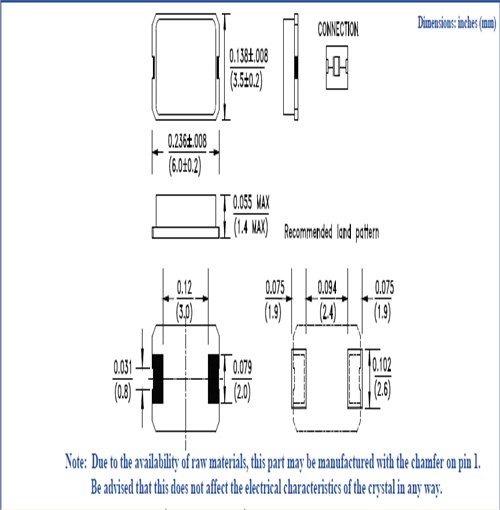

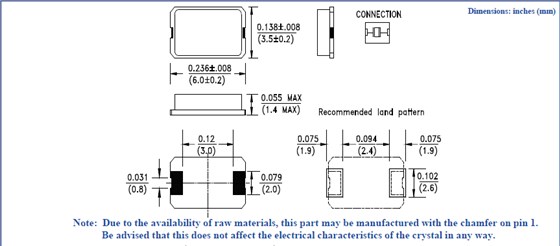

ABM7-24.576MHZ-D2Y-T,ABM7,6035mm,通訊設備,24.576MHZ尺寸圖

ABM7-24.576MHZ-D2Y-T,ABM7晶振特點：

•高度低(最大1.4毫米)
•陶瓷封裝確保高可靠性
•小尺寸貼片，適合高密度應用
•優越的耐熱玻璃密封
•工作溫度范圍廣

更多相關艾博康晶振型號

Manufacturer Part Number原廠編碼	Manufacturer廠家	Series型號	Type 系列	Frequency頻率
ABM7-8.000MHZ-D2Y-T	Abracon晶振	ABM7	MHz Crystal	8MHz
ABM7-25.000MHZ-D2Y-T	Abracon晶振	ABM7	MHz Crystal	25MHz
ABM7-14.7456MHZ-D2Y-T	Abracon晶振	ABM7	MHz Crystal	14.7456MHz
ABM7-12.000MHZ-D2Y-T	Abracon晶振	ABM7	MHz Crystal	12MHz
ABM7-20.000MHZ-D2Y-T	Abracon晶振	ABM7	MHz Crystal	20MHz
ABM7-16.000MHZ-D2Y-T	Abracon晶振	ABM7	MHz Crystal	16MHz
ABM7-24.000MHZ-D2Y-T	Abracon晶振	ABM7	MHz Crystal	24MHz
ABM7-16.000MHZ-4-T	Abracon晶振	ABM7	MHz Crystal	16MHz
ABM7-14.7456MHZ-B4-T	Abracon晶振	ABM7	MHz Crystal	14.7456MHz
ABM7-48.000MHZ-S-B-4-Y-T	Abracon晶振	ABM7	MHz Crystal	48MHz
ABM7-10.000MHZ-D2Y-T	Abracon晶振	ABM7	MHz Crystal	10MHz
ABM7-19.6608MHZ-D2Y-T	Abracon晶振	ABM7	MHz Crystal	19.6608MHz
ABM7-48.000MHZ-D2Y-F-T	Abracon晶振	ABM7	MHz Crystal	48MHz
ABM7-9.8304MHZ-D2Y-T	Abracon晶振	ABM7	MHz Crystal	9.8304MHz
ABM7-14.31818MHZ-D2Y-T	Abracon晶振	ABM7	MHz Crystal	14.31818MHz
ABM7-11.2896MHZ-D2Y-T	Abracon晶振	ABM7	MHz Crystal	11.2896MHz
ABM7-27.000MHZ-D2Y-T	Abracon晶振	ABM7	MHz Crystal	27MHz
ABM7-13.560MHZ-D2Y-T	Abracon晶振	ABM7	MHz Crystal	13.56MHz
ABM7-40.000MHZ-D2Y-F-T	Abracon晶振	ABM7	MHz Crystal	40MHz
ABM7-11.0592MHZ-D2Y-T	Abracon晶振	ABM7	MHz Crystal	11.0592MHz
ABM7-22.1184MHZ-D2Y-T	Abracon晶振	ABM7	MHz Crystal	22.1184MHz
ABM7-30.000MHZ-D2Y-T	Abracon晶振	ABM7	MHz Crystal	30MHz
ABM7-18.432MHZ-D2Y-T	Abracon晶振	ABM7	MHz Crystal	18.432MHz
ABM7-13.560MHZ-10-R50-D4Q-T	Abracon晶振	ABM7	MHz Crystal	13.56MHz
ABM7-20.000MHZ-B4-T	Abracon貼片石英晶振	ABM7	MHz Crystal	20MHz
ABM7-32.000MHZ-D2Y-T	Abracon晶振	ABM7	MHz Crystal	32MHz
ABM7-33.000MHZ-D2Y-T	Abracon晶振	ABM7	MHz Crystal	33MHz
ABM7-24.576MHZ-D2Y-T	Abracon晶振	ABM7	MHz Crystal	24.576MHz
ABM7-12.288MHZ-D2Y-T	Abracon晶振	ABM7	MHz Crystal	12.288MHz
ABM7-13.52127MHZ-10-R50-D4Q-T	Abracon晶振	ABM7	MHz Crystal	13.52127MHz
ABM7-9.81563MHZ-10-R50-D4Q-T	Abracon晶振	ABM7	MHz Crystal	9.81563MHz
ABM7-14.31818MHZ-S-B-4-Y-T	Abracon晶振	ABM7	MHz Crystal	14.31818MHz
ABM7-12.000MHZ-B4-T	Abracon晶振	ABM7	MHz Crystal	12MHz
ABM7-25.000MHZ-B4-T	Abracon晶振	ABM7	MHz Crystal	25MHz
ABM7-29.4912MHZ-D2Y-T	Abracon晶振	ABM7	MHz Crystal	29.4912MHz
ABM7-9.84375MHZ-10-R50-D4Q-T	Abracon晶振	ABM7	MHz Crystal	9.84375MHz
ABM7-12.500MHZ-D2Y-T	Abracon晶振	ABM7	MHz Crystal	12.5MHz
ABM7-50.000MHZ-D2Y-F-T	Abracon晶振	ABM7	MHz Crystal	50MHz
ABM7-13.560MHZ-10-R50-K4Q-T	Abracon晶振	ABM7	MHz Crystal	13.56MHz
ABM7-9.84375MHZ-10-R50-K4Q-T	Abracon晶振	ABM7	MHz Crystal	9.84375MHz
ABM7-13.52127MHZ-10-R50-J4Q-T	Abracon晶振	ABM7	MHz Crystal	13.52127MHz
ABM7-9.81563MHZ-10-R50-J4Q-T	Abracon晶振	ABM7	MHz Crystal	9.81563MHz
