Si514可編程振蕩器,514KCC000115BAG,6G交換機晶振,Skyworks貼片振蕩器

頻率：125MHZ

尺寸：5.0x3.2mm

Si514可編程振蕩器,514KCC000115BAG,6G交換機晶振,Skyworks貼片振蕩器，尺寸5.0x3.2mm，頻率125MHZ，支持輸出CMOS，XO時鐘振蕩器，六腳貼片晶振，有源晶體振蕩器，低電壓振蕩器，低抖動振蕩器，低功耗振蕩器，Si514用戶可編程I2C XO采用Skyworks Solutions的高級PLL通過編程提供從100 kHz到250 MHz的任何頻率的技術分辨率為十億分之0.026。Si514使用單個集成晶體Skyworks Solutions專有的DSPLL合成器，可生成任何頻率使用簡單的I2C命令在這個范圍內。

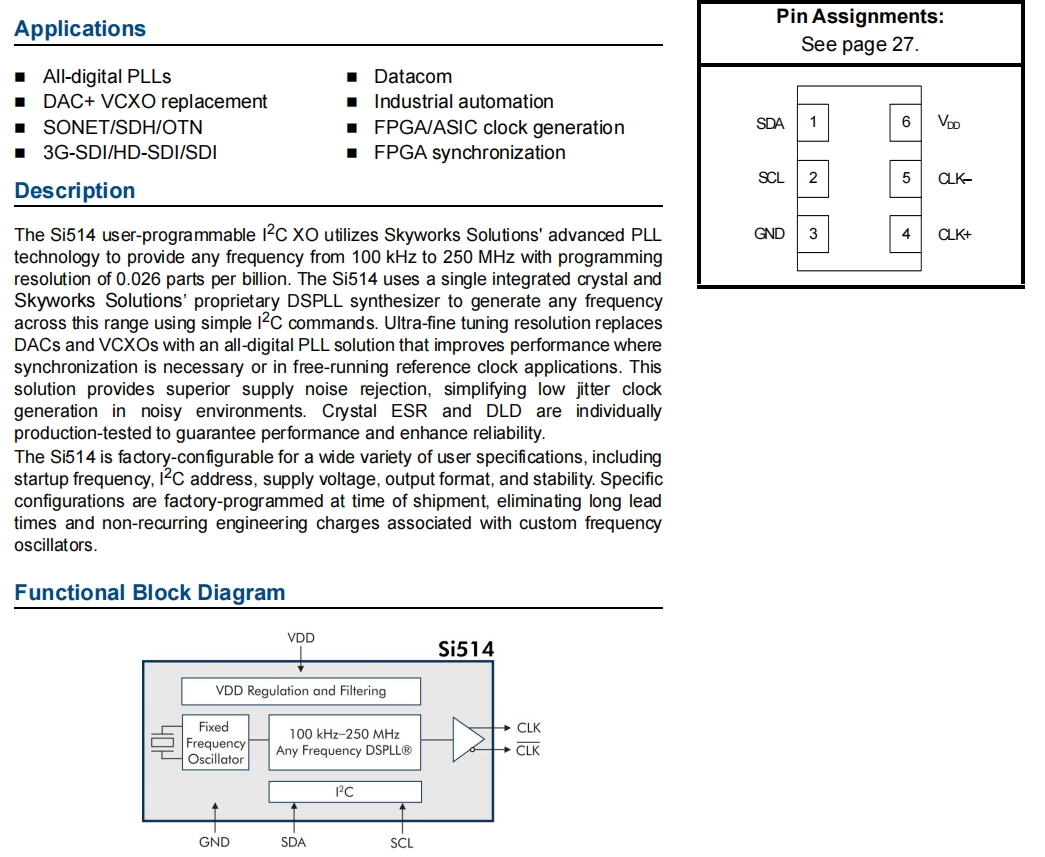

超精細調諧分辨率取代DAC和VCXO有源晶振采用全數字PLL解決方案，可在以下情況下提高性能同步是必要的，或者在自由運行的參考時鐘應用程序中。這該解決方案提供卓越的電源噪聲抑制，簡化了低抖動時鐘在嘈雜的環境中生成。產品很適合用于數據通信，工業自動化，所有數字PLL，F(xiàn)PGA同步等。Si514可編程振蕩器,514KCC000115BAG,6G交換機晶振,Skyworks貼片振蕩器.

訂購熱線：0755-27876201

Si514可編程振蕩器,514KCC000115BAG,6G交換機晶振,Skyworks貼片振蕩器 參數表

Parameter	Symbol	Test Condition	Min	Typ	Max	Units
Supply Voltage	V DD	3.3 V option	2.97	3.3	3.63	V
		2.5 V option	2.25	2.5	2.75	V
		1.8 V option	1.71	1.8	1.89	V
Supply Current	IDD	CMOS, 100 MHz, single-ended	—	21	26	mA
		LVDS (output enabled)	—	19	23	mA
		LVPECL (output enabled)	—	39	43	mA
		HCSL (output enabled)	—	41	44	mA
		Tristate (output disabled)	—	—	18	mA
Operating Temperature	TA		–40	—	85	oC

Parameter

Symbol

Test Condition

Min

Typ

Max

Units

SDA, SCL Input Voltage High

VIH

0.80 x V DD

—

SDA, SCL Input Voltage Low

VIL

—

0.20 x V DD

Parameter

Symbol

Test Condition

Min

Typ

Max

Units

Programmable
Frequency Range

CMOS, Dual CMOS

0.1

—

212.5

MHz

LVDS/LVPECL/HCSL

0.1

—

250

MHz

Frequency
Reprogramming
Resolution

M RES

—

0.026

—

ppb

Frequency Range for
Small Frequency Change
(Continuous Glitchless
Output)

From center frequency

–1000

—

+1000

ppm

Settling time for Small
Frequency Change

<±1000 ppm from
center frequency

—

100

µs

Settling time for Large
Frequency Change (Out-
put Squelched during Fre-
quency Transition)

>±1000 ppm from
center frequency

—

Total Stability*

Frequency Stability Grade C

–30

—

+30

ppm

Frequency Stability Grade B

–50

—

+50

ppm

Frequency Stability Grade A

–100

—

+100

ppm

Temperature Stability

Frequency Stability Grade C

–20

—

+20

ppm

Frequency Stability Grade B

–25

—

+25

ppm

Frequency Stability Grade A

–50

—

+50

ppm

Startup Time

TSU

Minimum V DD until output
frequency (FO) within specification

—

Disable Time

FO< 10 MHz

—

µs

FO> 10 MHz

—

µs

Enable Time

FO< 10 MHz

—

µs

FO> 10 MHz

—

µs

Si514可編程振蕩器,514KCC000115BAG,6G交換機晶振,Skyworks貼片振蕩器 尺寸圖

OSC晶振產品特征:

可編程到任何頻率從100kHz到250MHz

0.026 ppb頻率調諧決議

OE、電源故障抑制接通和頻率轉換

低抖動操作

2至4周交付周期

總體穩定性包括10年變老

綜合生產試驗覆蓋范圍包括晶體ESR和DLD

用于電源的片上LDO噪聲濾波

3.3、2.5或1.8 V操作

差分（LVPECL、LVDS、HCSL）或CMOS輸出選項

可選集成1:2 CMOS扇出緩存

行業標準5x7、3.2x5和2.5x3.2mm包裝

–40至85℃操作
