頻率：32.768KHZ
尺寸：7.0*1.5mm
7015mm,32.768KHZ,224-000307-20,224系列音叉晶體,Oscilent無源晶振,奧斯康利四腳貼片晶振,水晶振動子,音叉諧振器,7015mm無源晶振,無源SMD晶體,陶瓷晶振,32.768K晶振,無源晶體,尺寸7.0*1.5mm,頻率32.768KHZ,高性能晶振,高質量晶振,無鉛晶振,可視化電話晶振,智能音響晶振,藍牙耳機晶振,智能水表晶振,時鐘晶振.
7015mm,32.768KHZ,224-000307-20,224系列音叉晶體,Oscilent無源晶振,奧斯康利四腳貼片晶振,水晶振動子,音叉諧振器,7015mm無源晶振,無源SMD晶體,陶瓷晶振,32.768K晶振,無源晶體,尺寸7.0*1.5mm,頻率32.768KHZ,高性能晶振,高質量晶振,無鉛晶振,可視化電話晶振,智能音響晶振,藍牙耳機晶振,智能水表晶振,時鐘晶振.
7015mm,32.768KHZ,224-000307-20,224系列音叉晶體,Oscilent無源晶振特點:
超薄包裝陶瓷晶振,低調
長期穩定性,行業標準占地面積
卓越的抗震性能,卓越的環境特性
磁帶和卷軸
RoHs/無鉛合規

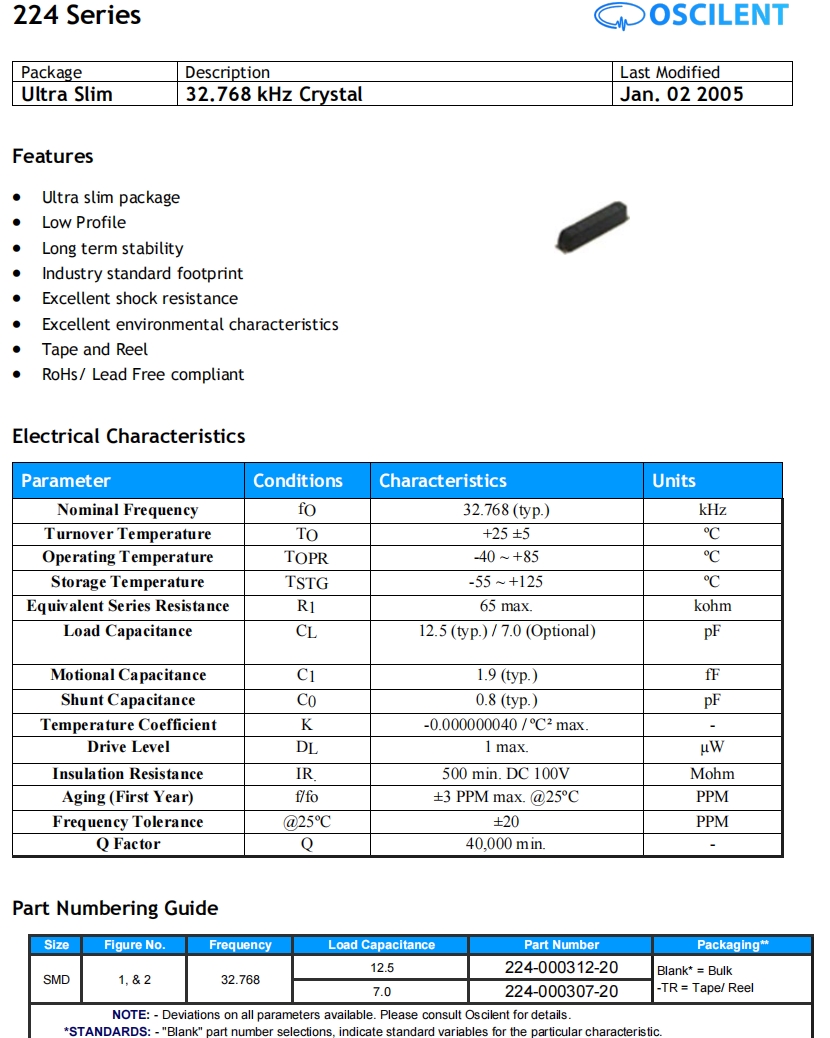

7015mm,32.768KHZ,224-000307-20,224系列音叉晶體,Oscilent無源晶振 參數表
| Parameter | Conditions | Characteristics | Units | |||||
| Nominal Frequency | fO | 32.768 (typ.) | kHz | |||||
| Turnover Temperature | TO | +25 ±5 | ºC | |||||
| Operating Temperature | TOPR | -40 ~ +85 | ºC | |||||
| Storage Temperature | TSTG | -55 ~ +125 | ºC | |||||
| Equivalent Series Resistance | R1 | 65 max. | kohm | |||||
| Load Capacitance | CL | 12.5 (typ.) / 7.0 (Optional) | pF | |||||
| Motional Capacitance | C1 | 1.9 (typ.) | fF | |||||
| Shunt Capacitance | C0 | 0.8 (typ.) | pF | |||||
| Temperature Coefficient | K | -0.000000040 / ºC² max. | - | |||||
| Drive Level | DL | 1 max. | µW | |||||
| Insulation Resistance | IR. | 500 min. DC 100V | Mohm | |||||
| Aging (First Year) | f/fo | ±3 PPM max. @25ºC | PPM | |||||
| Frequency Tolerance | @25ºC | ±20 | PPM | |||||
| Q Factor | Q | 40,000 min. | - | |||||

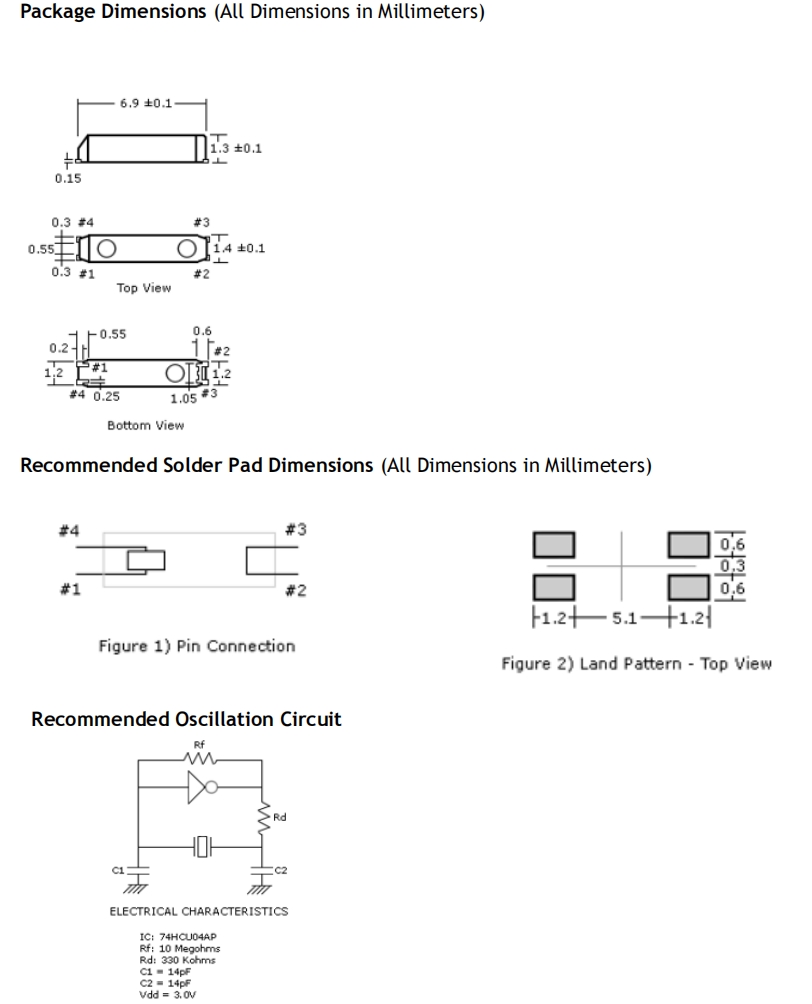

7015mm,32.768KHZ,224-000307-20,224系列音叉晶體,Oscilent無源晶振 尺寸圖
