3225石英晶振非常小的SMD晶振器件,是民用小型無線數碼產品的最佳選擇,小體積的晶振被廣泛應用到,手機藍牙,GPS定位系統,無線通訊集,高精度和高頻率的穩定性能,非常好的減少電磁干擾的影響,是民用無線數碼產品最好的選擇,符合RoHS/無鉛.

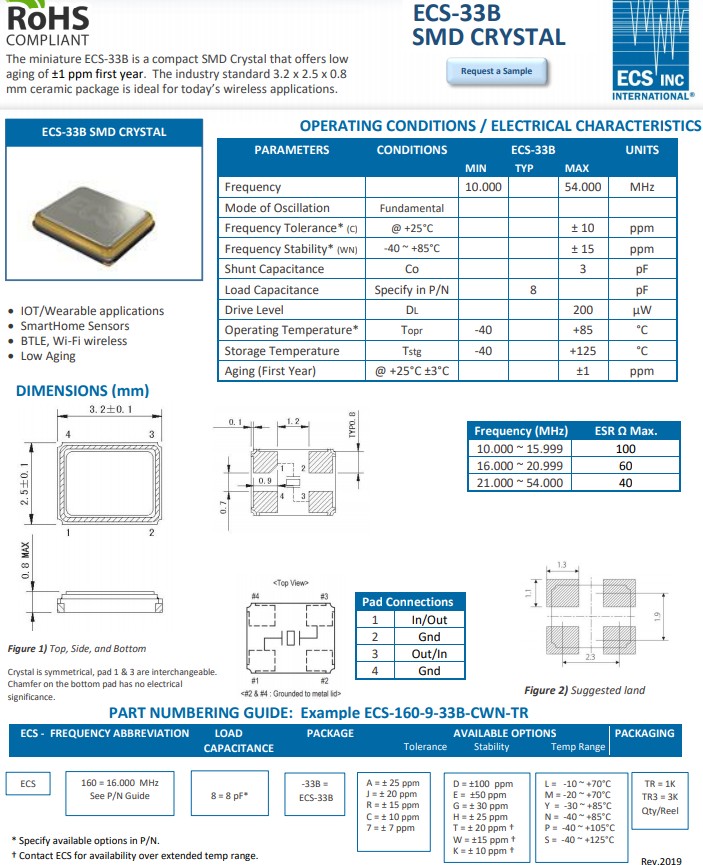

ECS晶振ECS-33B小型緊密穩定SMD石英晶體，采用3.2x2.5x0.8mm(LWH)工業標準陶瓷封裝。在+25°C±3°C的溫度下，第一年的老化程度極低，最大值為1ppm。每個型號在+25°C時的容差為10ppm(最大值)，貼片晶振ECS-33B緊密穩定、低老化、表面貼裝石英晶體，ECS-120-8-33B-CHN-TR適用于各種物聯網和無線的理想選擇。
穩定性如下:
33B-CKL: -10°C to +70°C ±10 ppm (max.)
33B-CKM: -20°C to +70°C ±10 ppm (max.)
33B-CKY: -30°C to +85°C ±10 ppm (max.)
33B-CWN: -40°C to +85°C ±15 ppm (max.)
33B-CTN: -40°C to +85°C ±20 ppm (max.)
33B-CHN: -40°C to +85°C ±25 ppm (max.)
| 圖片 | 石英晶體諧振器 | 頻率 | 頻率穩定性 | 工作溫度 |
|
ECS-120-8-33B-CHN-TR | 12 MHz | ±25ppm | -40°C ~ +85°C |
|
|
ECS-120-12-33B-CWY-TR | 12 MHz | ±15ppm | -30°C ~ +85°C |
|
|
ECS-160-10-33B-CKM-TR | 16 MHz | ±10ppm | -20°C ~ +70°C |
|
|
ECS-160-7-33B-CKL-TR | 16 MHz | ±10ppm | -10°C ~ +70°C |
|
|
ECS-160-9-33B-CKM-TR | 16 MHz | ±10ppm | -20°C ~ +70°C |
|
|
ECS-160-9-33B-CKY-TR | 16 MHz | ±10ppm | -30°C ~ +85°C |
|
|
ECS-160-8-33B-CTN-TR | 16 MHz | ±20ppm | -40°C ~ +85°C |
| 原廠編碼 | ECS晶振 | 型號 | 頻率 | 工作溫度 | 包裝/封裝 |
| ECS-160-12-33Q-JES-TR | ECS Crystal | ECX-33Q | 16MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| ECS-160-12-33Q-JES-TR | ECS Crystal | ECX-33Q | 16MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| ECS-160-12-33Q-JES-TR | ECS Crystal | ECX-33Q | 16MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| ECS-160-10-36Q-ES-TR | ECS Crystal | ECX-2236Q | 16MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| ECS-160-10-36Q-ES-TR | ECS Crystal | ECX-2236Q | 16MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| ECS-160-10-36Q-ES-TR | ECS Crystal | ECX-2236Q | 16MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| ECS-160-10-37-RWM-TR | ECS Crystal | ECX-1637 | 16MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-160-10-37-RWM-TR | ECS Crystal | ECX-1637 | 16MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-160-10-37-RWM-TR | ECS Crystal | ECX-1637 | 16MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-160-8-36CKM-TR | ECS Crystal | ECX-2236 | 16MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-160-8-36CKM-TR | ECS Crystal | ECX-2236 | 16MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-160-8-36CKM-TR | ECS Crystal | ECX-2236 | 16MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-160-18-23A-EN-TR | ECS Crystal | ECX-64A | 16MHz | -40°C ~ 85°C | 2-SMD, No Lead |
| ECS-160-18-23A-EN-TR | ECS Crystal | ECX-64A | 16MHz | -40°C ~ 85°C | 2-SMD, No Lead |
| ECS-160-18-23A-EN-TR | ECS Crystal | ECX-64A | 16MHz | -40°C ~ 85°C | 2-SMD, No Lead |
| ECS-160-8-30B-CKM | ECS Crystal | ECX-53B | 16MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-160-8-30B-CKM | ECS Crystal | ECX-53B | 16MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-160-8-30B-CKM | ECS Crystal | ECX-53B | 16MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-160-20-33-TR | ECS Crystal | ECX-32 | 16MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-160-20-33-TR | ECS Crystal | ECX-32 | 16MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-160-20-33-TR | ECS Crystal | ECX-32 | 16MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-160-9-42-CKM-TR | ECS Crystal | ECX-42 | 16MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-160-9-42-CKM-TR | ECS Crystal | ECX-42 | 16MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-160-9-42-CKM-TR | ECS Crystal | ECX-42 | 16MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-160-20-30B-DU | ECS Crystal | ECX-53B-DU | 16MHz | -55°C ~ 125°C | 4-SMD, No Lead |
| ECS-160-20-30B-DU | ECS Crystal | ECX-53B-DU | 16MHz | -55°C ~ 125°C | 4-SMD, No Lead |
| ECS-160-20-30B-DU | ECS Crystal | ECX-53B-DU | 16MHz | -55°C ~ 125°C | 4-SMD, No Lead |
| ECS-160-20-30B-TR | ECS Crystal | ECX-53B | 16MHz | -20°C ~ 70°C | SMD晶振 |
| ECS-160-20-30B-TR | ECS Crystal | ECX-53B | 16MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-160-20-30B-TR | ECS Crystal | ECX-53B | 16MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-160-S-23A-EN-TR | ECS Crystal | ECX-64A | 16MHz | -40°C ~ 85°C | 2-SMD, No Lead |
| ECS-160-S-23A-EN-TR | ECS Crystal | ECX-64A | 16MHz | -40°C ~ 85°C | 2-SMD, No Lead |
| ECS-160-S-23A-EN-TR | ECS Crystal | ECX-64A | 16MHz | -40°C ~ 85°C | 2-SMD, No Lead |
| ECS-160-20-23A-EN-TR | ECS Crystal | ECX-64A | 16MHz | -40°C ~ 85°C | 2-SMD, No Lead |
| ECS-160-20-23A-EN-TR | ECS Crystal | ECX-64A | 16MHz | -40°C ~ 85°C | 2-SMD, No Lead |
| ECS-160-20-23A-EN-TR | ECS Crystal | ECX-64A | 16MHz | -40°C ~ 85°C | 2-SMD, No Lead |
| ECS-160-18-18-TR | ECS Crystal | CSM-12 | 16MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| ECS-160-18-18-TR | ECS Crystal | CSM-12 | 16MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| ECS-160-18-18-TR | ECS Crystal | CSM-12 | 16MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| ECS-160-18-30BQ-DS | ECS Crystal | ECX-53BQ | 16MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| ECS-160-18-30BQ-DS | ECS Crystal | ECX-53BQ | 16MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| ECS-160-18-30BQ-DS | ECS Crystal | ECX-53BQ | 16MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| ECS-160-18-20BQ-DS | ECS Crystal | CSM-8Q | 16MHz | -40°C ~ 125°C | 4-SMD, No Lead |
ECS-120-8-33B-CHN-TR適用于各種物聯網和無線的理想選擇
特征：
小體積尺寸：3.2x2.5毫米的尺寸無源晶振
緊密公差/穩定性
MSL 1號
鉛飾面金
老化(第一年)最大1ppm。
符合RoHS 2和REACH標準
應用程序：
物聯網
無線的
移動設備
WiFi、藍牙和Zigbee
