UF324/UF34 XO系列是經過優化的晶體振蕩器系列，可節省電路板空間。該系列由具有超低抖動性能的高性能HCSL晶體振蕩器組成，可滿足嚴格的芯片組要求。它支持多種選擇，包括更寬的頻率范圍、小體積晶振尺寸3.2x2.5mm有源晶振，2.5V/3.3V電壓和各種穩定性。它旨在滿足通信系統和其他高性能設備的時鐘源規范。具有超低抖動性能的高性能HCSL晶體振蕩器UF324/UF34系列,UF3242DA0100.000000,ECERA石英晶振

JT255CF0026.000000	Diodes Incorporated	SaRonix-eCera™ JT	26MHz	±500ppb	-30°C ~ 85°C
FRBST1061	Diodes Incorporated	SaRonix-eCera™ FR	61.44MHz	±50ppm	-40°C ~ 85°C
JT2551T0039.000000	Diodes Incorporated	SaRonix-eCera™ JT	39MHz	±2.5ppm	-40°C ~ 85°C
JT2551T0039.000000	Diodes Incorporated	SaRonix-eCera™ JT	39MHz	±2.5ppm	-40°C ~ 85°C
JT2551T0039.000000	Diodes Incorporated	SaRonix-eCera™ JT	39MHz	±2.5ppm	-40°C ~ 85°C
KM3270004	Diodes Incorporated	SaRonix-eCera™ KM	32.768kHz	±25ppm	-40°C ~ 85°C
FK2500021	Diodes Incorporated	SaRonix-eCera™ FK	25MHz	±50ppm	-40°C ~ 85°C
FN4000159	Diodes Incorporated	SaRonix-eCera™ FN	40MHz	±50ppm	-40°C ~ 85°C
FK0800003	Diodes Incorporated	SaRonix-eCera™ FK	8MHz	±50ppm	-20°C ~ 70°C
PRBST1122	Diodes Incorporated	SaRonix-eCera™ FR	122.88MHz	±50ppm	-40°C ~ 85°C
PRBST1122	Diodes Incorporated	SaRonix-eCera™ FR	122.88MHz	±50ppm	-40°C ~ 85°C
PRBST1122	Diodes Incorporated	SaRonix-eCera™ FR	122.88MHz	±50ppm	-40°C ~ 85°C
KJ3270001	Diodes Incorporated	SaRonix-eCera™ KJ	32.768kHz	±25ppm	-40°C ~ 85°C
KJ3270001	Diodes Incorporated	SaRonix-eCera™ KJ	32.768kHz	±25ppm	-40°C ~ 85°C
KJ3270001	Diodes Incorporated	SaRonix-eCera™ KJ	32.768kHz	±25ppm	-40°C ~ 85°C
FK2500022	Diodes Incorporated	SaRonix-eCera™ FK	25MHz	±50ppm	-40°C ~ 85°C
FK2500022	Diodes Incorporated	SaRonix-eCera™ FK	25MHz	±50ppm	-40°C ~ 85°C
FK5000013	Diodes Incorporated	SaRonix-eCera™ FK	50MHz	±50ppm	-40°C ~ 85°C
FK5000013	Diodes Incorporated	SaRonix-eCera™ FK	50MHz	±50ppm	-40°C ~ 85°C
FD2500050	Diodes Incorporated	SaRonix-eCera™ FD	25MHz	±50ppm	-20°C ~ 70°C
FD2500050	Diodes Incorporated	SaRonix-eCera™ FD	25MHz	±50ppm	-20°C ~ 70°C
FDSAS2062	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	62.5MHz	±50ppm	-20°C ~ 70°C
FDSAS2062	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	62.5MHz	±50ppm	-20°C ~ 70°C
FDSAS2062	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	62.5MHz	±50ppm	-20°C ~ 70°C
FK1200011	Diodes Incorporated	SaRonix-eCera™ FK	12MHz	±50ppm	-40°C ~ 85°C

具有超低抖動性能的高性能HCSL晶體振蕩器UF324/UF34系列,UF3242DA0100.000000,ECERA石英晶振

特征：
超低相位抖動
0.06ps典型值。0.08ps RMS最大值（12kHz至20MHz）
擴展溫度范圍高達125℃耐高溫晶振
完全無鉛且完全符合RoHS標準
不含鹵素和銻。“綠色”設備
應用程序：
網絡系統
光模塊
服務器和存儲系統
專業視頻設備
測試與測量
FPGA/ASIC時鐘生成
112G串行應用

FK1200011	Diodes Incorporated	SaRonix-eCera™ FK	12MHz	±50ppm	-40°C ~ 85°C
FNSAS2075	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	75MHz	±50ppm	-20°C ~ 70°C
FD6250012	Diodes Incorporated	SaRonix-eCera™ FD	62.5MHz	±50ppm	-20°C ~ 70°C
KN3270028	Diodes Incorporated	SaRonix-eCera™ KN	32.768kHz	±50ppm	-20°C ~ 70°C
KD3270032	Diodes Incorporated	SaRonix-eCera™ KD	32.768kHz	±50ppm	-20°C ~ 70°C
KN3270031	Diodes Incorporated	SaRonix-eCera™ KN	32.768kHz	±50ppm	-20°C ~ 70°C
KD3270042	Diodes Incorporated	SaRonix-eCera™ KD	32.768kHz	±50ppm	-20°C ~ 70°C
KN3270022	Diodes Incorporated	SaRonix-eCera™ KN	32.768kHz	±50ppm	-20°C ~ 70°C
KD3270036	Diodes Incorporated	SaRonix-eCera™ KD	32.768kHz	±50ppm	-20°C ~ 70°C
KN3270032	Diodes Incorporated	SaRonix-eCera™ KN	32.768kHz	±50ppm	-40°C ~ 85°C
KN3270033	Diodes Incorporated	SaRonix-eCera™ KN	32.768kHz	±50ppm	-40°C ~ 85°C
KD3270034	Diodes Incorporated	SaRonix-eCera™ KD	32.768kHz	±50ppm	-40°C ~ 85°C
KX3211B0032.768000	Diodes Incorporated	SaRonix-eCera™ KX	32.768kHz	±25ppm	-20°C ~ 70°C
KX3211C0032.768000	Diodes Incorporated	SaRonix-eCera™ KX	32.768kHz	±50ppm	-20°C ~ 70°C
KX3211E0032.768000	Diodes Incorporated	SaRonix-eCera™ KX	32.768kHz	±50ppm	-40°C ~ 85°C
KX3211G0032.768000	Diodes Incorporated	SaRonix-eCera™ KX	32.768kHz	±25ppm	0°C ~ 70°C
KX3213B0032.768000	Diodes Incorporated	SaRonix-eCera™ KX	32.768kHz	±25ppm	-20°C ~ 70°C
KX3213C0032.768000	Diodes Incorporated	SaRonix-eCera™ KX	32.768kHz	±50ppm	-20°C ~ 70°C
KX3213G0032.768000	Diodes Incorporated	SaRonix-eCera™ KX	32.768kHz	±25ppm	0°C ~ 70°C
KX3211H0032.768000	Diodes Incorporated	SaRonix-eCera™ KX	32.768kHz	±25ppm	0°C ~ 85°C
KD3270043	Diodes Incorporated	SaRonix-eCera™ KD	32.768kHz	±25ppm	-20°C ~ 70°C
KN3270026	Diodes Incorporated	SaRonix-eCera™ KN	32.768kHz	±25ppm	-20°C ~ 70°C
KN3270034	Diodes Incorporated	SaRonix-eCera™ KN	32.768kHz	±25ppm	-20°C ~ 70°C
KD3270012	Diodes Incorporated	SaRonix-eCera™ KD	32.768kHz	±25ppm	-20°C ~ 70°C
KK3270040	Diodes Incorporated	SaRonix-eCera™ KK	32.768kHz	±50ppm	-20°C ~ 70°C

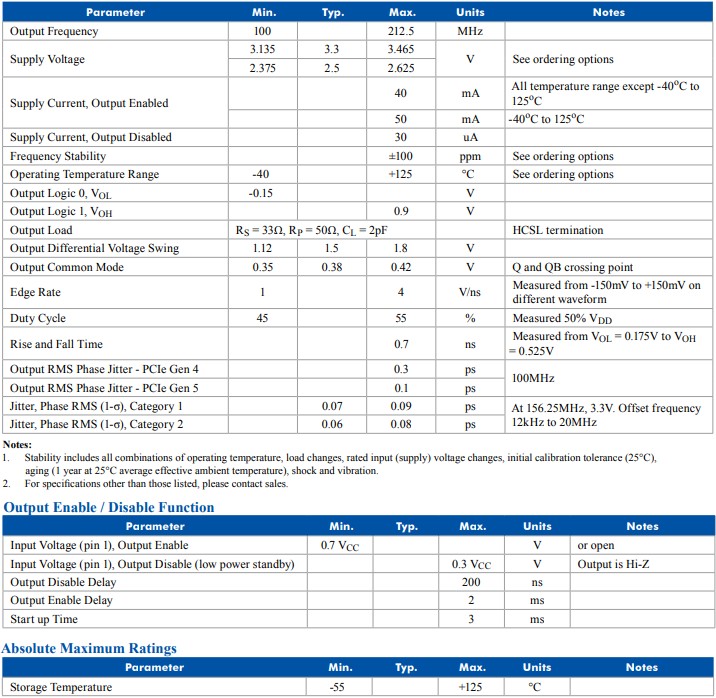

Product Specifications

Product Parameters

Stability (PPM)	20 to 100

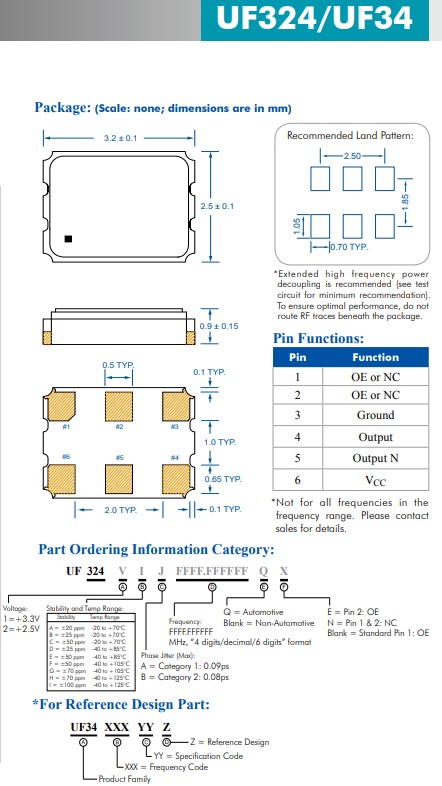

Package Size (mm)	3.2 x 2.5 x 0.9
PkgType	Ceramic Seam
Freq Range (MHz)	100 to 212.5
Jitter RMS (ps)	0.08 to 0.09
Output Logic	HCSL
Supply Voltage (V)	3.3, 2.5
Pads	6
ProductSeries	UF3

具有超低抖動性能的高性能HCSL晶體振蕩器UF324/UF34系列,UF3242DA0100.000000,ECERA石英晶振

產品參數：

穩定性 (PPM) 20PPM到100PPM
包裝尺寸 3.2x2.5x0.9mm貼片晶振
包裝類型陶瓷縫
頻率范圍 100MHz至212.5MHz
抖動均方根 0.08ps至0.09ps
輸出邏輯 HCSL
電源電壓 3.3V, 2.5V
墊 6腳
產品系列 UF3

KK3270042	Diodes Incorporated	SaRonix-eCera™ KK	32.768kHz	±50ppm	-40°C ~ 85°C
KK3270044	Diodes Incorporated	SaRonix-eCera™ KK	32.768kHz	±50ppm	-20°C ~ 70°C
KN3270027	Diodes Incorporated	SaRonix-eCera™ KN	32.768kHz	±20ppm	-20°C ~ 70°C
KD3270033	Diodes Incorporated	SaRonix-eCera™ KD	32.768kHz	±20ppm	-20°C ~ 70°C
KN3270030	Diodes Incorporated	SaRonix-eCera™ KN	32.768kHz	±20ppm	-20°C ~ 70°C
KD3270039	Diodes Incorporated	SaRonix-eCera™ KD	32.768kHz	±20ppm	-20°C ~ 70°C
KN3270023	Diodes Incorporated	SaRonix-eCera™ KN	32.768kHz	±50ppm	-40°C ~ 85°C
FNC500129	Diodes Incorporated	SaRonix-eCera™ FN	125MHz	±50ppm	-20°C ~ 70°C
KN3270036	Diodes Incorporated	SaRonix-eCera™ KN	32.768kHz	±25ppm	-40°C ~ 85°C
KN3270029	Diodes Incorporated	SaRonix-eCera™ KN	32.768kHz	±25ppm	-40°C ~ 85°C
KX2511B0032.768000	Diodes Incorporated	SaRonix-eCera™ KX	32.768kHz	±25ppm	-20°C ~ 70°C
KX2511C0032.768000	Diodes Incorporated	SaRonix-eCera™ KX	32.768kHz	±50ppm	-20°C ~ 70°C
KX2511E0032.768000	Diodes Incorporated	SaRonix-eCera™ KX	32.768kHz	±50ppm	-40°C ~ 85°C
KX2511H0032.768000	Diodes Incorporated	SaRonix-eCera™ KX	32.768kHz	±25ppm	0°C ~ 85°C
KX2513C0032.768000	Diodes Incorporated	SaRonix-eCera™ KX	32.768kHz	±50ppm	-20°C ~ 70°C
KX2513E0032.768000	Diodes Incorporated	SaRonix-eCera™ KX	32.768kHz	±50ppm	-40°C ~ 85°C
KX2513H0032.768000	Diodes Incorporated	SaRonix-eCera™ KX	32.768kHz	±25ppm	0°C ~ 85°C
KX2513B0032.768000	Diodes Incorporated	SaRonix-eCera™ KX	32.768kHz	±25ppm	-20°C ~ 70°C
KD3270038	Diodes Incorporated	SaRonix-eCera™ KD	32.768kHz	±25ppm	-20°C ~ 70°C
KD3270038	Diodes Incorporated	SaRonix-eCera™ KD	32.768kHz	±25ppm	-20°C ~ 70°C
KD3270038	Diodes Incorporated	SaRonix-eCera™ KD	32.768kHz	±25ppm	-20°C ~ 70°C
KN3270025	Diodes Incorporated	SaRonix-eCera™ KN	32.768kHz	±25ppm	-20°C ~ 70°C
KX2513A0032.768000	Diodes Incorporated	SaRonix-eCera™ KX	32.768kHz	±20ppm	-20°C ~ 70°C
KD3270041	Diodes Incorporated	SaRonix-eCera™ KD	32.768kHz	±20ppm	-20°C ~ 70°C
KN3270024	Diodes Incorporated	SaRonix-eCera™ KN	32.768kHz	±20ppm	-20°C ~ 70°C

最小尺寸的超低抖動晶體振蕩器(XO)，DIODES UF系列超低抖動，微型，晶體振蕩器是用于高性能計算和網絡的前沿要求最苛刻的行業高級應用。Automotivecompliant變體可用。這種新型晶體振蕩器支持廣泛的應用要求非常低的噪音采用最小的工業標準封裝之一。較大的包裝也可滿足靈活設計需求。有多種輸出標準可供選擇: LVPECL，LVDS和HCSL，以及 2.5V和3.3V的電源電壓，提供客戶指定的頻率高達212.5MHz，溫度穩定性達到25PPM。具有超低抖動性能的高性能HCSL晶體振蕩器UF324/UF34系列,UF3242DA0100.000000,ECERA石英晶振

KK3270047	Diodes Incorporated	SaRonix-eCera™ KK	32.768kHz	±50ppm	-20°C ~ 70°C
KD3270044	Diodes Incorporated	SaRonix-eCera™ KD	32.768kHz	±25ppm	-40°C ~ 85°C
KD3270044	Diodes Incorporated	SaRonix-eCera™ KD	32.768kHz	±25ppm	-40°C ~ 85°C
KD3270044	Diodes Incorporated	SaRonix-eCera™ KD	32.768kHz	±25ppm	-40°C ~ 85°C
KN3270035	Diodes Incorporated	SaRonix-eCera™ KN	32.768kHz	±25ppm	-40°C ~ 85°C
KK3270007	Diodes Incorporated	SaRonix-eCera™ KK	32.768kHz	±25ppm	-20°C ~ 70°C
KK3270053	Diodes Incorporated	SaRonix-eCera™ KK	32.768kHz	±20ppm	-20°C ~ 70°C
KK3270041	Diodes Incorporated	SaRonix-eCera™ KK	32.768kHz	±20ppm	-20°C ~ 70°C
KK3270043	Diodes Incorporated	SaRonix-eCera™ KK	32.768kHz	±25ppm	-40°C ~ 85°C
S1700C-20.0000	Diodes Incorporated	SaRonix™ S1700	20MHz	±100ppm	0°C ~ 70°C
KK3270048	Diodes Incorporated	SaRonix-eCera™ KK	32.768kHz	±20ppm	-20°C ~ 70°C
KX3213H0032.768000	Diodes Incorporated	SaRonix-eCera™ KX	32.768kHz	±25ppm	0°C ~ 85°C
KX3213E0032.768000	Diodes Incorporated	SaRonix-eCera™ KX	32.768kHz	±50ppm	-40°C ~ 85°C
KX3213A0032.768000	Diodes Incorporated	SaRonix-eCera™ KX	32.768kHz	±20ppm	-20°C ~ 70°C
KX3213D0032.768000	Diodes Incorporated	SaRonix-eCera™ KX	32.768kHz	±25ppm	-40°C ~ 85°C
KX3213Z0032.768000	Diodes Incorporated	SaRonix-eCera™ KX	32.768kHz	-	-
KX2511G0032.768000	Diodes Incorporated	SaRonix-eCera™ KX	32.768kHz	±25ppm	0°C ~ 70°C
NX5011C0056.000000	Diodes Incorporated	SaRonix-eCera™ NX	56MHz	±50ppm	-20°C ~ 70°C
KX2511D0032.768000	Diodes Incorporated	SaRonix-eCera™ KX	32.768kHz	±25ppm	-40°C ~ 85°C
KX2511Z0032.768000	Diodes Incorporated	SaRonix-eCera™ KX	32.768kHz	-	-
NX7011E0059.000000	Diodes Incorporated	SaRonix-eCera™ NX	59MHz	±50ppm	-40°C ~ 85°C
FRSONT019	Diodes Incorporated	SaRonix-eCera™ FR	19.44MHz	±25ppm	-20°C ~ 70°C
FRXDSL035	Diodes Incorporated	SaRonix-eCera™ FR	35.328MHz	±25ppm	-20°C ~ 70°C
FRSONT038	Diodes Incorporated	SaRonix-eCera™ FR	38.88MHz	±25ppm	-20°C ~ 70°C
KX2013C0032.768000	Diodes Incorporated	SaRonix-eCera™ KX	32.768kHz	±50ppm	-20°C ~ 70°C

具有超低抖動性能的高性能HCSL晶體振蕩器UF324/UF34系列,UF3242DA0100.000000,ECERA石英晶振

UF系列為高速提供超低抖動
為高性能應用提供盡可能小的封裝。
UF系列XO 貼片振蕩器
超低均方根抖動(典型值低至50fs)
超過苛刻應用的要求，并且
提供廣泛的設計余量
2.5毫米x 2.0mm毫米大小的包裝:
優化電路板空間以支持微型系統設計
寬溫度范圍(-40°C至125°C)
符合汽車行業標準(符合AEC-Q104)的版本
支持在惡劣環境中運行的加固設備設計
應用程序：光學模塊，網絡系統，測試和測量，裝備，112G系列應用，PCI 5.0架構，系統，服務器和存儲系統，專業視頻設備，FPGA/ASIC參考時鐘，發電機

KX2013E0032.768000	Diodes Incorporated	SaRonix-eCera™ KX	32.768kHz	±50ppm	-40°C ~ 85°C
NX5011C0120.000000	Diodes Incorporated	SaRonix-eCera™ NX	120MHz	±50ppm	-20°C ~ 70°C
NX7012D0025.001875	Diodes Incorporated	SaRonix-eCera™ NX	25.001875MHz	±25ppm	-40°C ~ 85°C
JT255CF0019.200000	Diodes Incorporated	SaRonix-eCera™ JT	19.2MHz	±500ppb	-30°C ~ 85°C
JT255CF0019.200000	Diodes Incorporated	SaRonix-eCera™ JT	19.2MHz	±500ppb	-30°C ~ 85°C
JT255CF0019.200000	Diodes Incorporated	SaRonix-eCera™ JT	19.2MHz	±500ppb	-30°C ~ 85°C
JT255CF0016.368000	Diodes Incorporated	SaRonix-eCera™ JT	16.368MHz	±500ppb	-30°C ~ 85°C
JT255CF0016.368000	Diodes Incorporated	SaRonix-eCera™ JT	16.368MHz	±500ppb	-30°C ~ 85°C
JT255CF0016.368000	Diodes Incorporated	SaRonix-eCera™ JT	16.368MHz	±500ppb	-30°C ~ 85°C
JT255CF0016.369000	Diodes Incorporated	SaRonix-eCera™ JT	16.369MHz	±500ppb	-30°C ~ 85°C
NX7011E0091.500000	Diodes Incorporated	SaRonix-eCera™ NX	91.5MHz	±50ppm	-40°C ~ 85°C
NX7011D0070.656000	Diodes Incorporated	SaRonix-eCera™ NX	70.656MHz	±25ppm	-40°C ~ 85°C
NX7011D0104.000000	Diodes Incorporated	SaRonix-eCera™ NX	104MHz	±25ppm	-40°C ~ 85°C
NX7021E0125.000000	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±50ppm	-40°C ~ 85°C
SN10GE159	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	159.375MHz	±50ppm	-20°C ~ 70°C
SNGPON155	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	155.52MHz	±50ppm	-40°C ~ 85°C
LD10GE156	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	156.25MHz	±50ppm	-40°C ~ 85°C
LDGPON155	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	155.52MHz	±50ppm	-20°C ~ 70°C
LDF550001	Diodes Incorporated	SaRonix-eCera™ LD	155.52MHz	±25ppm	-20°C ~ 70°C
PDF620004	Diodes Incorporated	SaRonix-eCera™ PD	156.25MHz	±50ppm	-40°C ~ 85°C
S1613B-27.0000	Diodes Incorporated	SaRonix-eCera™ FN	27MHz	±50ppm	-10°C ~ 70°C
KM3270002	Diodes Incorporated	SaRonix-eCera™ KM	32.768kHz	±25ppm	-40°C ~ 85°C
KM3270003	Diodes Incorporated	SaRonix-eCera™ KM	32.768kHz	±25ppm	-40°C ~ 85°C
PXA000010	Diodes Incorporated	SaRonix-eCera™ PX	100MHz	±50ppm	-20°C ~ 70°C
PXA000010	Diodes Incorporated	SaRonix-eCera™ PX	100MHz	±50ppm	-20°C ~ 70°C

具有超低抖動性能的高性能HCSL晶體振蕩器UF324/UF34系列,UF3242DA0100.000000,ECERA石英晶振

零件號碼包裹輸出電壓振動頻率頻率穩定性
UF2521DA0100.000000 2.5x2.0mm LVPECL 3.3V 0.09ps 100MHz ±25ppm, -40 to +85℃
UF2532DC0156.250000 2.5x2.0mm LVDS 2.5V 0.07ps 156.26MHz ±25ppm, -40 to +85℃
UF2542HC0100.000000 2.5x2.0mm HCSL 2.5V 0.07ps 100MHz ±70ppm, -40 to +125℃
UF3221DA0212.500000 3.2x2.5mm LVPECL 3.3V 0.09ps 212.5MHz ±25ppm, -40 to +85℃
UF3242DA0100.000000 3.2x2.5mm HCSL 2.5V 0.09ps 100MHz ±25ppm, -40 to +85℃
UF3231FB0156.250000 3.2x2.5mm LVDS輸出晶振 3.3V 0.08ps 156.25MHz ±50ppm, -40 to +105℃
UF5022DA0100.000000 5.0x3.2mm LVPECL 2.5V 0.09ps 100MHz ±25ppm, -40 to +85℃
UF5031DB0156.250000 5.0x3.2mm LVDS 3.3V 0.08ps 156.25MHz ±25ppm, -40 to +85℃
