高精度時間參考最受歡迎的溫補晶振KT3225T32768DAW33T，kyocera公司作為一家個性鮮明的日系品牌制造商，主要向市場提供性能優越，具有成本效益的進口晶振產品，同時公司堅持初心，以及堅持做正確的事這個價值觀，使得京瓷公司獲得如此偉大的成就，秉持著為社會服務的精神，以及對于行業的熱愛，使得其能夠在晶振產品上面有極深的造詣。

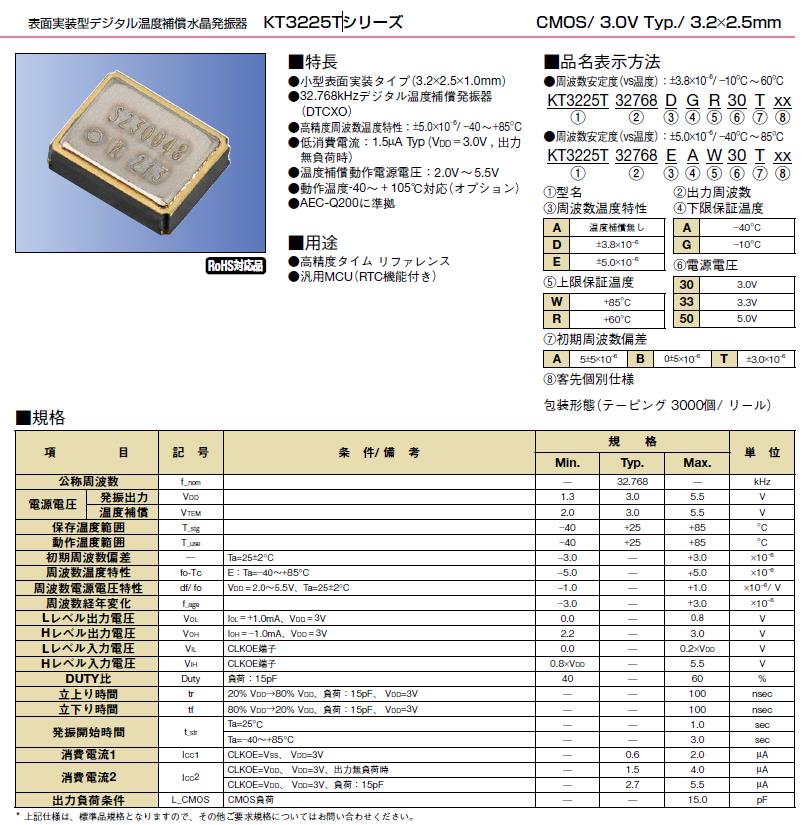

京瓷推出編碼KT3225T32768DAW33T，型號KT3225T，溫補晶體振蕩器，特點：小型表面安裝型(3.2×2.5×1.0mm)，32.768kHz數字溫度補償振蕩器(DTCXO)，高精度頻率溫度特性:±5.0×10，低消費電流:1.5 a typ (vdd = 3.0 v,輸出無負荷時)，溫度補償工作電源電壓:2.0V ~ 5.5V，對應工作溫度-40 ~ +105℃(可選)，兼容AEC-Q200
主要用途：高精度時間參考，通用MCU(帶RTC功能).
| Manufacturer Part Number | Manufacturer | Series | Frequency | Voltage - Supply | Operating Temperature |
| K50H-3C0-SE106.250MR | Kyocera溫補晶振 | K50H-3C, Kyocera | 106.25MHz | 3.3V | -10°C ~ 70°C |
| K50-3C1SE75.0000 | Kyocera溫補晶振 | K50-3C, Kyocera | 75MHz | 3.3V | -10°C ~ 70°C |
| KC5032A156.250C20E00 | Kyocera溫補晶振 | KC5032A-C2, Kyocera | 156.25MHz | 2.5V, 3.3V | -10°C ~ 70°C |
| KT3225T32768DAW33T | Kyocera溫補晶振 | KT3225T, Kyocera | 32.768kHz | 3.3V | -40°C ~ 85°C |
| K50-HC1CSE1.8432 | Kyocera溫補晶振 | K50-HC, Kyocera | 1.8432MHz | 5V | -10°C ~ 70°C |
| K50-HC1CSE3.6864 | Kyocera溫補晶振 | K50-HC, Kyocera | 3.6864MHz | 5V | -10°C ~ 70°C |
| KT2016A20000ACW18TAG | Kyocera溫補晶振 | KT2016A, Kyocera | 20MHz | 1.8V | -30°C ~ 85°C |
| K50H-3C0-SE100.0 | Kyocera溫補晶振 | K50H-3C, Kyocera | 100MHz | 3.3V | -10°C ~ 70°C |
| KC2016B3.68640C1FE00 | Kyocera溫補晶振 | KC2016B-C1, Kyocera | 3.6864MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC7050A150.000C30E00 | Kyocera溫補晶振 | KC7050A-C3, Kyocera | 150MHz | 3.3V | -10°C ~ 70°C |
| KC7050P125.000P30E00 | Kyocera溫補晶振 | KC7050P-P3, Kyocera | 125MHz | 3.3V | 0°C ~ 70°C |
| KC7050P155.520L30E00 | Kyocera溫補晶振 | KC7050P-L3, Kyocera | 155.52MHz | 3.3V | 0°C ~ 70°C |
| K50-HC0CSE14.7456MR | Kyocera溫補晶振 | K50-HC, Kyocera | 14.7456MHz | 5V | -10°C ~ 70°C |
| KC5032C14.3182C30E00 | Kyocera溫補晶振 | KC5032C-C3, Kyocera | 14.3182MHz | 3.3V | -10°C ~ 70°C |
| KC5032C16.0000C30E00 | Kyocera溫補晶振 | KC5032C-C3, Kyocera | 16MHz | 3.3V | -10°C ~ 70°C |
| KC5032C20.0000C30E00 | Kyocera溫補晶振 | KC5032C-C3, Kyocera | 20MHz | 3.3V | -10°C ~ 70°C |
| KC5032C24.5760C30E00 | Kyocera溫補晶振 | KC5032C-C3, Kyocera | 24.576MHz | 3.3V | -10°C ~ 70°C |
| KC5032C25.0000C30E00 | Kyocera溫補晶振 | KC5032C-C3, Kyocera | 25MHz | 3.3V | -10°C ~ 70°C |
| KC5032C27.0000C30E00 | Kyocera溫補晶振 | KC5032C-C3, Kyocera | 27MHz | 3.3V | -10°C ~ 70°C |
| KC5032C29.4989C30E00 | Kyocera溫補晶振 | KC5032C-C3, Kyocera | 29.4989MHz | 3.3V | -10°C ~ 70°C |
| KC5032C40.0000C30E00 | Kyocera溫補晶振 | KC5032C-C3, Kyocera | 40MHz | 3.3V | -10°C ~ 70°C |
| KC5032C50.0000C30E00 | Kyocera溫補晶振 | KC5032C-C3, Kyocera | 50MHz | 3.3V | -10°C ~ 70°C |
| KC5032C60.0000C30E00 | Kyocera溫補晶振 | KC5032C-C3, Kyocera | 60MHz | 3.3V | -10°C ~ 70°C |
| KC5032C64.0000C30E00 | Kyocera溫補晶振 | KC5032C-C3, Kyocera | 64MHz | 3.3V | -10°C ~ 70°C |
| KC5032C66.6667C30E00 | Kyocera溫補晶振 | KC5032C-C3, Kyocera | 66.6667MHz | 3.3V | -10°C ~ 70°C |
| KC5032C75.0000C30E00 | Kyocera溫補晶振 | KC5032C-C3, Kyocera | 75MHz | 3.3V | -10°C ~ 70°C |
| KC5032C100.000C30E00 | Kyocera溫補晶振 | KC5032C-C3, Kyocera | 100MHz | 3.3V | -10°C ~ 70°C |
| KC5032C106.250C30E00 | Kyocera溫補晶振 | KC5032C-C3, Kyocera | 106.25MHz | 3.3V | -10°C ~ 70°C |
| KC5032C125.000C30E00 | Kyocera溫補晶振 | KC5032C-C3, Kyocera | 125MHz | 3.3V | -10°C ~ 70°C |
| KC5032C150.000C30E00 | Kyocera溫補晶振 | KC5032C-C3, Kyocera | 150MHz | 3.3V | -10°C ~ 70°C |
| KT2520Y40000ECV28TBA | Kyocera溫補晶振 | KT2520Y, Kyocera | 40MHz | 2.8V | -30°C ~ 80°C |
| KT3225R40000ECV28TBA | Kyocera溫補晶振 | KT3225R, Kyocera | 40MHz | 2.8V | -30°C ~ 80°C |
| KT3225R26000ZAW28TMA | Kyocera溫補晶振 | KT3225R, Kyocera | 26MHz | 2.8V | -40°C ~ 85°C |
| KC7050T156.250P20E00 | Kyocera溫補晶振 | KC7050T-P2, Kyocera | 156.25MHz | 2.5V | 0°C ~ 70°C |
| KC7050T200.000P20E00 | Kyocera溫補晶振 | KC7050T-P2, Kyocera | 200MHz | 2.5V | 0°C ~ 70°C |
| KC7050T250.000P20E00 | Kyocera溫補晶振 | KC7050T-P2, Kyocera | 250MHz | 2.5V | 0°C ~ 70°C |
| KC7050T312.500P20E00 | Kyocera溫補晶振 | KC7050T-P2, Kyocera | 312.5MHz | 2.5V | 0°C ~ 70°C |
| KC7050T156.250P30E00 | Kyocera溫補晶振 | KC7050T-P3, Kyocera | 156.25MHz | 3.3V | 0°C ~ 70°C |
| KC7050T200.000P30E00 | Kyocera溫補晶振 | KC7050T-P3, Kyocera | 200MHz | 3.3V | 0°C ~ 70°C |
| KC7050T250.000P30E00 | Kyocera溫補晶振 | KC7050T-P3, Kyocera | 250MHz | 3.3V | 0°C ~ 70°C |
| KC5032C100.000C20E00 | Kyocera溫補晶振 | KC5032C-C2, Kyocera | 100MHz | 2.5V | -10°C ~ 70°C |
| KC5032C125.000C20E00 | Kyocera溫補晶振 | KC5032C-C2, Kyocera | 125MHz | 2.5V | -10°C ~ 70°C |
| KC7050T156.250L20E00 | Kyocera溫補晶振 | KC7050T-L2, Kyocera | 156.25MHz | 2.5V | 0°C ~ 70°C |
| KC7050T156.250L30E00 | Kyocera溫補晶振 | KC7050T-L3, Kyocera | 156.25MHz | 3.3V | 0°C ~ 70°C |
| KC7050T200.000L20E00 | Kyocera溫補晶振 | KC7050T-L2, Kyocera | 200MHz | 2.5V | 0°C ~ 70°C |
| KC7050T200.000L30E00 | Kyocera溫補晶振 | KC7050T-L3, Kyocera | 200MHz | 3.3V | 0°C ~ 70°C |
| KC7050T250.000L20E00 | Kyocera溫補晶振 | KC7050T-L2, Kyocera | 250MHz | 2.5V | 0°C ~ 70°C |
| KC7050T250.000L30E00 | Kyocera溫補晶振 | KC7050T-L3, Kyocera | 250MHz | 3.3V | 0°C ~ 70°C |
| KC7050T312.500L20E00 | Kyocera溫補晶振 | KC7050T-L2, Kyocera | 312.5MHz | 2.5V | 0°C ~ 70°C |
| KC7050T312.500L30E00 | Kyocera溫補晶振 | KC7050T-L3, Kyocera | 312.5MHz | 3.3V | 0°C ~ 70°C |
| KC7050Y312.500L20EZU | Kyocera溫補晶振 | KC7050Y-L20EZU, Kyocera | 312.5MHz | 2.5V | 0°C ~ 70°C |
| KC7050Y156.250P20EZU | Kyocera溫補晶振 | KC7050Y-P20EZU, Kyocera | 156.25MHz | 2.5V | 0°C ~ 70°C |
| KC7050Y312.500L30EZU | Kyocera溫補晶振 | KC7050Y-L30EZU, Kyocera | 312.5MHz | 3.3V | 0°C ~ 70°C |
| KC7050Y312.500P20EZU | Kyocera溫補晶振 | KC7050Y-P20EZU, Kyocera | 312.5MHz | 2.5V | 0°C ~ 70°C |
| KC7050Y312.500P30EZU | Kyocera溫補晶振 | KC7050Y-P30EZU, Kyocera | 312.5MHz | 3.3V | 0°C ~ 70°C |
| KC7050Y75.0000L20EZU | Kyocera溫補晶振 | KC7050Y-L20EZU, Kyocera | 75MHz | 2.5V | 0°C ~ 70°C |
| KC7050Y75.0000L30EZU | Kyocera溫補晶振 | KC7050Y-L30EZU, Kyocera | 75MHz | 3.3V | 0°C ~ 70°C |
| KC7050Y200.000L30EZU | Kyocera溫補晶振 | KC7050Y-L30EZU, Kyocera | 200MHz | 3.3V | 0°C ~ 70°C |
| KC7050Y75.0000P20EZU | Kyocera溫補晶振 | KC7050Y-P20EZU, Kyocera | 75MHz | 2.5V | 0°C ~ 70°C |
| KC7050Y125.000P30EZU | Kyocera溫補晶振 | KC7050Y-P30EZU, Kyocera | 125MHz | 3.3V | 0°C ~ 70°C |
| KC7050Y75.0000P30EZU | Kyocera溫補晶振 | KC7050Y-P30EZU, Kyocera | 75MHz | 3.3V | 0°C ~ 70°C |
| KC7050Y250.000L20EZU | Kyocera溫補晶振 | KC7050Y-L20EZU, Kyocera | 250MHz | 2.5V | 0°C ~ 70°C |
| KC7050Y250.000L30EZU | Kyocera溫補晶振 | KC7050Y-L30EZU, Kyocera | 250MHz | 3.3V | 0°C ~ 70°C |
| KC7050Y250.000P20EZU | Kyocera溫補晶振 | KC7050Y-P20EZU, Kyocera | 250MHz | 2.5V | 0°C ~ 70°C |
| KC7050Y250.000P30EZU | Kyocera溫補晶振 | KC7050Y-P30EZU, Kyocera | 250MHz | 3.3V | 0°C ~ 70°C |
| KC7050Y156.250P30EZU | Kyocera溫補晶振 | KC7050Y-P30EZU, Kyocera | 156.25MHz | 3.3V | 0°C ~ 70°C |
| KC7050Y125.000P20EZU | Kyocera溫補晶振 | KC7050Y-P20EZU, Kyocera | 125MHz | 2.5V | 0°C ~ 70°C |
| KC7050Y200.000P20EZU | Kyocera溫補晶振 | KC7050Y-P20EZU, Kyocera | 200MHz | 2.5V | 0°C ~ 70°C |
| KC7050Y156.250L20EZU | Kyocera溫補晶振 | KC7050Y-L20EZU, Kyocera | 156.25MHz | 2.5V | 0°C ~ 70°C |
| KC7050Y200.000P30EZU | Kyocera溫補晶振 | KC7050Y-P30EZU, Kyocera | 200MHz | 3.3V | 0°C ~ 70°C |
| KC7050Y156.250L30EZU | Kyocera溫補晶振 | KC7050Y-L30EZU, Kyocera | 156.25MHz | 3.3V | 0°C ~ 70°C |
