SPXO晶體振蕩器SG3225EEN,X1G005221002400,LV-PECL輸出6G通訊晶振

頻率：166.015625MHz

尺寸：3.2x2.5mm

SPXO晶體振蕩器SG3225EEN,X1G005221002400,LV-PECL輸出6G通訊晶振，日本EPSON愛普生晶振SG3225EEN，編碼為：X1G005221002400，頻率為：166.015625MHz，小體積尺寸3.2x2.5mm，是一款小體積六腳貼片晶振，LV-PECL輸出差分晶振，SPXO石英晶體振蕩器，有源晶振，石英晶振。具有超小型，輕薄型，低功耗，低抖動，低損耗，低相位噪聲，低電源電壓，滿足產品低消耗電流的特點。差分晶振常用的輸出方式分為LVDS，LV-PECL，HCSL三態輸出模式，愛普生SG3225EEN晶振則是LV-PECL輸出差分晶振，愛普生SG3225EEN差分晶體振蕩器，高品質，滿足不同產品需求可提供頻率穩定偏差+-20PPM，+-50PPM，+-100PPM，多種選擇.低消耗電流，工作溫度可達到-40~+85以及-40~+105℃，具有低相位抖動，在電源電壓最低時，震蕩啟動時間所需時間僅0秒。

訂購熱線：0755-27876201

SPXO晶體振蕩器SG3225EEN,X1G005221002400,LV-PECL輸出6G通訊晶振,參數表

Item	Symbol	SG3225EEN	Conditions / Remarks
Output frequency range	f0	166.015625MHz	Please contact us for inquiries regarding available frequencies.
Supply voltage	Vcc	D : 2.5 V ±0.125 V , C : 3.3 V ±0.165 V
Storage temperature	T_stg	-55℃ to +125℃	Store as bare product.
Operating temperature	T_use	G : -40℃ to +85℃ , H : -40℃ to +105℃
Frequency tolerance	f_tol	D : ±25 × 10-6 Max.	Includes initial tolerance, temperature change, Vcc change and 5 years aging(+25℃)
		(Not available H : -40℃ to +105℃)
		J : ±50 × 10-6 Max.	Includes initial tolerance, temperature change, Vcc change and 10 years aging(+25℃)
		L : ±100 × 10-6 Max.	Includes initial tolerance, temperature change, Vcc change and 10 years aging(+25℃)
Current consumption	Icc	75 mA Max.	OE= Vcc, with output load
Disable current	I_dis	25 mA Max.	OE=GND
Symmetry	SYM	45 % to 55 %	At outputs crossing point
Output voltage	VOH	Vcc-1.1 V Min.	DC characteristics
Output voltage	VOL	Vcc-1.5 V Max.	DC characteristics
Output load condition	L_ECL	50 Ω	Terminated to Vcc-2.0V
Input voltage	VIH	70 % Vcc Min.	OE terminal
Input voltage	VIL	30 % Vcc Max.	OE terminal
Rise/Fall times	Tr / Tf	300 ps Max. (Vcc : 3.3V) 350 ps Max. (Vcc : 2.5V)	20% ~ 80% (VOH – VOL)
Oscillation start up time	t_str	10 ms Max.	Time at minimum supply voltage to be 0 s

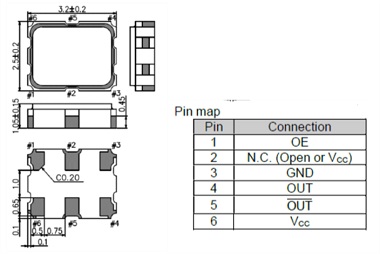

SPXO晶體振蕩器SG3225EEN,X1G005221002400,LV-PECL輸出6G通訊晶振,尺寸圖

SPXO晶體振蕩器SG3225EEN,X1G005221002400,LV-PECL輸出6G通訊晶振

差分晶振是普通貼片晶振所不能夠達到的，差分晶振具有低電平，低抖動，低功耗等特性.差分晶振作為目前行業中高要求，高技術石英晶體振蕩器，具有相位低，損耗低的特點，愛普生差分晶振使用于產品中能夠很容易地識別小信號，能夠從容精確地處理雙級信號，對外部電磁干擾(EMI)是高度免疫的，差分石英晶振滿足市場需求，實現高頻高精度等要求，更加保障了各種系統參考時鐘的可靠性。

貼片晶振	型號	頻率	尺寸	輸出波	電源電壓	工作溫度
X1G005221000100	SG3225EEN	100.000000MHz	3.20x2.50x1.20mm	LV-PECL	3.135 to 3.465V	-40 to 85°C
X1G005221000200	SG3225EEN	125.000000MHz	3.20x2.50x1.20mm	LV-PECL	3.135 to 3.465V	-40 to 85°C
X1G005221000300	SG3225EEN	125.003125MHz	3.20x2.50x1.20mm	LV-PECL	3.135 to 3.465V	-40 to 85°C
X1G005221000400	SG3225EEN	155.520000MHz	3.20x2.50x1.20mm	LV-PECL	3.135 to 3.465V	-40 to 85°C
X1G005221000500	SG3225EEN	156.250000MHz	3.20x2.50x1.20mm	LV-PECL	3.135 to 3.465V	-40 to 85°C
X1G005221000700	SG3225EEN	156.253906MHz	3.20x2.50x1.20mm	LV-PECL	3.135 to 3.465V	-40 to 85°C
X1G005221000800	SG3225EEN	156.250000MHz	3.20x2.50x1.20mm	LV-PECL	3.135 to 3.465V	-40 to 85°C
X1G005221001300	SG3225EEN	100.000000MHz	3.20x2.50x1.20mm	LV-PECL	3.135 to 3.465V	-40 to 85°C
X1G005221001400	SG3225EEN	200.000000MHz	3.20x2.50x1.20mm	LV-PECL	3.135 to 3.465V	-40 to 85°C
X1G005221001800	SG3225EEN	100.000000MHz	3.20x2.50x1.20mm	LV-PECL	3.135 to 3.465V	-40 to 85°C
X1G005221001900	SG3225EEN	50.000000MHz	3.20x2.50x1.20mm	LV-PECL	3.135 to 3.465V	-40 to 85°C
X1G005221002100	SG3225EEN	125.000000MHz	3.20x2.50x1.20mm	LV-PECL	3.135 to 3.465V	-40 to 105°C
X1G005221002300	SG3225EEN	25.000000MHz	3.20x2.50x1.20mm	LV-PECL	3.135 to 3.465V	-40 to 85°C
X1G005221002400	SG3225EEN	166.015625MHz	3.20x2.50x1.20mm	LV-PECL	3.135 to 3.465V	-40 to 85°C
X1G005221002800	SG3225EEN	156.250000MHz	3.20x2.50x1.20mm	LV-PECL	3.135 to 3.465V	-40 to 105°C
X1G005221003000	SG3225EEN	25.000000MHz	3.20x2.50x1.20mm	LV-PECL	3.135 to 3.465V	-40 to 85°C
X1G005221003100	SG3225EEN	50.000000MHz	3.20x2.50x1.20mm	LV-PECL	3.135 to 3.465V	-40 to 85°C
X1G005221003200	SG3225EEN	160.000000MHz	3.20x2.50x1.20mm	LV-PECL	3.135 to 3.465V	-40 to 85°C
X1G005221003300	SG3225EEN	200.000000MHz	3.20x2.50x1.20mm	LV-PECL	3.135 to 3.465V	-40 to 85°C
X1G005221003400	SG3225EEN	125.000000MHz	3225石英晶振	LV-PECL	3.135 to 3.465V	-40 to 85°C
X1G005221003600	SG3225EEN	54.000000MHz	3.20x2.50x1.20mm	LV-PECL	3.135 to 3.465V	-40 to 105°C
X1G005221003700	SG3225EEN	100.000000MHz	3.20x2.50x1.20mm	LV-PECL	3.135 to 3.465V	-40 to 105°C
X1G005221003800	SG3225EEN	25.000625MHz	3.20x2.50x1.20mm	LV-PECL	3.135 to 3.465V	-40 to 85°C
X1G005221003900	SG3225EEN	170.016000MHz	3.20x2.50x1.20mm	LV-PECL	3.135 to 3.465V	-40 to 85°C
X1G005221004200	SG3225EEN	163.387607MHz	3.20x2.50x1.20mm	LV-PECL	3.135 to 3.465V	-40 to 85°C
X1G005221004300	SG3225EEN	25.000000MHz	3.20x2.50x1.20mm	LV-PECL	3.135 to 3.465V	-40 to 105°C
X1G005221004400	SG3225EEN	100.000000MHz	3.20x2.50x1.20mm	LV-PECL	3.135 to 3.465V	-40 to 85°C
X1G005221004800	SG3225EEN	156.250000MHz	3.20x2.50x1.20mm	LV-PECL	3.135 to 3.465V	-40 to 105°C
X1G005221005100	SG3225EEN	100.000000MHz	3.20x2.50x1.20mm	LV-PECL	3.135 to 3.465V	-40 to 105°C
X1G005221005400	SG3225EEN	146.370000MHz	3.20x2.50x1.20mm	LV-PECL	3.135 to 3.465V	-40 to 85°C
X1G005221005500	SG3225EEN	150.000000MHz	3.20x2.50x1.20mm	LV-PECL	3.135 to 3.465V	-40 to 85°C
X1G005221005600	SG3225EEN	155.520000MHz	3.20x2.50x1.20mm	LV-PECL	3.135 to 3.465V	-40 to 105°C
X1G005221100100	SG3225EEN	100.000000MHz	3.20x2.50x1.20mm	LV-PECL	2.375 to 2.625V	-40 to 85°C
X1G005221100200	SG3225EEN	125.000000MHz	3.20x2.50x1.20mm	LV-PECL	2.375 to 2.625V	-40 to 85°C
X1G005221100300	SG3225EEN	156.250000MHz	3.20x2.50x1.20mm	LV-PECL	2.375 to 2.625V	-40 to 85°C
X1G005221100500	SG3225EEN	156.250000MHz	3.20x2.50x1.20mm	LV-PECL	2.375 to 2.625V	-40 to 105°C
X1G005221100700	SG3225EEN	156.250000MHz	3.20x2.50x1.20mm	LV-PECL	2.375 to 2.625V	-40 to 85°C
X1G005221100800	SG3225EEN	156.253906MHz	3.20x2.50x1.20mm	LV-PECL	2.375 to 2.625V	-40 to 85°C
X1G005221101000	SG3225EEN	50.000000MHz	3.20x2.50x1.20mm	LV-PECL	2.375 to 2.625V	-40 to 85°C

SPXO晶體振蕩器SG3225EEN X1G005221002400 LV-PECL輸出6G通訊晶振
