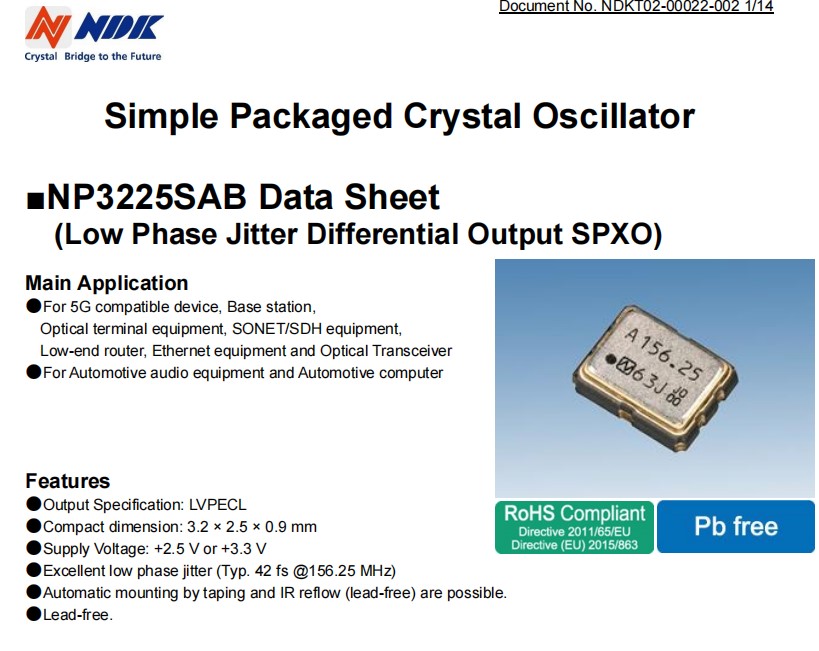

NDK6G基站晶振,NP3225SAB-155.520000MHz-NSC5186A,汽車音頻設備晶振

頻率：155.520000 MHz

尺寸：3.2x2.5x0.9mm

NDK6G基站晶振,NP3225SAB-155.520000MHz-NSC5186A,汽車音頻設備晶振，日本電波株式會社，NDK晶振，型號：NP3225SAB，編碼為：NP3225SAB-155.520000MHz-NSC5186A，頻率為：155.520000 MHz，小體積晶振尺寸：3.2x2.5x0.9mm，六腳貼片晶振，LV-PECL輸出差分晶振，石英晶體振蕩器，有源晶振，石英晶振，電源電壓：+2.5 V，優秀的低相位抖動(Typ。42 fs @156.25 MHz)，自動安裝通過膠帶和紅外回流（無鉛）是可能的。是無鉛的。具有超小型，輕薄型，超低抖動，低功耗，低電源電壓，低相位噪聲，低耗能，低損耗，低電平等特點。NP3225SAB貼片晶振適用于：6G兼容設備，基站、光終端設備、聲波/SDH設備，低端路由器，以太網設備和光收發器，汽車音頻設備和汽車計算機，無線網絡、藍牙模塊，機頂盒，光端機，藍牙模塊，物聯網等。

訂購熱線：0755-27876201

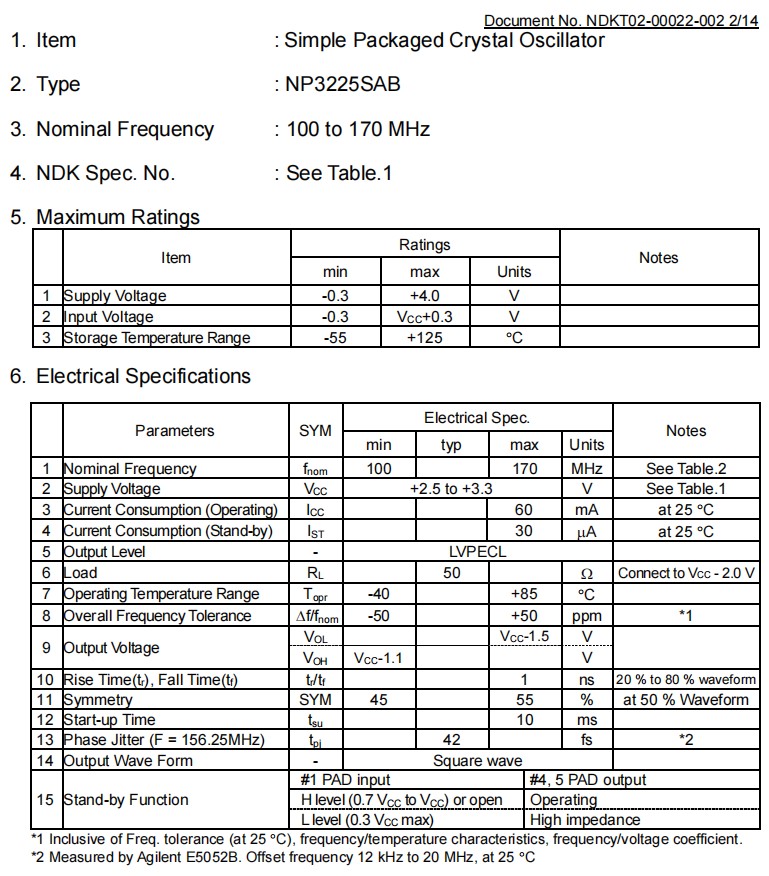

NDK6G基站晶振,NP3225SAB-155.520000MHz-NSC5186A,汽車音頻設備晶振,參數表

Item	Symbol	NP3225SAB		Unit
Nominal frequency range	fnom	155.520000		MHz
Package size (L×W×H)	-	3.2×2.5×0.9		mm
Supply voltage	Vcc	+2.5 to +3.3		V
Current consumption	ICC	Max. 60		mA
Stand-by current	IST	Max. 30		μA
Output specification	-	LVPECL		-
Load	RL	50		Ω
Storage temperature range	Tstr	-55 to +125		℃
Operating temperature range	Topr	-40 to +85		℃
Overall frequency tolerance	Δf/fnom	Max. ±50		ppm
Output voltage	VOL	Max. VCC-1.5		V
Output voltage	VOH	Min. VCC-1.1		V
Rise (tr), fall (tf) time	tr/tf	Max. 1		ns
Symmetry	SYM	45 to 55		%
Start-up time	tsu	Max. 10		ms
Phase jitter (F = 156.25MHz)	tpj	Typ. 42		fs
Specification number	-	NSC5186A (+2.5V)	NSC5186B (+3.3V)	-

NDK6G基站晶振,NP3225SAB-155.520000MHz-NSC5186A,汽車音頻設備晶振,尺寸圖

NDK6G基站晶振,NP3225SAB-155.520000MHz-NSC5186A,汽車音頻設備晶振

差分晶體振蕩器(DXO)是目前行業中公認高技術，高要求的一款晶體振蕩器，是指輸出差分信號使用2種相位彼此完全相反的信號，從而消除了共模噪聲，并產生一個更高性能的系統。差分晶體振蕩器一般為六腳貼片，常用的輸出類型分為：LVDS，LV-PECL，HCSL具有低電平，低抖動，低功耗，低相位噪聲，低電壓等特性。

NP3225SAB-1
