LVPECL石英晶振,NP5032SA-122.880000MHz-NSC5106A,NDK6G以太網晶振

頻率：122.880000 MHz

尺寸：5.0x3.2x1.2mm

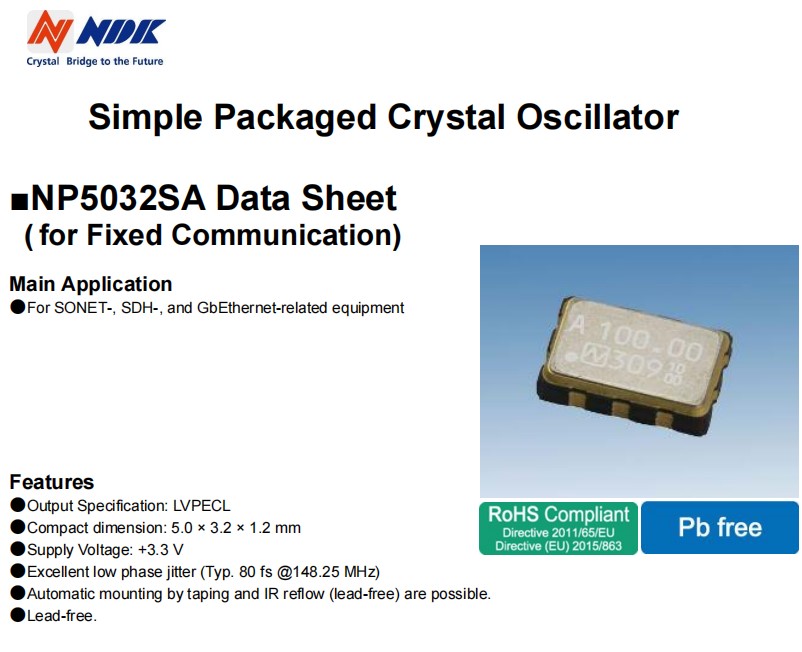

LVPECL石英晶振,NP5032SA-122.880000MHz-NSC5106A,NDK6G以太網晶振，日本電波株式會社，NDK晶振，型號：NP5032SA，編碼為：NP5032SA-122.880000MHz-NSC5106A，頻率為：122.880000 MHz，小體積晶振尺寸：5.0x3.2x1.2mm，六腳貼片晶振，LV-PECL輸出差分晶振，有源晶振，石英晶振，石英晶體振蕩器，電源電壓：+3.3V，優秀的低相位抖動(Typ。80 fs @148.25 MHz)，自動安裝通過膠帶和紅外回流（無鉛）是可能的。無鉛的。具有超小型，輕薄型，超低抖動，低功耗，低電源電壓，低相位噪聲，低耗能，低損耗，低電平等特點。NP5032SA進口晶振適用于：超聲波、SDH和gb以太網相關的設備，無線網絡、藍牙模塊，儀器儀表、SATA，SAS，光纖通信，機頂盒，路由器/交換機，光端機，藍牙模塊，物聯網等。

訂購熱線：0755-27876201

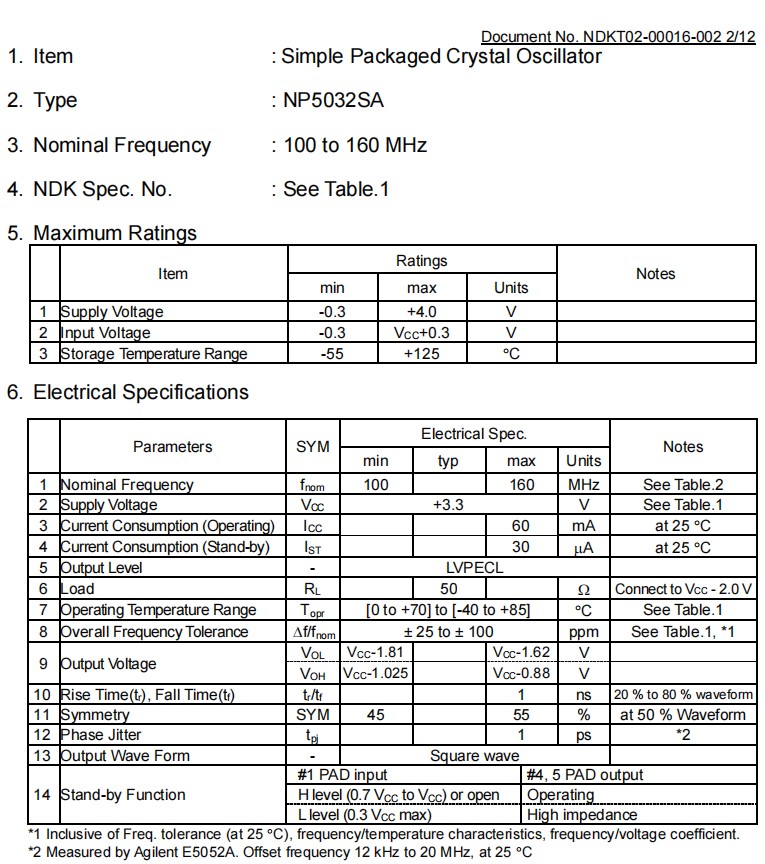

LVPECL石英晶振,NP5032SA-122.880000MHz-NSC5106A,NDK6G以太網晶振,參數表

Item	Symbol	NP5032SA			Unit
Nominal frequency range	fnom	122.880000			MHz
Package size (L×W×H)	-	5.0×3.2×1.2			mm
Supply voltage	Vcc	3.3			V
Current consumption	ICC	Max. 60			mA
Stand-by current	IST	Max. 30			μA
Output specification	-	LVPECL			-
Load	RL	50			Ω
Storage temperature range	Tstr	-55 to +125			℃
Operating temperature range	Topr	0 to +70	0 to +85	-40 to +85	℃
Overall frequency tolerance	Δf/fnom	Max. ±25	Max. ±50	Max. ±100	ppm
Output voltage	VOL	VCC-1.81 to VCC-1.62			V
Output voltage	VOH	VCC-1.025 to VCC-0.88			Δf/fnom
Rise (tr), fall (tf) time	tr/tf	Max. 1			ns
Symmetry	SYM	45 to 55			%
Phase jitter	tpj	Max. 1			ps
Specification number	-	NSC5400A	NSC5400B	NSC5400C	-

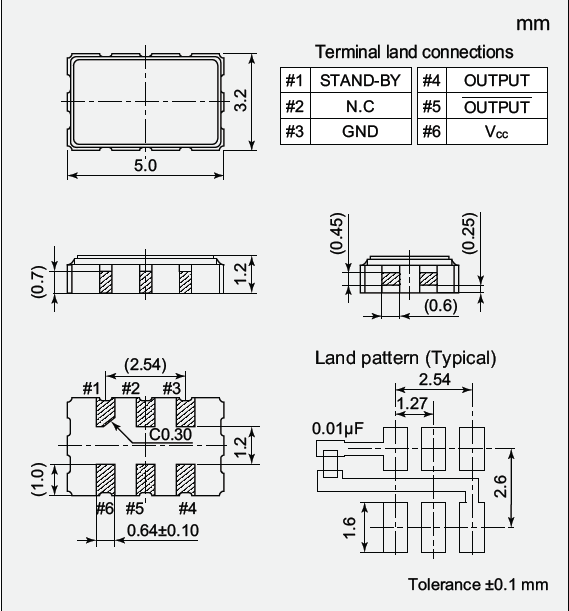

LVPECL石英晶振,NP5032SA-122.880000MHz-NSC5106A,NDK6G以太網晶振,尺寸圖

LVPECL石英晶振,NP5032SA-122.880000MHz-NSC5106A,NDK6G以太網晶振

常用的差分晶振輸出均屬于方波，輸出功率比較大，驅動能力較強，但諧波分量非常多。這兩種輸出模式是差分晶振的輸出邏輯，兩者的相位剛好相反，因此它們能夠組成更高性能的系統，同時還能消除共模噪聲。差分晶振輸出（例如PECL，LVDS，HCSL) 可以滿足高速數據傳輸，應用于高速計算機，數字通信系統，雷達，測量儀器，頻率合成器等。
