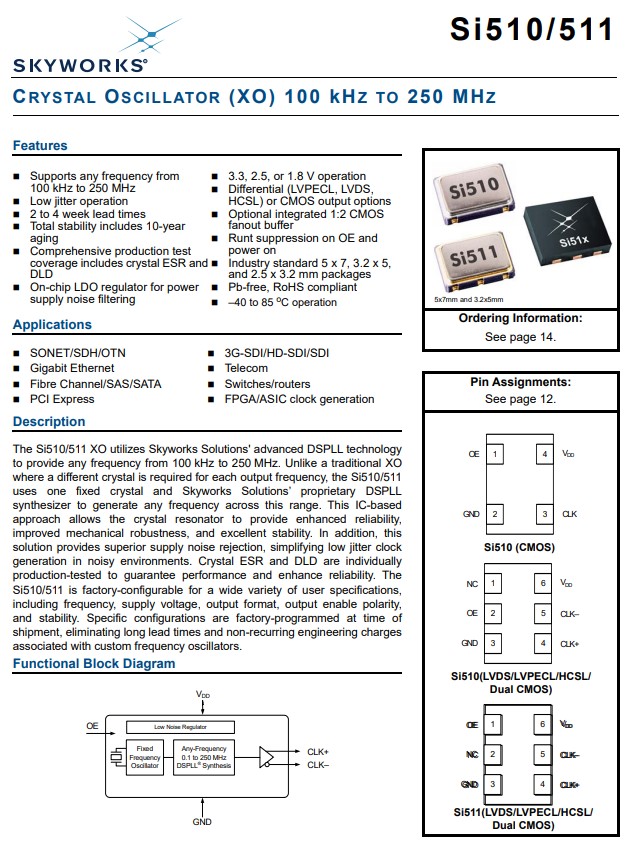

美國Silicon晶振Si510/Si511 XO采用Skyworks Solutions的先進DSPLL技術，提供從100kHz到250MHz的任何頻率。與傳統的XO不同，其中每個輸出頻率需要不同的晶體，Si510/Si511差分晶體振蕩器，使用一個固定晶體和Skyworks Solutions的專有DSPLL，合成器，以生成該范圍內的任何頻率。此IC基于，該方法允許晶體諧振器提供增強的可靠性，改進的機械堅固性和優異的穩定性。此外，該解決方案提供卓越的電源噪聲抑制，簡化了低抖動時鐘，在嘈雜的環境中生成。晶體ESR和DLD分別為，經過生產測試，以保證性能并提高可靠性。貼片晶振Si510/511在工廠可配置用于各種各樣的用戶規范，包括頻率、電源電壓、輸出格式、輸出使能極性，以及穩定性。具體配置在，裝運，消除了長交付周期和非經常性工程費用，與自定義頻率振蕩器關聯。差分晶振510ABA125M000BAG提供卓越的電源噪聲抑制
差分晶振510ABA125M000BAG提供卓越的電源噪聲抑制
原廠代碼
晶振廠家
型號
頻率
電壓
頻率穩定度
包裝/封裝
510BBA156M250BAGR
Silicon晶振
Si510
156.25MHz
3.3V
±25ppm
6-SMD, No Lead
510BBA125M000BAG
Silicon晶振
Si510
125MHz
3.3V
±25ppm
6-SMD, No Lead
510BBA200M000BAG
Silicon晶振
Si510
200MHz
3.3V
±25ppm
6-SMD, No Lead
510ABA125M000BAG
Silicon晶振
Si510
125MHz
3.3V
±25ppm
6-SMD, No Lead
510BBA156M250BAG
Silicon晶振
Si510
156.25MHz
3.3V
±25ppm
6-SMD, No Lead
510FBA200M000BAG
Silicon晶振
Si510
200MHz
2.5V
±25ppm
6-SMD, No Lead
510ABA200M000BAG
Silicon晶振
Si510
200MHz
3.3V
±25ppm
6-SMD, No Lead
510BBA156M250AAG
Silicon晶振
Si510
156.25MHz
3.3V
±25ppm
6-SMD, No Lead
510ABA156M250AAG
Silicon晶振
Si510
156.25MHz
3.3V
±25ppm
6-SMD, No Lead
510FBA125M000BAG
Silicon晶振
Si510
125MHz
2.5V
±25ppm
6-SMD, No Lead
510FBA100M000BAG
Silicon晶振
Si510
100MHz
2.5V
±25ppm
6-SMD, No Lead
510BBA106M250BAG
Silicon晶振
Si510
106.25MHz
3.3V
±25ppm
6-SMD, No Lead
510BBA100M000AAG
Silicon晶振
Si510
100MHz
3.3V
±25ppm
6-SMD, No Lead
510BBA125M000AAG
Silicon晶振
Si510
125MHz
3.3V
±25ppm
6-SMD, No Lead
510FBA148M500BAG
Silicon晶振
Si510
148.5MHz
2.5V
±25ppm
6-SMD, No Lead
510BBA148M500BAG
Silicon晶振
Si510
148.5MHz
3.3V
±25ppm
6-SMD, No Lead
510FBA156M250AAG
貼片晶振
Si510
156.25MHz
2.5V
±25ppm
6-SMD, No Lead
510FBA148M500AAG
Silicon晶振
Si510
148.5MHz
2.5V
±25ppm
6-SMD, No Lead
510BBA148M500AAG
Silicon晶振
Si510
148.5MHz
3.3V
±25ppm
6-SMD, No Lead
510ABA148M500AAG
Silicon晶振
Si510
148.5MHz
3.3V
±25ppm
6-SMD, No Lead
510DBA100M000AAG
Silicon晶振
Si510
100MHz
3.3V
±25ppm
6-SMD, No Lead
510ABA000149BAG
Silicon晶振
Si510
74.175824MHz
3.3V
±25ppm
6-SMD, No Lead
510BBA000149BAG
Silicon晶振
Si510
74.175824MHz
3.3V
±25ppm
6-SMD, No Lead
510ABA106M250BAG
Silicon晶振
Si510
106.25MHz
3.3V
±25ppm
6-SMD, No Lead
510FBA000149BAG
Silicon晶振
Si510
74.175824MHz
2.5V
±25ppm
6-SMD, No Lead
510ABA74M2500BAG
Silicon晶振
Si510
74.25MHz
3.3V
±25ppm
6-SMD, No Lead
510FBA000149AAG
Silicon晶振
Si510
74.175824MHz
2.5V
±25ppm
6-SMD, No Lead
510ABA125M000AAG
Silicon晶振
Si510
125MHz
3.3V
±25ppm
6-SMD, No Lead
510ABA106M250AAG
Silicon晶振
Si510
106.25MHz
3.3V
±25ppm
6-SMD, No Lead
510ABA74M2500AAG
Silicon晶振
Si510
74.25MHz
3.3V
±25ppm
6-SMD, No Lead
特征：支持來自的任何頻率100千赫至250兆赫，低抖動操作，2到4周的交付周期，完全穩定性包括10年老化，綜合生產測試 覆蓋范圍包括晶體ESR和 DLD，用于電源的片上LDO調節器 電源噪聲濾波，3.3、2.5或1.8V工作電壓，差分(LVPECL，LVDS， HCSL)或CMOS輸出選項，可選集成1:2 CMOS 扇出緩沖器，OE上的殘幀抑制和 通電，行業標準7.0x5.0mm，5.0x3.2mm，和3.2x2.5mm封裝有源晶振，無鉛，符合RoHS標準，–40至85攝氏度工作溫度。
應用于：SONET/SDH/OTN，千兆以太網，光纖通道/SAS/SATA，PCI Express，3G-SDI/HD-SDI/SDI，電信,交換機/路由器，FPGA/ASIC時鐘生成
510BBA000149AAG
Silicon晶振
Si510
74.175824MHz
3.3V
±25ppm
6-SMD, No Lead
510ABA000149AAG
Silicon晶振
Si510
74.175824MHz
3.3V
±25ppm
6-SMD, No Lead
510FBA74M2500AAG
Silicon晶振
Si510
74.25MHz
2.5V
±25ppm
6-SMD, No Lead
510BBA106M250AAG
Silicon晶振
Si510
106.25MHz
3.3V
±25ppm
6-SMD, No Lead
510BBA74M2500AAG
Silicon晶振
Si510
74.25MHz
3.3V
±25ppm
6-SMD, No Lead
510FBA106M250AAG
Silicon晶振
Si510
106.25MHz
2.5V
±25ppm
6-SMD, No Lead
510ABA155M520BAG
Silicon晶振
Si510
155.52MHz
3.3V
±25ppm
6-SMD, No Lead
510FBA155M520BAG
Silicon晶振
Si510
155.52MHz
2.5V
±25ppm
6-SMD, No Lead
510ABA000110BAG
Silicon晶振
Si510
148.35165MHz
3.3V
±25ppm
6-SMD, No Lead
510BBA000110BAG
Silicon晶振
Si510
148.35165MHz
3.3V
±25ppm
6-SMD, No Lead
510FBA000110BAG
Silicon晶振
Si510
148.35165MHz
2.5V
±25ppm
6-SMD, No Lead
510BBA155M520BAG
Silicon晶振
Si510
155.52MHz
3.3V
±25ppm
6-SMD, No Lead
510FBA155M520AAG
Silicon晶振
Si510
155.52MHz
2.5V
±25ppm
6-SMD, No Lead
510ABA000110AAG
石英貼片晶振
Si510
148.35165MHz
3.3V
±25ppm
6-SMD, No Lead
510FBA000110AAG
Silicon晶振
Si510
148.35165MHz
2.5V
±25ppm
6-SMD, No Lead
510ABA155M520AAG
Silicon晶振
Si510
155.52MHz
3.3V
±25ppm
6-SMD, No Lead
510FBA212M500BAG
Silicon晶振
Si510
212.5MHz
2.5V
±25ppm
6-SMD, No Lead
510ABA212M500BAG
Silicon晶振
Si510
212.5MHz
3.3V
±25ppm
6-SMD, No Lead
510ABA212M500AAG
Silicon晶振
Si510
212.5MHz
3.3V
±25ppm
6-SMD, No Lead
510BBA212M500AAG
Silicon晶振
Si510
212.5MHz
3.3V
±25ppm
6-SMD, No Lead
510FBA212M500AAG
Silicon晶振
Si510
212.5MHz
2.5V
±25ppm
6-SMD, No Lead
510FBA200M000AAG
Silicon晶振
Si510
200MHz
2.5V
±25ppm
6-SMD, No Lead
510EBA125M000AAG
Silicon晶振
Si510
125MHz
2.5V
±25ppm
6-SMD, No Lead
510ACA47M2500AAG
Silicon晶振
Si510
47.25MHz
3.3V
±20ppm
6-SMD, No Lead
510BCA148M500BAG
Silicon晶振
Si510
148.5MHz
3.3V
±20ppm
6-SMD, No Lead
510BBA74M2500BAG
Silicon晶振
Si510
74.25MHz
3.3V
±25ppm
6-SMD, No Lead
510BBA100M000BAG
Silicon晶振
Si510
100MHz
3.3V
±25ppm
6-SMD, No Lead
510FBA125M000AAG
Silicon晶振
Si510
125MHz
2.5V
±25ppm
6-SMD, No Lead
510ABA100M000AAG
Silicon晶振
Si510
100MHz
3.3V
±25ppm
6-SMD, No Lead
