差分晶振X1G005131003700適用于5G室內路由器應用

來源：*** 查看手機網址

掃一掃!

差分晶振X1G005131003700適用于5G室內路由器應用

掃一掃!

瀏覽：- 發布日期：2022-09-20 17:57:23【大中小】

分享到：

差分晶振是指能夠輸出差分信號的晶振，輸出差分信號使用2種相位彼此完全相反的信號，從而消除了共模噪聲,并產生一個更高性能的系統。

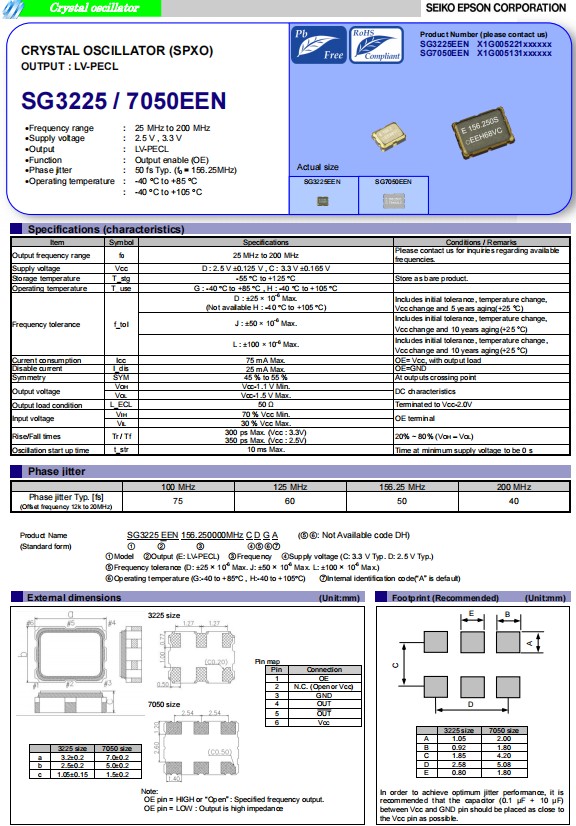

愛普生晶振SG7050EEN，是一款LV-PECL輸出差分晶體振蕩器，小體積尺寸7.0x5.0mm有源晶振，六腳貼片晶振，電源電壓2.5V,3.3V，寬頻率范圍25MHz至200MHz，任意一頻點具有低電源電壓，滿足產品低消耗電流特點，該產品具有小體積輕薄型，低抖動，低功耗，低損耗，低耗能，低電平，低相位噪聲等特點，能夠輕易識別網絡信號以及精確的處理雙極信號.被廣泛應用于5G通訊設備、機頂盒、光端機、安防設備、路由器/交換機、儀器儀表、SATA，SAS，光纖通信，10G以太網及各種頻率控制設備上。

差分晶振X1G005131003700適用于5G室內路由器應用

產品編碼	型號	頻率	有源晶振	輸出波	電源電壓	工作溫度
X1G005131000100	SG7050EEN	100.000000MHz	7.00x5.00x1.70mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G005131000200	SG7050EEN	125.000000MHz	7.00x5.00x1.70mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G005131000500	SG7050EEN	156.250000MHz	7.00x5.00x1.70mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G005131000600	SG7050EEN	156.253906MHz	7.00x5.00x1.70mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G005131001000	SG7050EEN	50.000000MHz	7.00x5.00x1.70mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G005131001200	SG7050EEN	50.000000MHz	7.00x5.00x1.70mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G005131001400	SG7050EEN	156.253906MHz	7.00x5.00x1.70mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G005131001700	SG7050EEN	156.250000MHz	7.00x5.00x1.70mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G005131001800	SG7050EEN	156.250000MHz	7.00x5.00x1.70mm	LV-PECL	3.135 to 3.465 V	-40 to 105 °C
X1G005131001900	SG7050EEN	156.253906MHz	7.00x5.00x1.70mm	LV-PECL	3.135 to 3.465 V	-40 to 105 °C
X1G005131002000	SG7050EEN	122.880000MHz	7.00x5.00x1.70mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G005131002100	SG7050EEN	125.000000MHz	7.00x5.00x1.70mm	LV-PECL	3.135 to 3.465 V	-40 to 105 °C
X1G005131002200	SG7050EEN	125.000000MHz	7.00x5.00x1.70mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G005131002500	SG7050EEN	200.000000MHz	7.00x5.00x1.70mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C

X1G005131003000	SG7050EEN	25.000000MHz	7.00x5.00x1.70mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G005131003200	SG7050EEN	95.000000MHz	7.00x5.00x1.70mm	LV-PECL	3.135 to 3.465 V	-40 to 105 °C
X1G005131003300	SG7050EEN	200.000000MHz	7.00x5.00x1.70mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G005131003400	SG7050EEN	155.520000MHz	7.00x5.00x1.70mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G005131003600	SG7050EEN	100.000000MHz	7.00x5.00x1.70mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G005131003700	SG7050EEN	150.000000MHz	7.00x5.00x1.70mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G005131003800	SG7050EEN	25.000000MHz	7.00x5.00x1.70mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G005131100500	SG7050EEN	156.250000MHz	7.00x5.00x1.70mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C
X1G005131100700	SG7050EEN	50.000000MHz	7.00x5.00x1.70mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C
X1G005131100900	SG7050EEN	100.000000MHz	7.00x5.00x1.70mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C
X1G005551000100	SG7050EEN	212.500000MHz	7.00x5.00x1.70mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G005551000200	SG7050EEN	312.500000MHz	7.00x5.00x1.70mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C

差分晶振X1G005131003700適用于5G室內路由器應用

差分晶振是普通貼片晶振所不能夠達到的,差分晶振具有低電平,低抖動,低功耗等特性.差分晶振作為目前行業中高要求,高技術石英晶體振蕩器,具有相位低,損耗低的特點,愛普生差分晶振使用于產品中能夠很容易地識別小信號,能夠從容精確地處理雙級信號,對外部電磁干擾(EMI)是高度免疫的,差分石英晶振滿足市場需求,實現高頻高精度等要求,更加保障了各種系統參考時鐘的可靠性。
