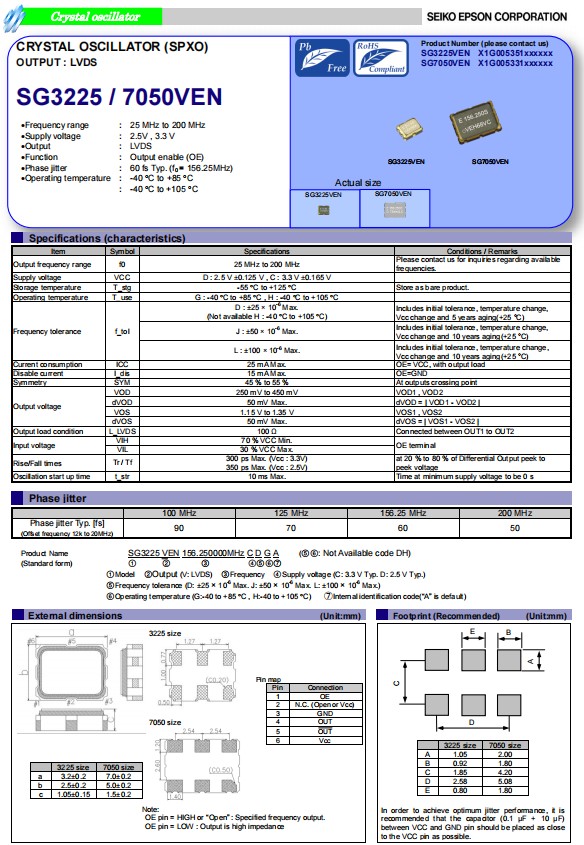

7050差分晶體振蕩器X1G005331001500專用于5G通訊設備
| 產品編碼 |
   型號
|
   頻率
|
   有源晶振
|
   輸出波
|
   電源電壓
|
   工作溫度
|
| X1G005331000100 | SG7050VEN | 100.000000MHz | 7.00x5.00x1.70mm | LVDS | 3.135 to 3.465 V | -40 to 85 °C |
| X1G005331000200 | SG7050VEN | 125.000000MHz | 7.00x5.00x1.70mm | LVDS | 3.135 to 3.465 V | -40 to 85 °C |
| X1G005331000300 | SG7050VEN | 156.250000MHz | 7.00x5.00x1.70mm | LVDS | 3.135 to 3.465 V | -40 to 85 °C |
| X1G005331000500 | SG7050VEN | 156.250000MHz | 7.00x5.00x1.70mm | LVDS | 3.135 to 3.465 V | -40 to 85 °C |
| X1G005331000600 | SG7050VEN | 27.000000MHz | 7.00x5.00x1.70mm | LVDS | 3.135 to 3.465 V | -40 to 85 °C |
| X1G005331000700 | SG7050VEN | 50.000000MHz | 7.00x5.00x1.70mm | LVDS | 3.135 to 3.465 V | -40 to 85 °C |
| X1G005331000800 | SG7050VEN | 50.001000MHz | 7.00x5.00x1.70mm | LVDS | 3.135 to 3.465 V | -40 to 85 °C |
| X1G005331000900 | SG7050VEN | 156.254000MHz | 7.00x5.00x1.70mm | LVDS | 3.135 to 3.465 V | -40 to 85 °C |
| X1G005331001000 | SG7050VEN | 156.253906MHz | 7.00x5.00x1.70mm | LVDS | 3.135 to 3.465 V | -40 to 85 °C |
| X1G005331001100 | SG7050VEN | 125.003125MHz | 7.00x5.00x1.70mm | LVDS | 3.135 to 3.465 V | -40 to 85 °C |
| X1G005331001200 | SG7050VEN | 156.250000MHz | 7.00x5.00x1.70mm | LVDS | 3.135 to 3.465 V | -40 to 105 °C |
| X1G005331001300 | SG7050VEN | 130.000000MHz | 7.00x5.00x1.70mm | LVDS | 3.135 to 3.465 V | -40 to 85 °C |
| X1G005331001400 | SG7050VEN | 80.000000MHz | 7.00x5.00x1.70mm | LVDS | 3.135 to 3.465 V | -40 to 85 °C |
| X1G005331001500 | SG7050VEN | 125.000000MHz | 7.00x5.00x1.70mm | LVDS | 3.135 to 3.465 V | -40 to 85 °C |
| X1G005331001600 | SG7050VEN | 60.000000MHz | 7.00x5.00x1.70mm | LVDS | 3.135 to 3.465 V | -40 to 85 °C |
| X1G005331100100 | SG7050VEN | 100.000000MHz | 7.00x5.00x1.70mm | LVDS | 2.375 to 2.625 V | -40 to 85 °C |
| X1G005331100200 | SG7050VEN | 125.000000MHz | 7.00x5.00x1.70mm | LVDS | 2.375 to 2.625 V | -40 to 85 °C |
| X1G005331100300 | SG7050VEN | 156.250000MHz | 7.00x5.00x1.70mm | LVDS | 2.375 to 2.625 V | -40 to 85 °C |
| X1G005331100400 | SG7050VEN | 50.000000MHz | 7.00x5.00x1.70mm | LVDS | 2.375 to 2.625 V | -40 to 85 °C |
| X1G005331100500 | SG7050VEN | 114.426000MHz | 7.00x5.00x1.70mm | LVDS | 2.375 to 2.625 V | -40 to 105 °C |
| X1G005331100600 | SG7050VEN | 156.250000MHz | 7.00x5.00x1.70mm | LVDS | 2.375 to 2.625 V | -40 to 85 °C |
| X1G005331100700 | SG7050VEN | 50.000000MHz | 7.00x5.00x1.70mm | LVDS | 2.375 to 2.625 V | -40 to 85 °C |
                        X1G005561000200
|
SG7050VEN | 312.500000MHz | 7.00x5.00x1.70mm | LVDS | 3.135 to 3.465 V | -40 to 85 °C |
| X1G005561000300 | SG7050VEN | 250.000000MHz | 7.00x5.00x1.70mm | LVDS | 3.135 to 3.465 V | -40 to 85 °C |
7050差分晶體振蕩器X1G005331001500專用于5G通訊設備
差分晶振是普通貼片晶振所不能夠達到的,差分晶振具有低電平,低抖動,低功耗等特性.差分晶振作為目前行業中高要求,高技術石英晶體振蕩器,具有相位低,損耗低的特點,愛普生差分晶振使用于產品中能夠很容易地識別小信號,能夠從容精確地處理雙級信號,對外部電磁干擾(EMI)是高度免疫的,差分石英晶振滿足市場需求,實現高頻高精度等要求,更加保障了各種系統參考時鐘的可靠性。
